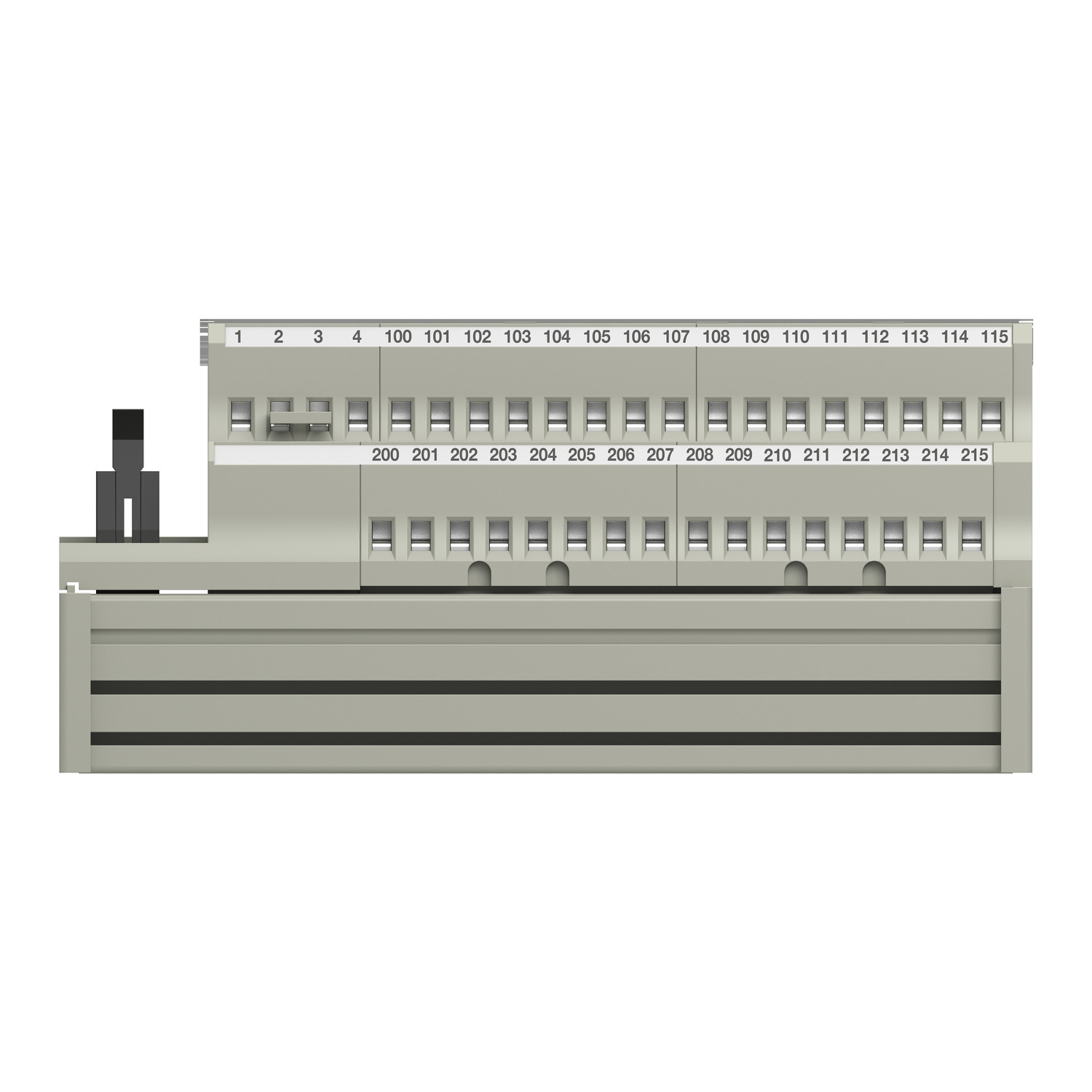

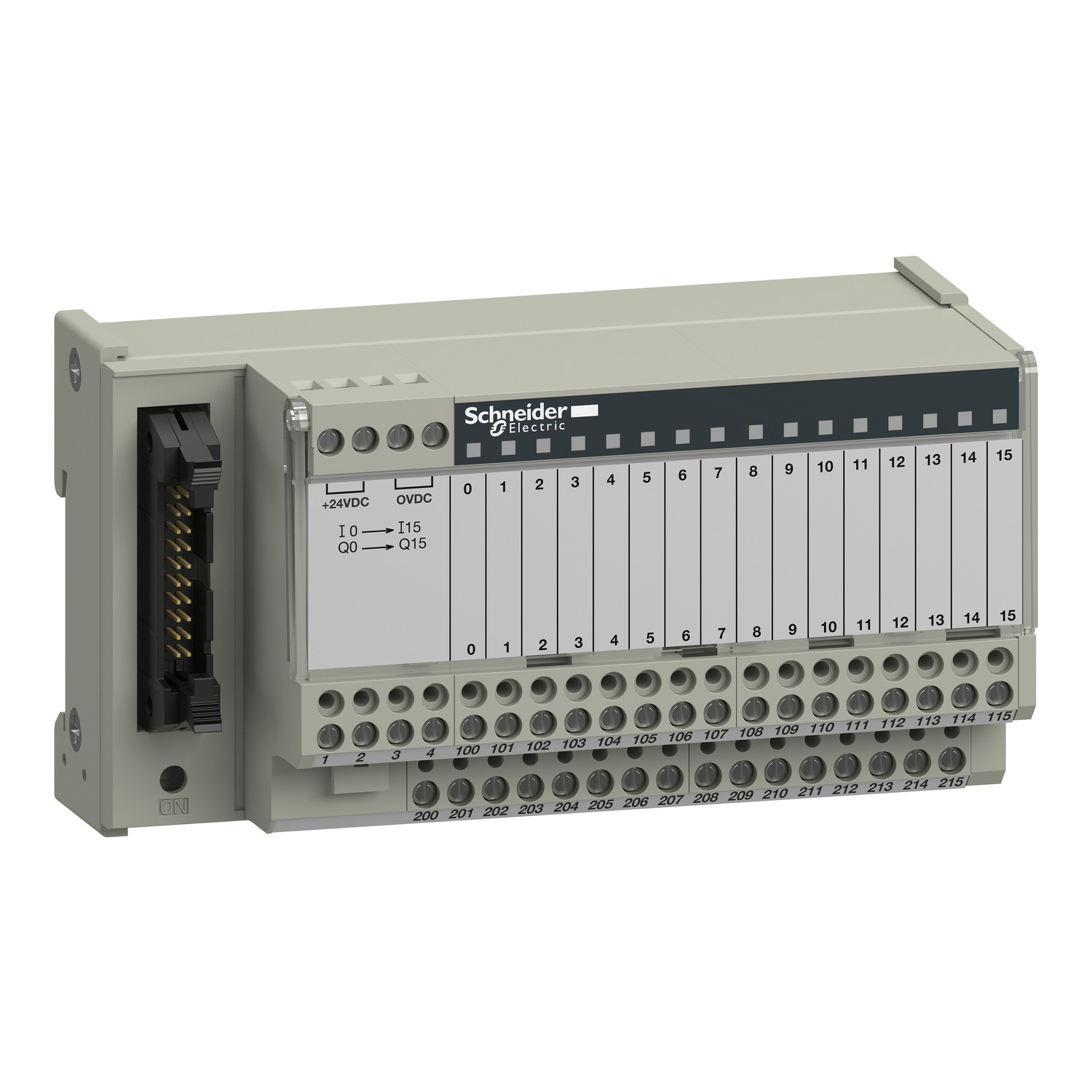

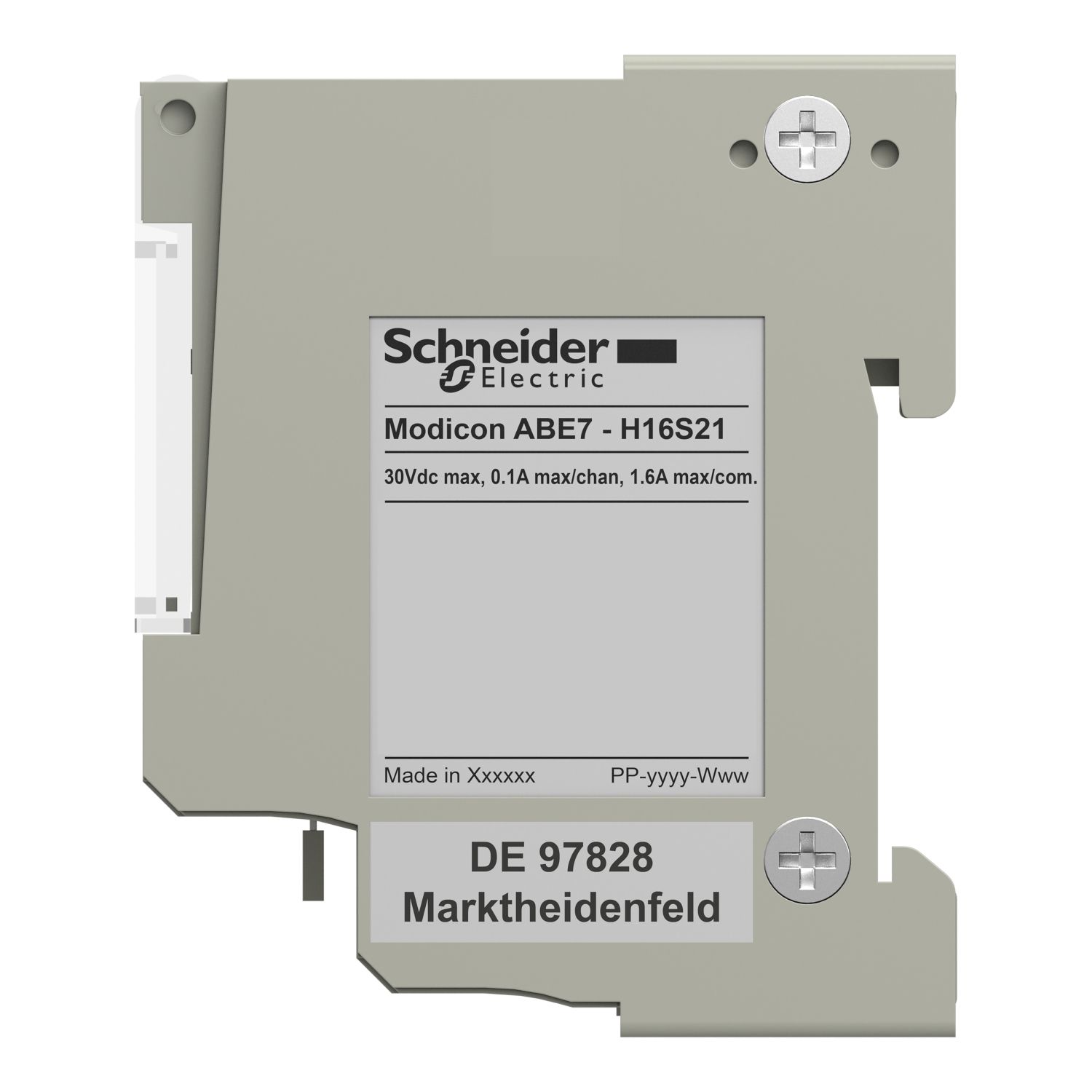

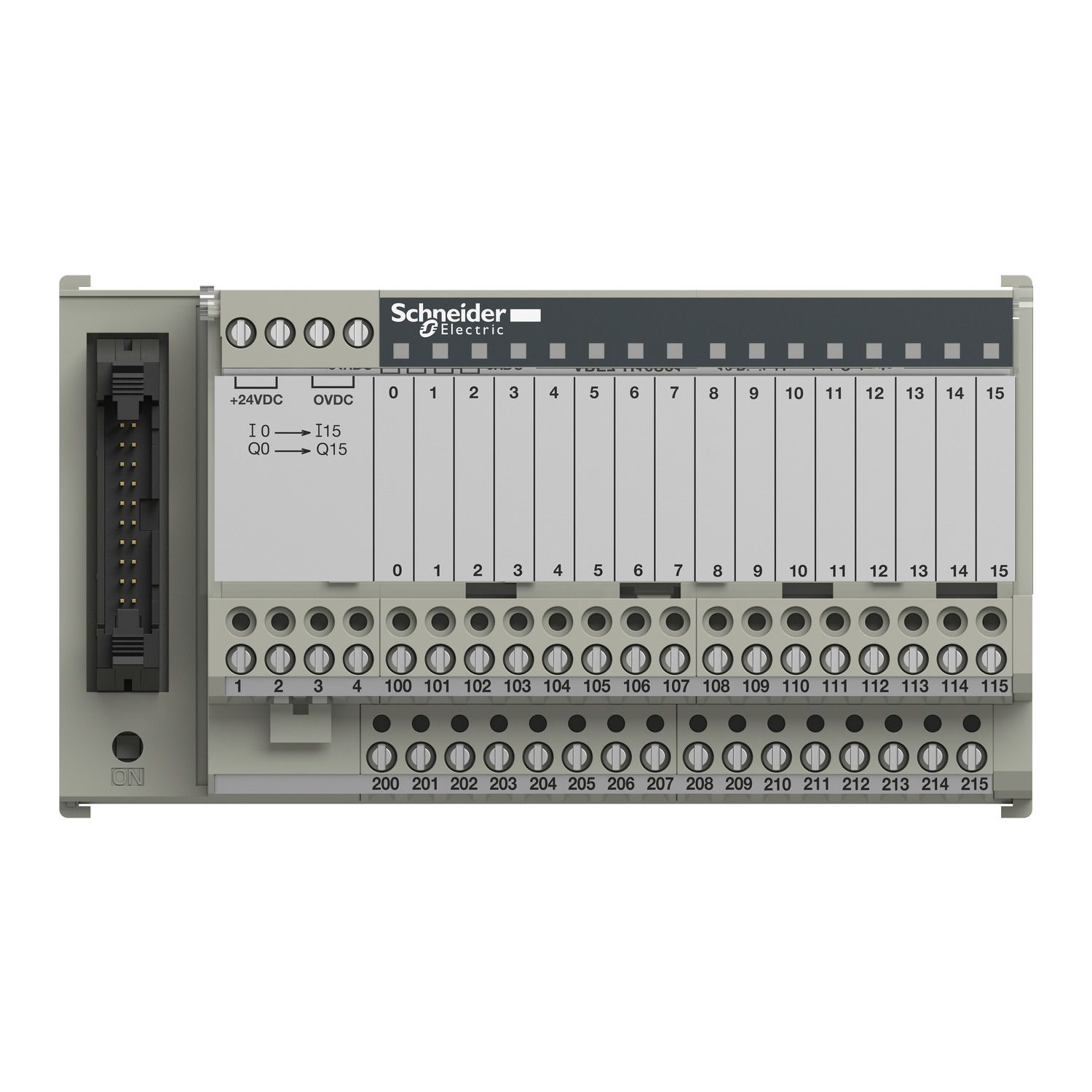

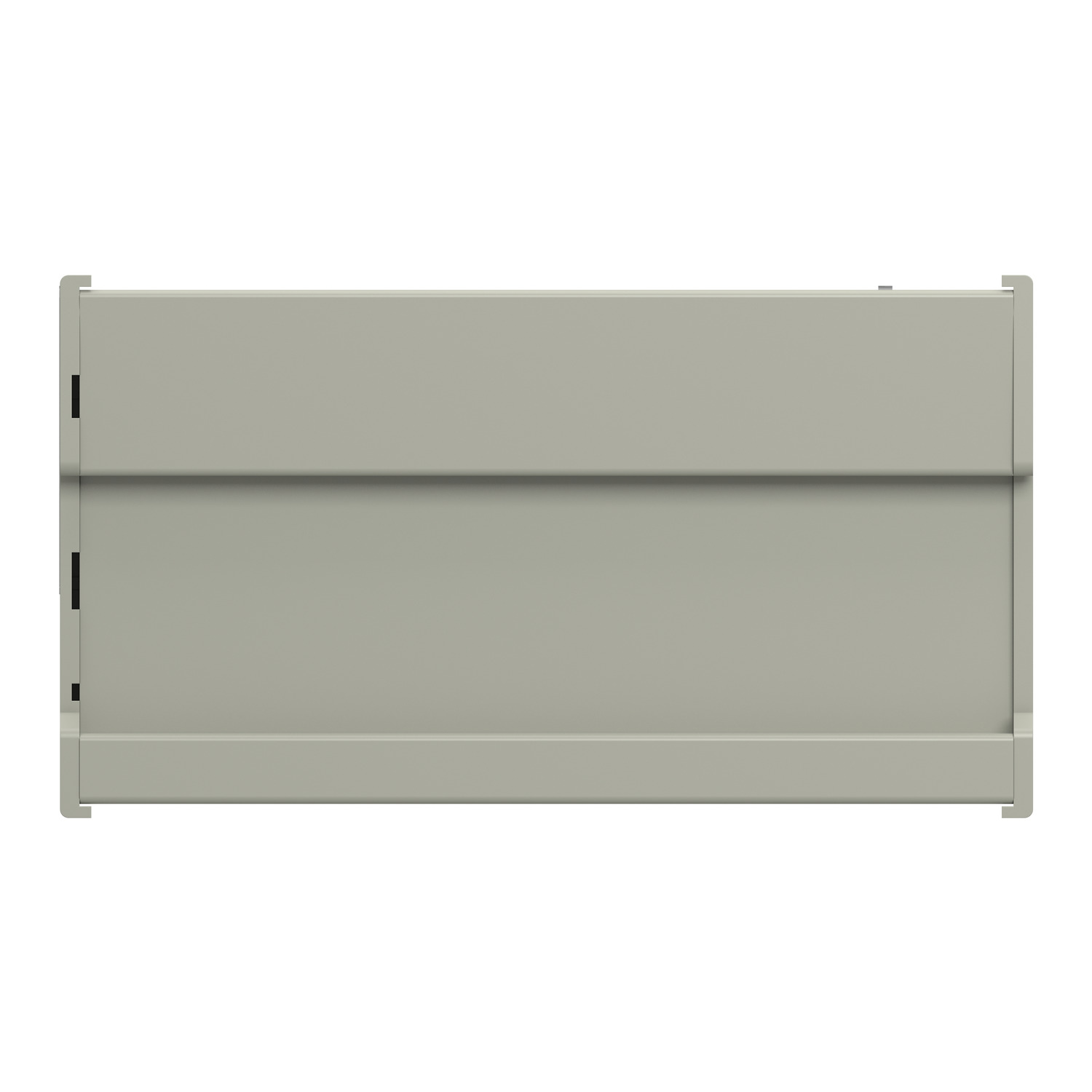

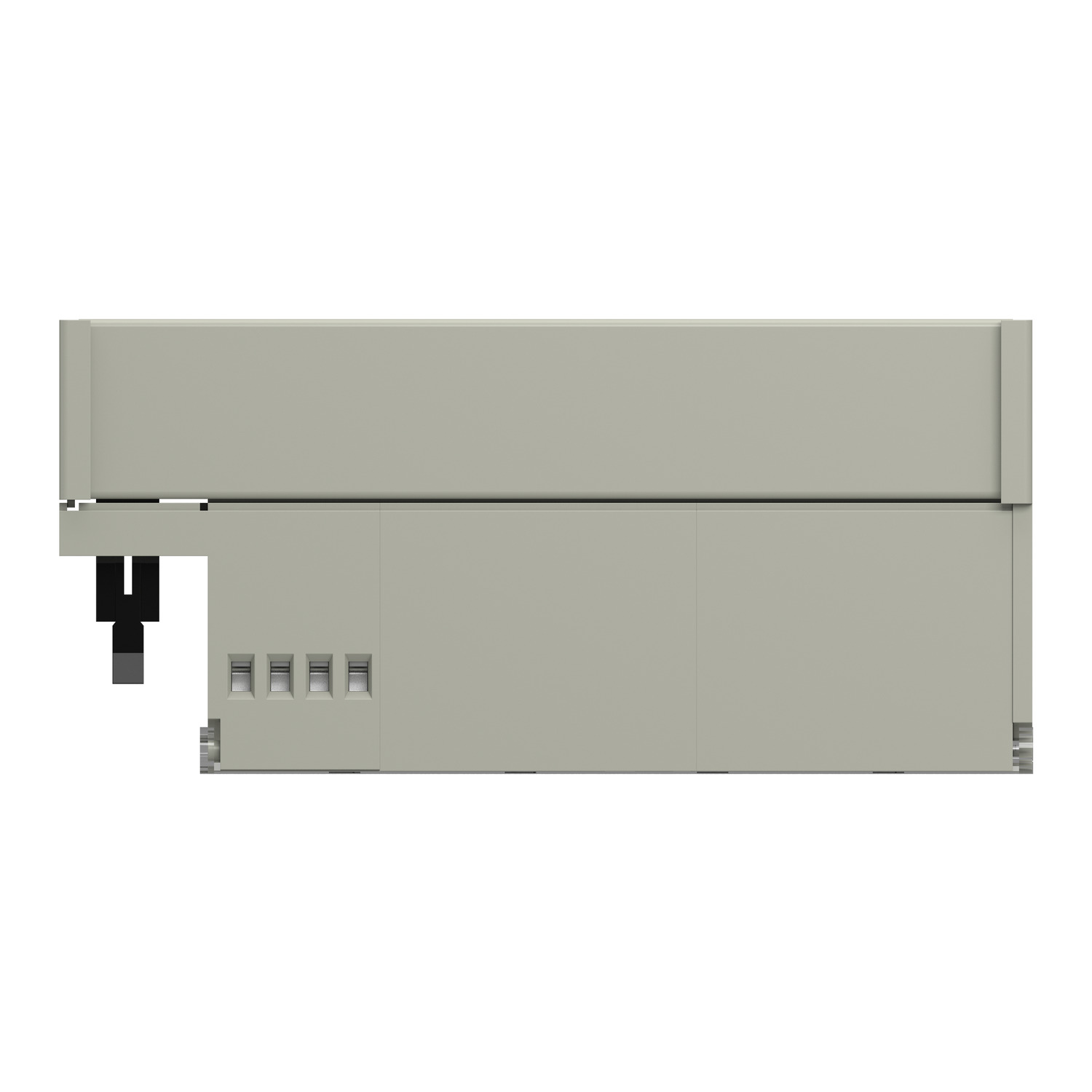

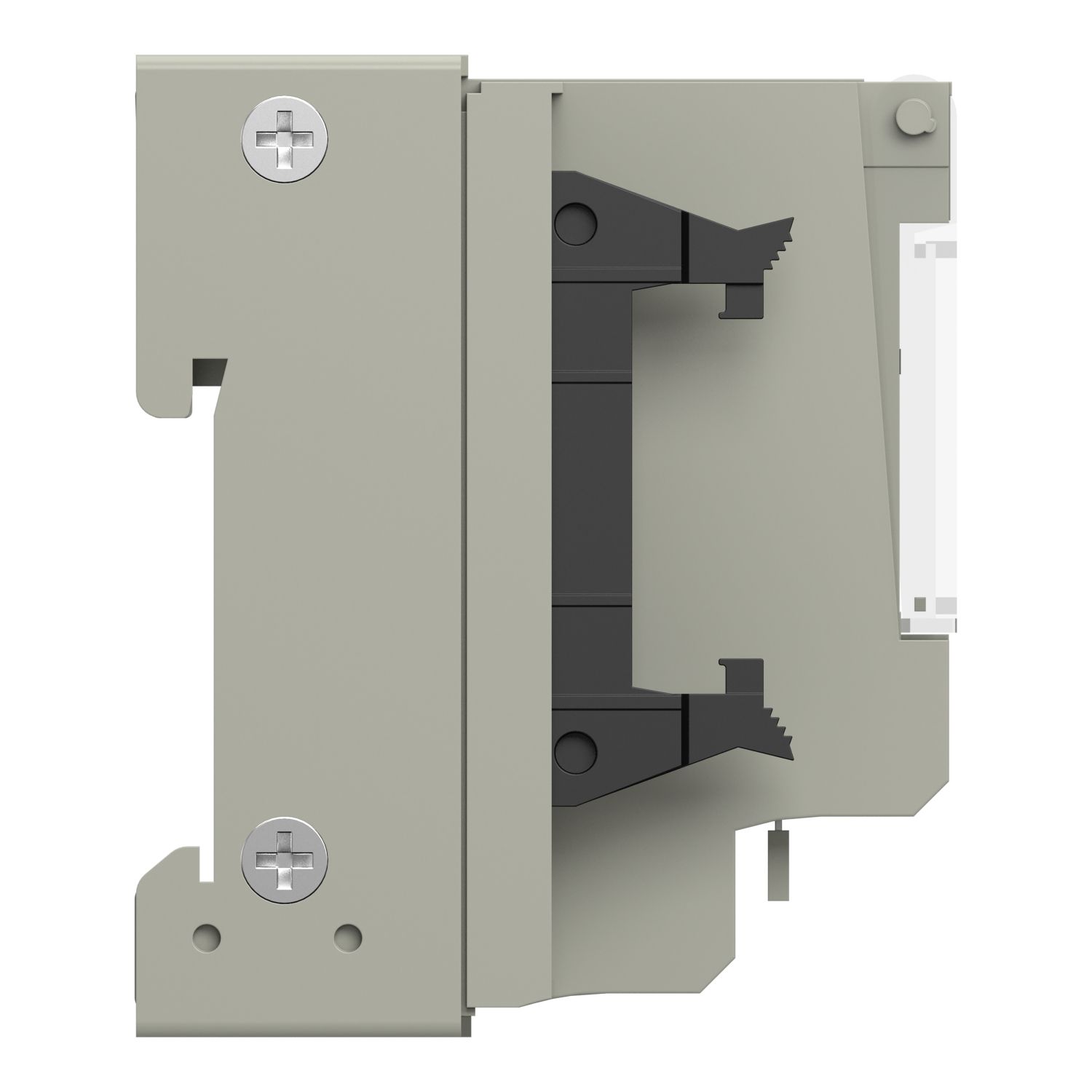

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This passive connection sub-base provides 16 modularity input/output channels and an isolator. It has 2 terminals per channel. It is a sub base with a maximum supply current of 1.8A and a rated supply voltage of 19V to 30V. It is furnished with screw clamp terminals for electrical connection. It is an IP2x rated product. Its dimension is 125mm (Width). It weighs 0.375kg. It is suitable for all types of industrial applications. This product is certified by GL, BV, CSA, UL, DNV and LROS. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Sub-base type | I/O sub-base |
| Number of channels | 16 |
| Range of product | Modicon ABE7 |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Channel additional information | 1 switch disconnector per channel |
| Connections - terminals | screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end |
| Number of terminal per channel | 2 |
| Product or component type | passive discrete I/O sub-base |
| Complementary | |
| Voltage drop on power supply fuse | 0.3 V |
| Maximum supply current | 1.8 A |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Polarity distribution | 0 V or 24 V |
| Connector type | HE-10 |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Maximum current per output common | 1.8 A |
| Installation category | II conforming to IEC 60664-1 |
| Status LED | 1 LED (green) power ON, 1 LED per channel (green) channel status |
| Current per channel | 0.5 A |
| Width | 125 mm |
| Supply circuit type | DC |
| Net weight | 0.375 kg |
| [Ui] rated insulation voltage | 2000 V |
| Number of horizontal rows | 2 |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Pin number | 20 pins |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Vibration resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, DNV, UL, CSA, GL |
Only registered users can write reviews
Related products
analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0410
analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$1,410.20 inc GST
$1,864.99 inc GST
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA
BMEAHI0812
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA
$2,838.00 inc GST
$3,753.26 inc GST
analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0810
analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$2,400.20 inc GST
$3,174.26 inc GST
analog isolated high level output module, Modicon X80, 4 HART outputs, 4 to 20mA
BMEAHO0412
analog isolated high level output module, Modicon X80, 4 HART outputs, 4 to 20mA
$2,488.20 inc GST
$3,290.64 inc GST
analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMO0410
analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$2,206.60 inc GST
$2,918.23 inc GST
analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
BMXART0414
analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
$1,731.40 inc GST
$2,289.78 inc GST
analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative
BMXART0814
analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative
$3,361.60 inc GST
$4,445.72 inc GST
analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
BMXAMO0802
analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
$2,569.60 inc GST
$3,398.30 inc GST

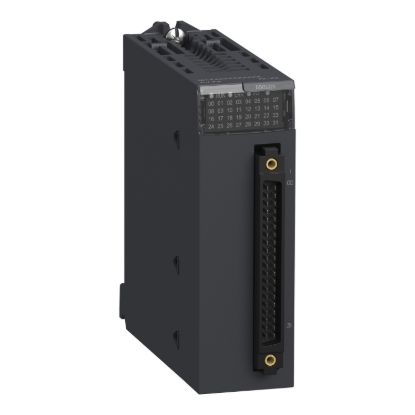

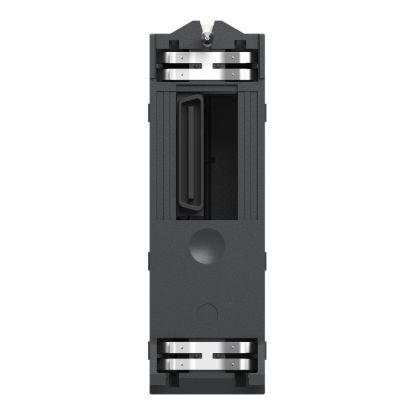

discrete input module, Modicon X80, 32 inputs, 24V DC positive
BMXDDI3202K
discrete input module, Modicon X80, 32 inputs, 24V DC positive
$1,192.40 inc GST
$1,576.95 inc GST

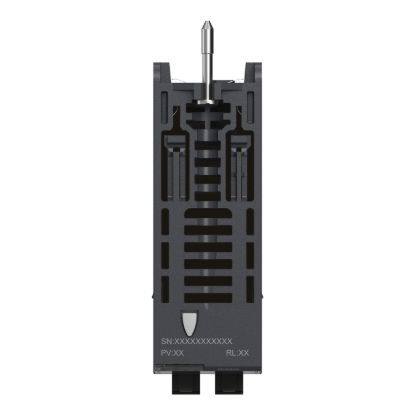

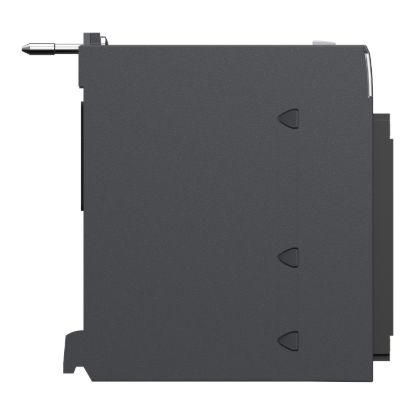

discrete input module, Modicon X80, 64 inputs, 24V DC positive
