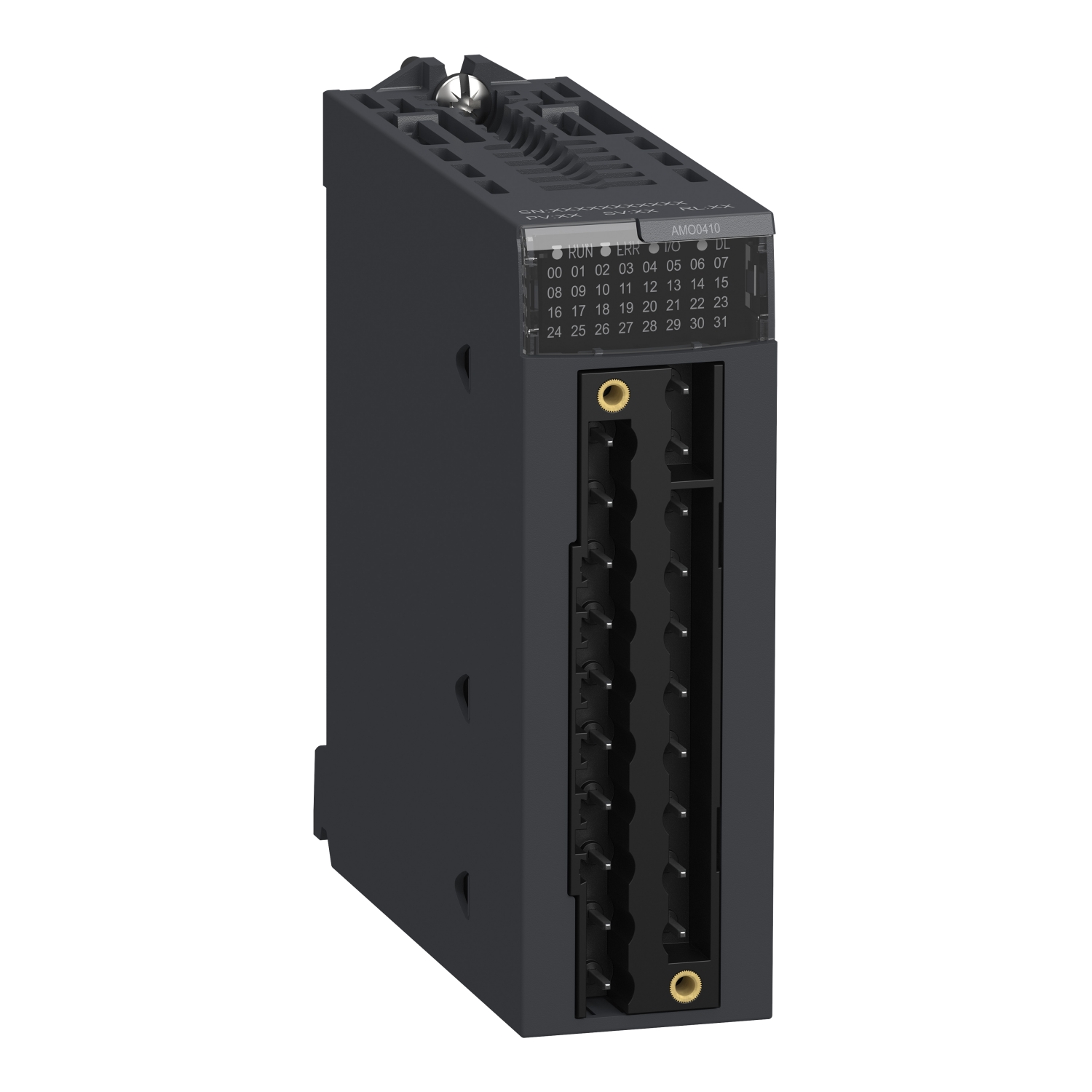

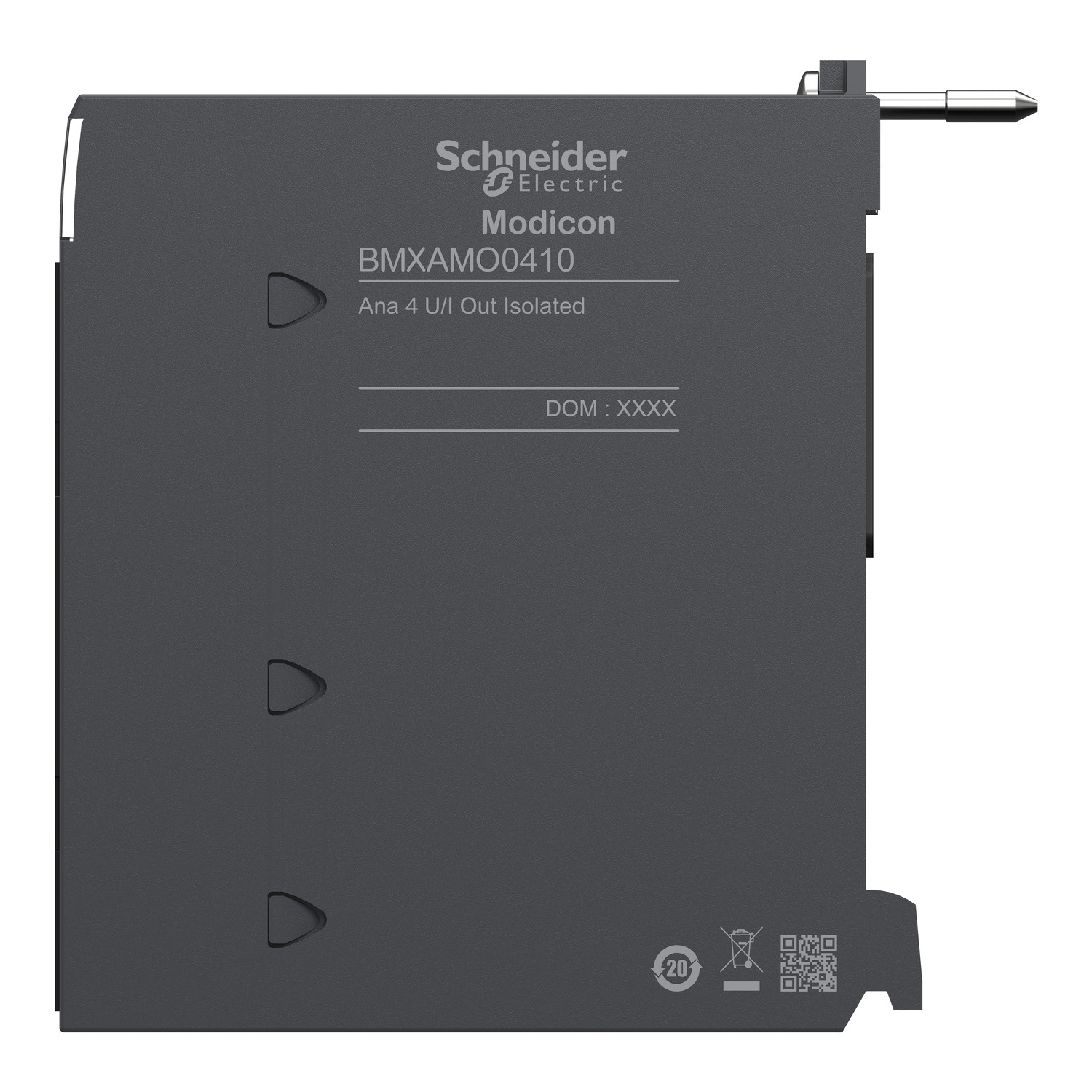

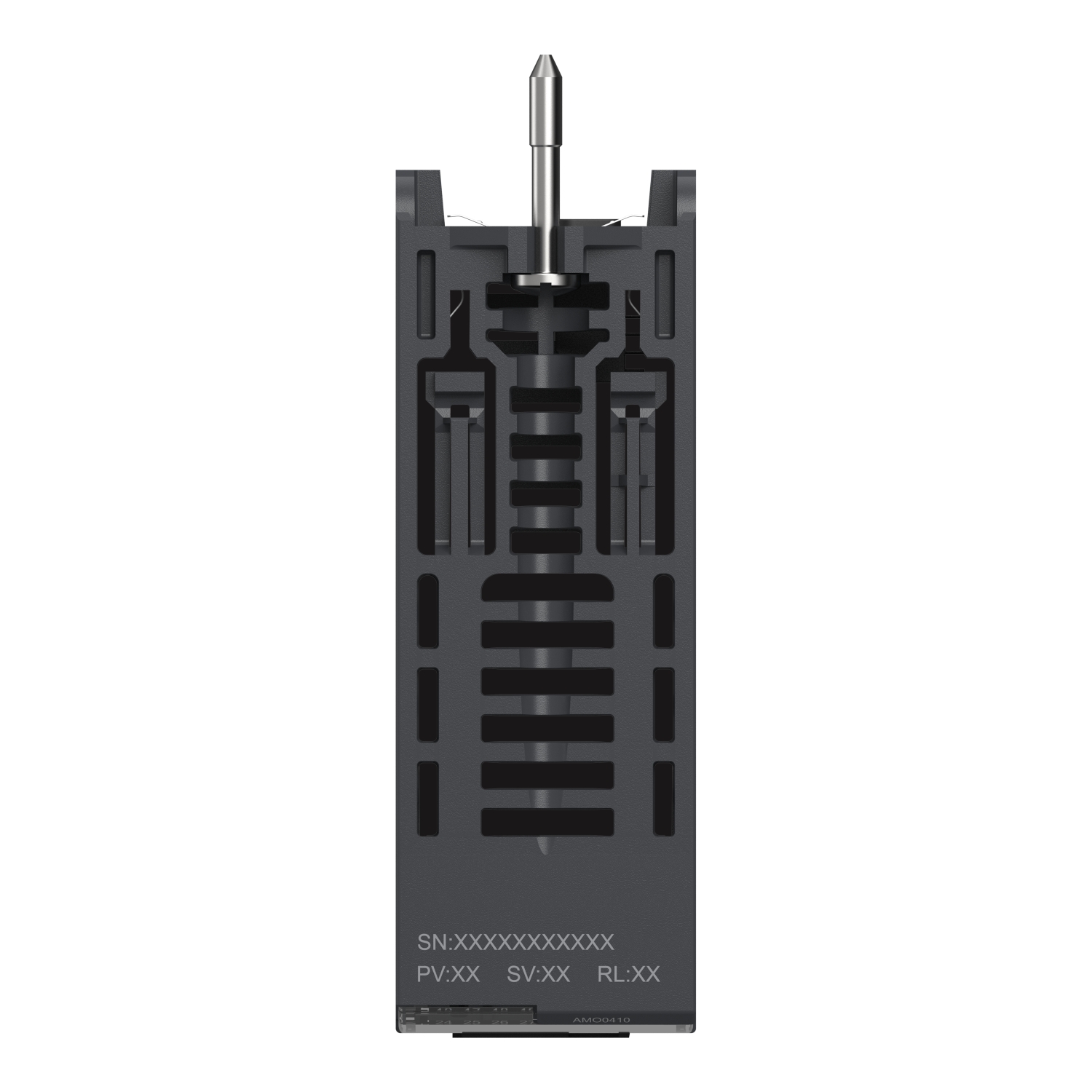

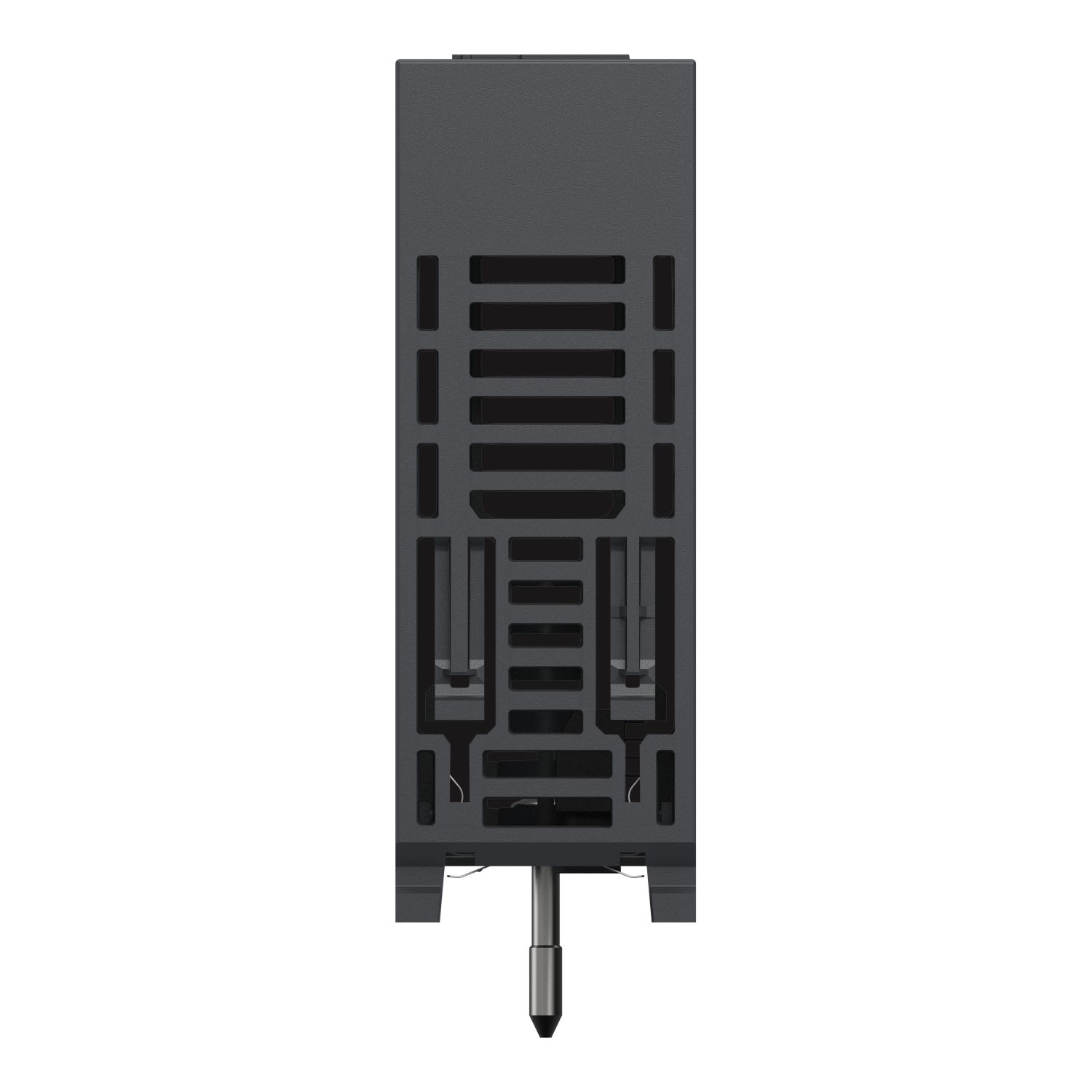

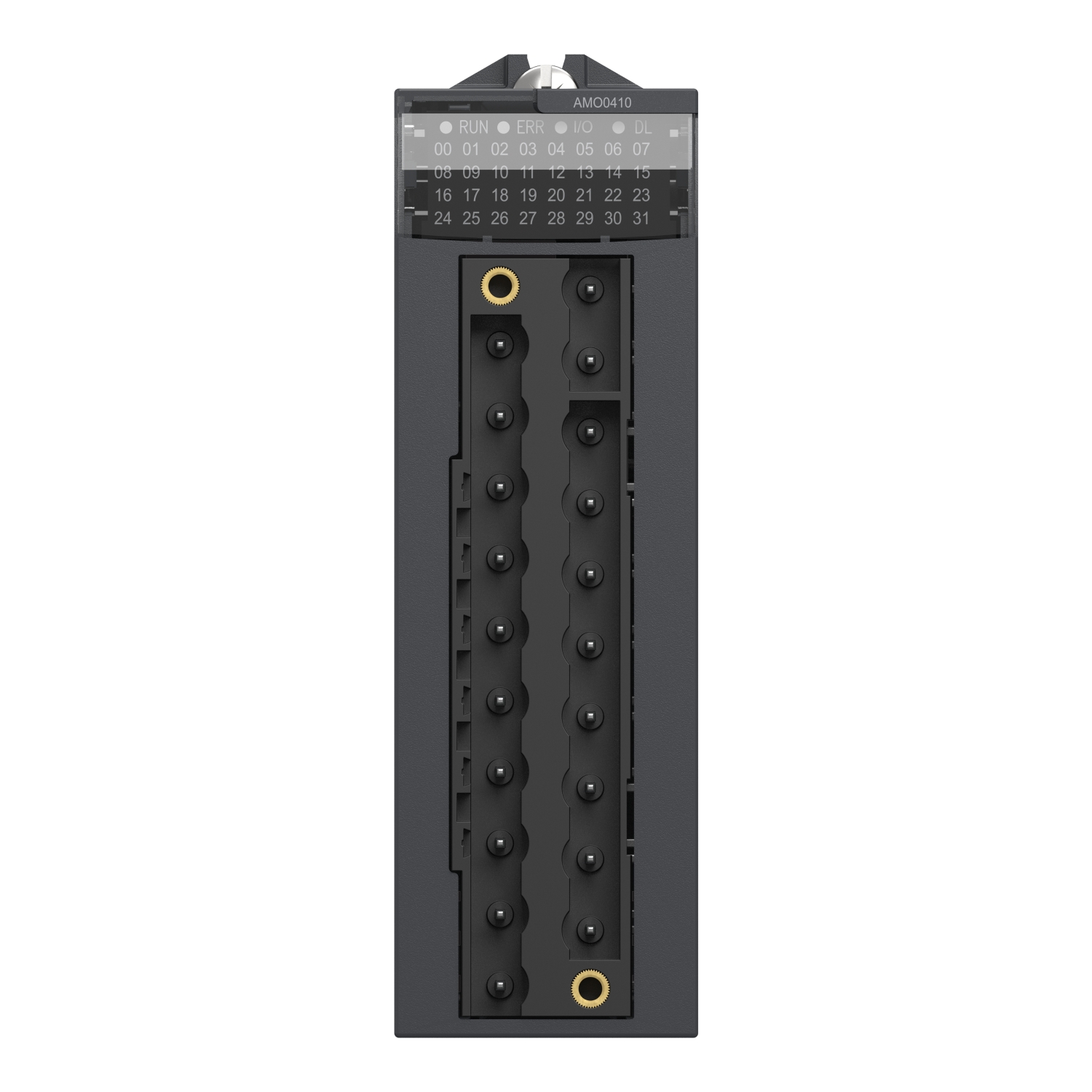

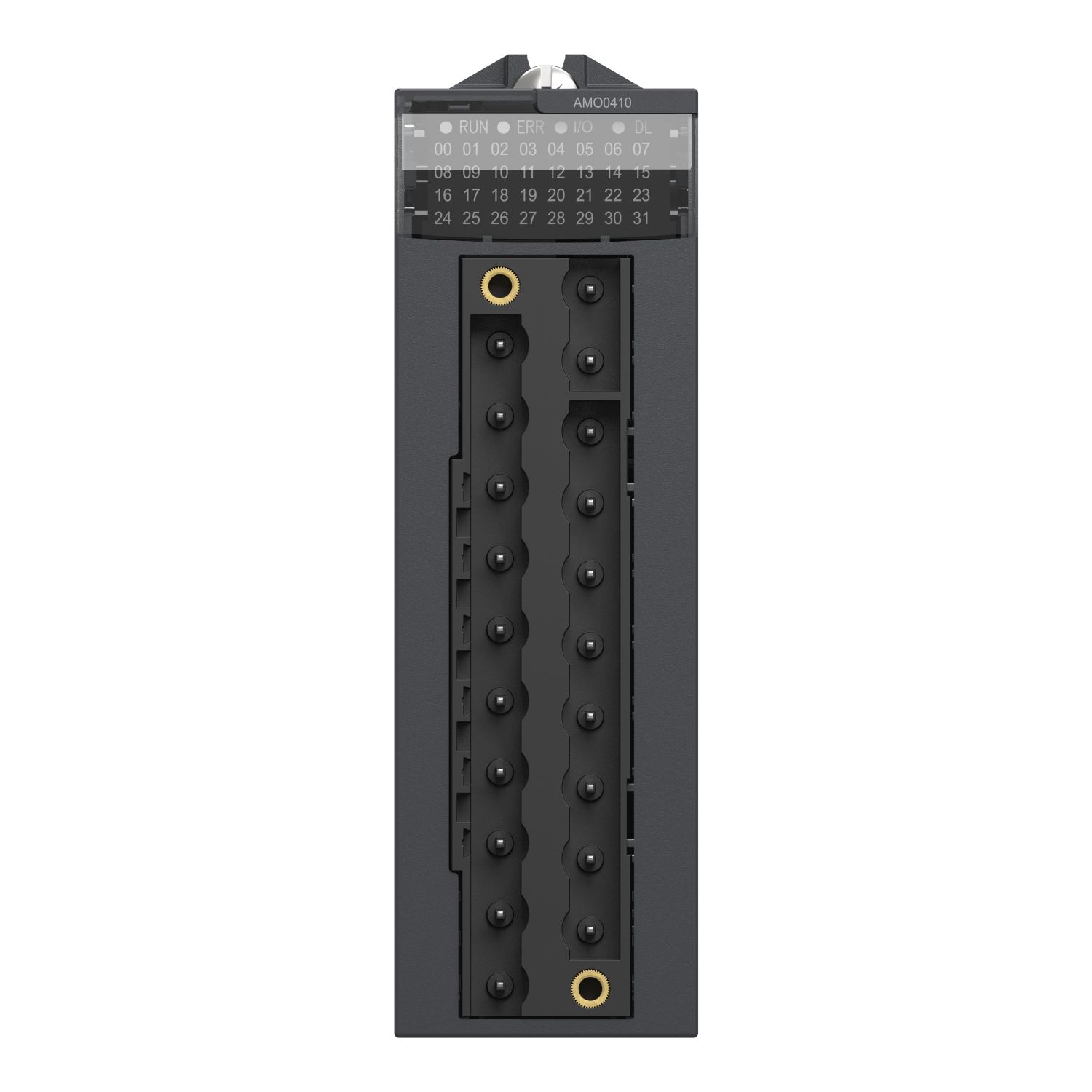

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This isolated analogue output module has 4 outputs with 15bit + sign resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input output isolation | isolated |
| Electrical connection | 20 ways 1 connector |
| Product or component type | analog output module |
| Range of product | Modicon X80 |
| Complementary | |
| Conversion time | <= 1 ms |
| Analogue output resolution | 15 bits + sign |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Detection type | short circuit +/- 10 V, open circuit 4...20 mA, open circuit 0...20 mA |
| Load impedance ohmic | <= 500 Ohm 4...20 mA, <= 500 Ohm 0...20 mA, >= 1000 Ohm +/- 10 V |
| Power consumption in W | 0.51 W 3.3 V DC maximum, 0.45 W 3.3 V DC typical, 3.6 W 24 V DC maximum, 3 W 24 V DC typical |
| Analogue output number | 4 |
| Isolation voltage | 750 V DC between channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground |
| Net weight | 0.15 kg |
| Minimum crosstalk attenuation | 80 dB |
| Current consumption | 140 mA at 24 V DC, 150 mA at 3.3 V DC |
| Supply | internal power supply via rack |
| Output level | high level |
| Common mode rejection | 100 dB |
| Analogue output type | voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA |
| Temperature drift | 45 ppm/°C 4...20 mA, 45 ppm/°C 0...20 mA, 45 ppm/°C +/- 10 V |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Maximum conversion value | +/- 10.5 V +/- 10 V, 0...21 mA 4...20 mA, 0...21 mA 0...20 mA |
| Measurement error | 0.1 % of full scale 25 °C, <= 0.2 % of full scale 0...60 °C |
| Fallback mode | predefined, configurable |
| MTBF reliability | 1000000 H |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | UL, Merchant Navy, EAC, CSA, RCM, CE |
