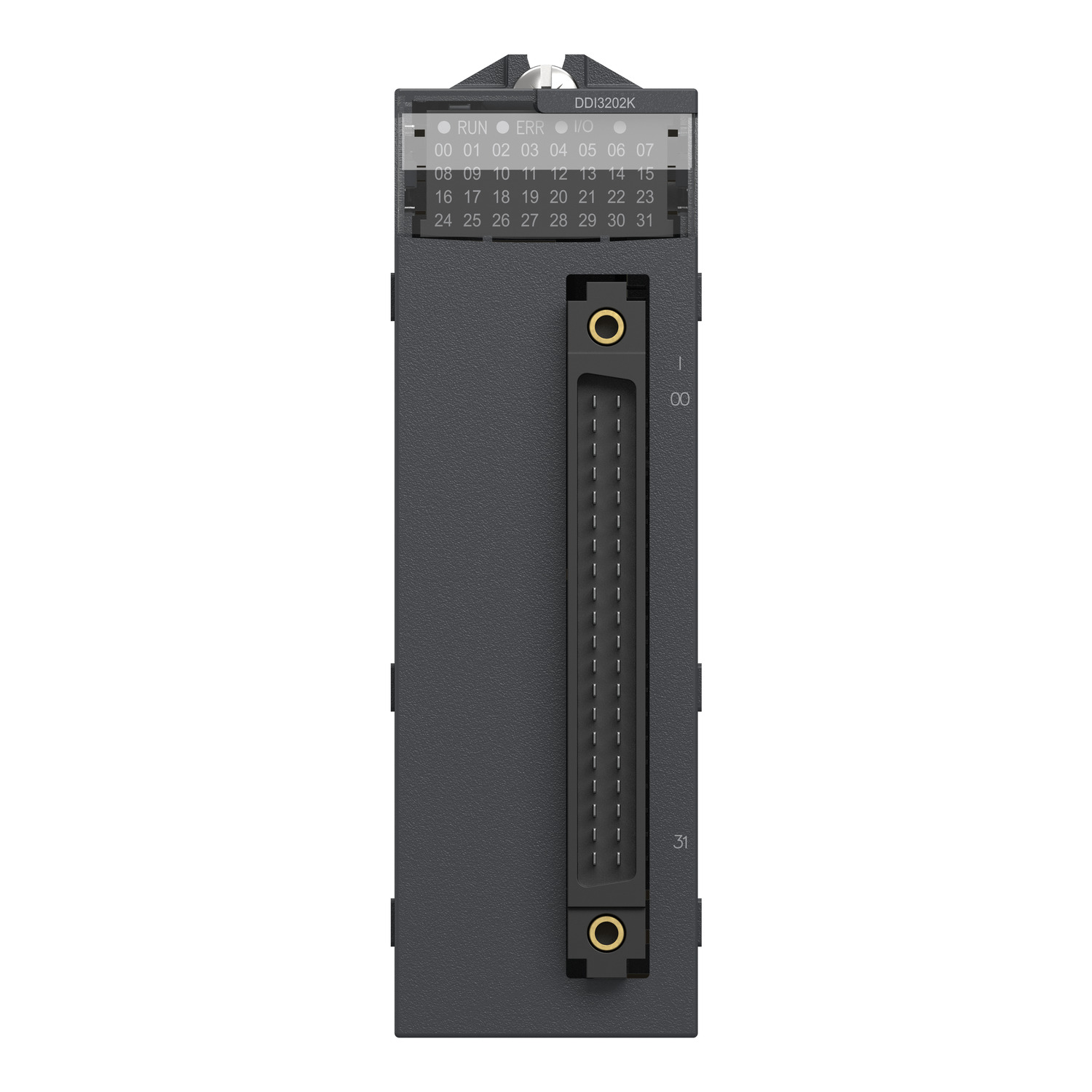

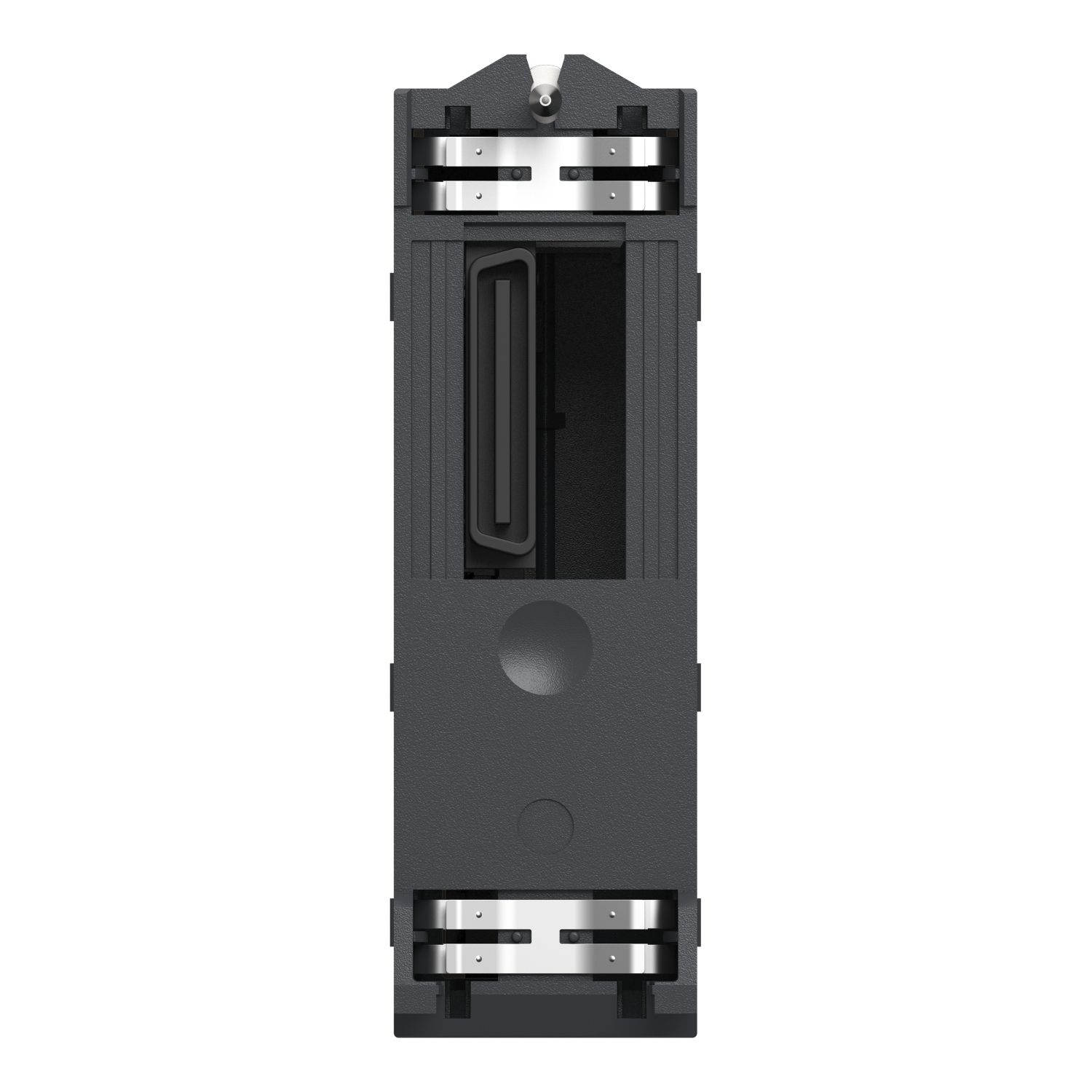

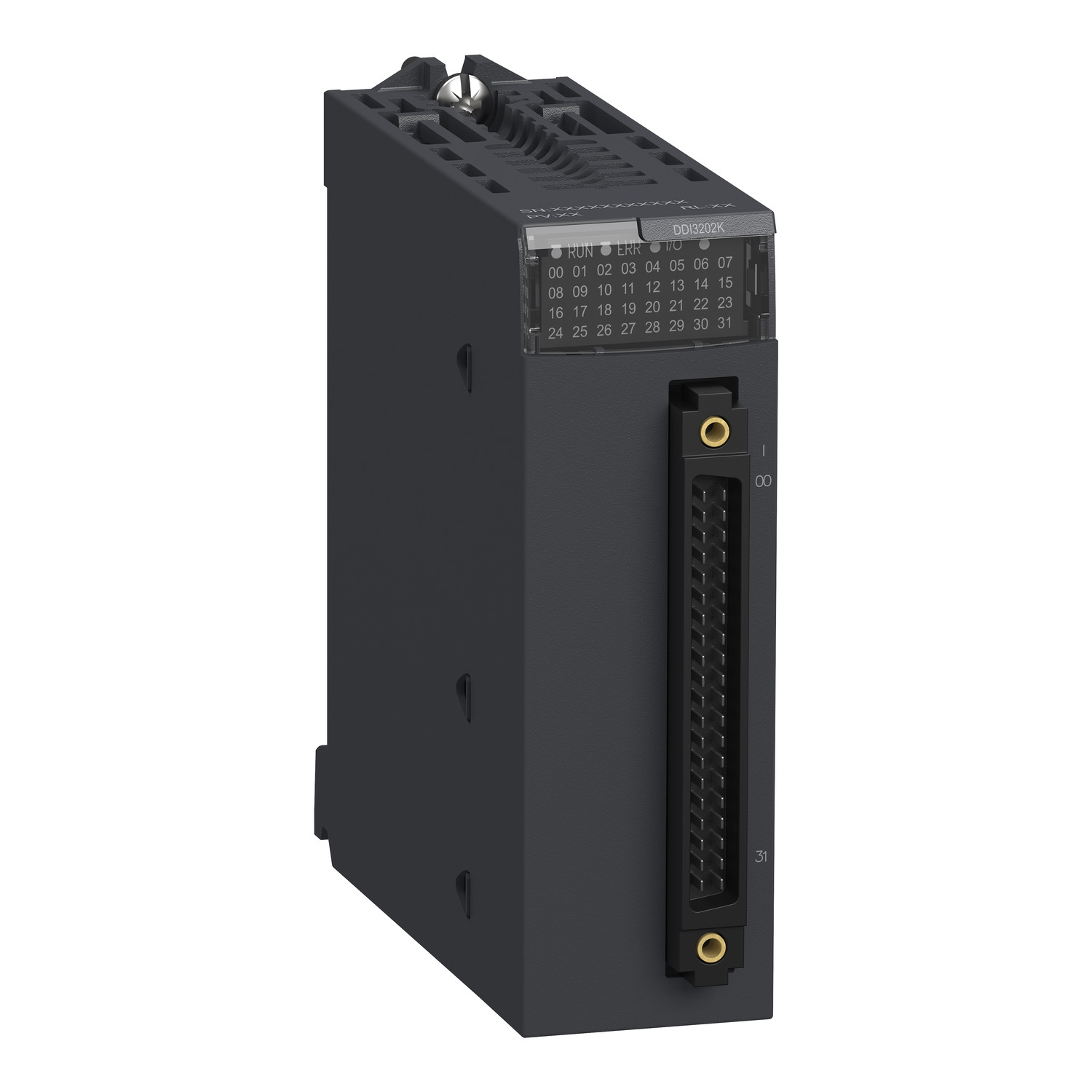

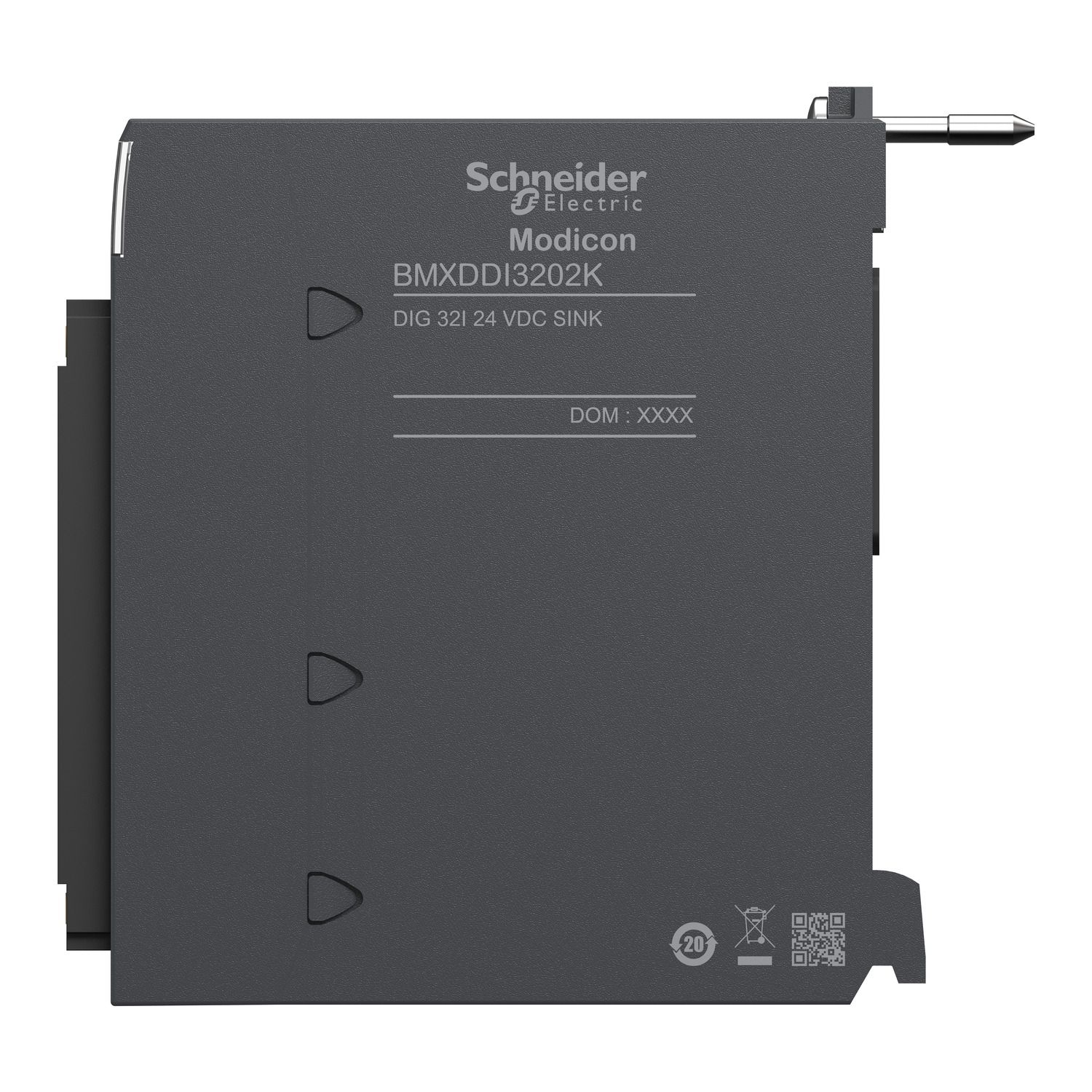

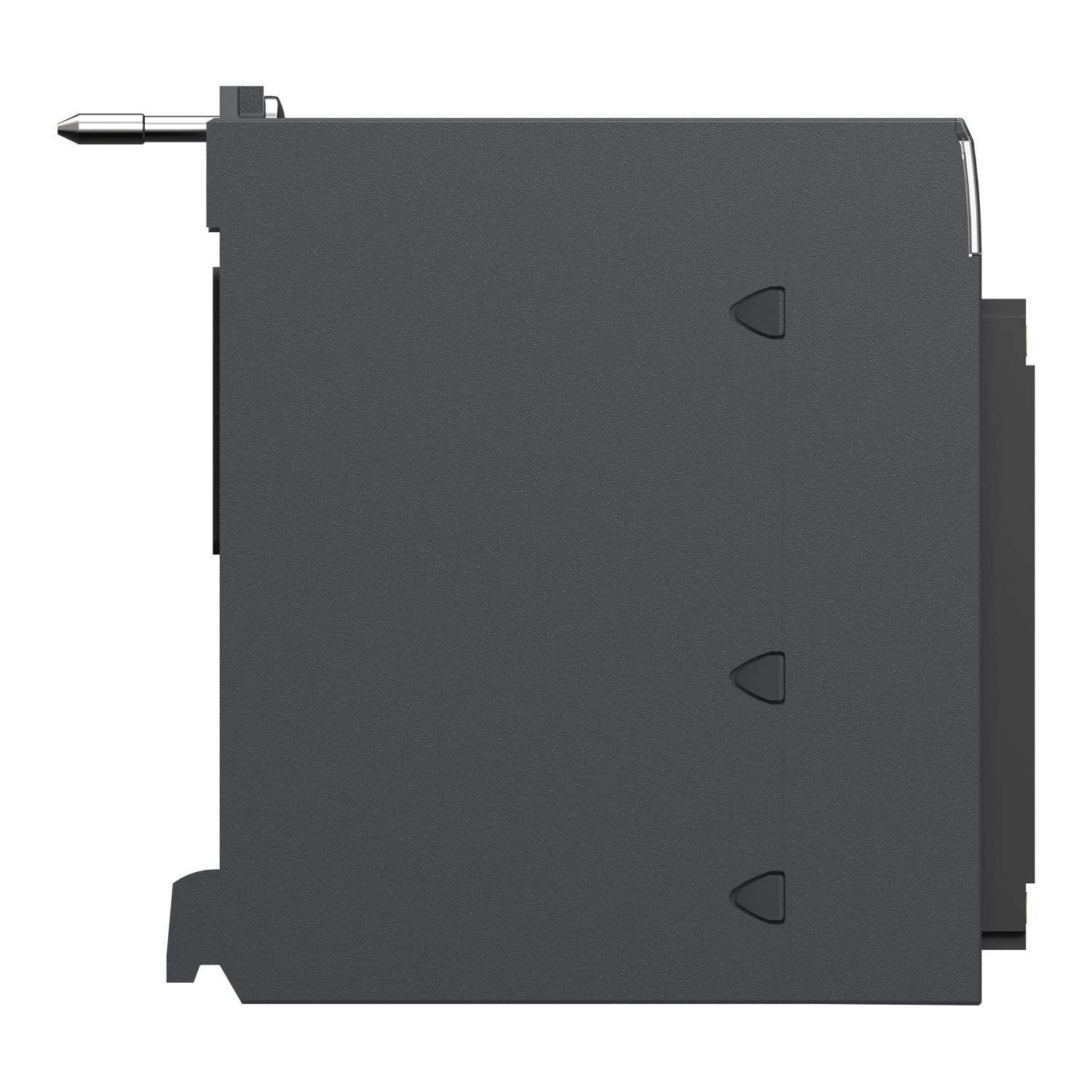

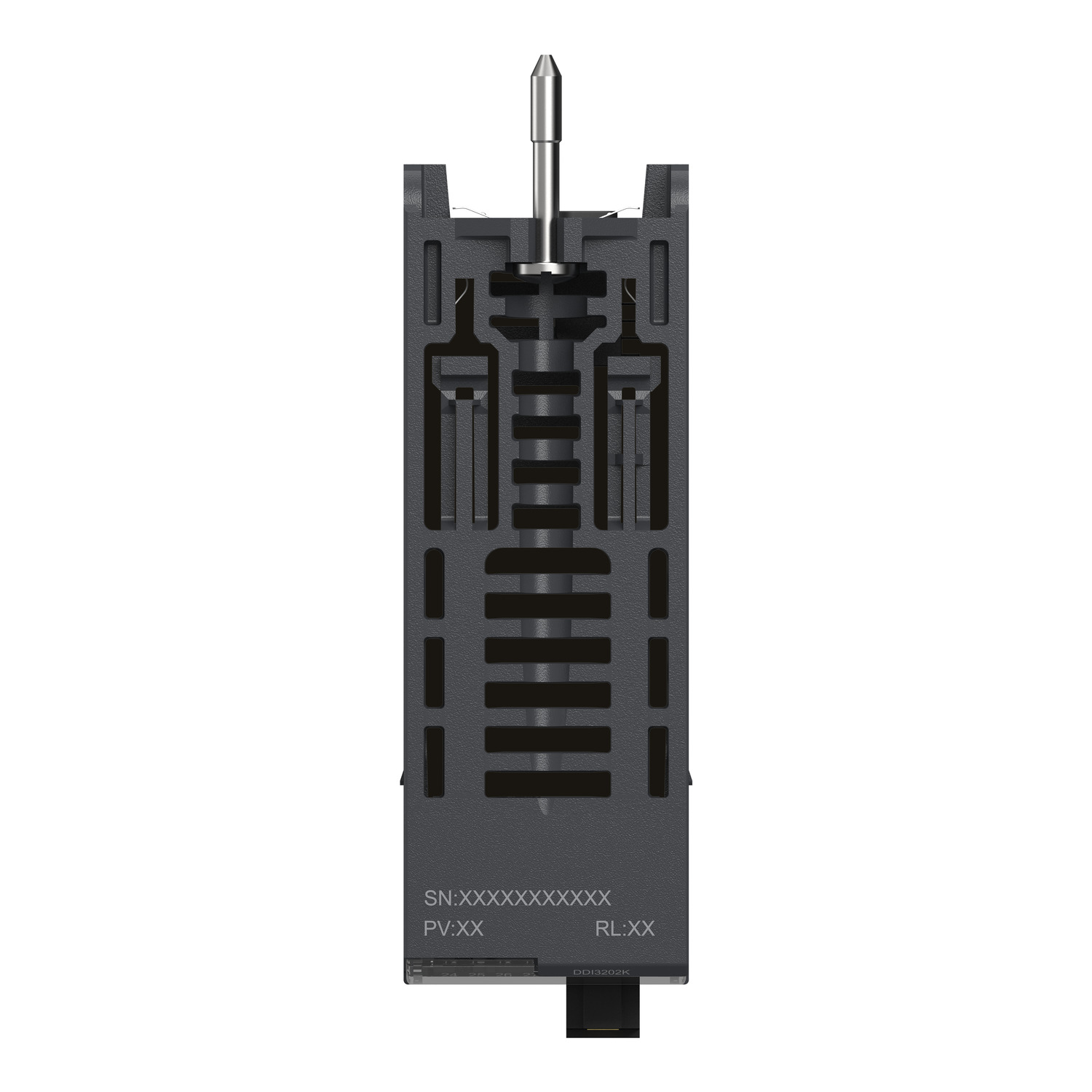

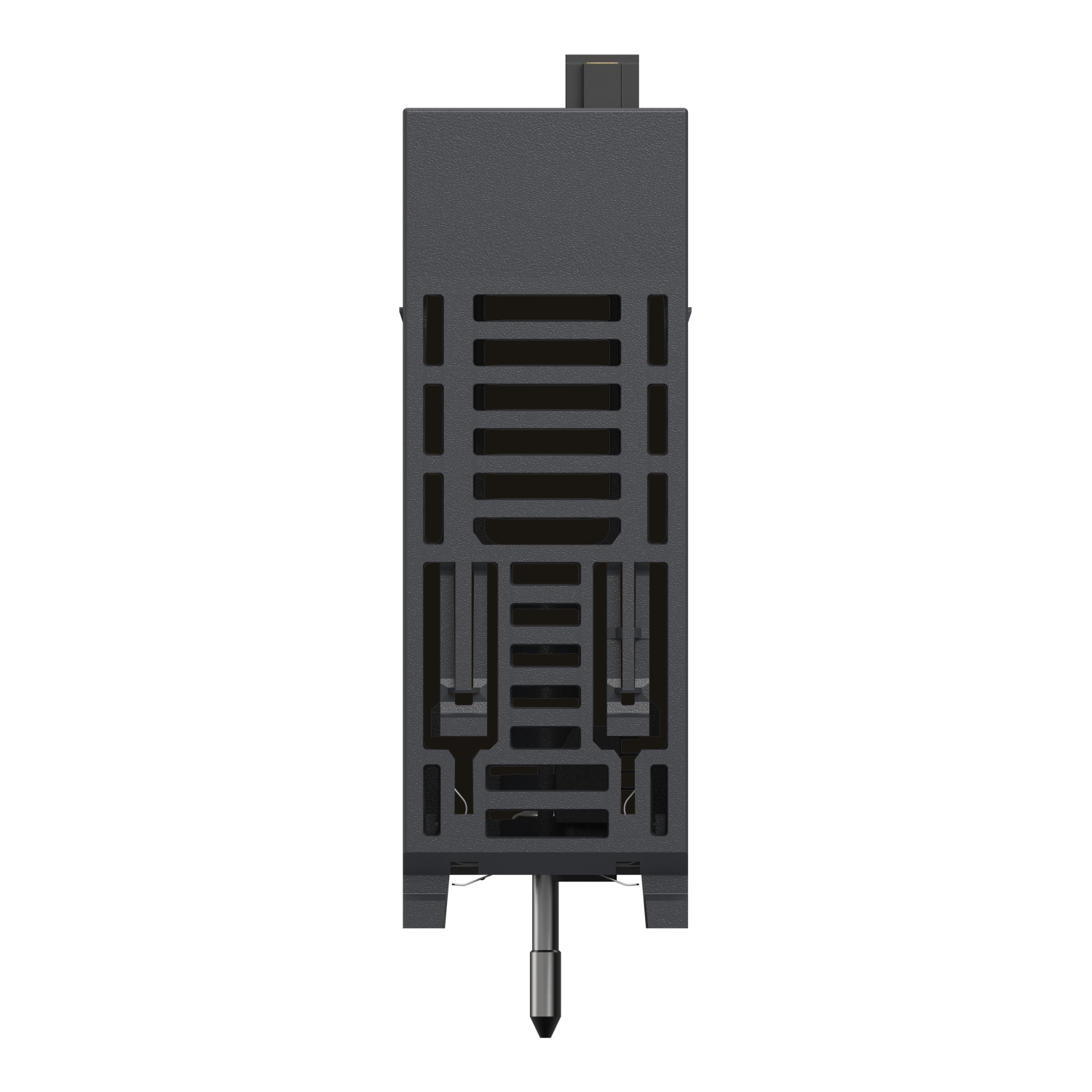

This discrete input module is part of the Modicon X80 modules. It has 32 isolated inputs and it is supplied with 24V DC. this input module with 40-way connectors is designed, for use in conjunction with the TeSys Quickfit mounting system. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input type | isolated |
| Discrete input voltage | 24 V DC, discrete input logic: positive |
| Range of product | Modicon X80 |
| Discrete input current | 2.5 mA |
| Discrete input number | 32 |
| Input type | current sink (logic positive) |
| Product or component type | discrete input module |
| Complementary | |
| DC maximum filtering time | 7 ms |
| Current state 0 guaranteed | <= 0.5 mA |
| Typical current consumption | 121 mA at 3.3 V DC |
| Input compatibility | with 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1, with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 |
| Power dissipation in W | 3.9 W |
| Protection type | reverse polarity protection, 1 external fuse per group of channel0.5 A fast blow |
| Voltage detection threshold | > 18 V DC sensor OK, < 14 V DC sensor fault |
| Status LED | 1 LED (red) module I/O, 1 LED (red) module error (ERR), 1 LED per channel (green) channel diagnostic, 1 LED (green) module operating (RUN) |
| MTBF reliability | 905000 H |
| Input impedance | 9600 Ohm |
| DC typical filtering time | 4 ms |
| Paralleling of inputs | no |
| Net weight | 0.112 kg |
| Current state 1 guaranteed | >= 2 mA |
| Insulation resistance | > 10 MOhm 500 V DC |
| Voltage range | 19...30 V |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Vibration resistance | 3 gn |
| Dielectric strength | 500 V DC 1 minute, between group of channels, 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| Shock resistance | 30 gn |
