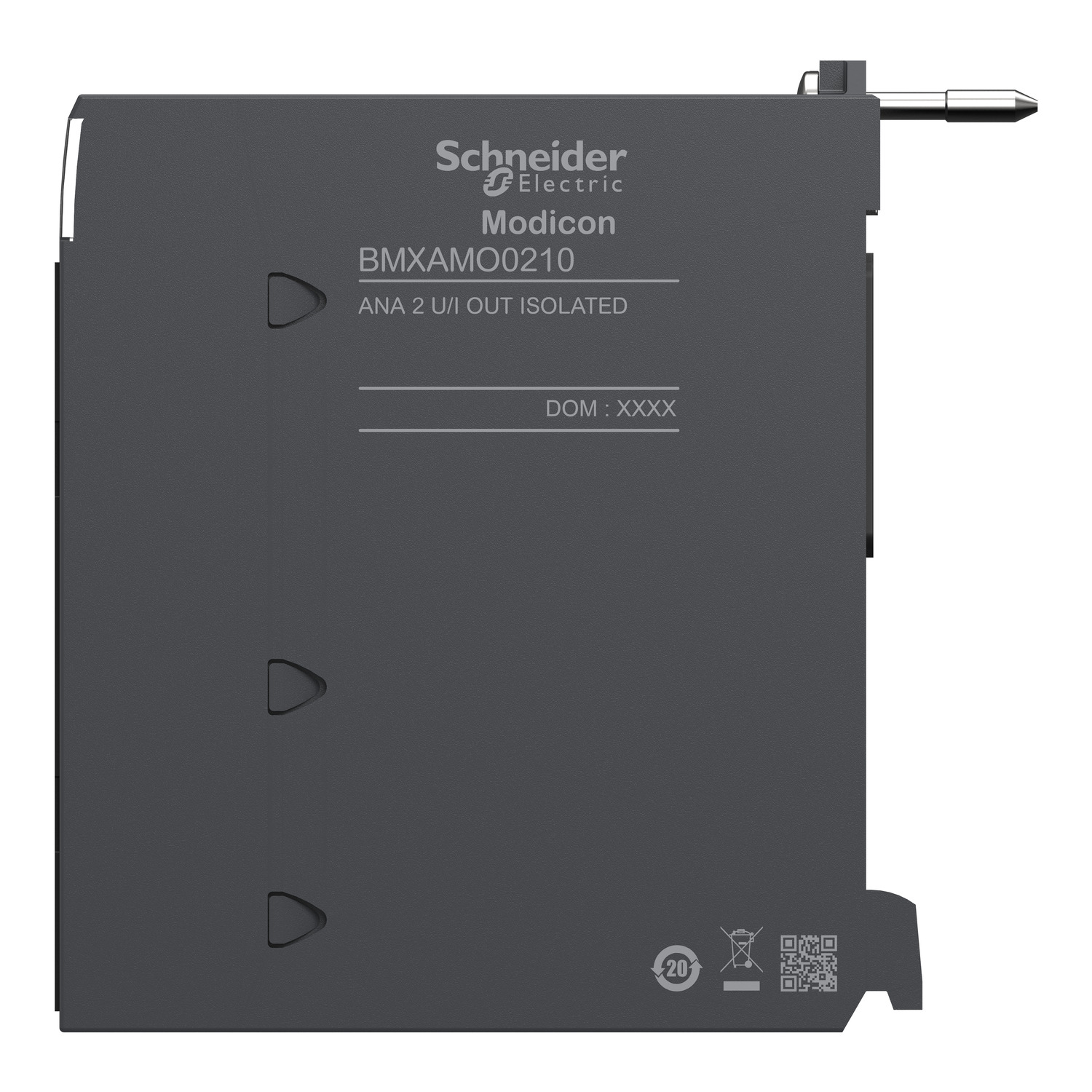

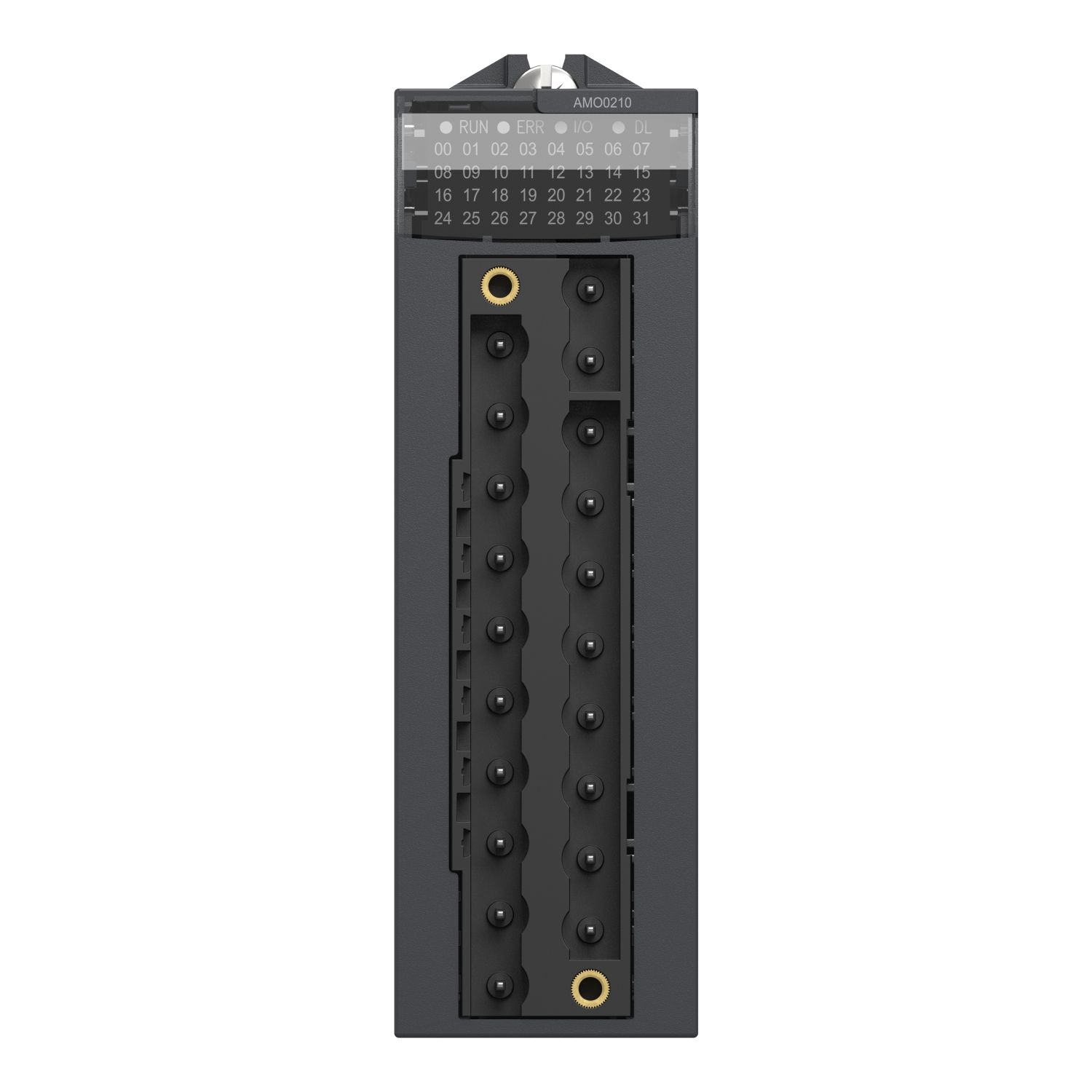

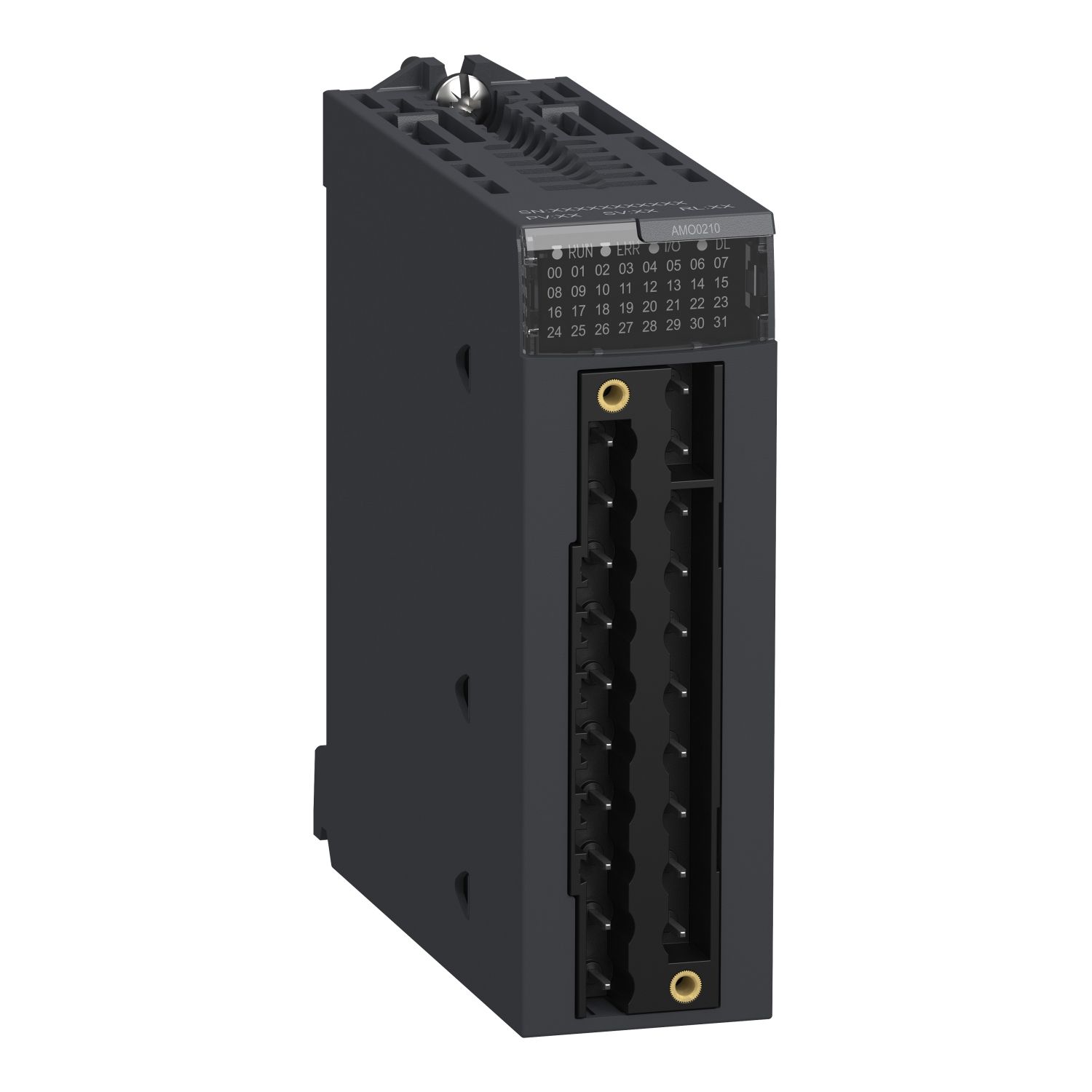

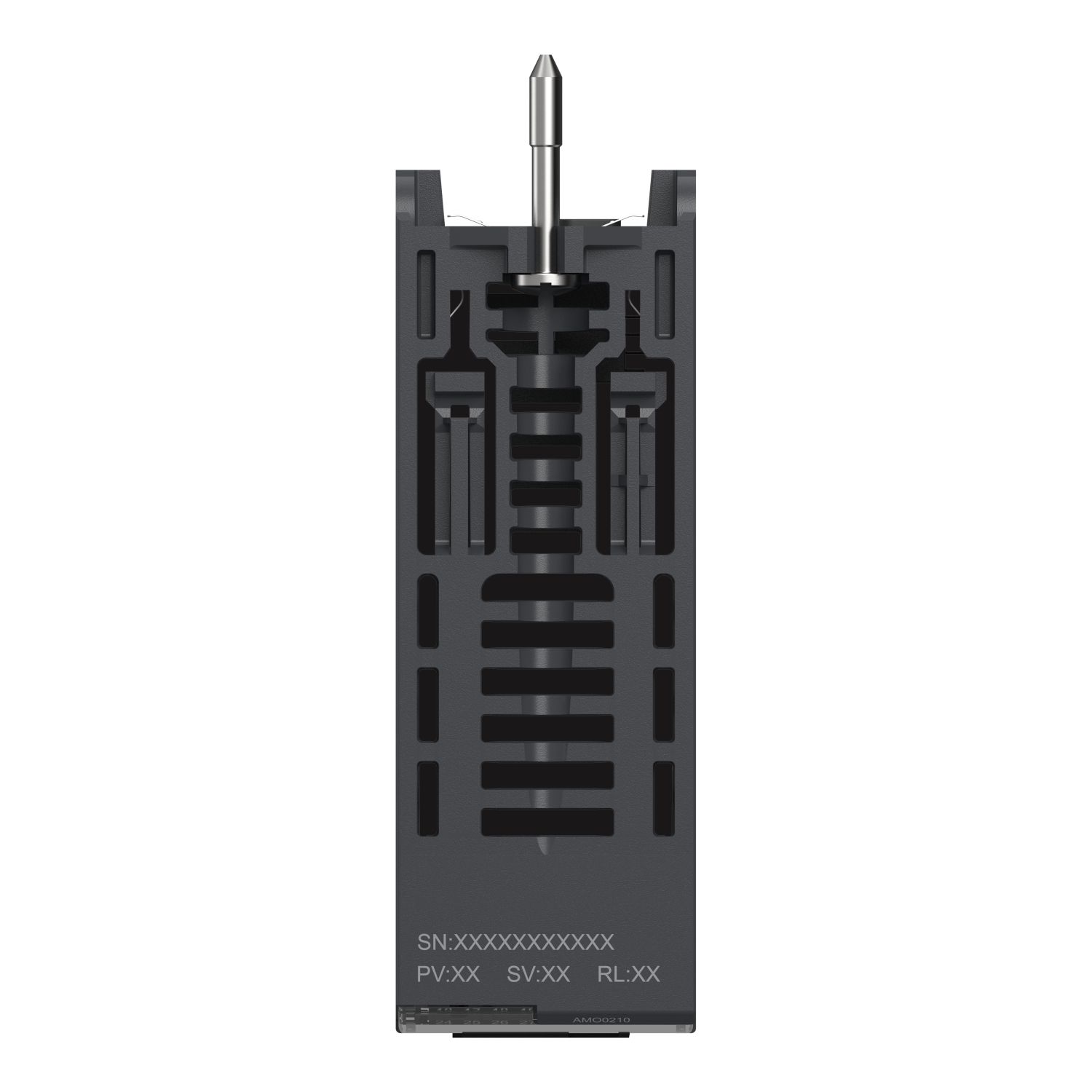

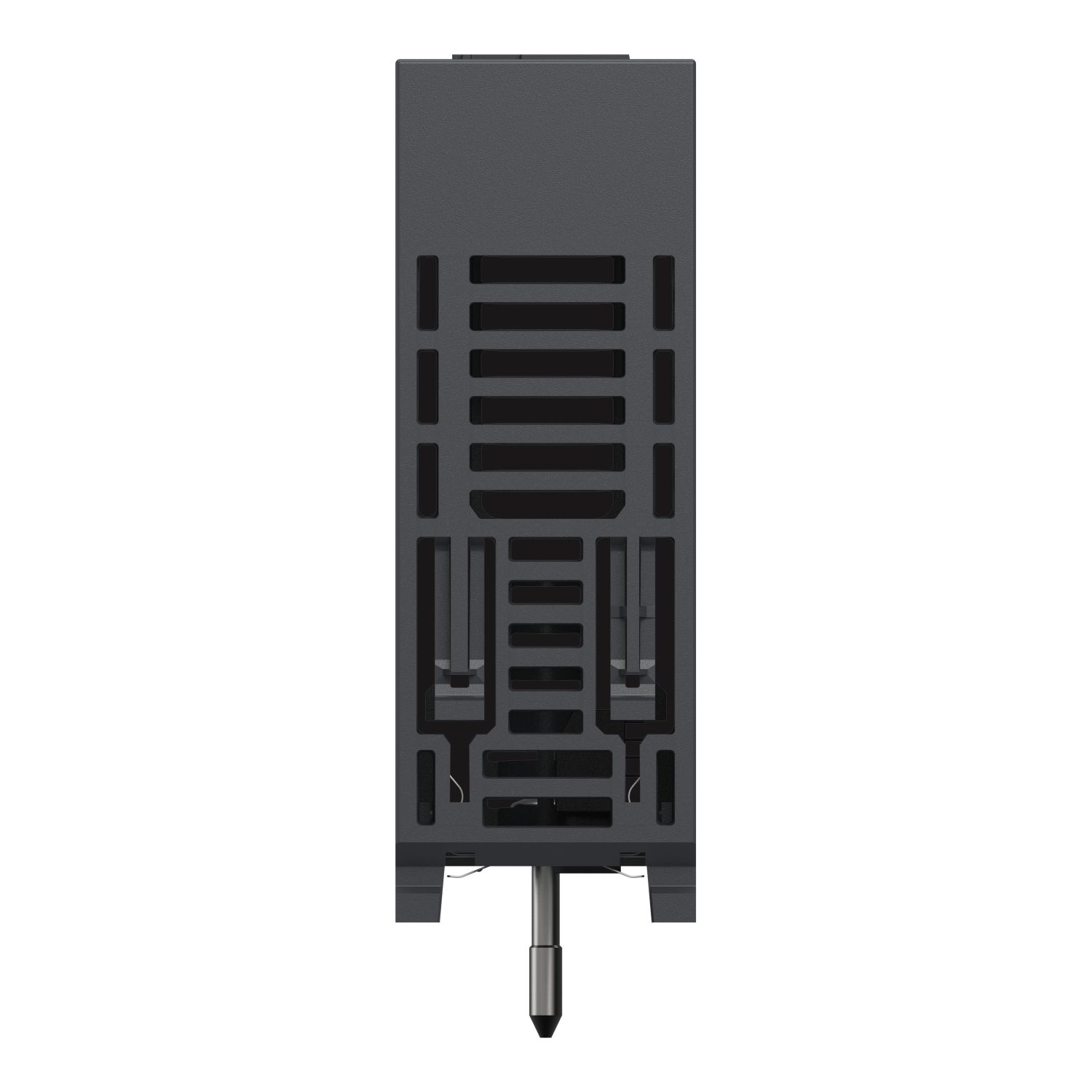

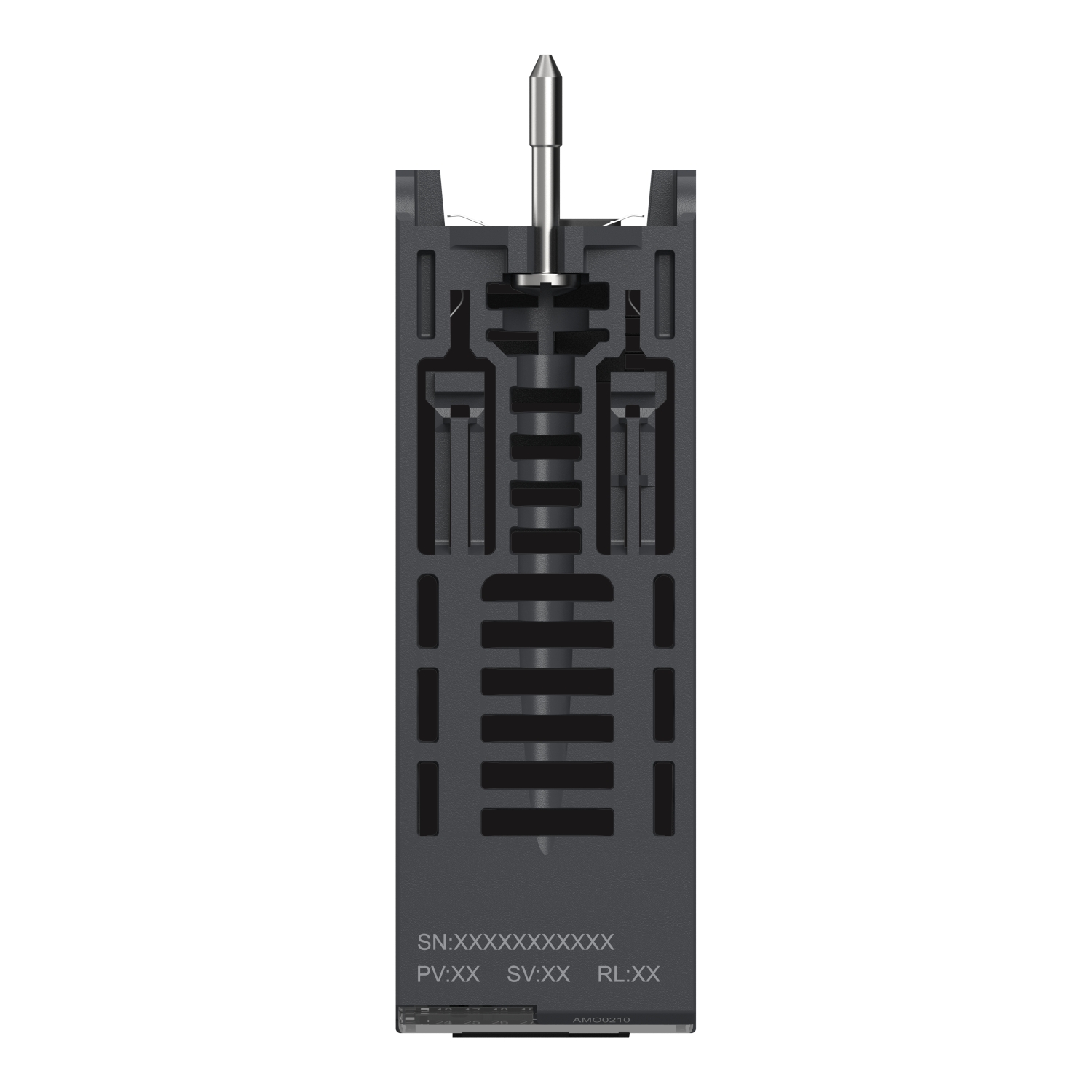

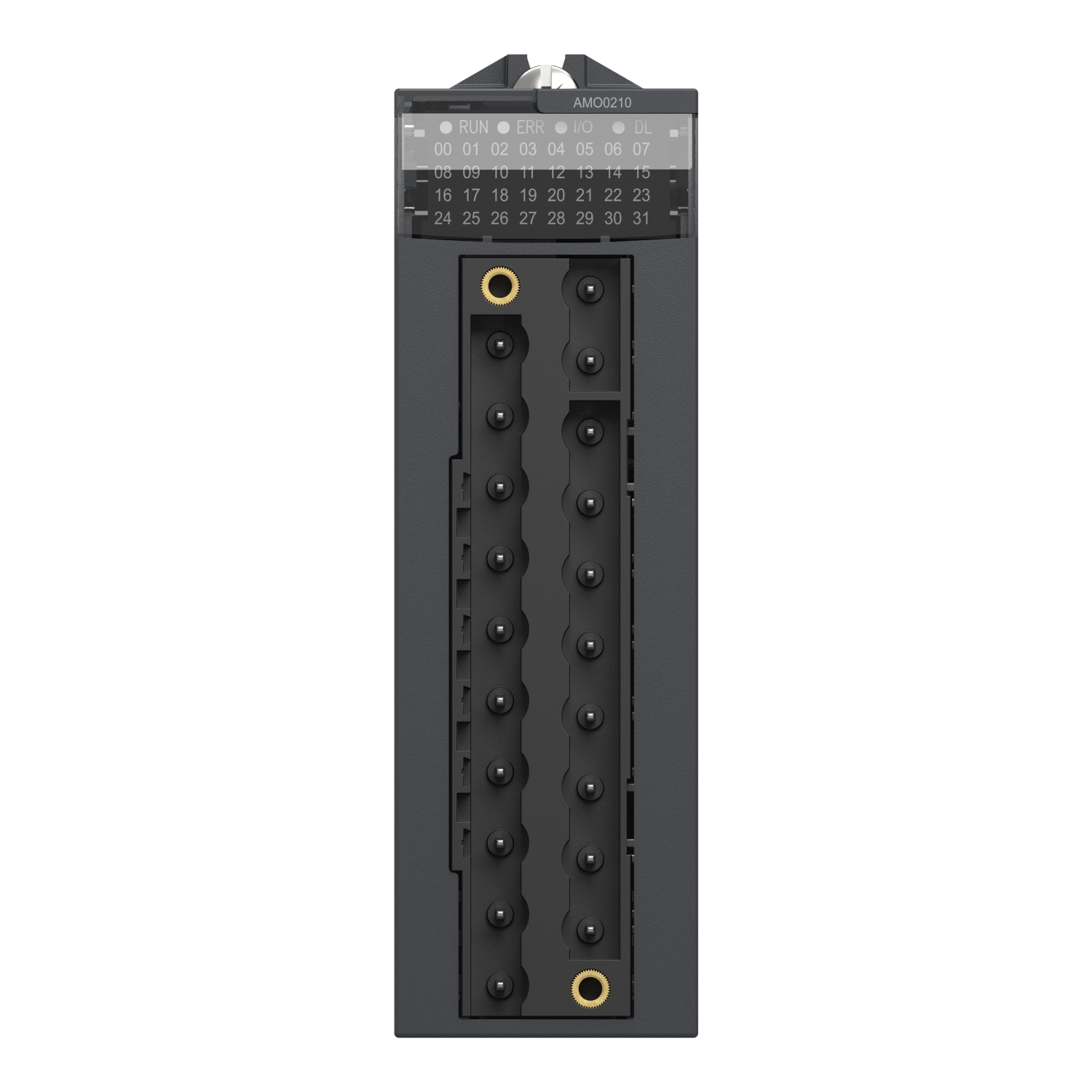

This analog output module is part of the Modicon X80 modules. It has 2 isolated high level outputs (15 bits + sign). It offers different ranges of voltage or current for each of the outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input output isolation | isolated |
| Electrical connection | 20 ways 1 connector |
| Product or component type | analog output module |
| Range of product | Modicon X80 |
| Complementary | |
| Conversion time | <= 1 ms |
| Analogue output resolution | 15 bits + sign |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Detection type | short circuit +/- 10 V, open circuit 4...20 mA, open circuit 0...20 mA |
| Load impedance ohmic | >= 1000 Ohm +/- 10 V, <= 600 Ohm 4...20 mA, <= 600 Ohm 0...20 mA |
| Power consumption in W | 0.48 W 3.3 V DC maximum, 0.35 W 3.3 V DC typical, 2.8 W 24 V DC maximum, 2.1 W 24 V DC typical |
| Analogue output number | 2 |
| Isolation voltage | 750 V DC between channels, 1400 V DC between channels and bus, 1400 V DC between channels and ground |
| Net weight | 0.144 kg |
| Minimum crosstalk attenuation | 90 dB |
| Current consumption | 110 mA at 24 V DC, 150 mA at 3.3 V DC |
| Supply | internal power supply via rack |
| Output level | high level |
| Common mode rejection | 100 dB |
| Analogue output type | voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA |
| Recalibration | factory calibrated |
| Temperature drift | 30 ppm/°C |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Maximum conversion value | 0...24 mA 4...20 mA, 0...24 mA 0...20 mA, +/- 11.25 V +/- 10 V |
| Measurement error | 0.1 % of full scale 25 °C, <= 0.2 % of full scale 0...60 °C |
| Fallback mode | configurable, predefined |
| MTBF reliability | 1300000 H |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | UL, Merchant Navy, EAC, CSA, RCM, CE |
Only registered users can write reviews
Related products

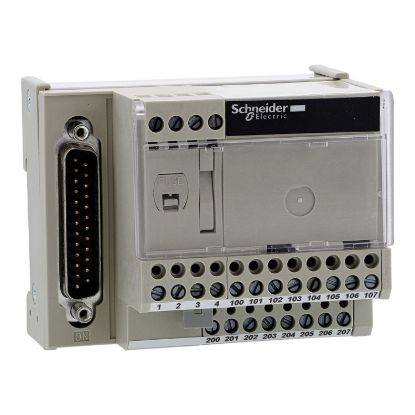

connection sub-base ABE7 - for distribution of 4 analog output channels
ABE7CPA21
connection sub-base ABE7 - for distribution of 4 analog output channels
$291.50 inc GST
$321.38 inc GST

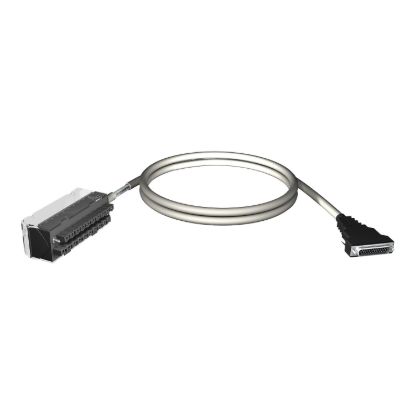

cord set, Modicon X80, 20-way terminal, SUB-D25 connector, 3m
