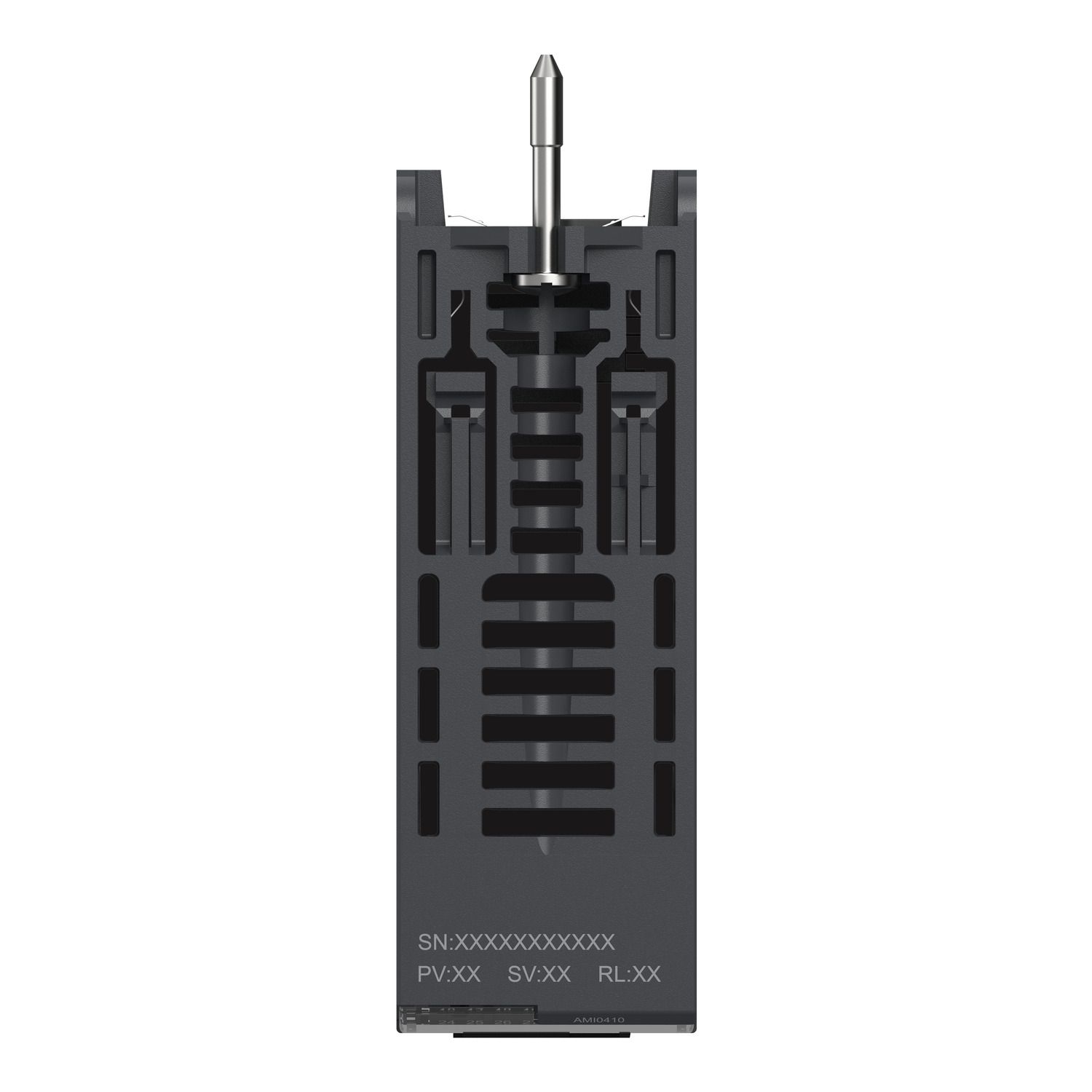

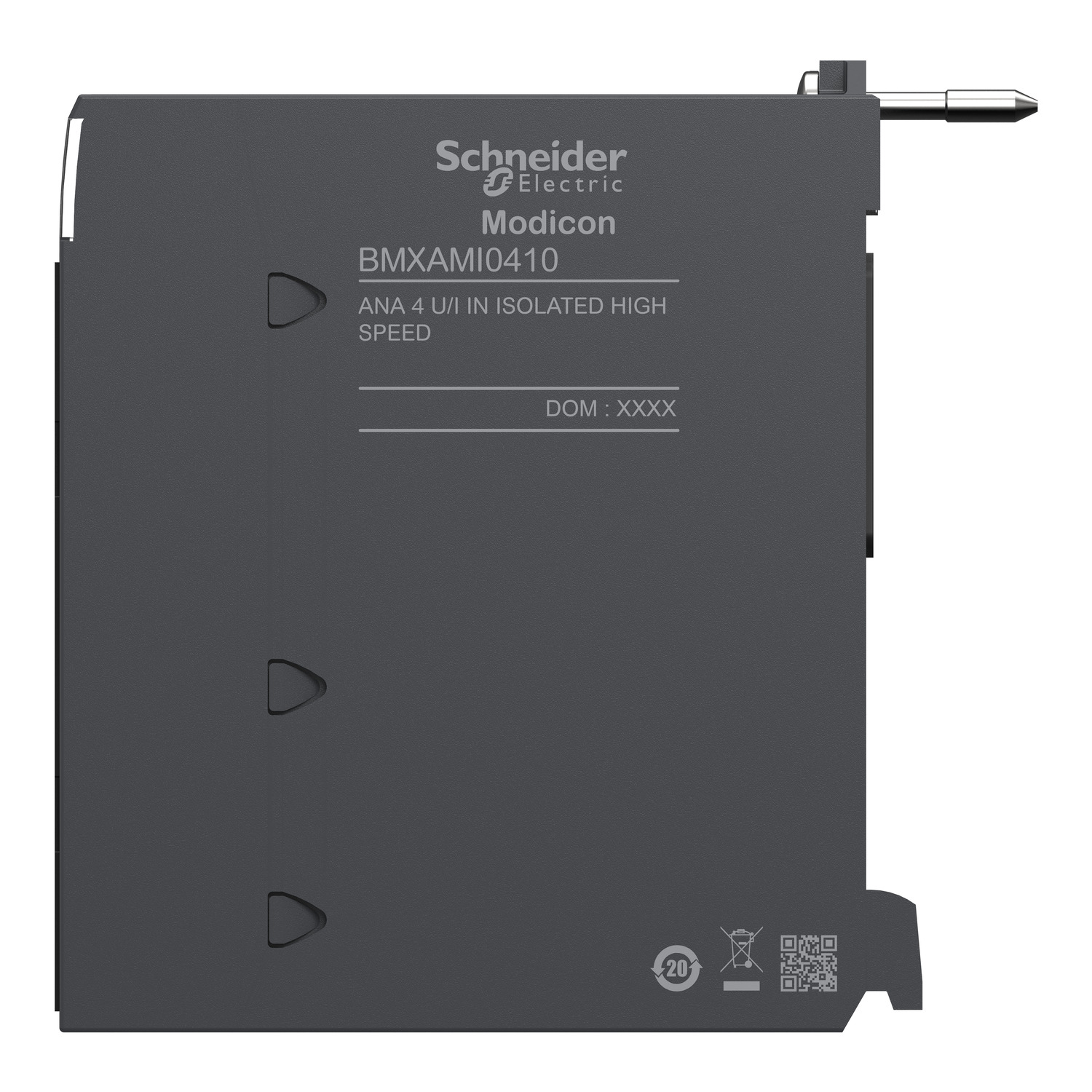

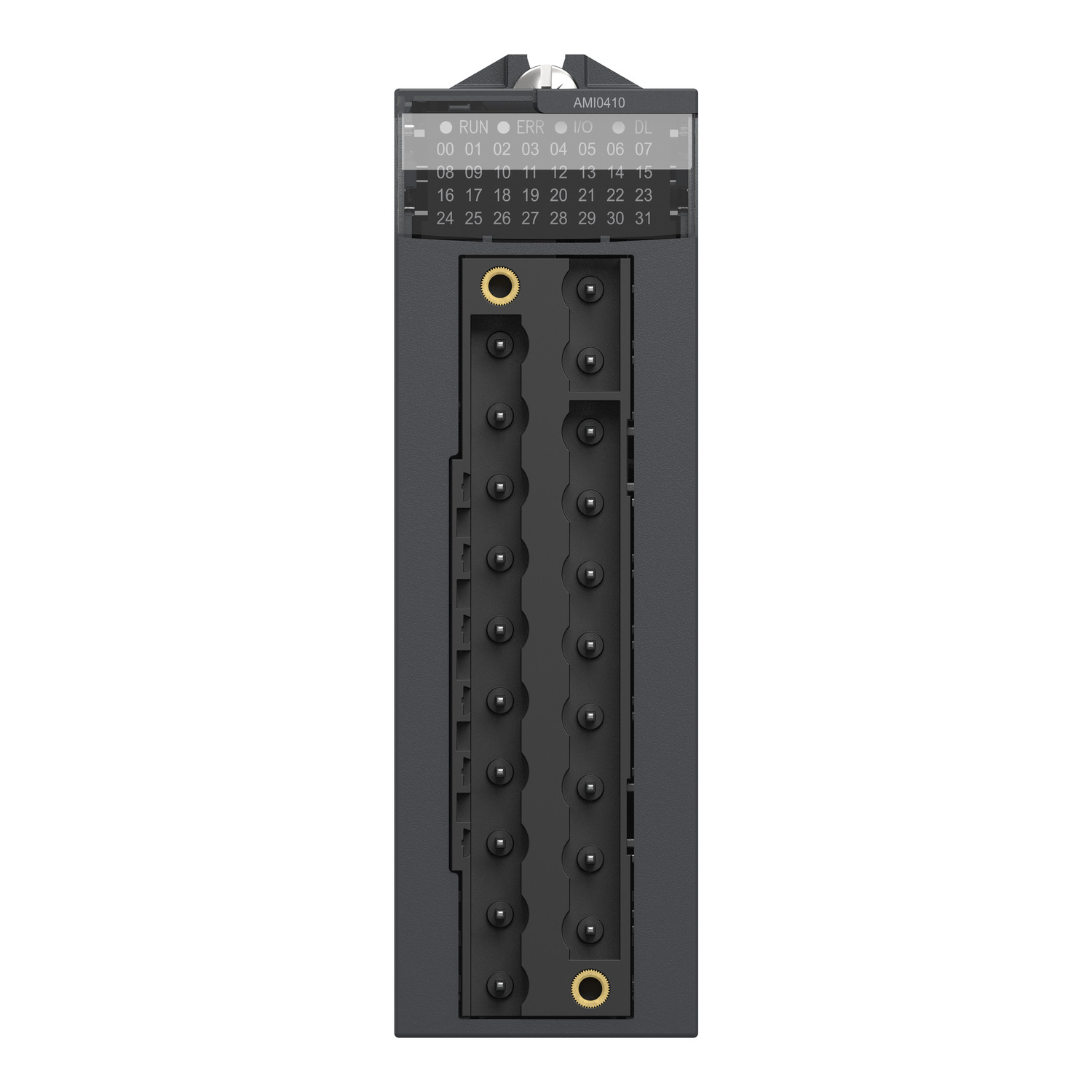

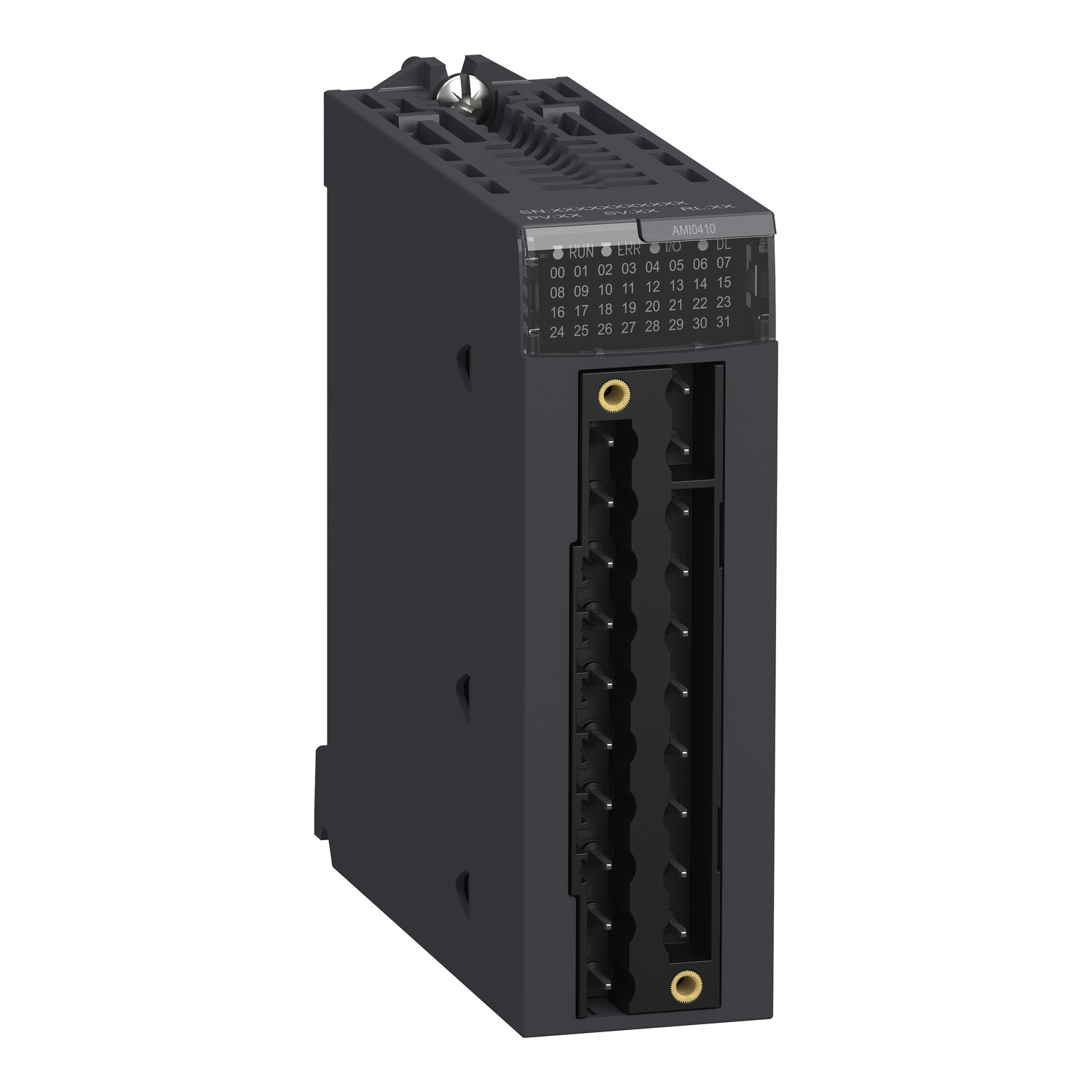

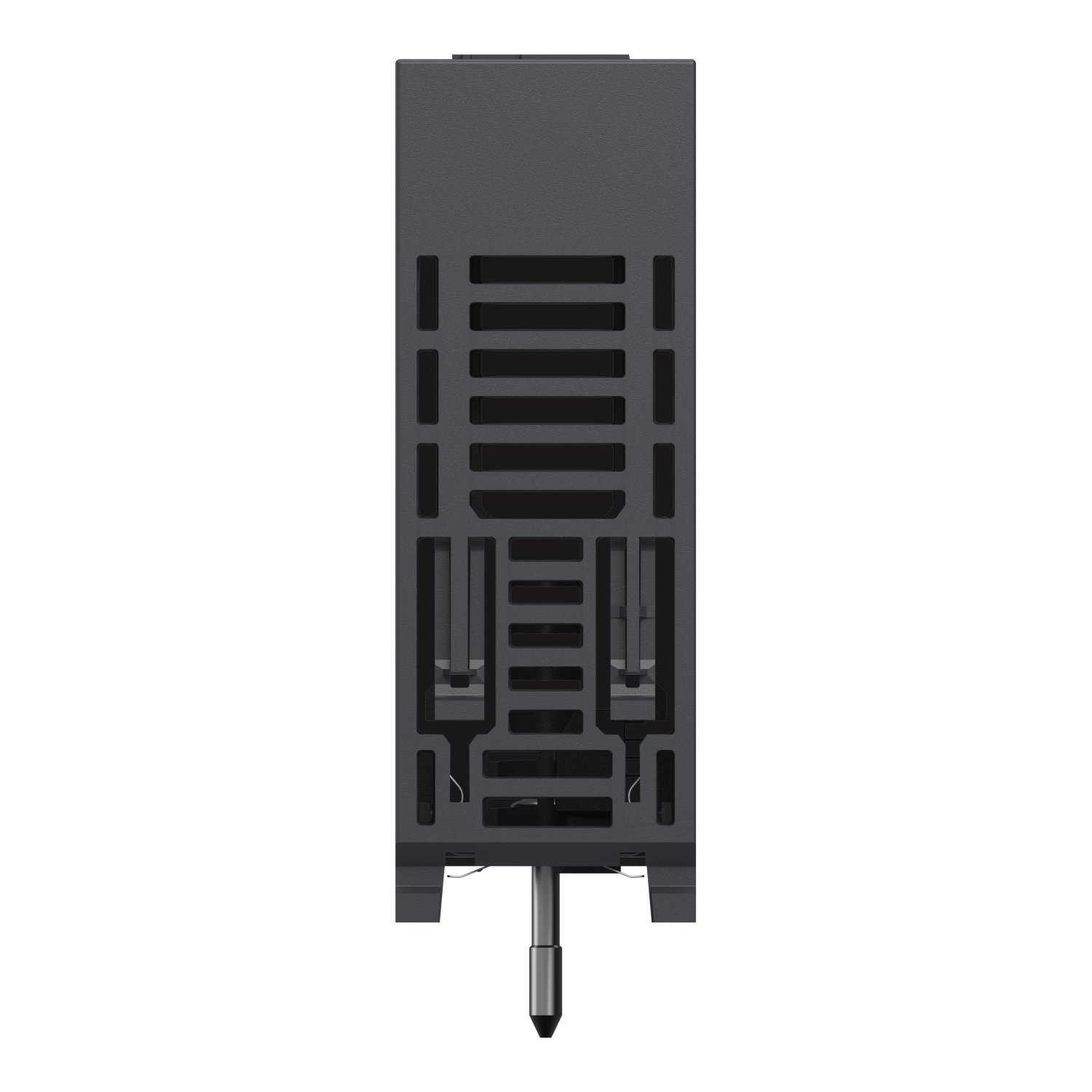

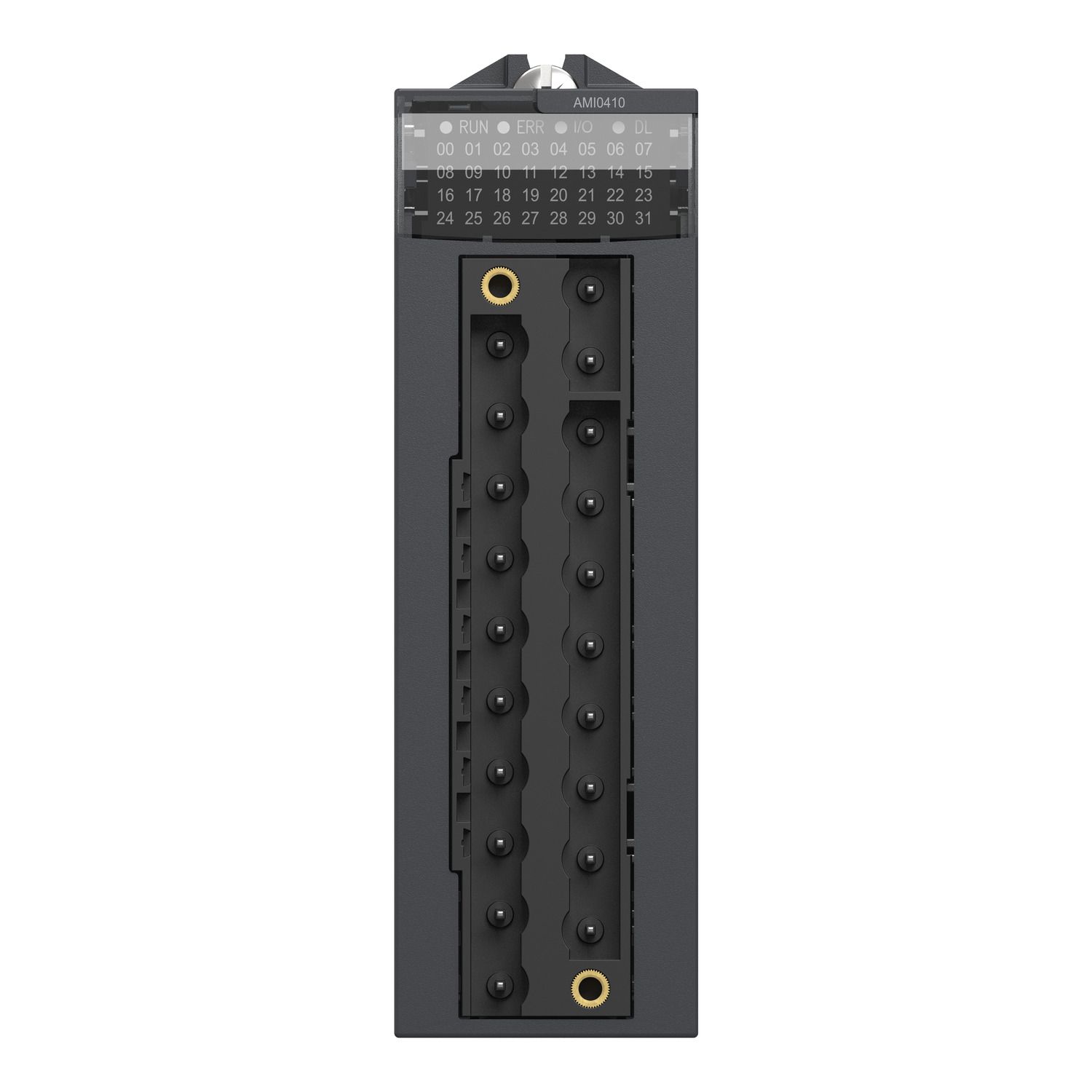

This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 5 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA, current +/- 20 mA |
| Analogue input number | 4 |
| Input output isolation | isolated |
| Electrical connection | 20 ways 1 connector |
| Input level | high level |
| Product or component type | analog input module |
| Range of product | Modicon X80 |
| Complementary | |
| Permitted overload on inputs | +/- 90 mA 4...20 mA, +/- 90 mA 0...20 mA, +/- 90 mA +/- 20 mA, +/- 30 V 1...5 V, +/- 30 V 0...5 V, +/- 30 V 0...10 V, +/- 30 V +/- 5 V, +/- 30 V +/- 10 V |
| Measurement resolution | 0.92 µA 4...20 mA, 0.92 µA 0...20 mA, 0.92 µA +/- 20 mA, 0.35 mV 1...5 V, 0.35 mV 0...5 V, 0.35 mV 0...10 V, 0.35 mV +/- 5 V, 0.35 mV +/- 10 V |
| Analog/digital conversion | 24 bits |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Nominal read cycle time | 5 ms for 4 channels |
| Digital value format | +/- 10000 by default, - 32768 to + 32767 in maximum user scale |
| Power consumption in W | 0.48 W 3.3 V DC maximum, 0.32 W 3.3 V DC typical, 1.30 W 24 V DC maximum, 0.82 W 24 V DC typical |
| Fast read cycle time | 1 ms + 1 ms x number of channels used |
| Isolation voltage | 1400 V DC between channels and bus, 1400 V DC between channels and ground, 300 V DC between channels |
| Input impedance | 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode, 10 MOhm in voltage mode |
| Net weight | 0.143 kg |
| Minimum crosstalk attenuation | 80 dB |
| Analogue input resolution | 16 bits |
| Current consumption | 45 mA at 24 V DC, 150 mA at 3.3 V DC |
| Common mode rejection | 90 dB |
| Recalibration | internal |
| Temperature drift | 30 ppm/°C 4...20 mA, 30 ppm/°C 0...20 mA, 30 ppm/°C +/- 20 mA, 15 ppm/°C 1...5 V, 15 ppm/°C 0...5 V, 15 ppm/°C 0...10 V, 15 ppm/°C +/- 5 V, 15 ppm/°C +/- 10 V |
| Precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Type of filter | first order digital filtering |
| Maximum conversion value | 0...30 mA 4...20 mA, 0...30 mA 0...20 mA, 0...30 mA +/- 20 mA, +/- 11.4 V 1...5 V, +/- 11.4 V 0...5 V, +/- 11.4 V 0...10 V, +/- 11.4 V +/- 5 V, +/- 11.4 V +/- 10 V |
| Measurement error | 0.15 % of full scale 4...20 mA 25 °C, 0.15 % of full scale 0...20 mA 25 °C, 0.15 % of full scale +/- 20 mA 25 °C, 0.075 % of full scale 1...5 V 25 °C, 0.075 % of full scale 0...5 V 25 °C, 0.075 % of full scale 0...10 V 25 °C, 0.075 % of full scale +/- 5 V 25 °C, 0.075 % of full scale +/- 10 V 25 °C, <= 0.3 % of full scale 4...20 mA 0...60 °C, <= 0.3 % of full scale 0...20 mA 0...60 °C, <= 0.3 % of full scale +/- 20 mA 0...60 °C, <= 0.1 % of full scale 1...5 V 0...60 °C, <= 0.1 % of full scale 0...5 V 0...60 °C, <= 0.1 % of full scale 0...10 V 0...60 °C, <= 0.1 % of full scale +/- 5 V 0...60 °C, <= 0.1 % of full scale +/- 10 V 0...60 °C |
| MTBF reliability | 1200000 H |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Vibration resistance | 3 gn |
| Shock resistance | 30 gn |
| Standards | CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | UL, Merchant Navy, EAC, CSA, RCM, CE |
