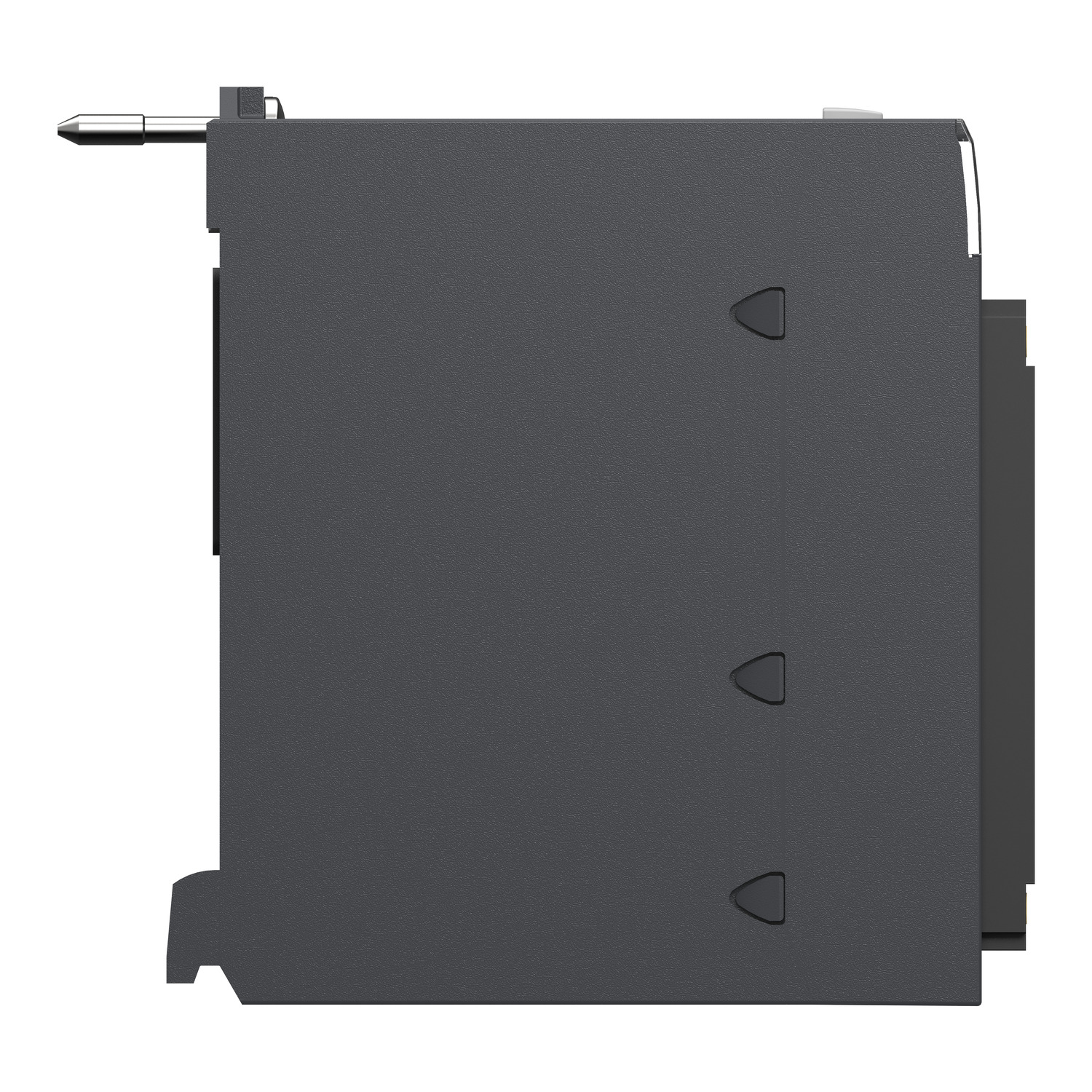

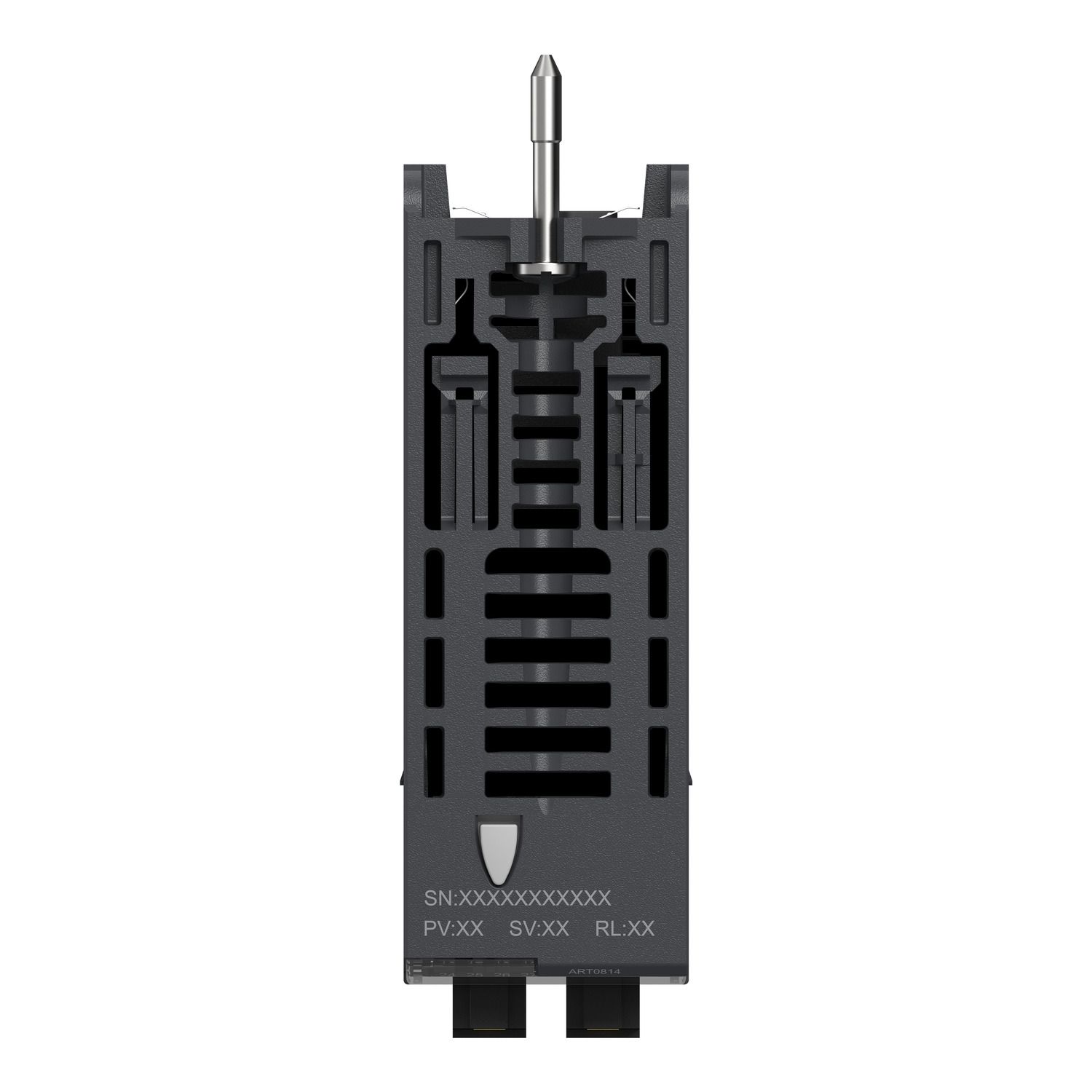

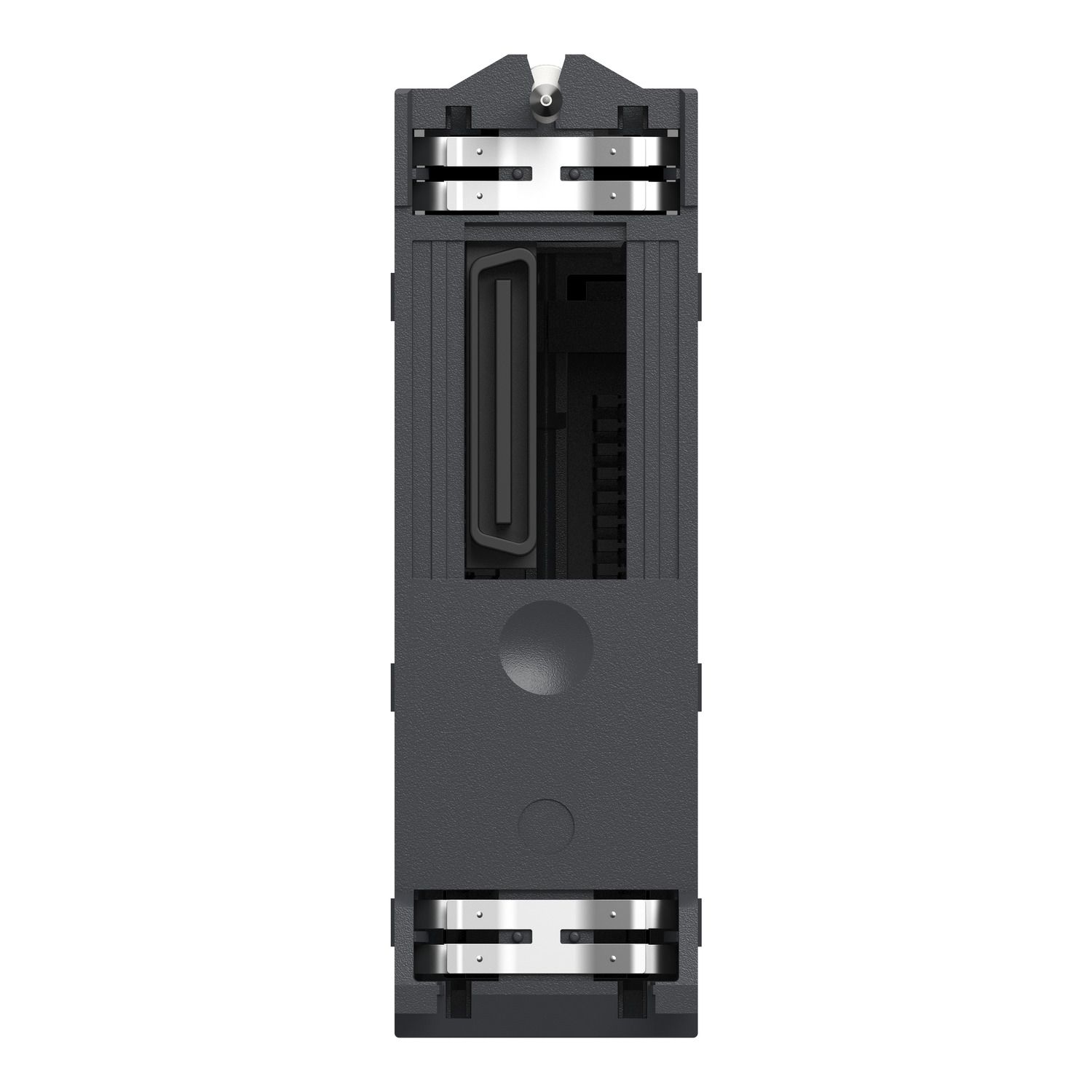

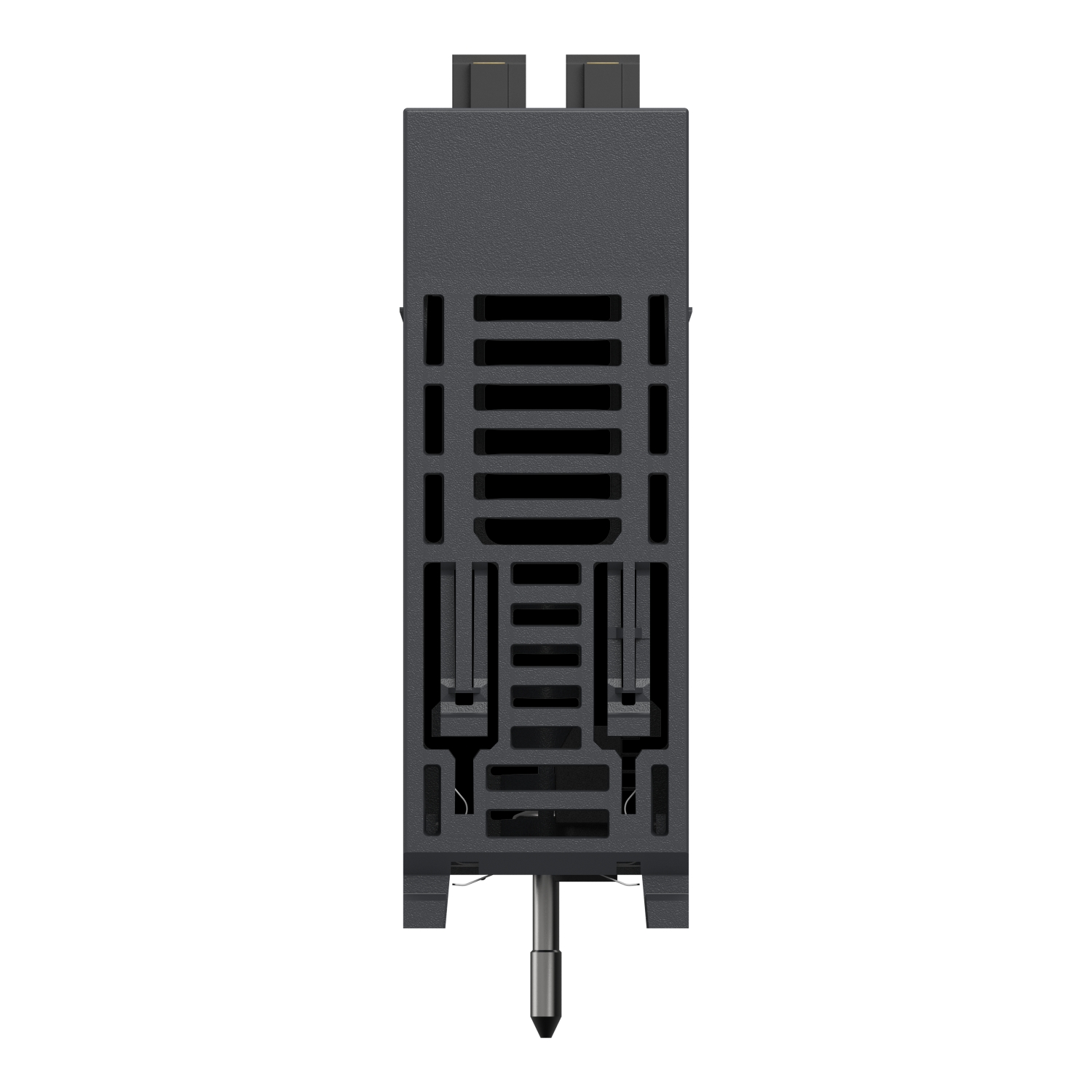

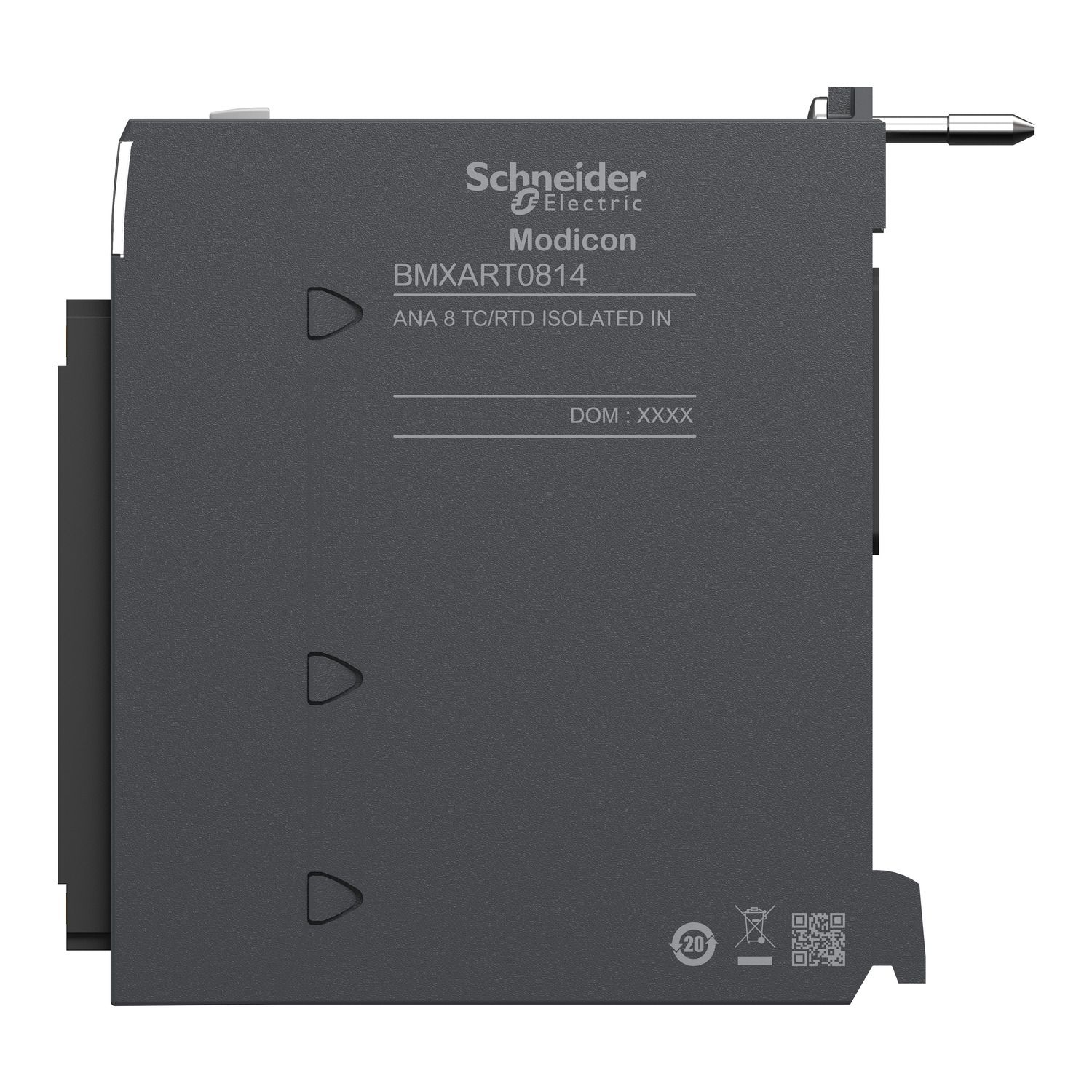

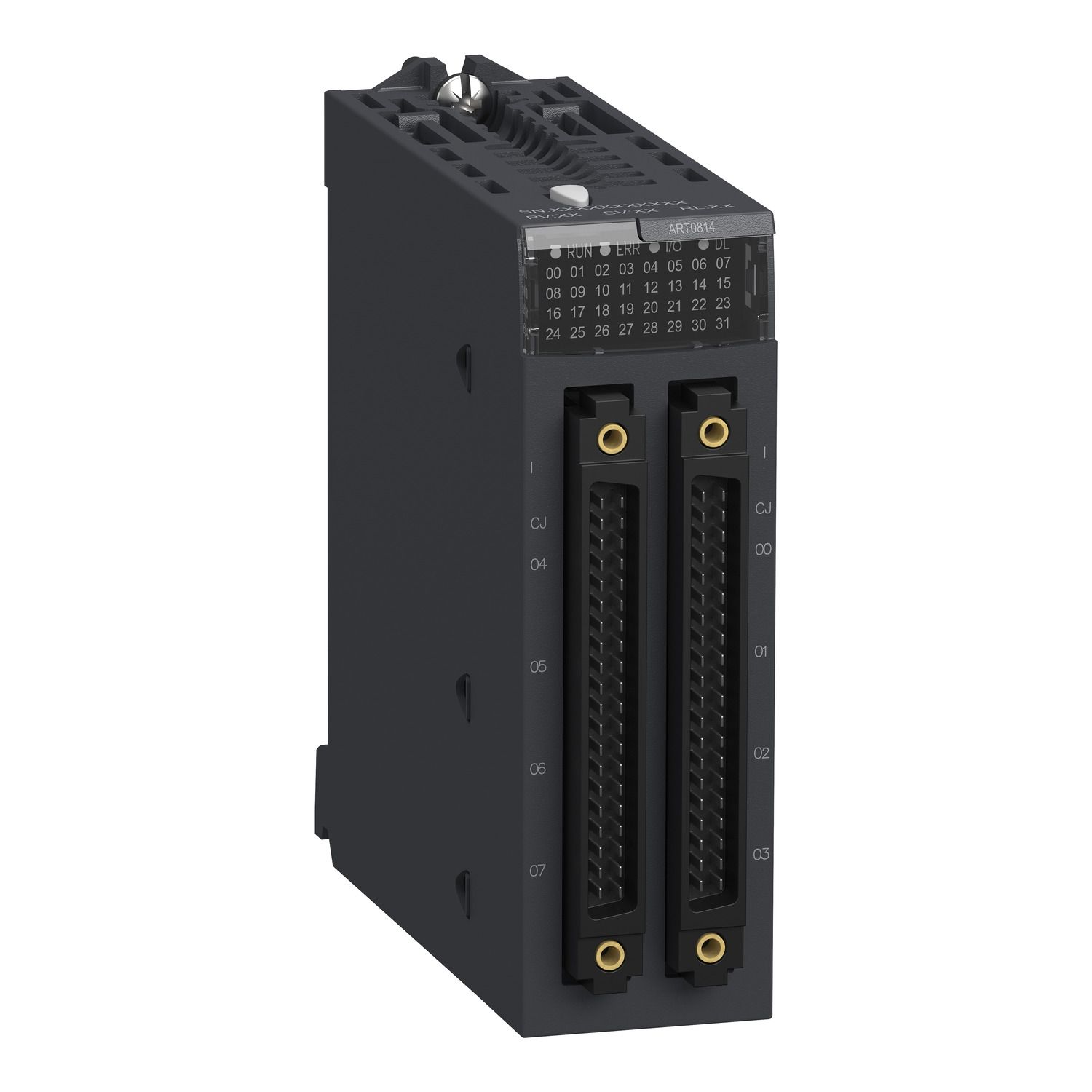

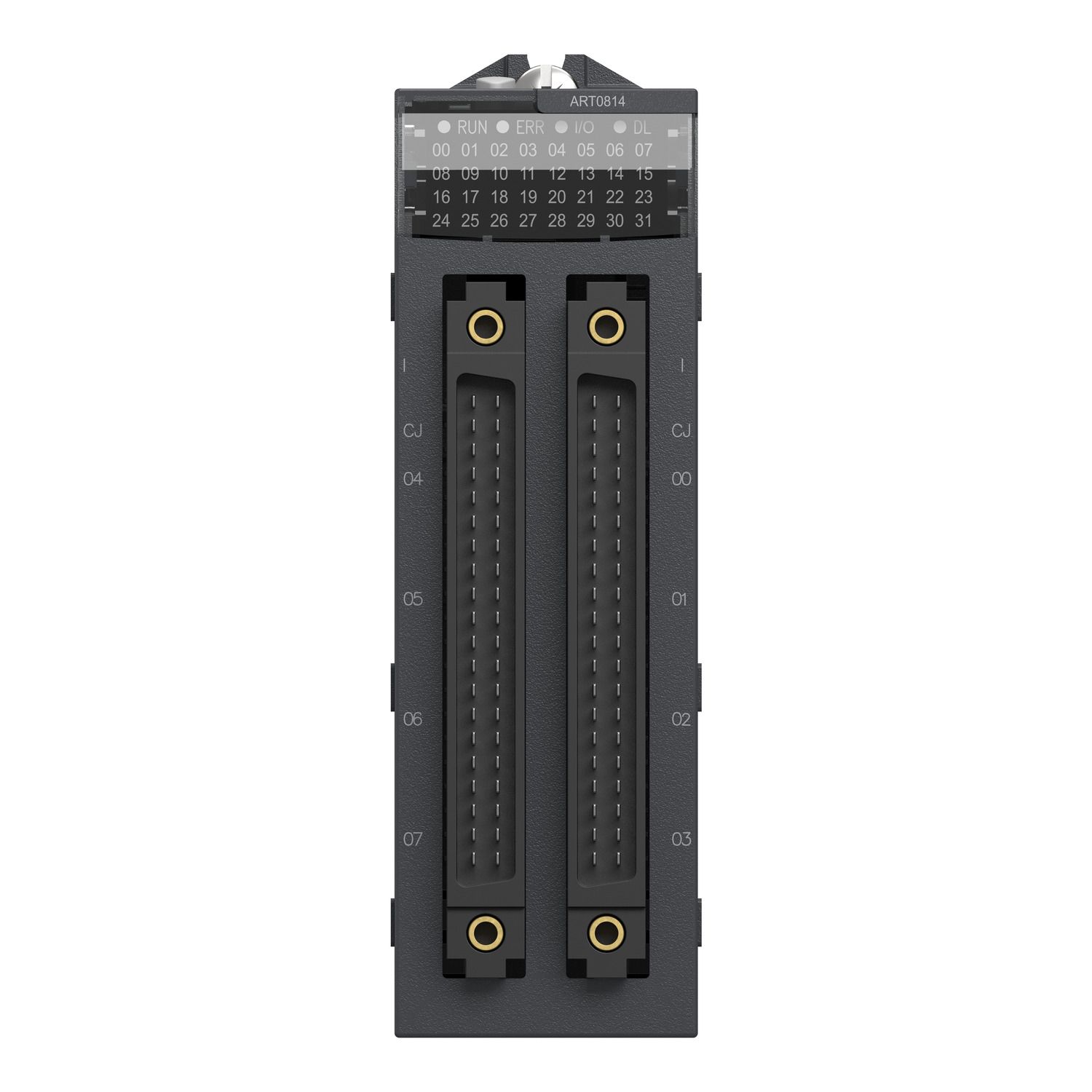

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an analogue input module with a current consumption of 150mA at 3.3V DC. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector for electrical connection. It is an IP20 rated product. It weighs 0.165kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input level | low level |
| Range of product | Modicon X80 |
| Analogue input type | thermocouple -50...+1769 °C thermocouple S, thermocouple -50...+1769 °C thermocouple R, thermocouple -270...+400 °C thermocouple T, thermocouple -270...+1370 °C thermocouple K, thermocouple -270...+1000 °C thermocouple E, thermocouple -200...+900 °C thermocouple L, thermocouple -200...+760 °C thermocouple J, thermocouple -200...+600 °C thermocouple U, thermocouple +270...+1300 °C thermocouple N, thermocouple +130...+1820 °C thermocouple B, temperature probe -60...+180 °C Ni 1000, temperature probe -60...+180 °C Ni 100, temperature probe -200...+850 °C Pt 1000 conforming to IEC, temperature probe -200...+850 °C Pt 100 conforming to IEC, temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS, temperature probe -100...+450 °C Pt 100 conforming to UL/JIS, temperature probe -100...+260 °C Cu 10, resistor 4000 Ohm 4 wires, resistor 4000 Ohm 3 wires, resistor 4000 Ohm 2 wires, resistor 400 Ohm 4 wires, resistor 400 Ohm 3 wires, resistor 400 Ohm 2 wires, voltage +/- 80 mV, voltage +/- 640 mV, voltage +/- 40 mV, voltage +/- 320 mV, voltage +/- 160 mV, voltage +/- 1.28 V |
| Analogue input number | 8 |
| Input output isolation | isolated |
| Electrical connection | 40 ways 2 connectors |
| Product or component type | analog input module |
| Complementary | |
| Measurement resolution | 80/2exp14 mV +/- 80 mV, 640/2exp14 mV +/- 640 mV, 125 mOhm 4000 Ohm, 12.5 mOhm 400 Ohm, 40/2exp14 mV +/- 40 mV, 320/2exp14 mV +/- 320 mV, 160/2exp14 mV +/- 160 mV, 1280/2exp14 mV +/- 1.28 V, 0.1 °C thermocouple U, 0.1 °C thermocouple T, 0.1 °C thermocouple S, 0.1 °C thermocouple R, 0.1 °C thermocouple N, 0.1 °C thermocouple L, 0.1 °C thermocouple K, 0.1 °C thermocouple J, 0.1 °C thermocouple E, 0.1 °C thermocouple B, 0.1 °C Pt 1000, 0.1 °C Pt 100, 0.1 °C Ni 1000, 0.1 °C Ni 100, 0.1 °C Cu 10 |
| Analog/digital conversion | sigma delta 16 bits |
| Common mode rejection | 120 dB 50/60 Hz |
| Differential mode rejection | 60 dB 50/60 Hz |
| Recalibration | internal |
| Temperature drift | 30 ppm/°C Pt 1000, 30 ppm/°C Pt 100, 30 ppm/°C Ni 100, 30 ppm/°C Cu 10, 30 ppm/°C +/- 80 mV, 30 ppm/°C +/- 640 mV, 30 ppm/°C +/- 40 mV, 30 ppm/°C +/- 320 mV, 30 ppm/°C +/- 160 mV, 30 ppm/°C +/- 1.28 V, 25 ppm/°C thermocouple U, 25 ppm/°C thermocouple T, 25 ppm/°C thermocouple S, 25 ppm/°C thermocouple R, 25 ppm/°C thermocouple N, 25 ppm/°C thermocouple L, 25 ppm/°C thermocouple K, 25 ppm/°C thermocouple J, 25 ppm/°C thermocouple E, 25 ppm/°C thermocouple B, 25 ppm/°C Ni 1000, 25 ppm/°C 4000 Ohm, 25 ppm/°C 400 Ohm |
| Status LED | 1 LED (red) I/O, 1 LED (red) ERR, 1 LED per channel (green) channel diagnostic, 1 LED (green) RUN |
| Type of filter | first order digital filtering |
| Maximum conversion value | +/- 102.5 % +/- 80 mV, +/- 102.5 % +/- 640 mV, +/- 102.5 % +/- 40 mV, +/- 102.5 % +/- 320 mV, +/- 102.5 % +/- 160 mV, +/- 102.5 % +/- 1.28 V, +/- 100 % 4000 Ohm, +/- 100 % 400 Ohm |
| Measurement error | 1.3 °C Ni 1000 0...60 °C, <= 0.3 % of full scale 400 Ohm 0...60 °C, <= 0.2 % of full scale +/- 40 mV 0...60 °C, 0.12 % of full scale 4000 Ohm 25 °C, 0.12 % of full scale 400 Ohm 25 °C, 0.05 % of full scale +/- 80 mV 25 °C, 0.05 % of full scale +/- 640 mV 25 °C, 0.05 % of full scale +/- 40 mV 25 °C, 0.05 % of full scale +/- 320 mV 25 °C, 0.05 % of full scale +/- 160 mV 25 °C, 0.05 % of full scale +/- 1.28 V 25 °C, <= 0.2 % of full scale 4000 Ohm 0...60 °C, <= 0.15 % of full scale +/- 80 mV 0...60 °C, <= 0.15 % of full scale +/- 640 mV 0...60 °C, <= 0.15 % of full scale +/- 320 mV 0...60 °C, <= 0.15 % of full scale +/- 160 mV 0...60 °C, <= 0.15 % of full scale +/- 1.28 V 0...60 °C, +/- 5 °C thermocouple T 0...60 °C, +/- 5 °C thermocouple N 0...60 °C, +/- 5 °C thermocouple K 0...60 °C, +/- 5 °C thermocouple E 0...60 °C, +/- 5 °C thermocouple B 0...60 °C, +/- 4.5 °C thermocouple U 0...60 °C, +/- 4.5 °C thermocouple S 0...60 °C, +/- 4.5 °C thermocouple R 0...60 °C, +/- 4.5 °C thermocouple L 0...60 °C, +/- 4.5 °C thermocouple J 0...60 °C, +/- 4 °C Cu 10 25 °C, +/- 4 °C Cu 10 0...60 °C, +/- 3.7 °C thermocouple T 25 °C, +/- 3.7 °C thermocouple N 25 °C, +/- 3.7 °C thermocouple K 25 °C, +/- 3.7 °C thermocouple E 25 °C, +/- 3.5 °C thermocouple B 25 °C, +/- 3.2 °C thermocouple S 25 °C, +/- 3.2 °C thermocouple R 25 °C, +/- 3 °C thermocouple L 25 °C, +/- 3 °C Ni 100 0...60 °C, +/- 2.8 °C thermocouple J 25 °C, +/- 2.7 °C thermocouple U 25 °C, +/- 2.1 °C Pt 1000 25 °C, +/- 2.1 °C Pt 100 25 °C, +/- 2.1 °C Ni 100 25 °C, +/- 2 °C Pt 1000 0...60 °C, +/- 2 °C Pt 100 0...60 °C, +/- 0.7 °C Ni 1000 25 °C |
| MTBF reliability | 900000 H |
| Permitted overload on inputs | +/- 7.5 V +/- 80 mV, +/- 7.5 V +/- 640 mV, +/- 7.5 V +/- 40 mV, +/- 7.5 V +/- 320 mV, +/- 7.5 V +/- 160 mV, +/- 7.5 V +/- 1.28 V |
| Operating altitude | 2000...5000 m with derating factor, 0...2000 m |
| Maximum wiring resistance | 500 Ohm 4 wires Pt 1000, 500 Ohm 4 wires Ni 1000, 50 Ohm 4 wires Pt 100, 50 Ohm 4 wires Ni 100, 50 Ohm 4 wires Cu 10, 200 Ohm 3 wires Pt 1000, 200 Ohm 3 wires Ni 1000, 200 Ohm 2 wires Pt 1000, 200 Ohm 2 wires Ni 1000, 20 Ohm 3 wires Pt 100, 20 Ohm 3 wires Ni 100, 20 Ohm 3 wires Cu 10, 20 Ohm 2 wires Pt 100, 20 Ohm 2 wires Ni 100, 20 Ohm 2 wires Cu 10 |
| Detection type | open circuit thermocouple U, open circuit thermocouple T, open circuit thermocouple S, open circuit thermocouple R, open circuit thermocouple N, open circuit thermocouple L, open circuit thermocouple K, open circuit thermocouple J, open circuit thermocouple E, open circuit thermocouple B, open circuit Pt 1000, open circuit Pt 100, open circuit Ni 1000, open circuit Ni 100, open circuit Cu 10 |
| Nominal read cycle time | 200 ms with thermocouple, 400 ms with temperature probe |
| Net weight | 0.165 kg |
| Analogue input resolution | 15 bits + sign |
| Current consumption | 50 mA at 24 V DC, 150 mA at 3.3 V DC |
| Cold junction compensation | external by Pt100 probe |
| Environment | |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % at 55-55 °C without condensation |
| Ambient air temperature for storage | -40-85 °C |
| Directives | 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive |
| Ambient air temperature for operation | 0-60 °C |
| Vibration resistance | 3 gn |
| Environmental characteristic | 3C4 conforming to IEC 60721-3-3, 3C3 conforming to IEC 60721-3-3 |
| Shock resistance | 30 gn |
| Standards | EN 61010-2-201, IEC 61000-6-2, IEC 61000-6-4, IEC 61131-2 |
| Product certifications | RCM, Merchant Navy, CSA, UL, EAC, CE |
