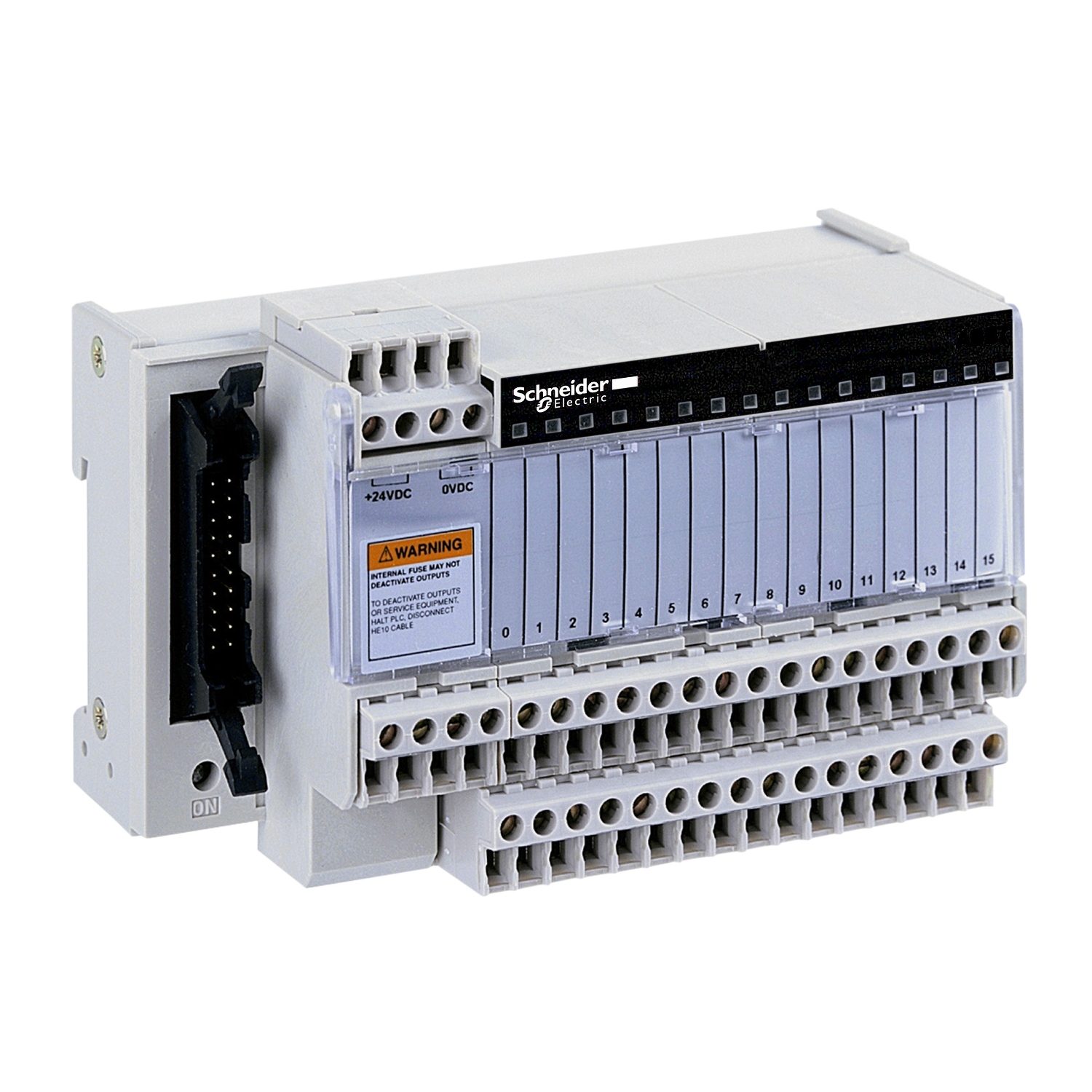

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for pre-wired system. This is a passive connection sub-base for 16 channels as type 2 input, with 2 terminals per channel. Its control circuit voltage is 24VDC. It provides a type 2 input control function. It is furnished with screw terminals for electrical connection and 20-way HE10 connection to programmable logic controllers. The tightening torque of wiring is 0.6N.m with flat diameter 3.5mm screwdriver. It is a universal sub-base with IP20 degree of protection. It weighs 0.320kg. It is suitable into any types of industrial applications needing rapid connection of I/O modules (digital, analog, and counter) to operative parts. This product is certified by DNV, CSA, UL, GL and EAC. It is suitable for use with TSX Micro and Premium PLCs, and numerical controllers. It is delivered in 1 package (PCE type). Its fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 19...30 V conforming to IEC 61131-2 |
| Sub-base type | type 2 input sub-base |
| Number of channels | 16 |
| Connections - terminals | screw type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid, screw type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable end, screw type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solid, screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable end |
| Number of terminal per channel | 2 |
| Product or component type | passive discrete I/O sub-base |
| Range of product | Modicon ABE7 |
| Complementary | |
| Voltage drop on power supply fuse | 0.3 V |
| Width | 125 mm |
| Supply circuit type | DC |
| Maximum supply current | 1.8 A |
| Tightening torque | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Polarity distribution | 0 V or 24 V |
| Connector type | HE-10 |
| Fixing mode | by screws (solid plate with fixing kit), by clips (35 mm symmetrical DIN rail) |
| Net weight | 0.32 kg |
| [Ui] rated insulation voltage | 2000 V |
| Maximum current per output common | 1.8 A |
| Installation category | II conforming to IEC 60664-1 |
| Status LED | 1 LED (green) power ON, 1 LED per channel (green) channel status |
| Current per channel | 0.5 A |
| Number of horizontal rows | 2 |
| Short-circuit protection | 2 A internal fuse, 5 x 20 mm, fast blow (PLC end) |
| Pin number | 20 pins |
| Environment | |
| Resistance to fast transients | 2 kV level 3 conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV (air) level 3 conforming to IEC 61000-4-2, 4 kV (contact) level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -40-80 °C conforming to IEC 61131-2 |
| Resistance to incandescent wire | 750 °C conforming to IEC 60695-2-11 |
| Pollution degree | 2 conforming to IEC 60664-1 |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Vibration resistance | 2 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -5-60 °C conforming to IEC 61131-2 |
| Resistance to radiated fields | 10 V/m (26000000-1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Product certifications | EAC, GL, UL, DNV, CSA |
Only registered users can write reviews
Related products
analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0410
analog isolated high level input module, Modicon X80, 4 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$1,410.20 inc GST
$1,864.99 inc GST

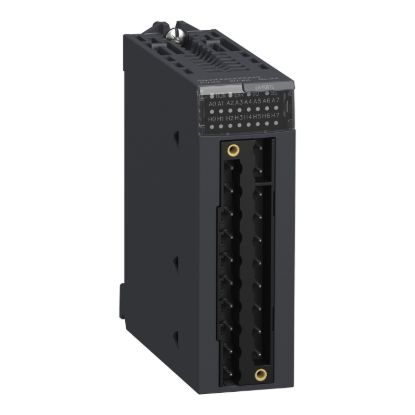

analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA
BMEAHI0812
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA
$2,838.00 inc GST
$3,753.26 inc GST
analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0810
analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$2,400.20 inc GST
$3,174.26 inc GST
analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMO0210
analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$1,203.40 inc GST
$1,591.50 inc GST
analog isolated high level output module, Modicon X80, 4 HART outputs, 4 to 20mA
BMEAHO0412
analog isolated high level output module, Modicon X80, 4 HART outputs, 4 to 20mA
$2,488.20 inc GST
$3,290.64 inc GST

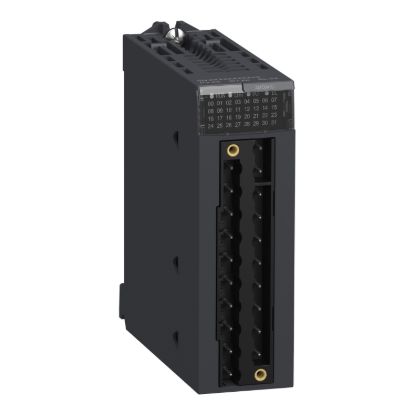

analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMO0410
analog isolated high level output module, Modicon X80, 4 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$2,206.60 inc GST
$2,918.23 inc GST
analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
BMXART0414
analog isolated low level input module, Modicon X80, 4 inputs, 40mV positive or negative
$1,731.40 inc GST
$2,289.78 inc GST

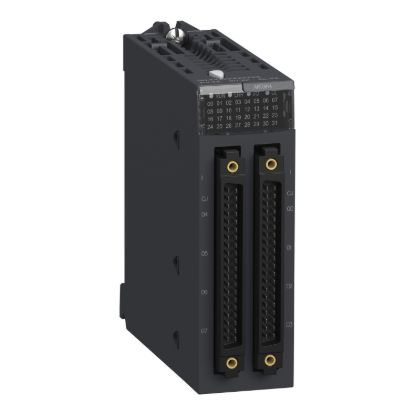

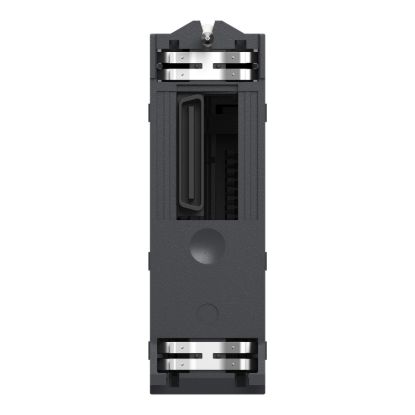

analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative
BMXART0814
analog isolated low level input module, Modicon X80, 8 inputs, 40mV positive or negative
$3,361.60 inc GST
$4,445.72 inc GST
analog non isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
BMXAMI0800
analog non isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
$2,026.20 inc GST
$2,679.65 inc GST

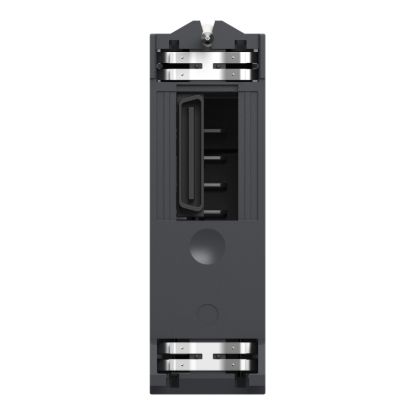

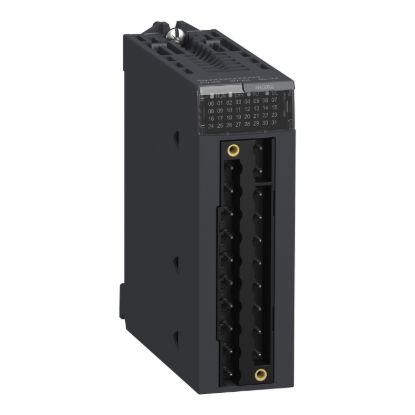

analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
