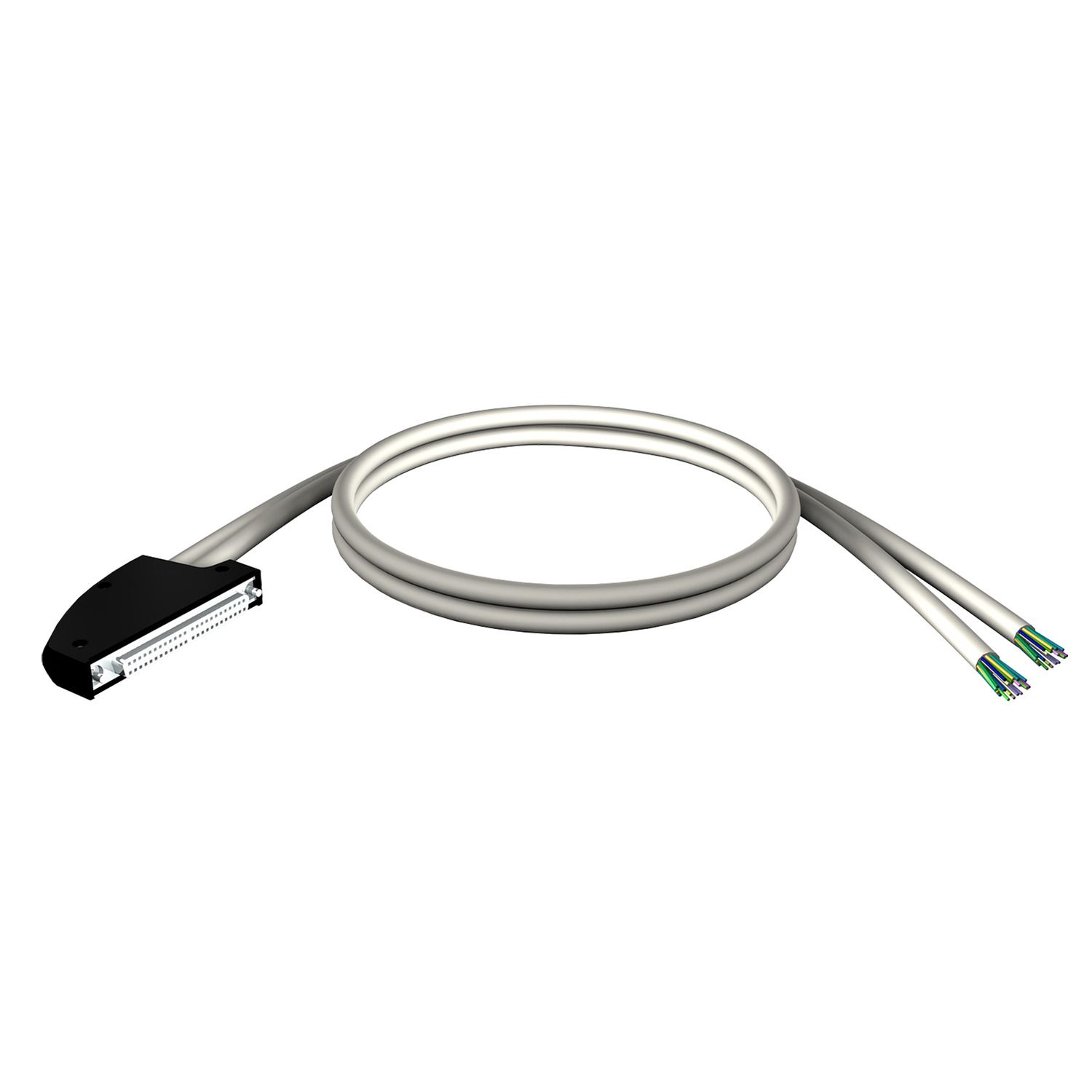

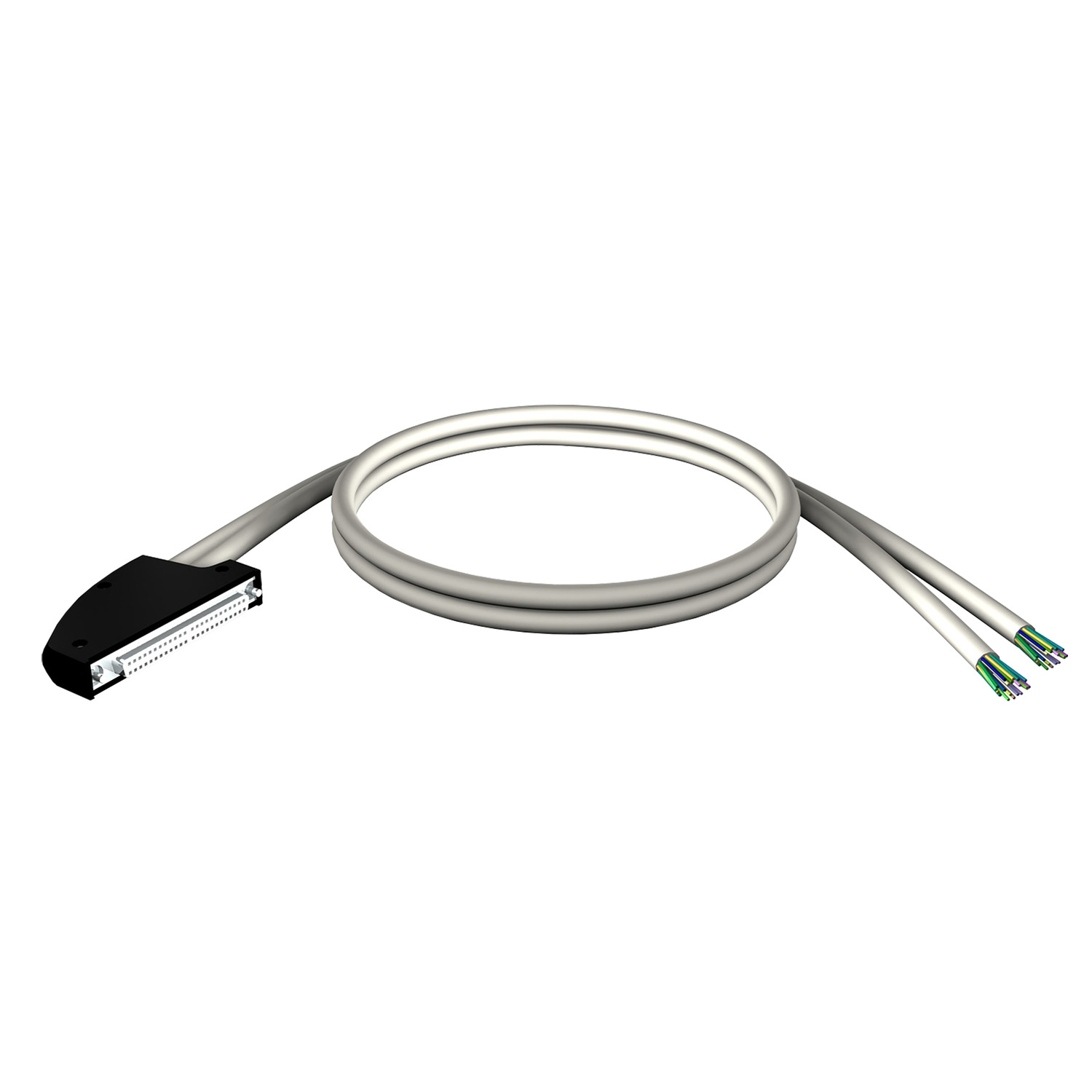

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32 channels modules. It enables the connection between the I/O of modules with 40-way connectors and the sensors, preactuators.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for I/O module with 40-way connectors |
| Accessory / separate part type | preformed cordset |
| Cable length | 3 m |
| Accessory / separate part designation | preformed cordset with one end with flying leads |
| Range of product | Modicon X80 |
| Electrical connection | 2 ends with color-coded flying leads conforming to DIN 47100, 1 connector 40 ways |
| Number of cables | 2 |
| Complementary | |
| AWG gauge | AWG 22 |
| Total number of wires | 40 |
| Net weight | 0.9 kg |
| Wire section | 0.324 mm² |
