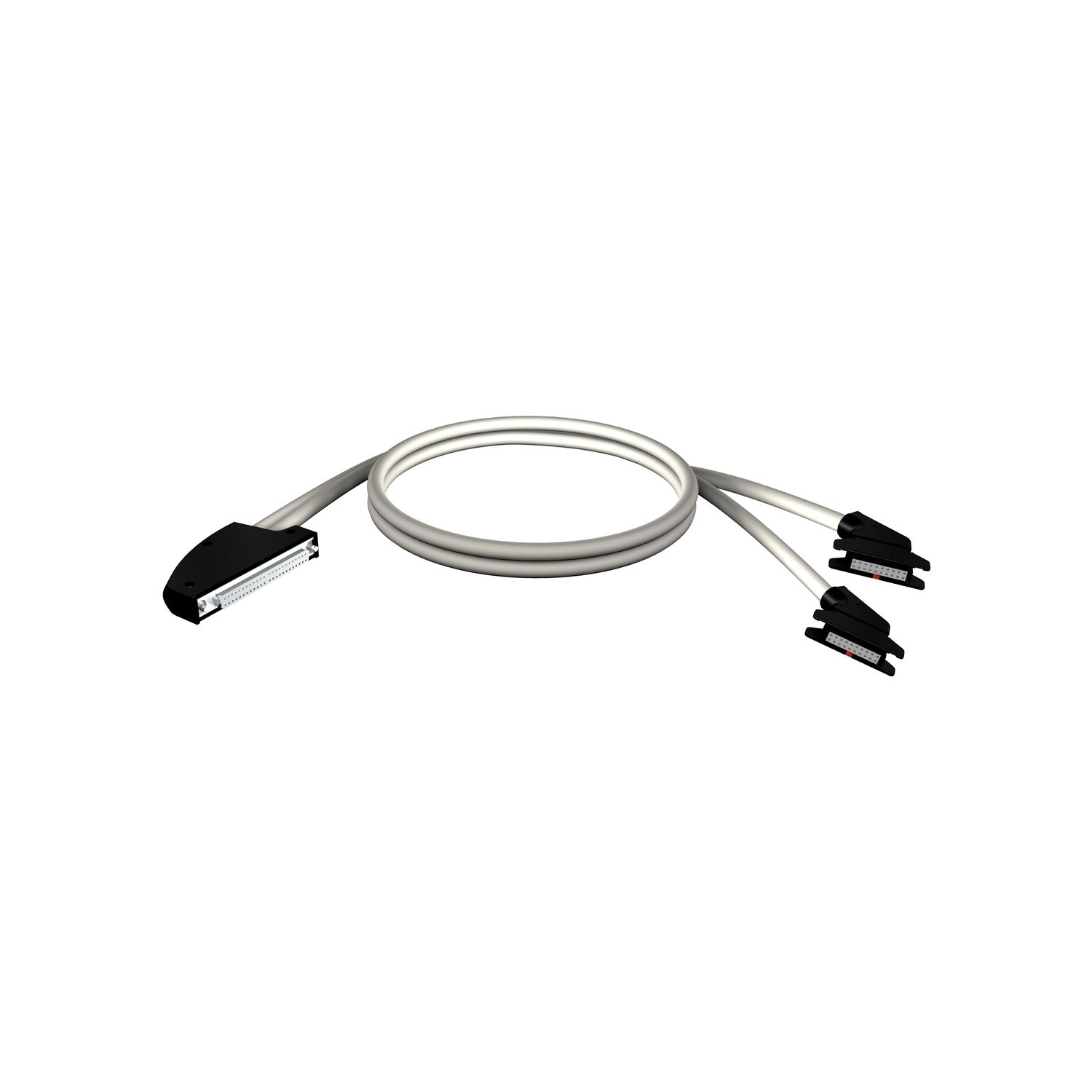

This preassembled cordset is part of the Modicon X80 modules. It is compatible with 32-channels I/O modules. It enables the connection between I/O of modules with 40-way connectors to Modicon Telefast ABE7 rapid wiring connection. It is equipped with one 40-way connector at one end and two HE 10 connectors at the other end, and is 2 meters long.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for I/O module with 40-way connectors |
| Accessory / separate part type | preformed cordset |
| Cable length | 2 m |
| Accessory / separate part designation | preformed cordset for Telefast Advantys ABE7 sub-bases |
| Range of product | Modicon X80 |
| Electrical connection | 2 connectors HE10, 1 connector 40 ways |
| Number of cables | 2 |
| Complementary | |
| Total number of wires | 40 |
| Net weight | 0.63 kg |
| Wire section | 0.324 mm² |
