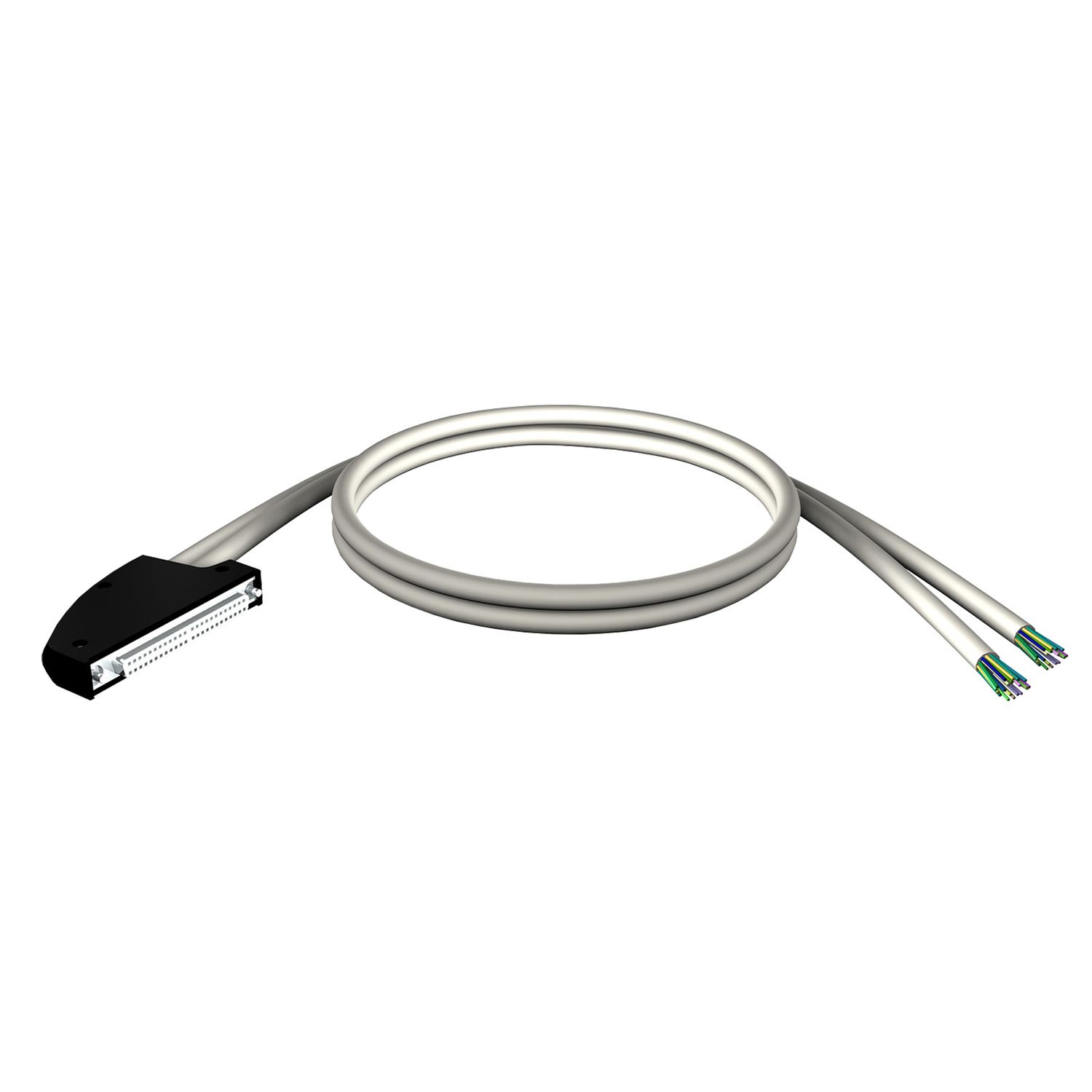

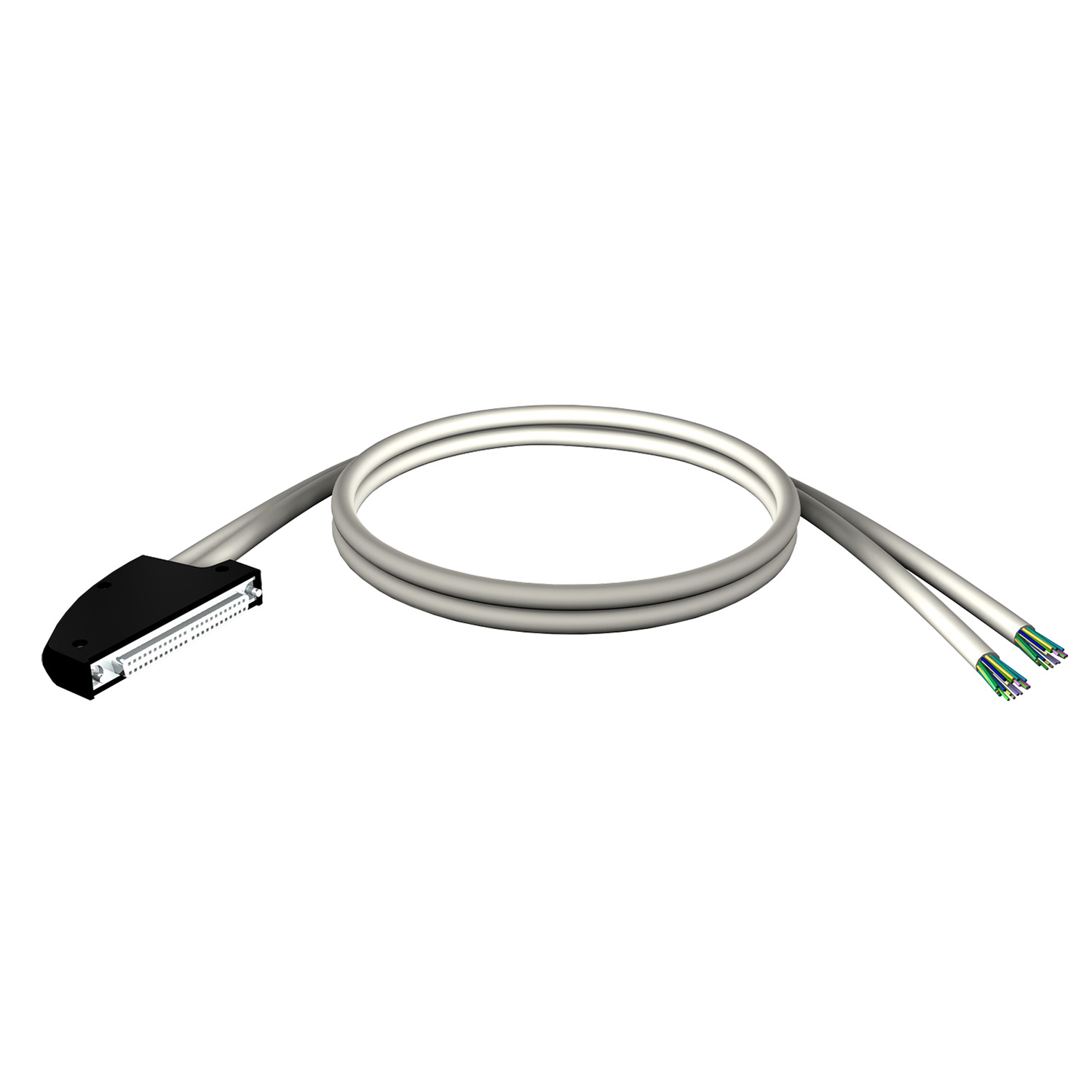

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This cordset is an accessory of I/O module. The length of this cable is 5m. This product is robust, high quality and based on the latest innovative technology. It is furnished with 40-way connector and two-end color-coded flying leads (conforming to DIN 47100) for electrical connection. It weighs 1.49kg. It is suitable for medium to large process applications. This cordset is compatible with Modicon M340 automation platform discrete I/O modules. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for I/O module with 40-way connectors |
| Accessory / separate part type | preformed cordset |
| Cable length | 5 m |
| Accessory / separate part designation | preformed cordset with one end with flying leads |
| Range of product | Modicon X80 |
| Electrical connection | 2 ends with color-coded flying leads conforming to DIN 47100, 1 connector 40 ways |
| Number of cables | 2 |
| Complementary | |
| Relative impedance | 100 MOhm for 50...250 V, 10 MOhm for <= 50 V |
| AWG gauge | AWG 22 |
| Total number of wires | 40 |
| Net weight | 1.49 kg |
| Wire section | 0.324 mm² |
| Environment | |
| Standards | UL 508, EN/IEC 61131-2, CSA C22.2 No 142 |
