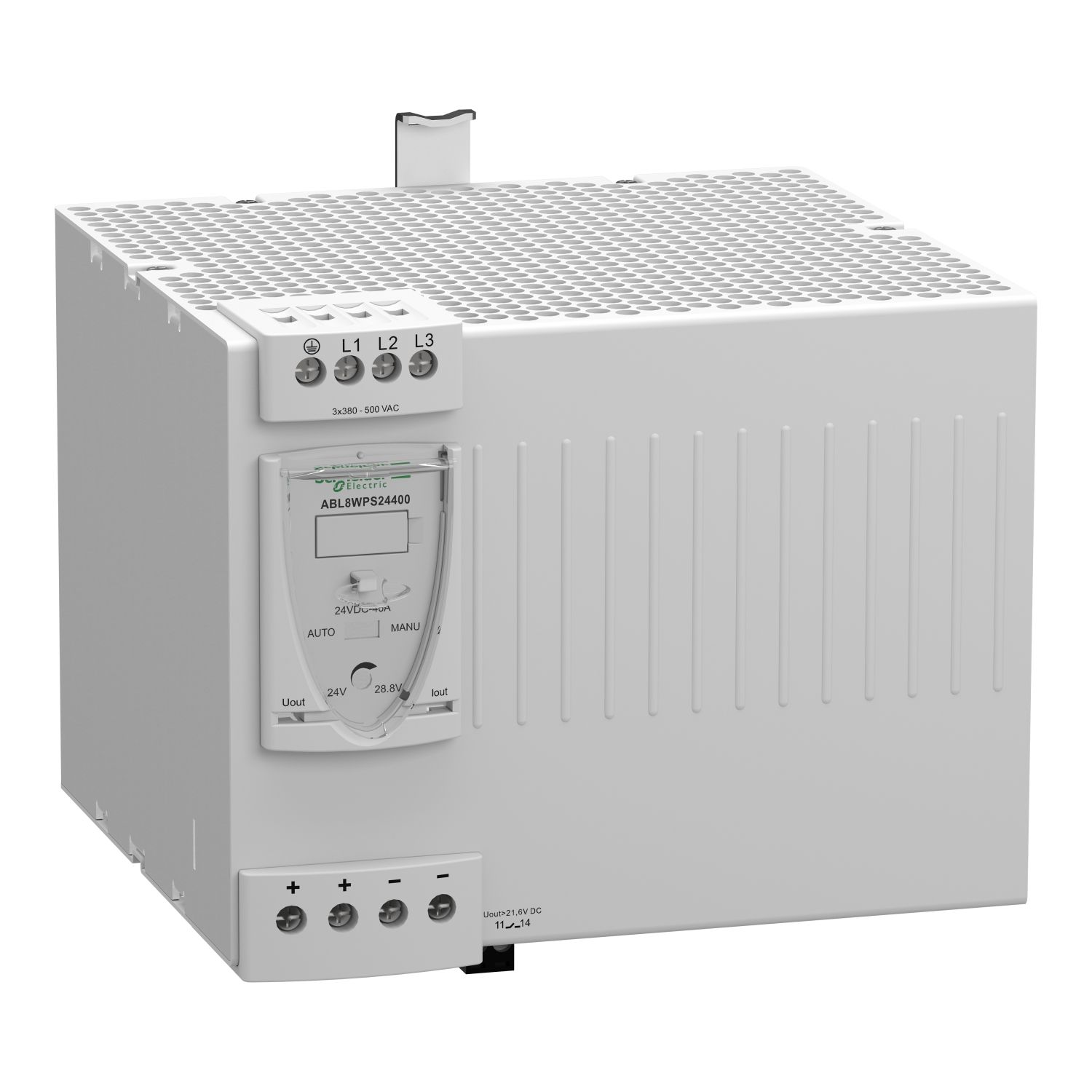

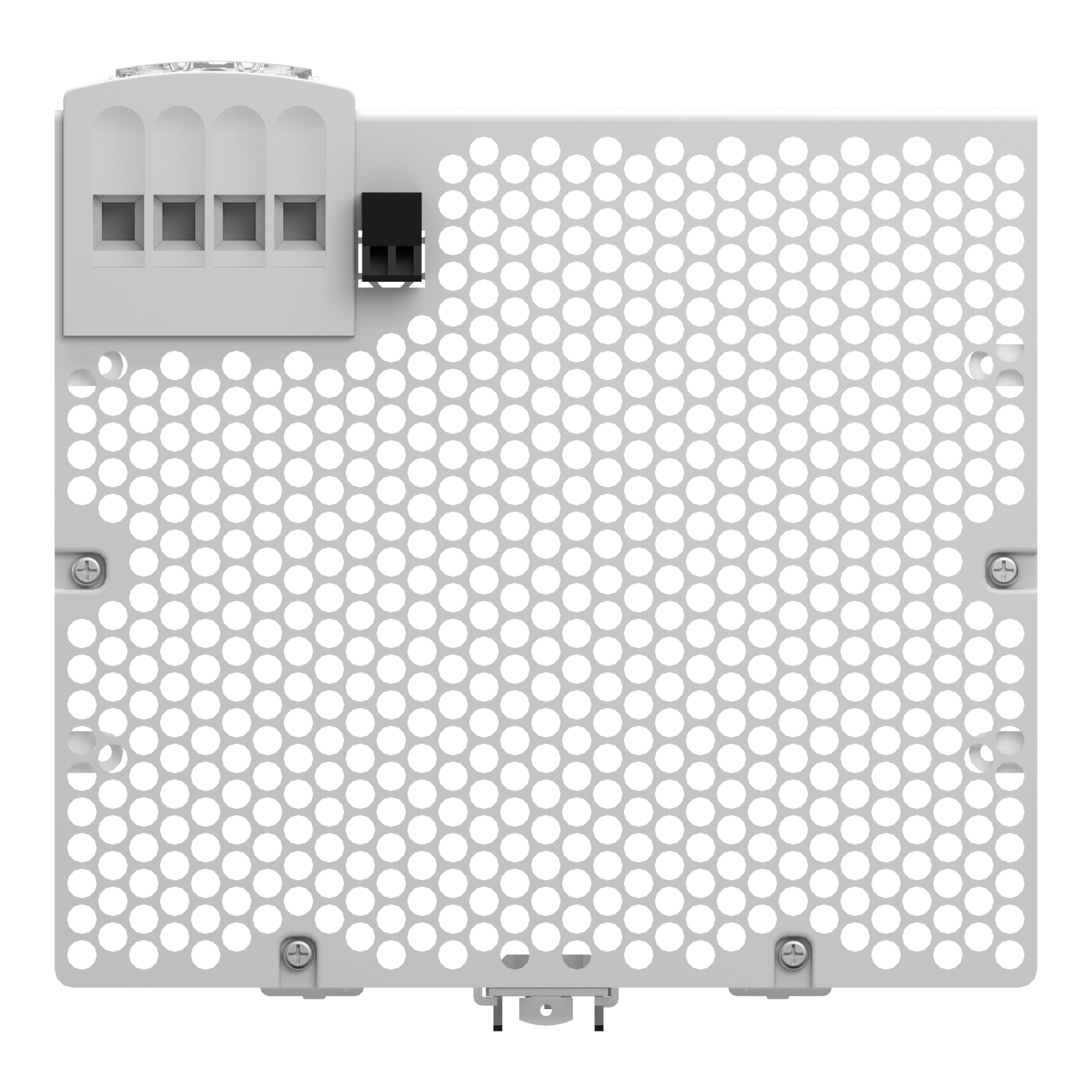

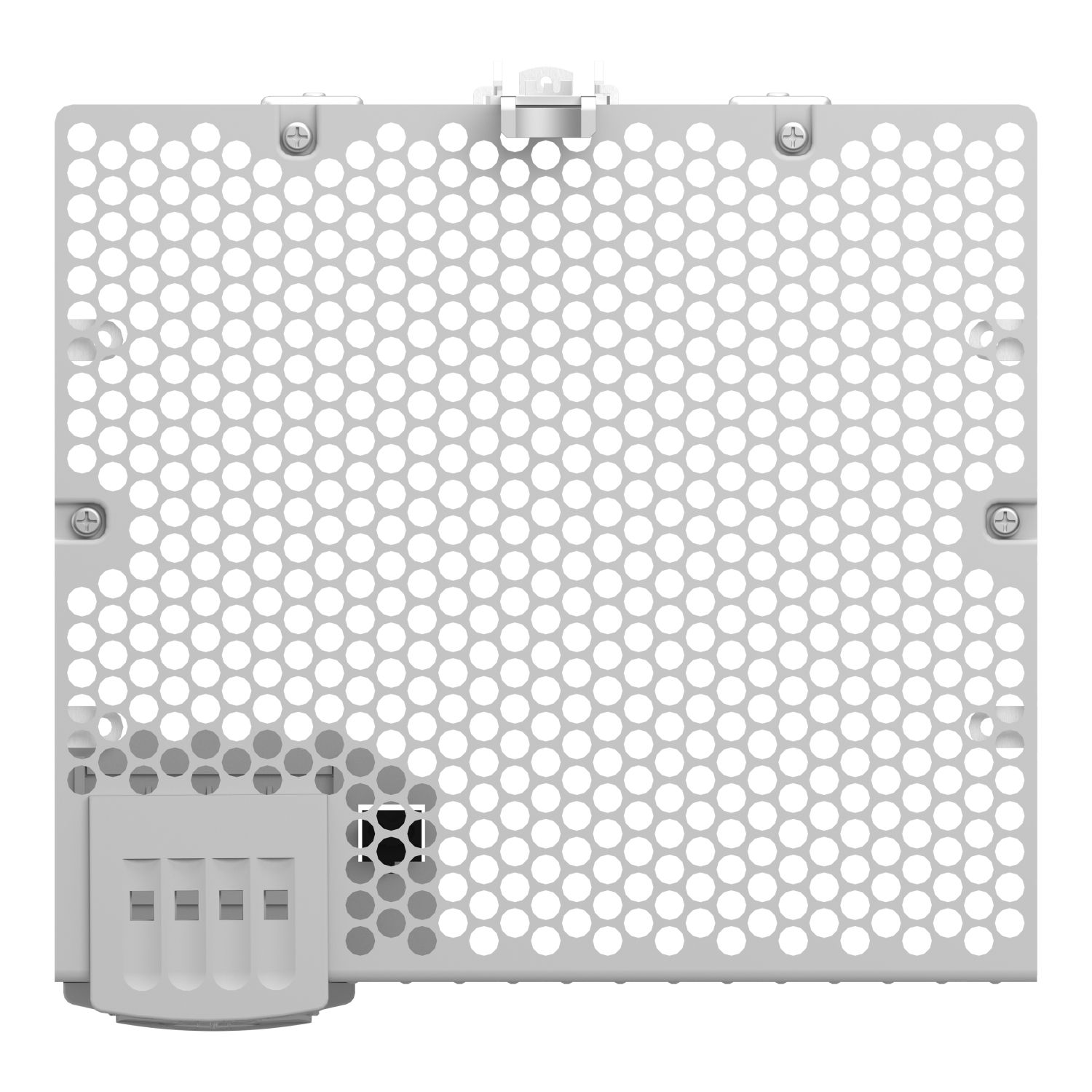

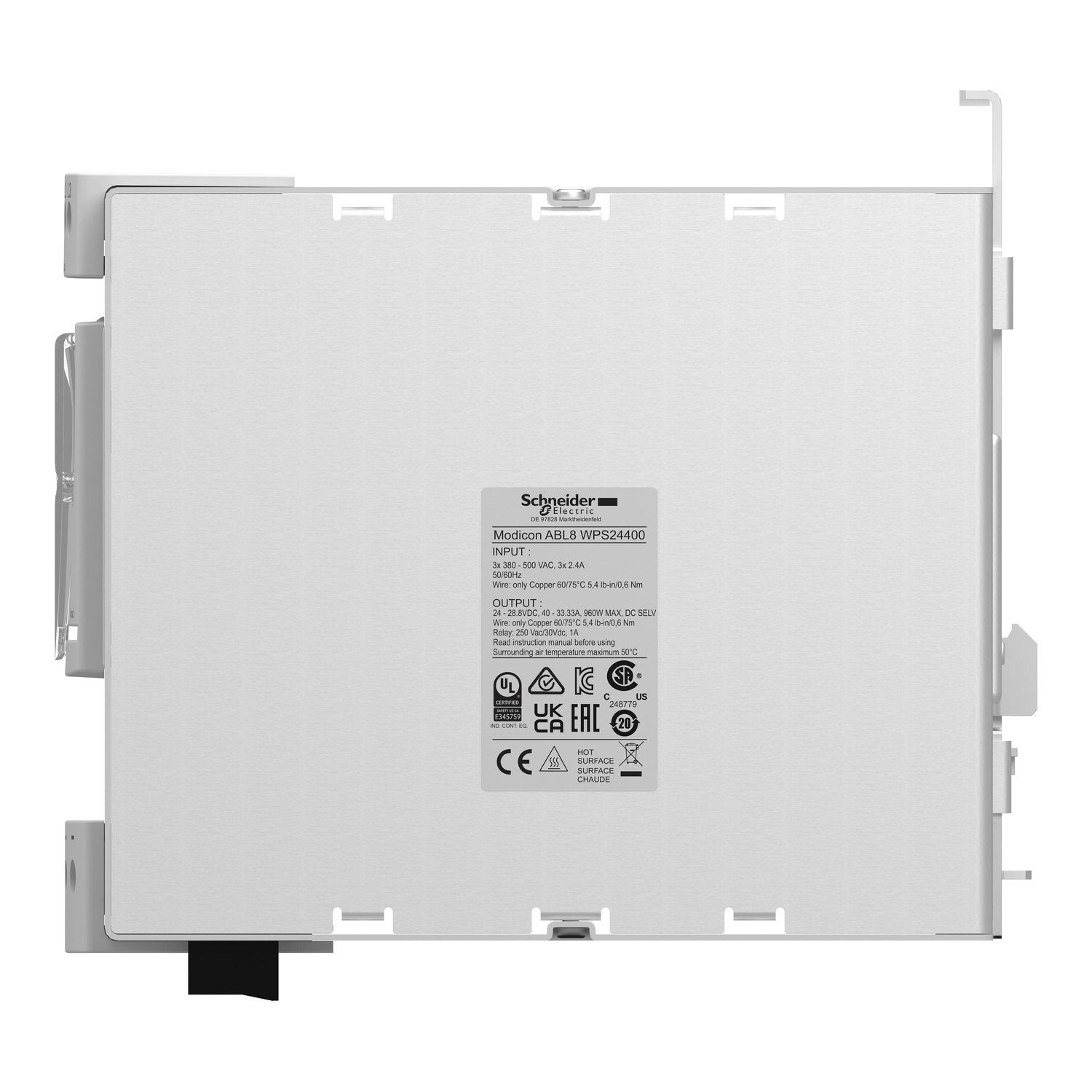

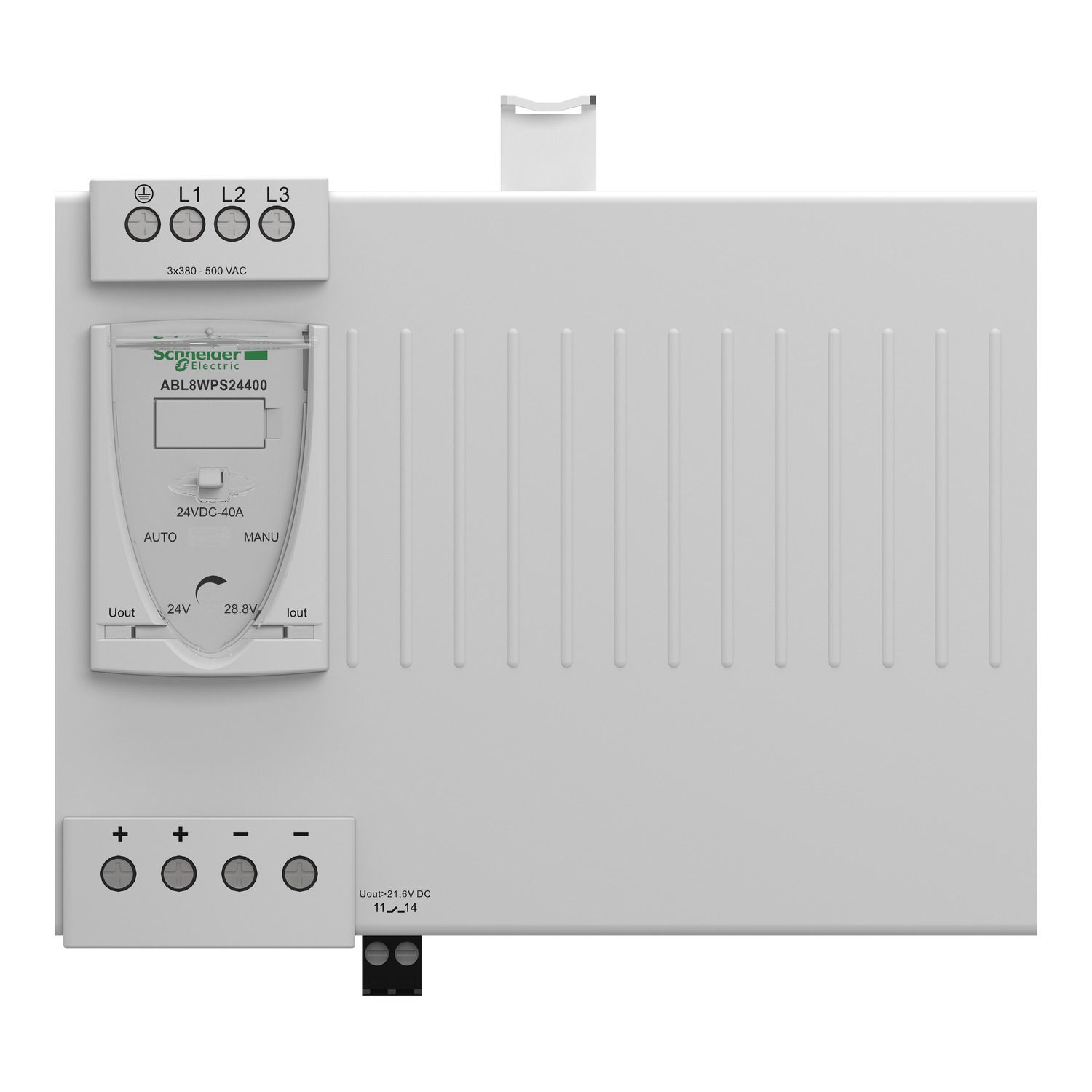

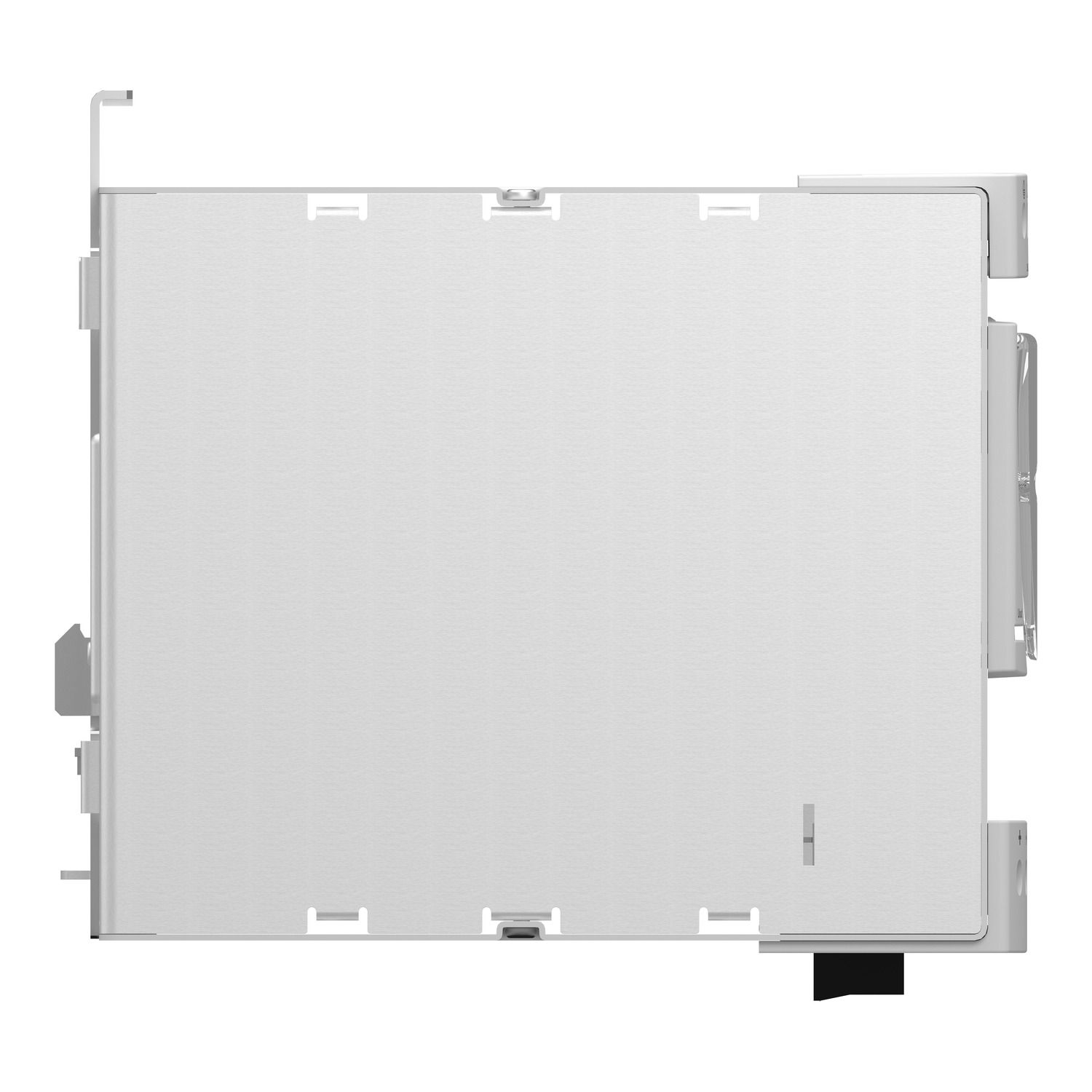

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 380V to 500V AC, a rated output current of 40A at 24V DC and a rated power output of 960W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 165mm-wide. It weighs 2,700kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GV2ME07 thermal magnetic circuit breaker is recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rated power in W | 960 W |
| Permissible temporary current boost | 1.5 x In (for 4 s) |
| Input voltage | 380...500 V AC three phase, terminal(s): L1, L2, L3 |
| Output voltage | 24 V DC |
| Range of product | Modicon Power Supply |
| Power supply output current | 40 A |
| Anti-harmonic filter | low frequency harmonic currents |
| Power supply type | regulated switch mode |
| Product or component type | power supply |
| Complementary | |
| Power factor | 0.85 at 24 V DC |
| Inrush current | 25 A |
| Efficiency | 92 % |
| Operating position | vertical |
| Power dissipation in W | 76.8 W |
| Marking | CE |
| Connections - terminals | screw type terminals: 4 x 0.5...4 x 10 mm², (AWG 22...AWG 8) for output connection, screw type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connection, screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connection, removable screw terminal block: 2 x 2.5 mm², for diagnostic relay |
| Input voltage limits | 320...550 V AC |
| Status LED | 1 LED (green, red and orange) output current, 1 LED (green and red) output voltage |
| Height | 143 mm |
| Depth | 160 mm |
| Width | 166 mm |

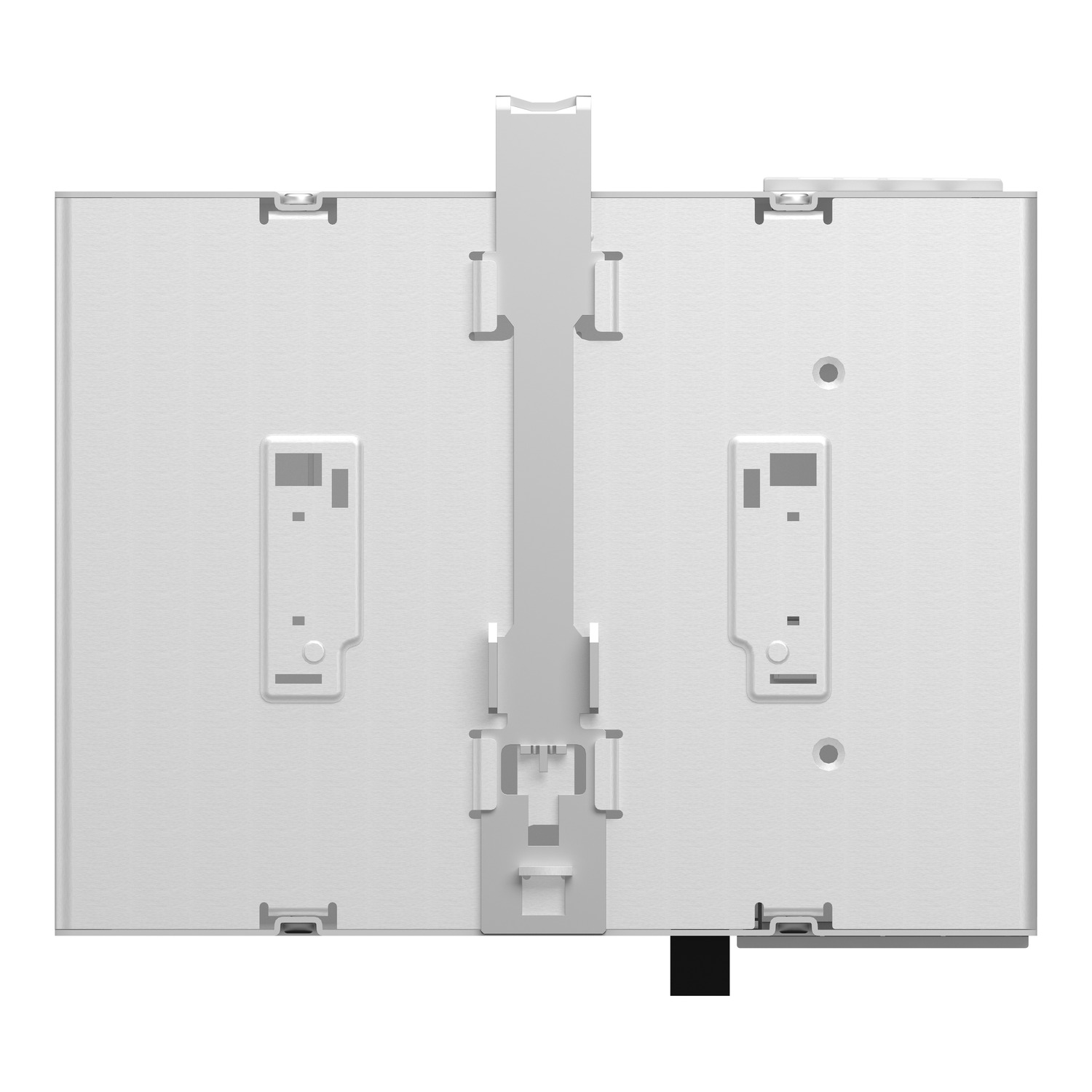

| Mounting support | 35 x 15 mm symmetrical DIN rail, 35 x 7.5 mm symmetrical DIN rail |
| Output voltage limits | 24...28.8 V adjustable |
| Output protection type | thermal, protection technology: automatic reset, against undervoltage, protection technology: tripping if U < 21.6 V, against short-circuits, protection technology: manual or automatic reset, against overvoltage, protection technology: 30...32 V, manual reset, against overload, protection technology: manual or automatic reset |
| Net weight | 2.7 kg |
| Supply | SELV conforming to IEC 60364-4-41, SELV conforming to IEC 60204-1, SELV conforming to IEC 60950-1 |
| Dielectric strength | 500 V with between output and ground, 4000 V with between input and output, 3500 V with between input and ground |
| Provided equipment | power factor correction filter conforming to IEC 61000-3-2 |
| Output coupling | series, parallel |
| Environment | |
| Compatibility code | ABL8W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Product certifications | RCM, UL, EAC, cCSAus |
| Ambient air temperature for operation | -25-50 °C without derating mounting position A < 2000 m, 50-60 °C with derating factor mounting position A < 2000 m |
| Operating altitude | 2000 m |
| Environmental characteristic | safety conforming to IEC 60950-1, safety conforming to EN 61204-4, EMC conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-4, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-3, EMC conforming to IEC 61000-6-1 |
| Standards | EN/IEC 62368-1, UL 508, CSA C22.2 No 60950-1 |
