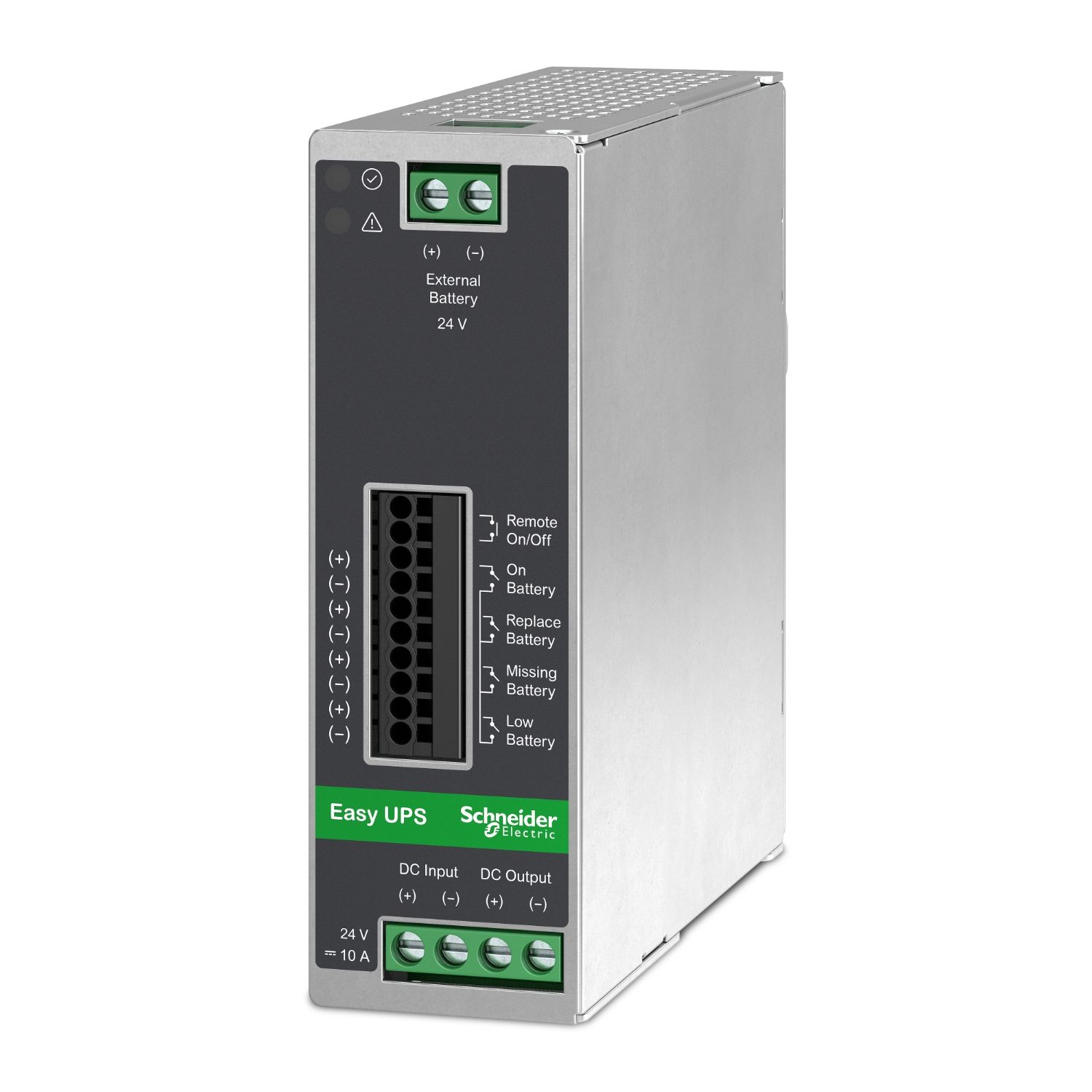

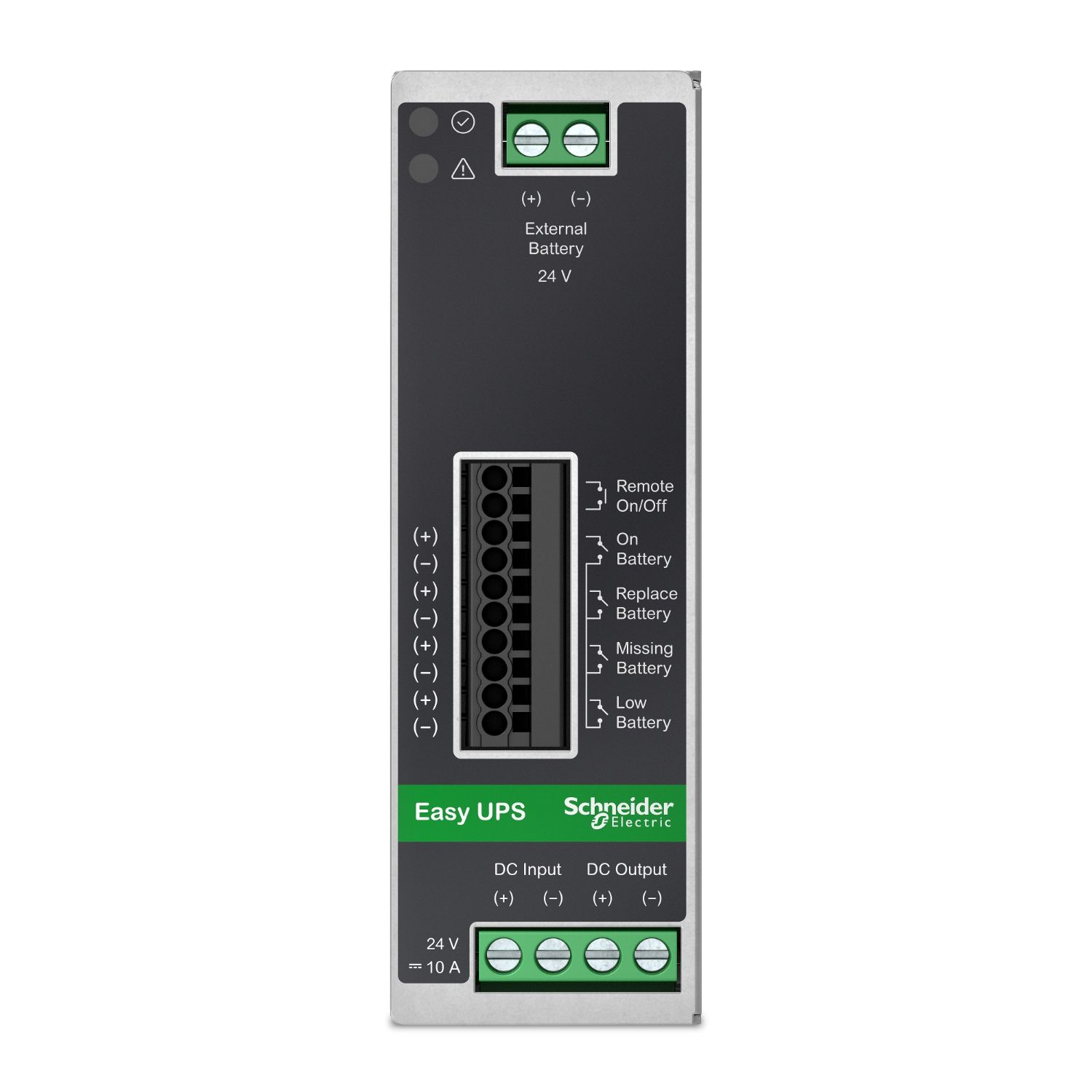

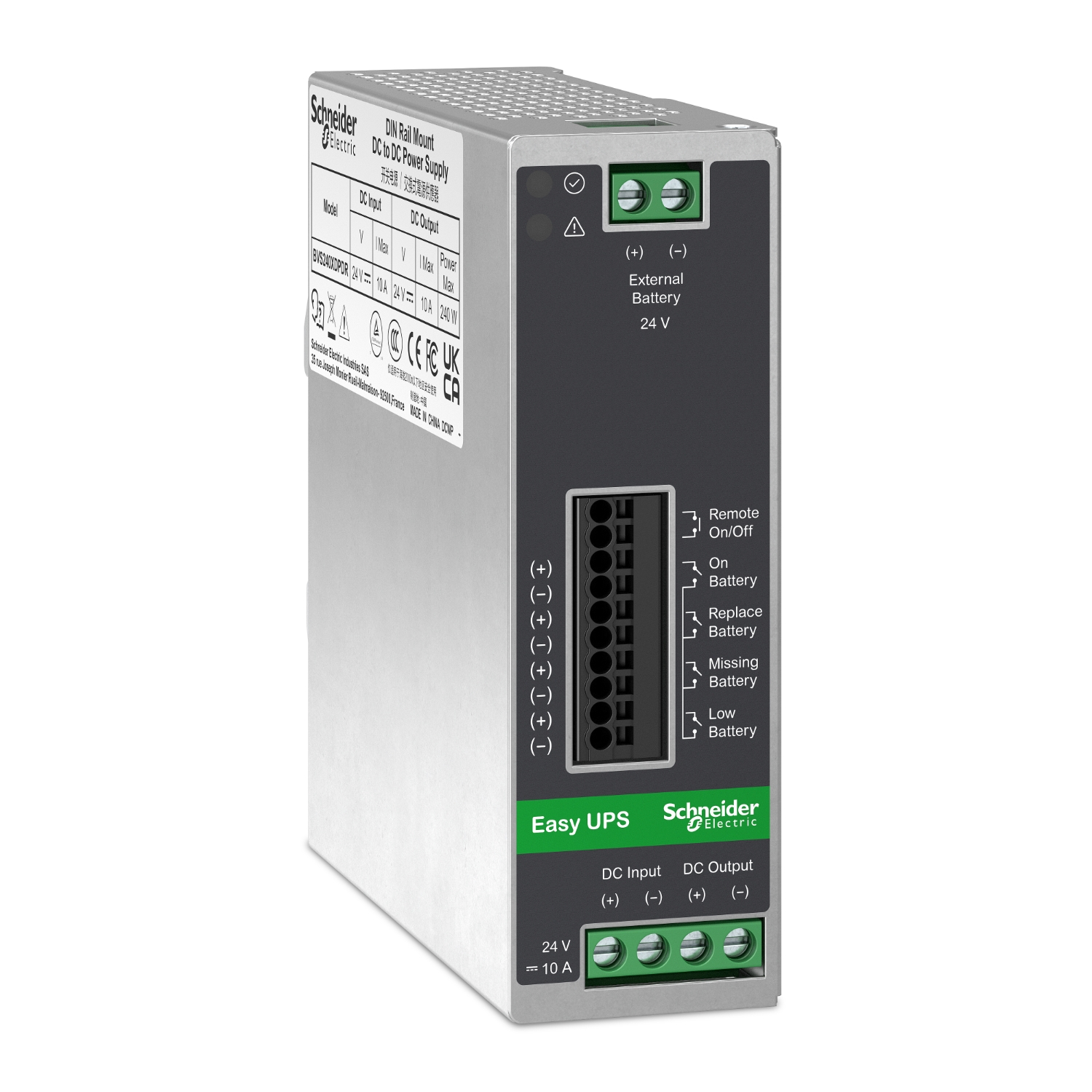

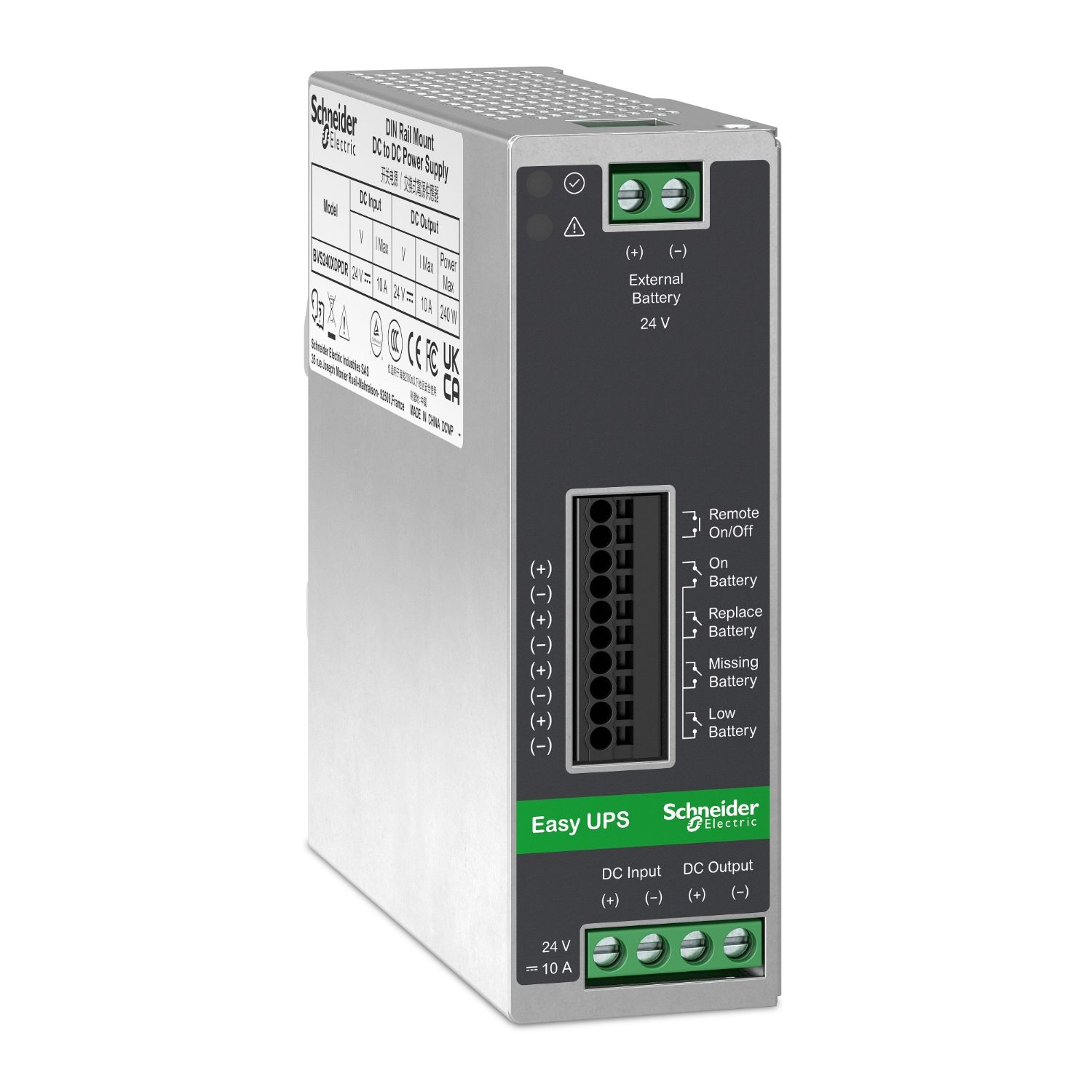

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Rated power in W | 480 W |
| Main Input Voltage | 24 V DC |
| Product or component type | uninterruptible power supply (UPS) |
| Connections - terminals | 1 2 pins |
| Output voltage | 24 V DC |
| Number of input connectors | 1 terminal block 2-wire |
| Number of power module | 1 |
| Wave type | DC |
| Maximum input current | 20 A |
| UPS size | S |
| Output overload operation | 60 seconds at 130% and 30 seconds at 145% |
| Environmental | |
| Operating altitude | 0...3000 m |
| Acoustic level | 40 dB |
| Relative humidity | 0-95 % non-condensing |
| Ambient air temperature for storage | -15-70 °C |
| IP degree of protection | IP20 |
| Storage altitude | 0-3000 m |
| Ambient air temperature for operation | -15-50 °C |
| Storage Relative Humidity | 0-95 % non-condensing |
| Physical | |
| Depth | 119 mm |
| Width | 40 mm |
| Colour | metal grey |
| Mounting position | horizontal |
| Mounting mode | DIN rail mount |
| Net weight | 0.5 kg |
| Height | 129 mm |
| Input | |
| Input protection type | protected against short-circuit, against reverse polarity, integrated fuse (not interchangeable) |
| Input voltage limits | 21.6...28.8 V 24 V DC |
| Output | |
| Maximum output current | 20 A |
| Efficiency | 95 % |
| Conformance | |
| Standards | IEC 61010-1, CSA-C22.2 No 62368-1-14, IEC 62368-1, UL 60950-1 |
| Product certifications | TÜV, CE |
| Batteries & Runtime | |
| Battery type | external battery system |
| Battery voltage | 24 V |
| General | |
| Provided equipment | user manual |
Only registered users can write reviews
Related products
Regulated Power Supply, 100 to 240V AC, 12V, 10A, single phase, Optimized
ABLS1A12100
Regulated Power Supply, 100 to 240V AC, 12V, 10A, single phase, Optimized
$338.25 inc GST
$305.27 inc GST
Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized
ABLS1A12062
Regulated Power Supply, 100 to 240V AC, 12V, 6.2A, single phase, Optimized
$286.55 inc GST
$258.61 inc GST

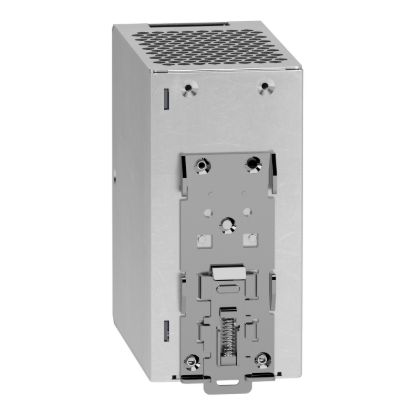

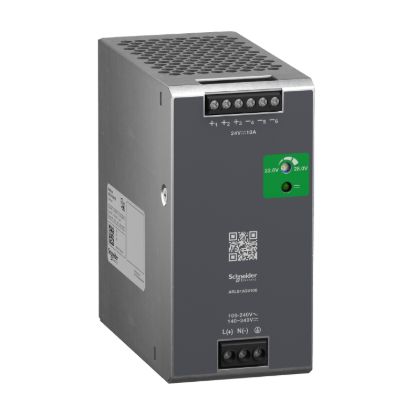

Regulated Power Supply, 100 to 240V AC, 24V, 10A, single phase, Optimized
ABLS1A24100
Regulated Power Supply, 100 to 240V AC, 24V, 10A, single phase, Optimized
$496.10 inc GST
$447.73 inc GST

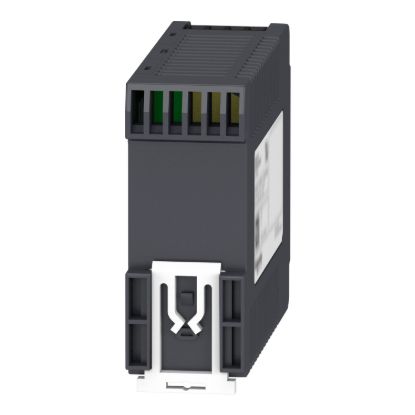

Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized
ABLS1A24021
Regulated Power Supply, 100 to 240V AC, 24V, 2.1A, single phase, Optimized
$203.94 inc GST
$184.06 inc GST

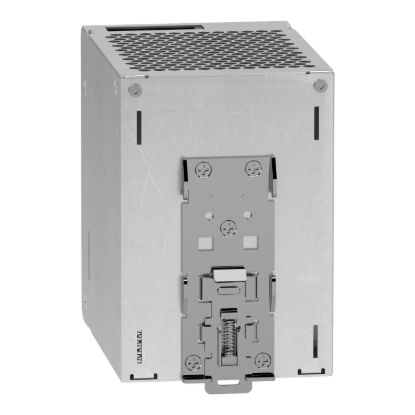

Regulated Power Supply, 100 to 240V AC, 24V, 20A, single phase, Optimized
