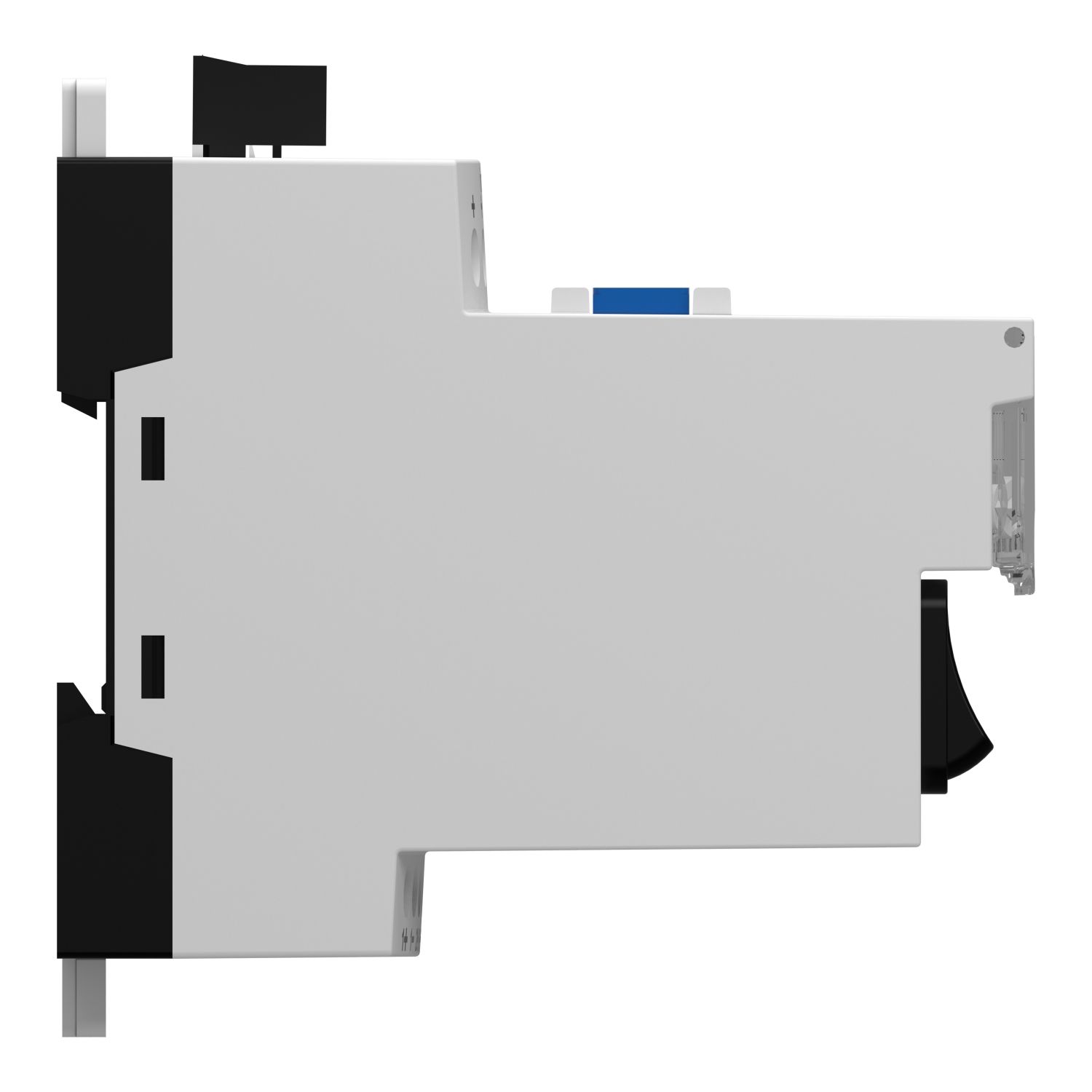

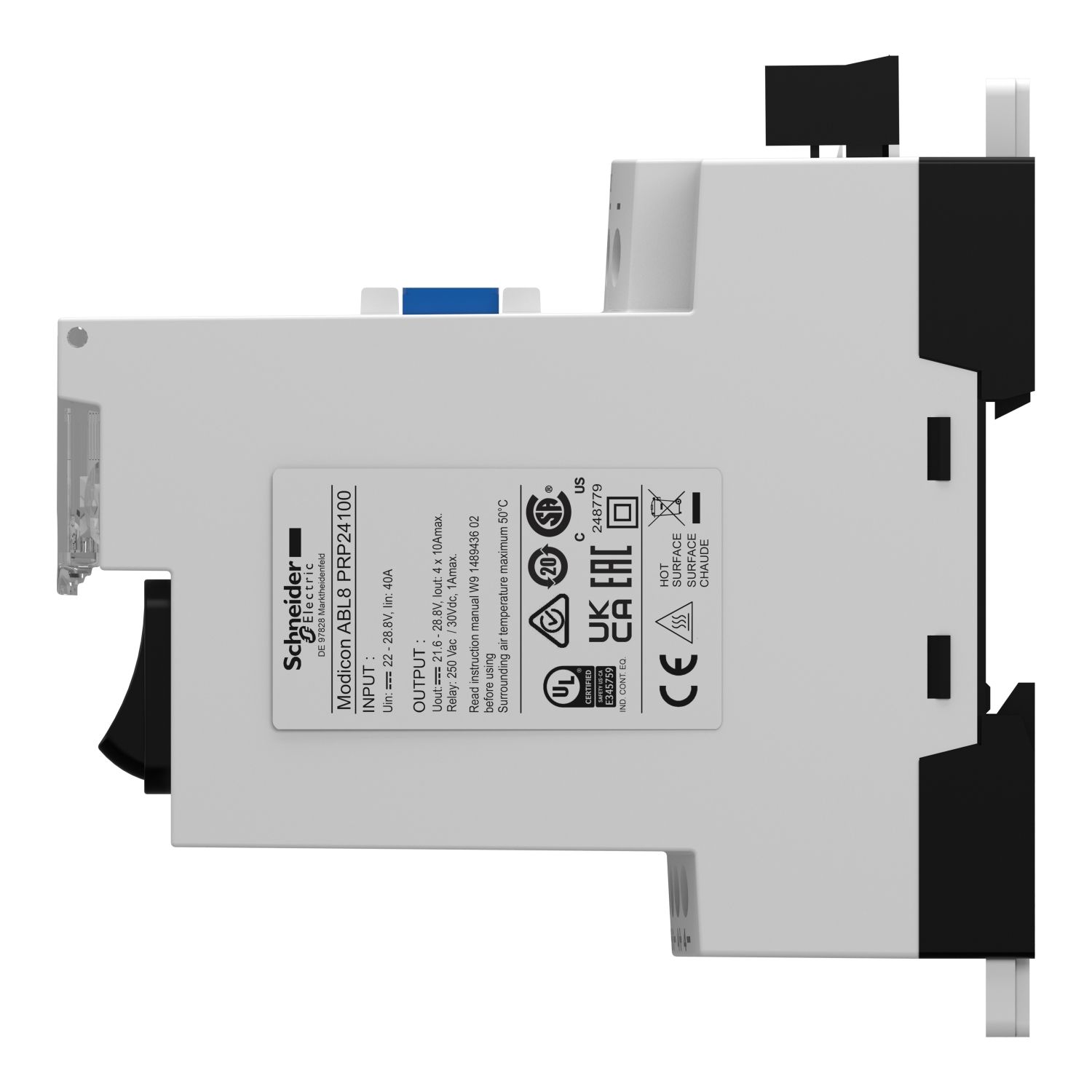

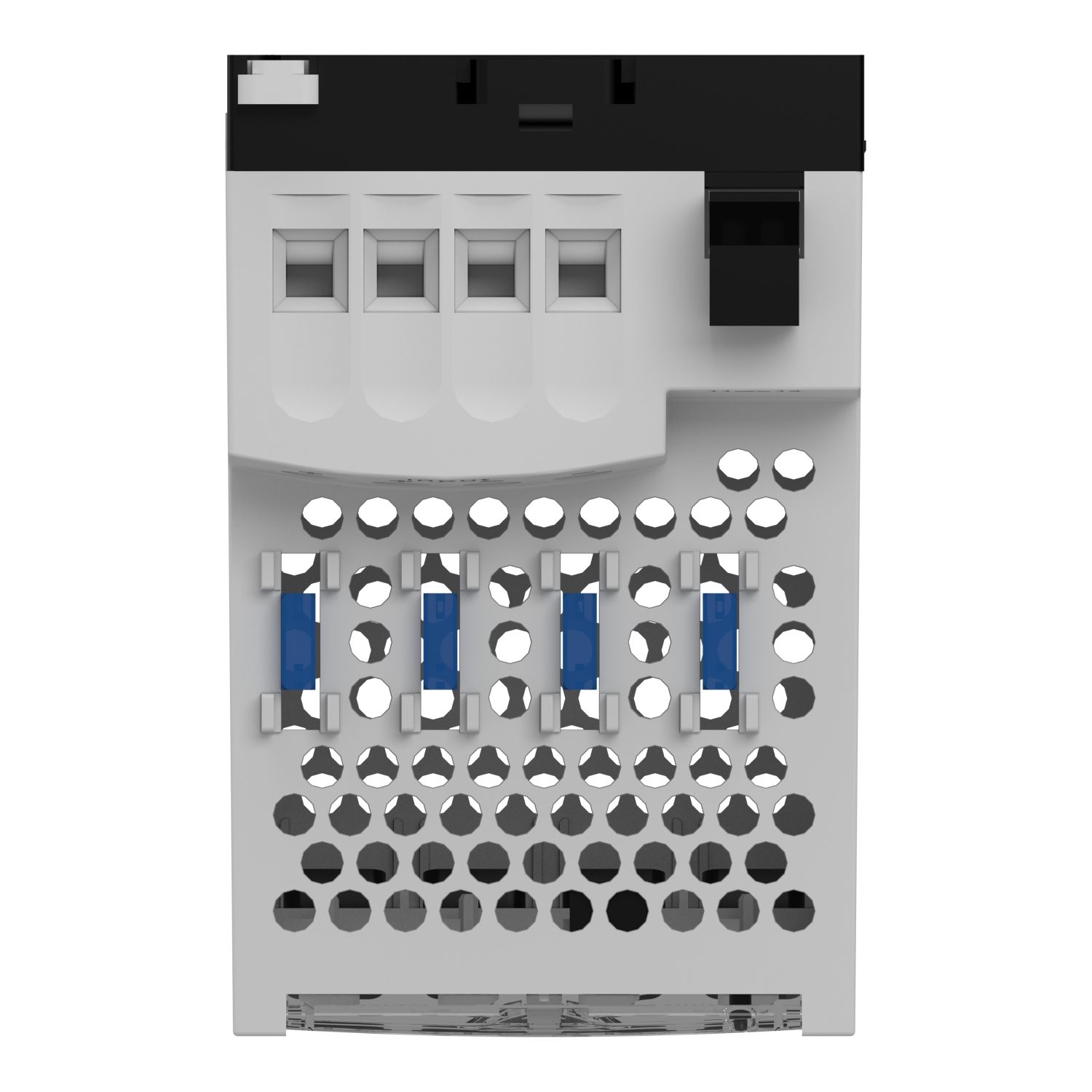

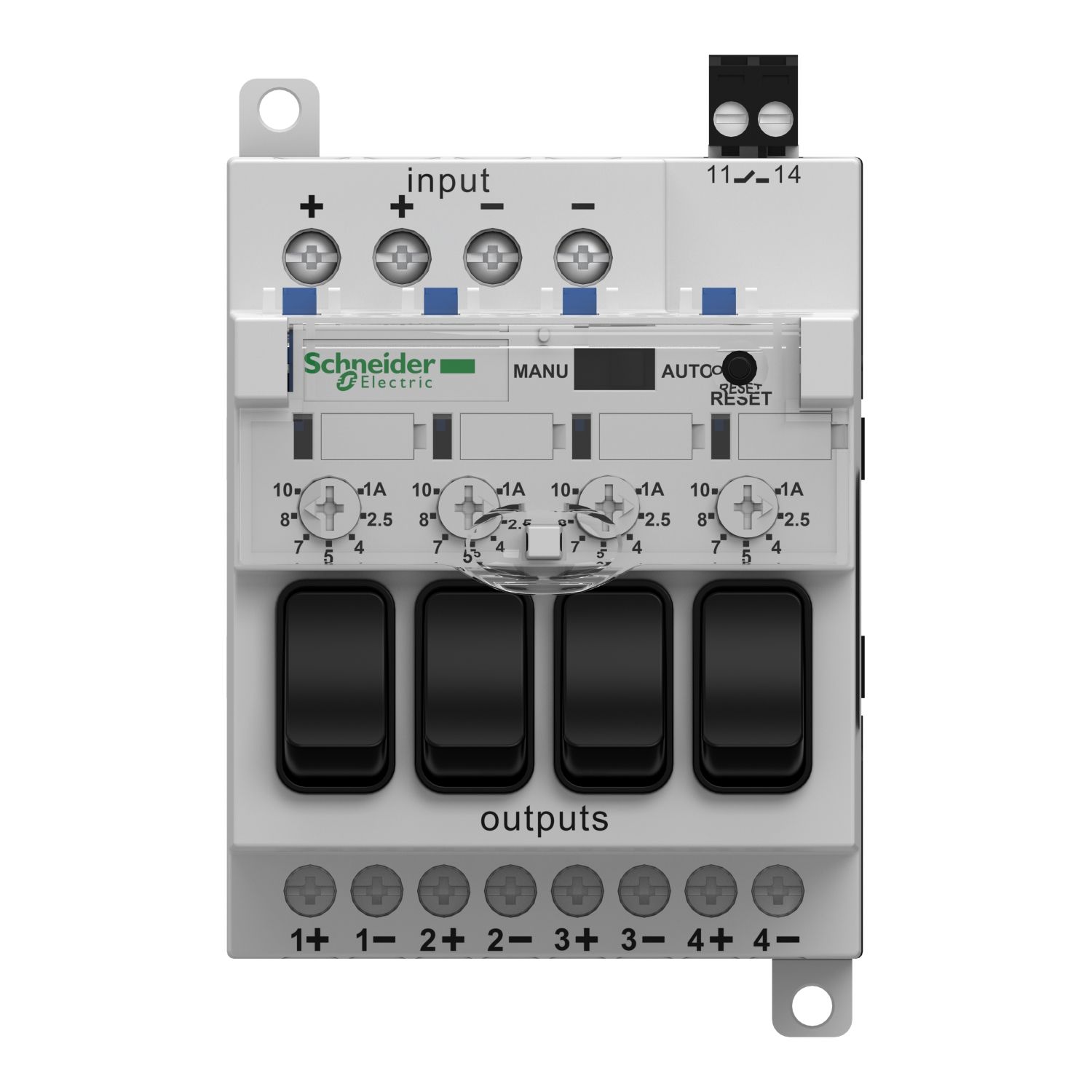

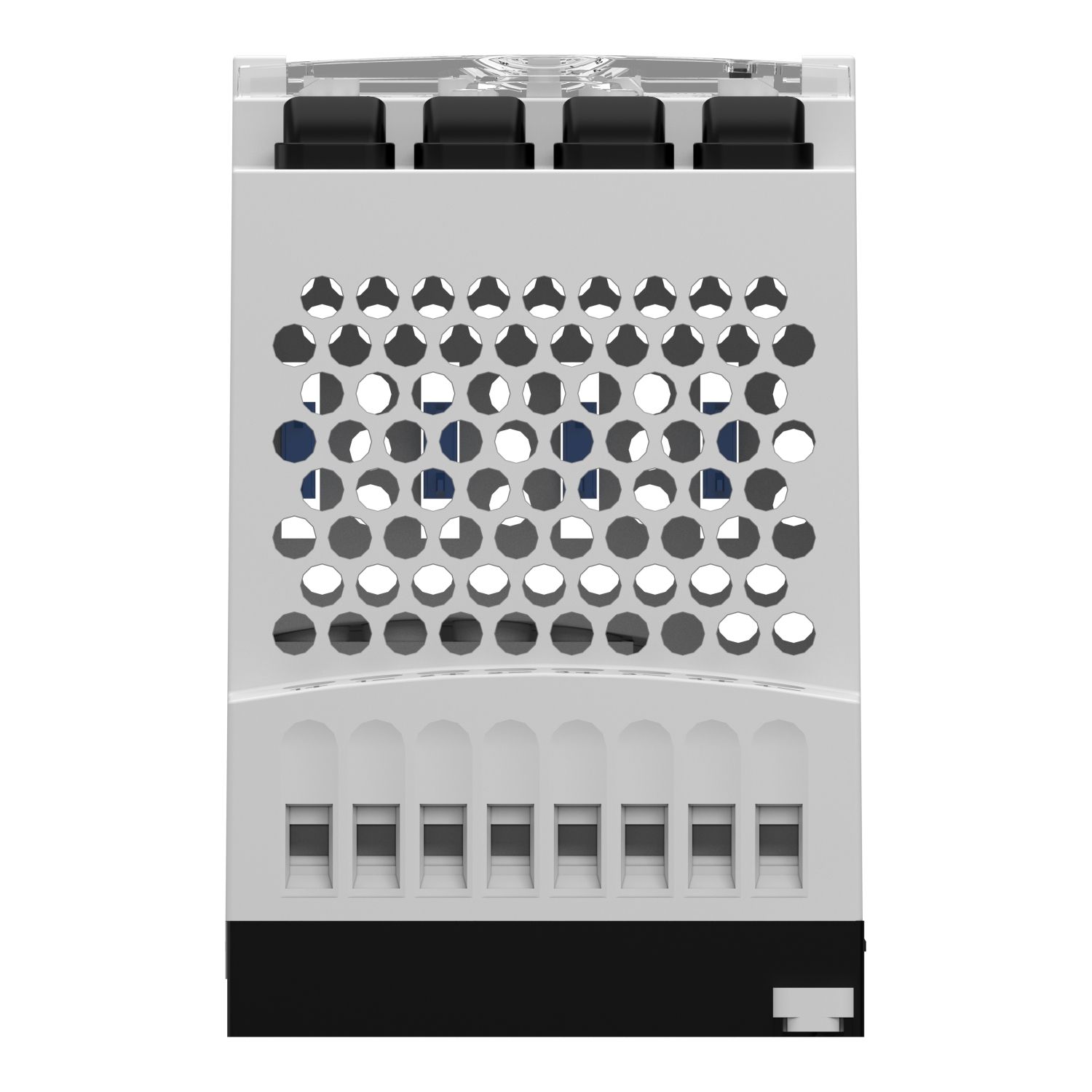

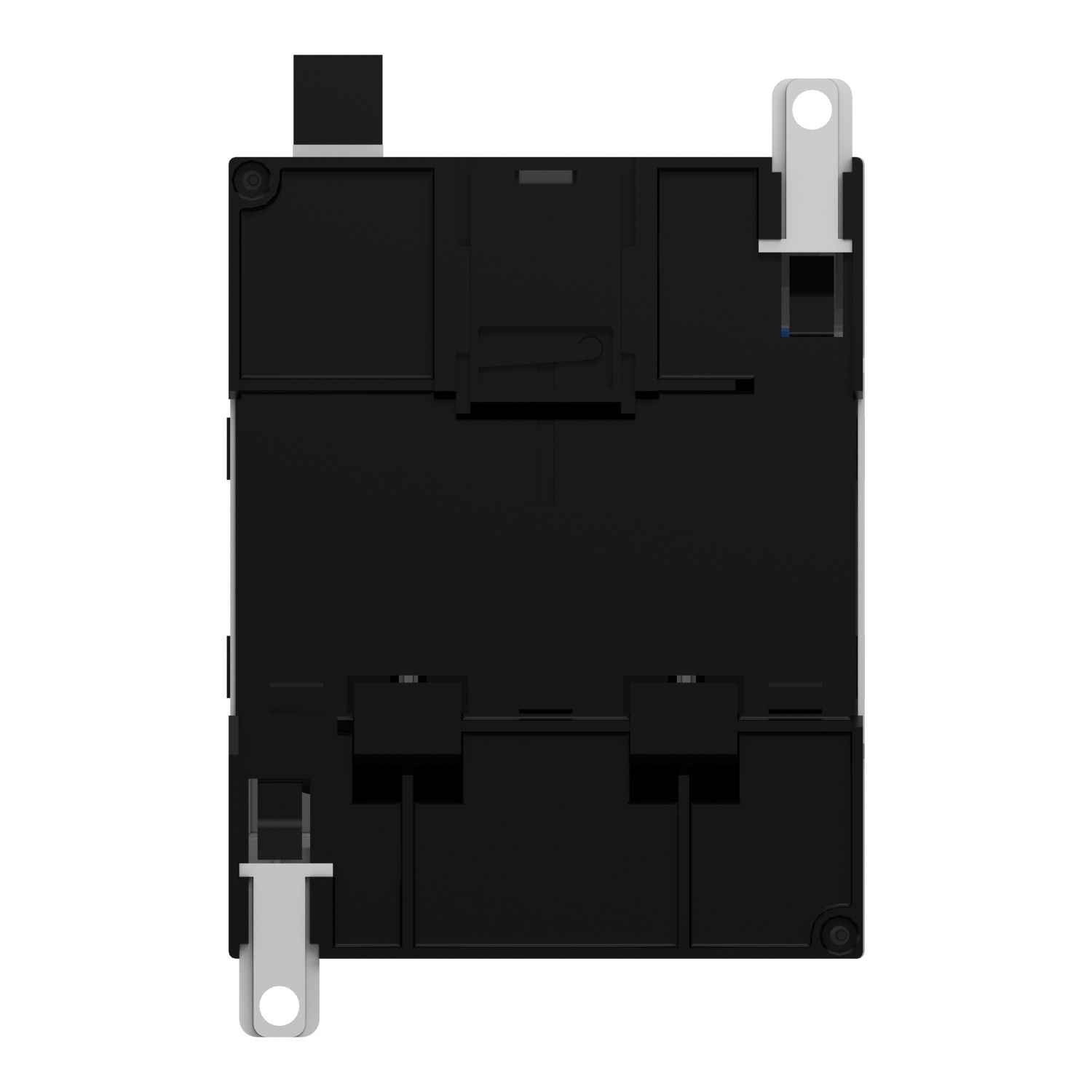

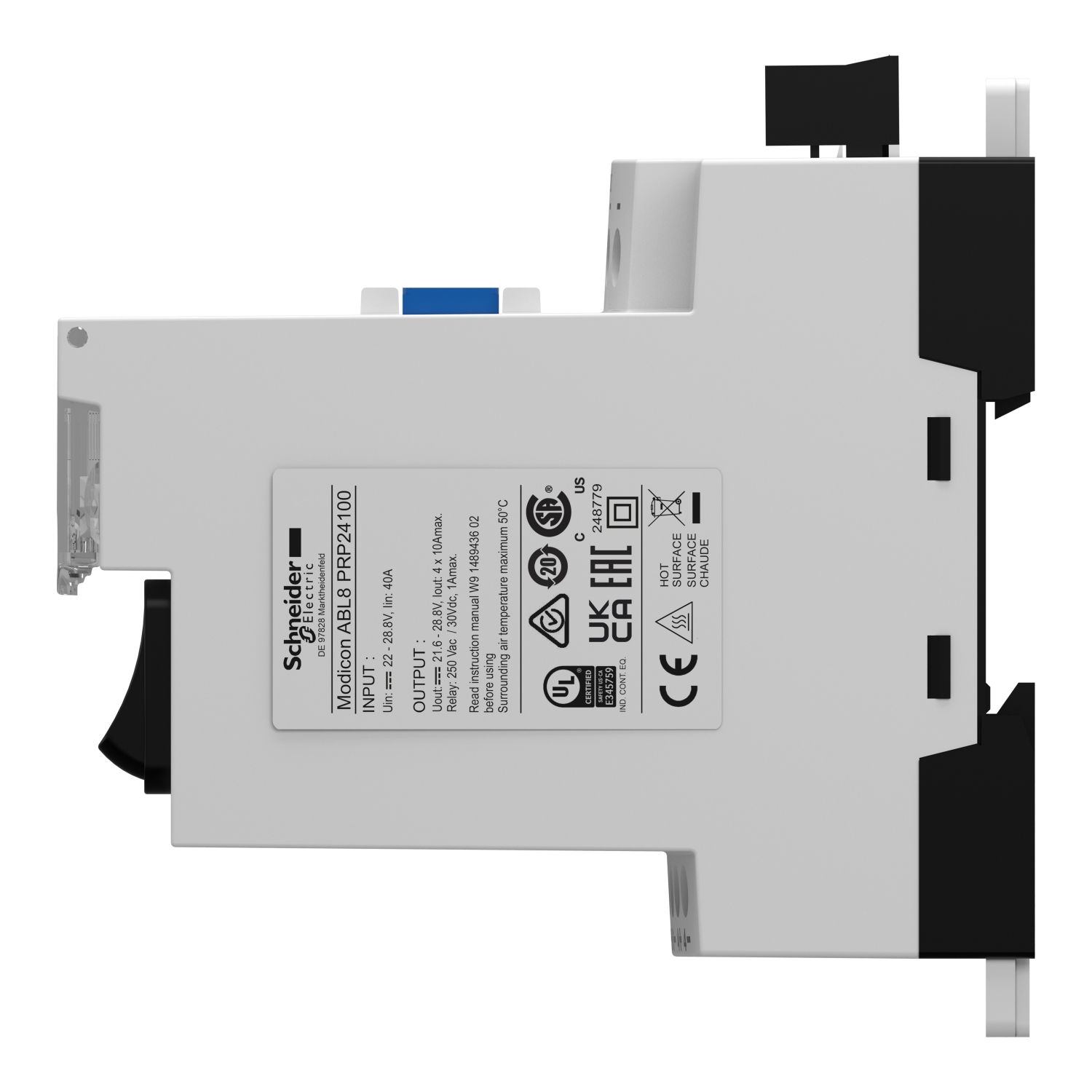

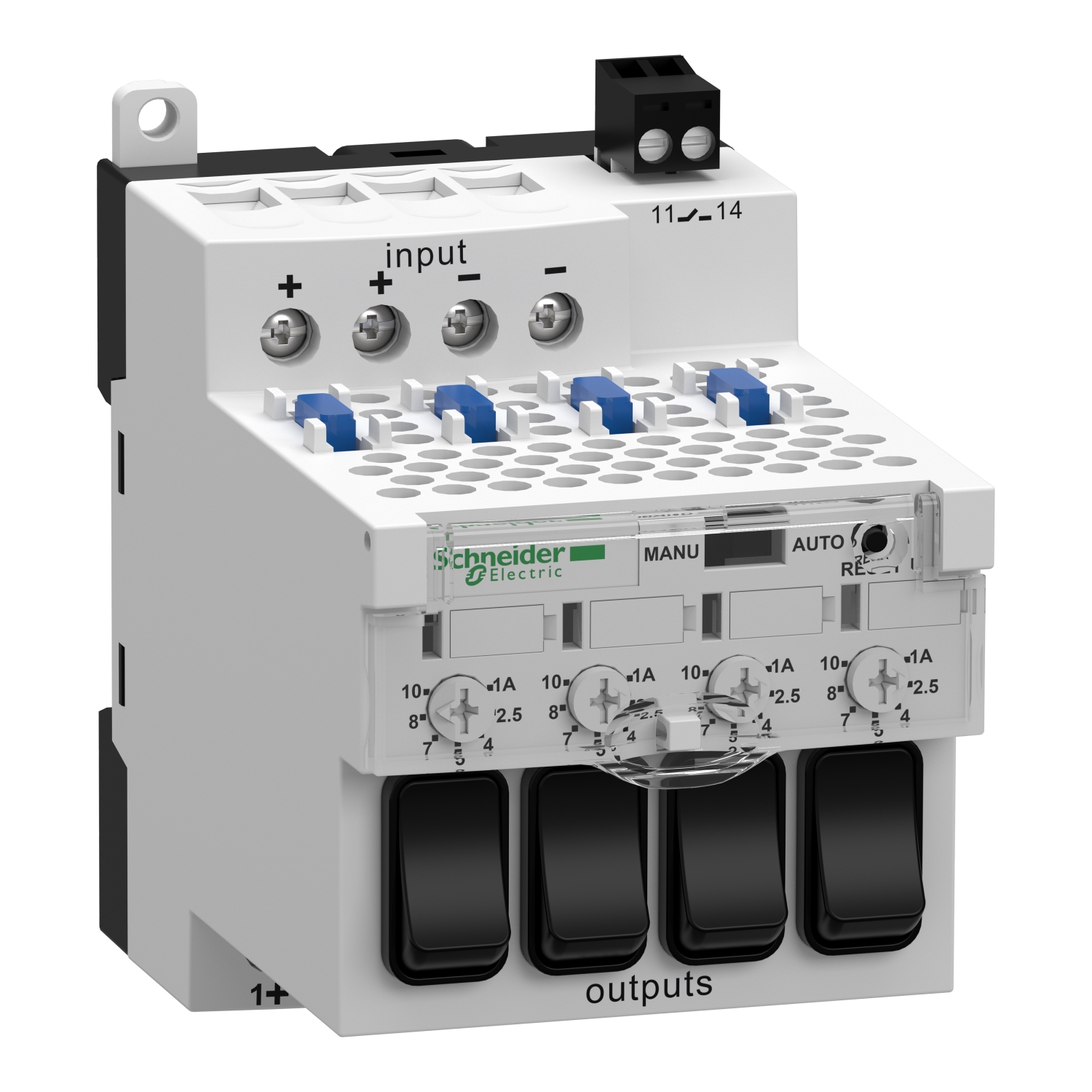

This ABL8 electronic protection module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 10A. This electronic protection module is ideal to protect up to 4 circuits against overloads and short-circuits with a total rated current of 10 amperes. It controls and protects up to 4 independent auxiliary circuits with a single power supply unit. Its complementary function is a 1-pole breaking by channel. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,470kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Maximum output current | 10 A per channel, rating: 1/2.5/4/5/7/8/10 |
| Input voltage | 24...28.8 V DC |
| Range of product | Phaseo |
| Product or component type | electronic protection module |
| Output voltage | (Uin-0.3) V DC |
| Complementary | |
| Number of output channels | 4 |
| Compatibility code | ABL8P |
| Name of test | emission conforming to EN 50081-1, conducted/radiated emissions conforming to EN 55022 class B, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3, emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2 |
| Input voltage limits | 19...32 V |
| Marking | CE |
| Fixing mode | on panel, by clips on 35 mm symmetrical DIN rail, operating position: vertical |
| Operating altitude | 2000 m |
| Breaking capacity | 1000 A at 32 V DC by fuse |
| Local signalling | 1 relay for channel status, 1 LED per channel (green/red) for channel status |
| Output protection type | line protection, protection technology: 1 x 15 A integrated fuse per channel, against short-circuits, protection technology: automatic reset, against overload, protection technology: 1.3 x In |
| Connections - terminals | for output connection: screw type terminals, connection capacity: 8 x 0.5...8 x 4 mm² AWG 20...AWG 10, for diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14, for input connection: screw type terminals, connection capacity: 4 x 0.5...4 x 10 mm² AWG 20...AWG 8 |
| Input current | 40 A |
| Net weight | 0.47 kg |
| Complementary function | 2-pole breaking by channel |
| Environment | |
| Relative humidity | 0-95 % during storage, 0-90 % during operation |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25-60 °C |
| Dielectric strength | 500 V between output and ground, 500 V between input and ground |
| Overvoltage category | class II conforming to VDE 0106-1 |
| Vibration resistance | 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2 |
| Environmental characteristic | safety conforming to EN/IEC 61204-3, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3 |
| Standards | CSA C22.2 No 60950-1, UL 508 |
| Product certifications | EAC, RCM |
