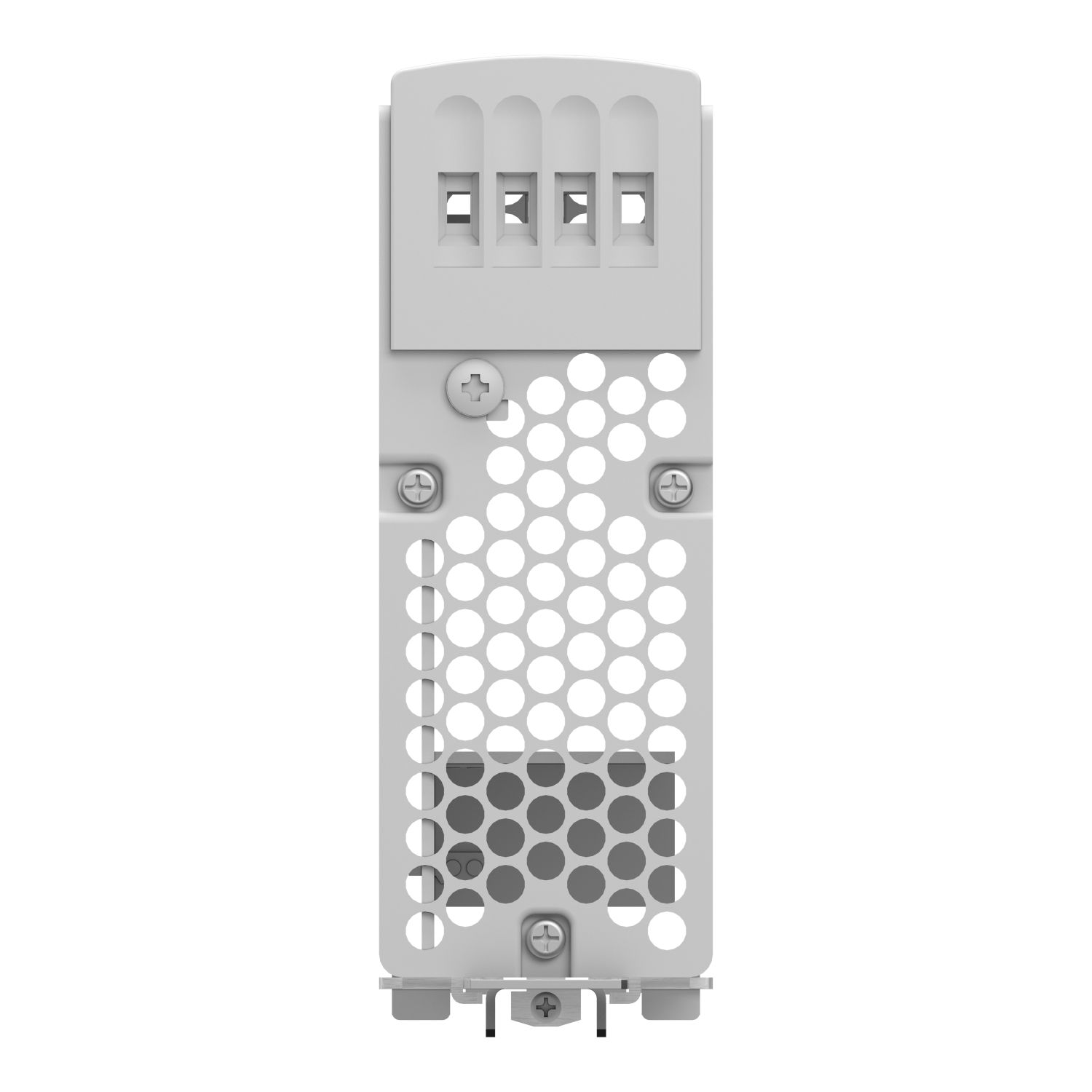

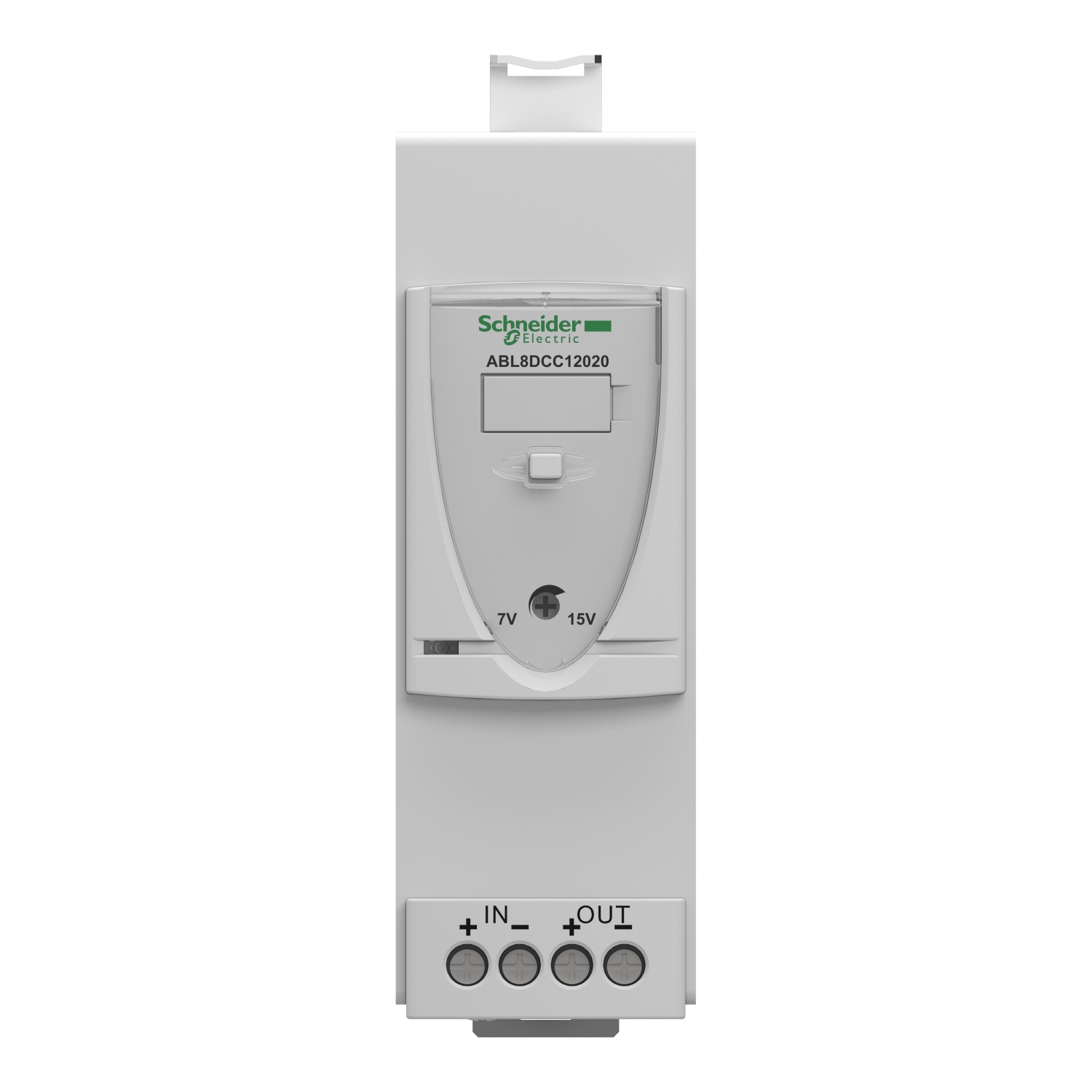

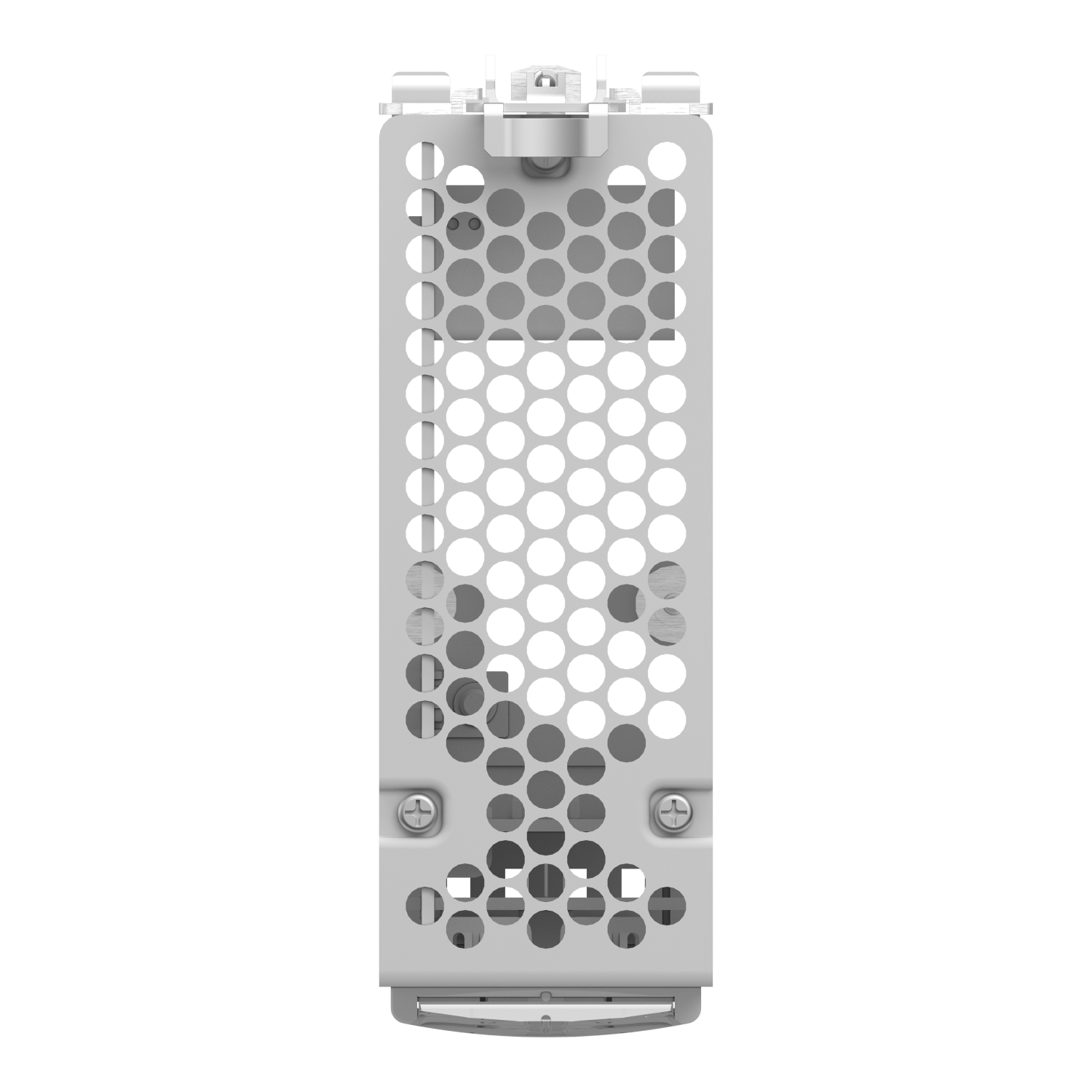

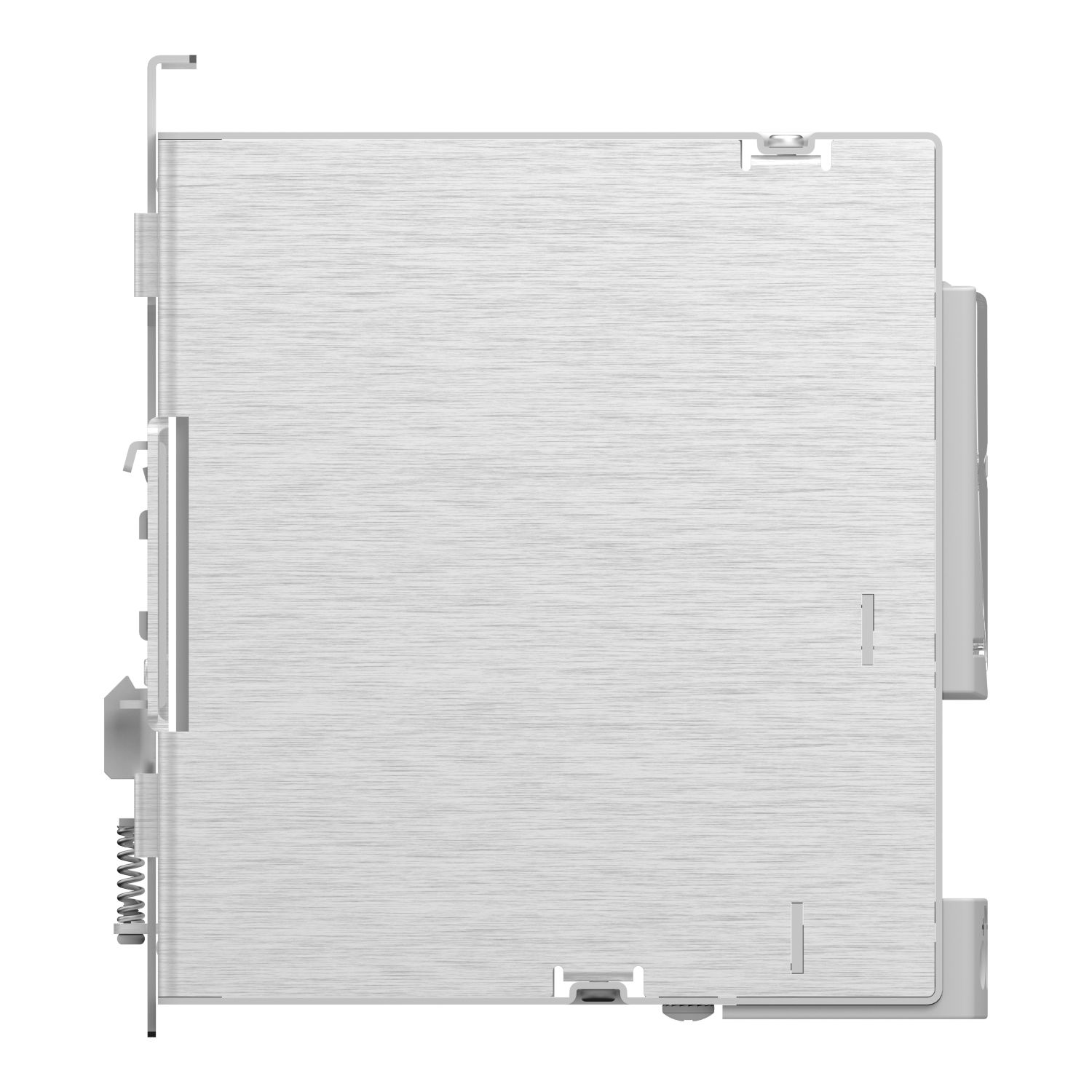

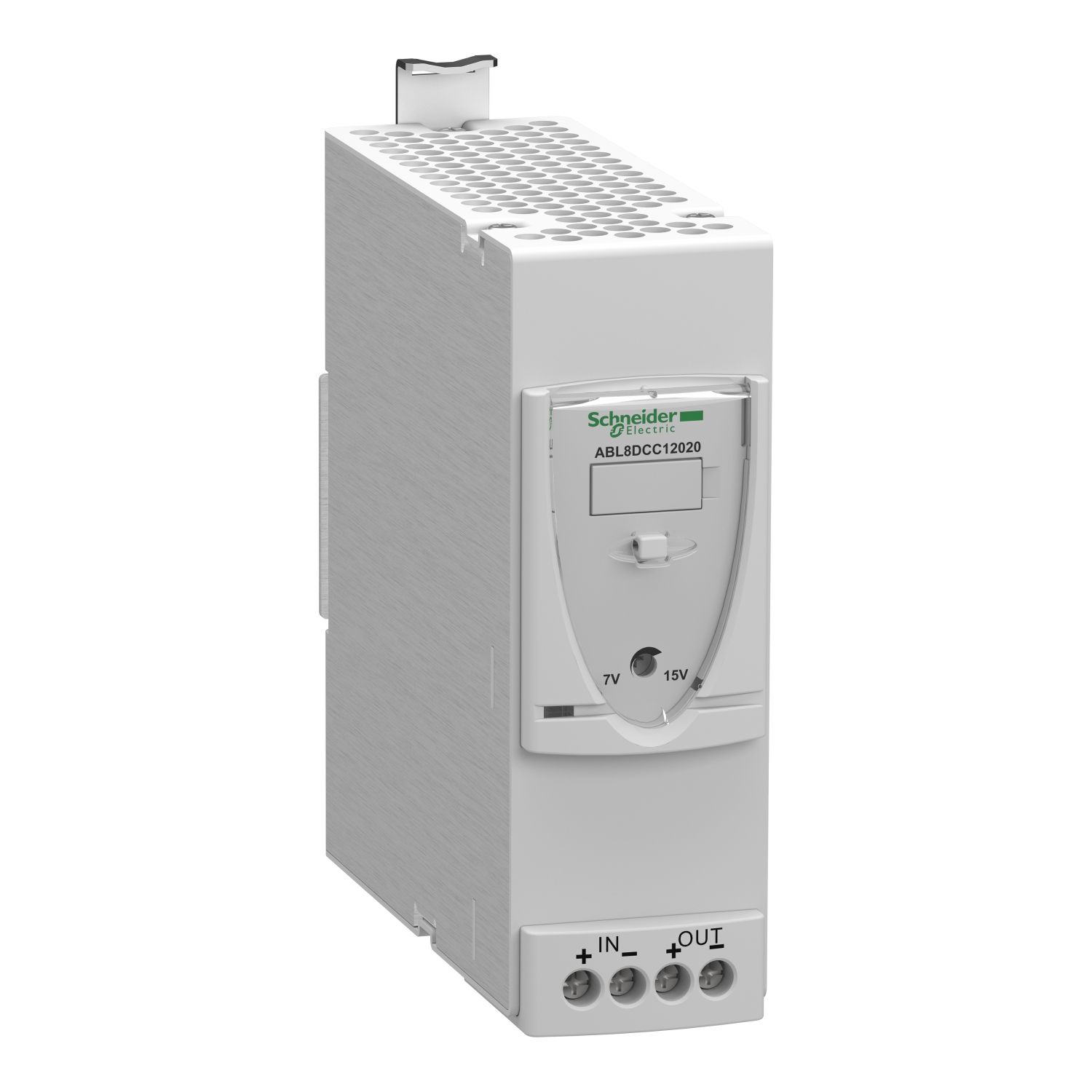

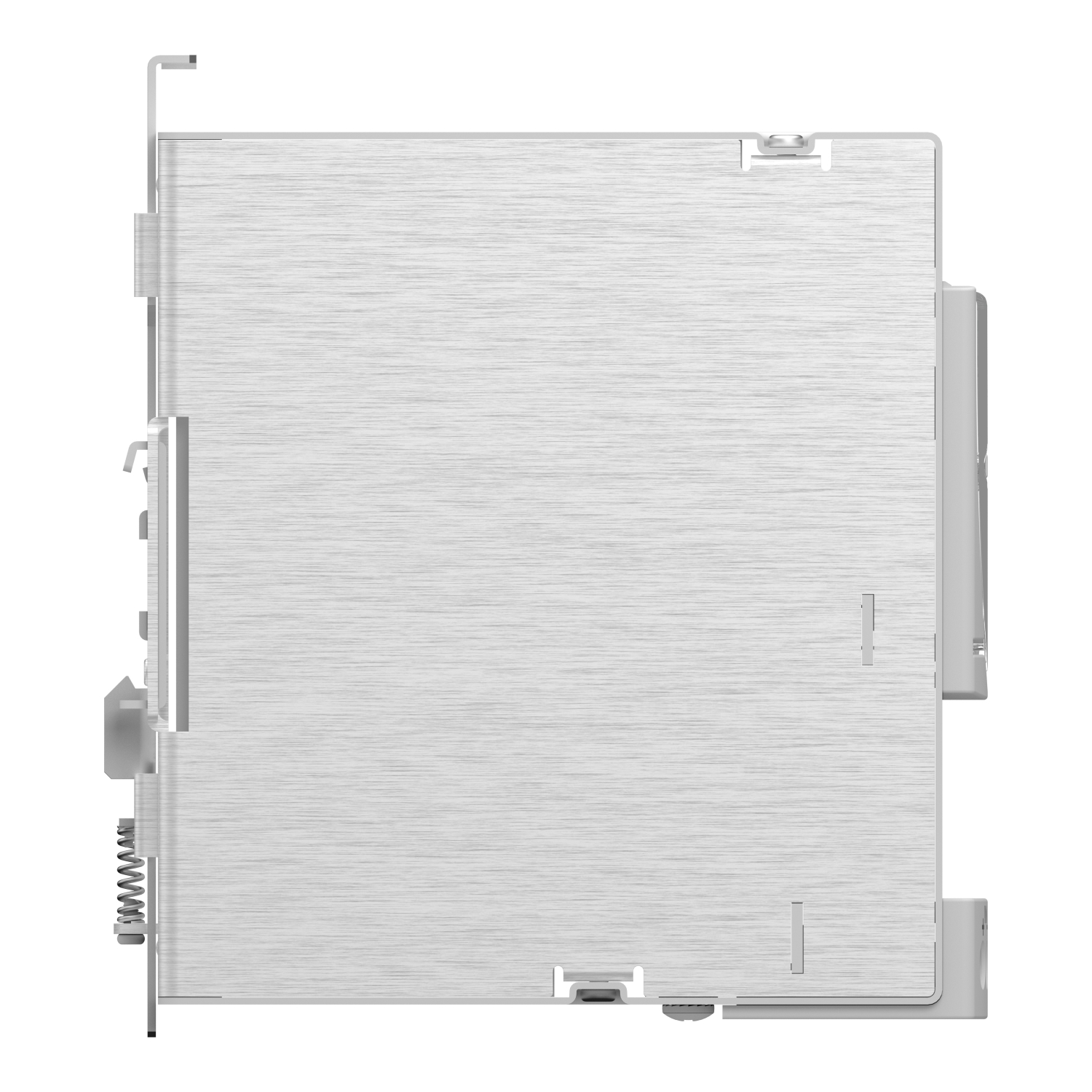

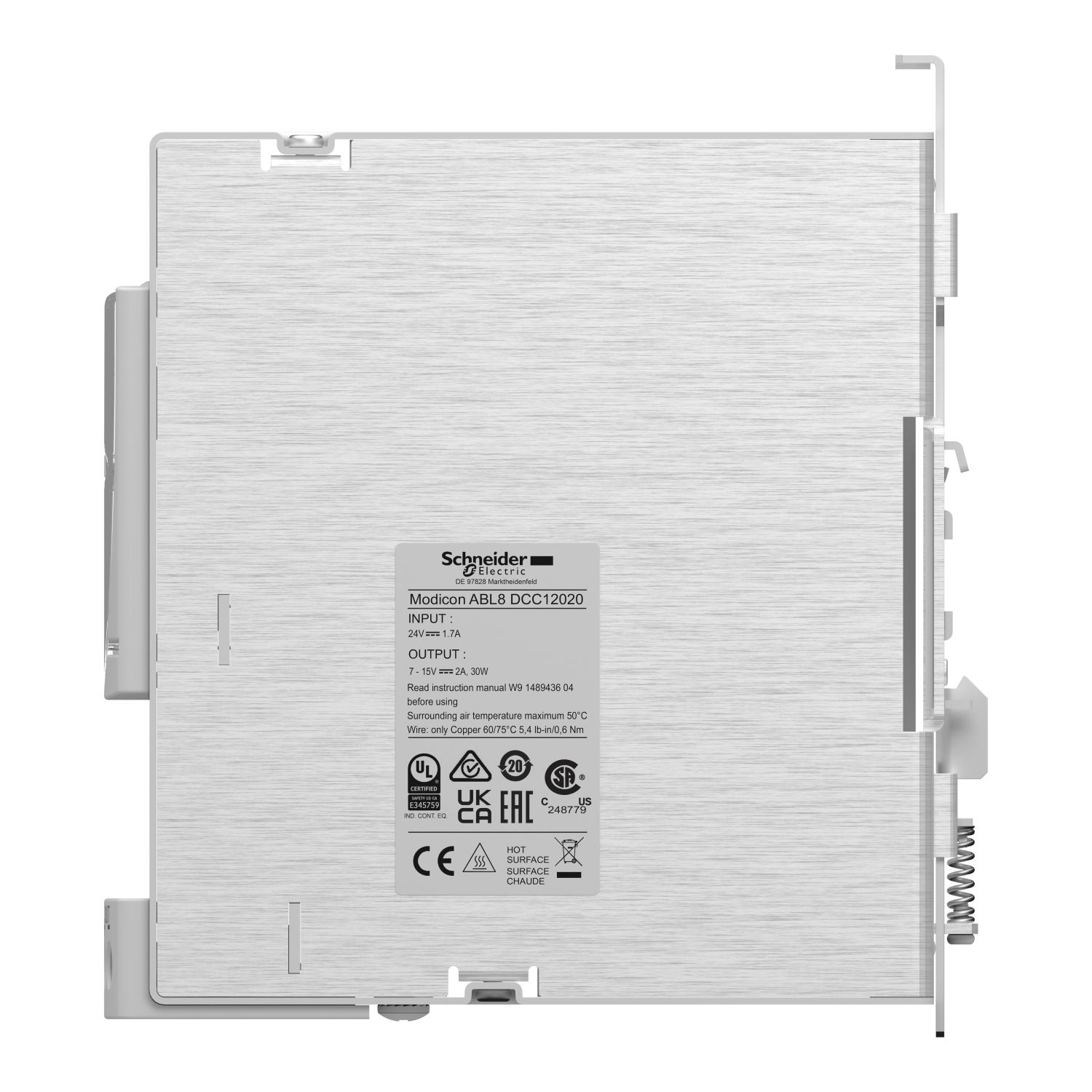

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 2A at 12V DC and a rated power output of 24W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Input voltage | 24...28.8 V DC |
| Rated power in W | 24 W |
| Output voltage | 12 V DC |
| Range of product | Phaseo Universal |
| Power supply output current | 2 A |
| Product or component type | converter module |
| Complementary | |
| Input protection type | against reverse polarity |
| Compatibility code | ABL8D |
| Name of test | emission conforming to IEC 61000-6-3, electrostatic discharges conforming to IEC 61000-4-2, conducted/radiated emissions conforming to EN 55022 class B, surge conforming to IEC 61000-4-5 level 2, rapid transient conforming to IEC 61000-4-4 level 3, radiated electromagnetic field conforming to IEC 61000-4-3 level 3, induced electromagnetic field conforming to IEC 61000-4-6 level 3 |
| Power dissipation in W | 4 W |
| Line and load regulation | 1...3 % |

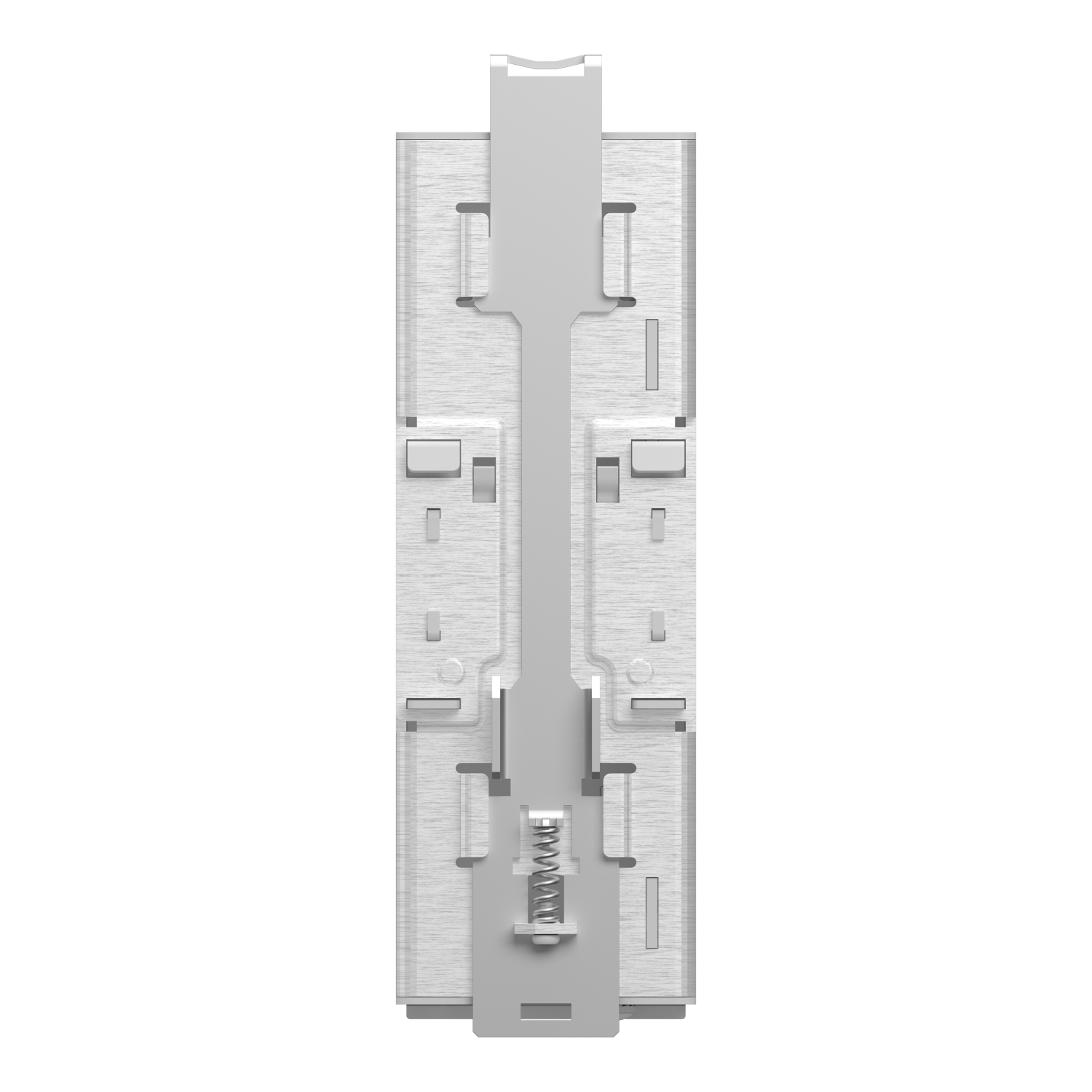

| Fixing mode | by clips on 35 mm symmetrical DIN rail, operating position: vertical, by clips on 35 mm symmetrical DIN rail, operating position: horizontal |
| Input voltage limits | 22...30 V |
| Residual ripple | <= 100 mV |
| Operating altitude | 2000 m |
| Local signalling | 1 LED (green) for output voltage (> 6 V) |
| Output voltage limits | 7...15 V |
| Output protection type | against short-circuits, protection technology: automatic reset, against overvoltage, protection technology: tripping if U > 7.8 V, automatic reset, against overload, protection technology: automatic reset |
| Connections - terminals | for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10, for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 4 mm² AWG 24...AWG 10 |
| Net weight | 0.3 kg |
| Efficiency | 82 % |
| Environment | |
| Relative humidity | 0-95 % during storage, 0-90 % during operation |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| MTBF reliability | 1583182 H at 24 V DC with UTE C80-810 calculation method |
| Ambient air temperature for operation | -25-60 °C |
| Dielectric strength | 500 V between output and ground, 500 V between input and output, 500 V between input and ground |
| Overvoltage category | class 3 |
| Vibration resistance | 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2, 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2 |
| Environmental characteristic | safety conforming to IEC 61204, safety conforming to IEC 60950-1, EMC conforming to IEC 61000-6-2, EMC conforming to IEC 61000-6-3, EMC conforming to EN 50081-1 |
| Product certifications | UL, cCSAus, EAC, RCM |
