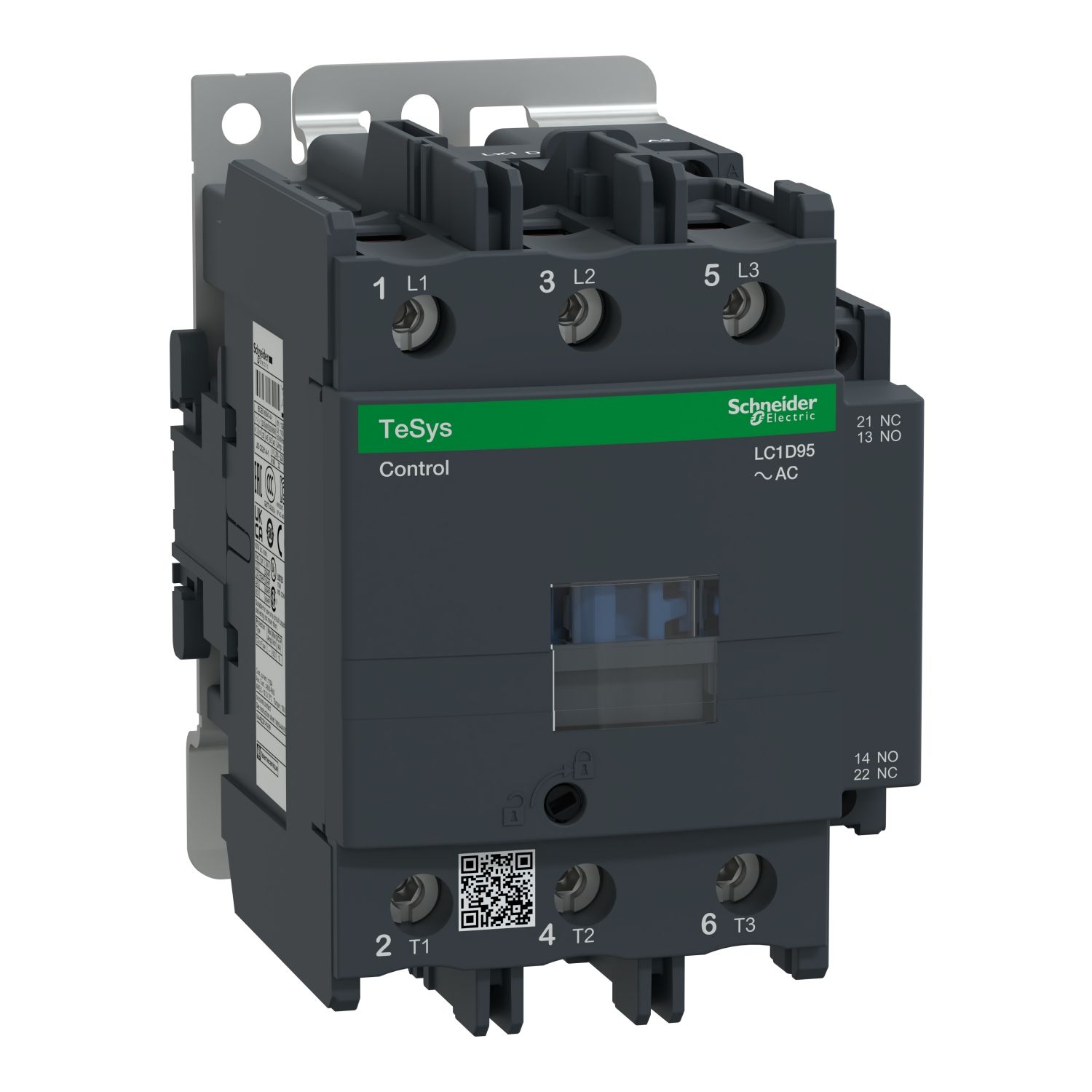

Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 48V AC 50/60Hz coil

Manufacturer: Schneider Electric

SKU: LC1D95E7

GTIN: 3389110450910

Catalog

Instruction sheet

Environmental Disclosure

CAD

Old price: $1,667.60 inc GST

Price: $661.87 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 95A/690V AC-3/AC-3e (45kW@400V). It provides a 48V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts, power connections by screw terminals and control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Sustainability compliant. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Products specifications

Attribute name	Attribute value
Main
[Ie] rated operational current	95 A (at <60 °C) at <= 440 V AC-3e for power circuit, 125 A (at <60 °C) at <= 690 V AC-1 for power circuit, 95 A (at <60 °C) at <= 440 V AC-3 for power circuit
Utilisation category	AC-1, AC-4, AC-3e, AC-3
[Uc] control circuit voltage	48 V AC 50/60 Hz
Device short name	LC1D
Range	TeSys
Range of product	TeSys Deca
Poles description	3P
Product or component type	contactor
Contactor application	resistive load, motor control
[Ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz
Complementary
Compatibility code	LC1D
Electrical durability	1.2 Mcycles 95 A AC-3e, 1.3 Mcycles 125 A AC-1, 1.2 Mcycles 95 A AC-3
Signalling circuit frequency	25...400 Hz
Associated fuse rating	160 A gG at <= 690 V coordination type 2 for power circuit, 200 A gG at <= 690 V coordination type 1 for power circuit, 10 A gG for signalling circuit conforming to IEC 60947-5-1
Control circuit type	AC at 50/60 Hz standard
Protective cover	with
[Ui] rated insulation voltage	signalling circuit: 600 V UL certified, signalling circuit: 600 V CSA certified, signalling circuit: 690 V conforming to IEC 60947-1, power circuit: 600 V UL certified, power circuit: 600 V CSA certified, power circuit: 1000 V conforming to IEC 60947-4-1
Overvoltage category	III
Auxiliary contacts type	type mirror contact 1 NC conforming to IEC 60947-4-1, type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Coil technology	without built-in suppressor module
Inrush power in VA	245-245 VA 50 Hz cos phi 0.75 (at 20 °C), 245-245 VA 60 Hz cos phi 0.75 (at 20 °C)
Auxiliary contact composition	1 NO + 1 NC
Average impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole	7.2 W AC-3e, 7.2 W AC-3, 12.5 W AC-1
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on energisation between NC and NO contact, 1.5 ms on de-energisation between NC and NO contact
Heat dissipation	6-10 W at 50/60 Hz
[Icw] rated short-time withstand current	100 A - 1 s for signalling circuit, 120 A - 500 ms for signalling circuit, 140 A - 100 ms for signalling circuit, 135 A 40 °C - 10 min for power circuit, 400 A 40 °C - 1 min for power circuit, 800 A 40 °C - 10 s for power circuit, 1100 A 40 °C - 1 s for power circuit
Mechanical durability	4 Mcycles
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2, power circuit: 12 N.m - on connector hexagonal screw head 4 mm, power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2, control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V for signalling circuit
Operating time	6...20 ms opening, 20...35 ms closing
Irms rated making capacity	250 A DC for signalling circuit conforming to IEC 60947-5-1, 140 A AC for signalling circuit conforming to IEC 60947-5-1, 1100 A at 440 V AC for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Pollution degree	3
Safety reliability level	B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1, B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1
Control circuit voltage limits	1...1.1 Uc (55-70 °C):operational AC 50/60 Hz, 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz, 0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz, 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz
[Ith] conventional free air thermal current	125 A (at 60 °C) for power circuit, 10 A (at 60 °C) for signalling circuit
Motor power hp	60 hp at 575/600 V AC 60 Hz for 3 phases motors, 60 hp at 460/480 V AC 60 Hz for 3 phases motors, 30 hp at 230/240 V AC 60 Hz for 3 phases motors, 30 hp at 200/208 V AC 60 Hz for 3 phases motors, 15 hp at 230/240 V AC 60 Hz for 1 phase motors, 7.5 hp at 120 V AC 60 Hz for 1 phase motors
Motor power kW	45 kW at 660...690 V AC 50 Hz (AC-3e), 55 kW at 500 V AC 50 Hz (AC-3e), 45 kW at 415...440 V AC 50 Hz (AC-3e), 45 kW at 380...400 V AC 50 Hz (AC-3e), 25 kW at 220...230 V AC 50 Hz (AC-3e), 15 kW at 400 V AC 50 Hz (AC-4), 45 kW at 660...690 V AC 50 Hz (AC-3), 55 kW at 500 V AC 50 Hz (AC-3), 45 kW at 415...440 V AC 50 Hz (AC-3), 45 kW at 380...400 V AC 50 Hz (AC-3), 25 kW at 220...230 V AC 50 Hz (AC-3)
Hold-in power consumption in VA	26-26 VA 50 Hz cos phi 0.3 (at 20 °C), 26-26 VA 60 Hz cos phi 0.3 (at 20 °C)
Maximum operating rate	3600 cyc/h 60 °C
Connections - terminals	power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end, power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end, power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end, power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end, control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end, control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end, control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
Pole contact composition	3 NO
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Insulation resistance	> 10 MOhm for signalling circuit
Contact compatibility	M11
Mounting support	plate, rail
Environment
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	shocks contactor closed (10 Gn for 11 ms) , vibrations contactor closed (3 Gn, 5...300 Hz) , shocks contactor open (8 Gn for 11 ms) , vibrations contactor open (2 Gn, 5...300 Hz)
Climatic withstand	conforming to IACS E10 exposure to damp heat
Standards	GB/T 14048.4, CSA C22.2 No 60947-5-1, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-1
Height	127 mm
Permissible ambient air temperature around the device	60-70 °C with derating, -40-60 °C
Operating altitude	0...3000 m
Net weight	1.61 kg
Product certifications	DNV-GL, BV, RINA, LROS (Lloyds register of shipping), EAC, CCC, CSA, UL, IECEE CB Scheme
IP degree of protection	IP20 front face conforming to IEC 60529
Protective treatment	TH conforming to IEC 60068-2-30
Depth	130 mm
Width	85 mm
Flame retardance	V1 conforming to UL 94
