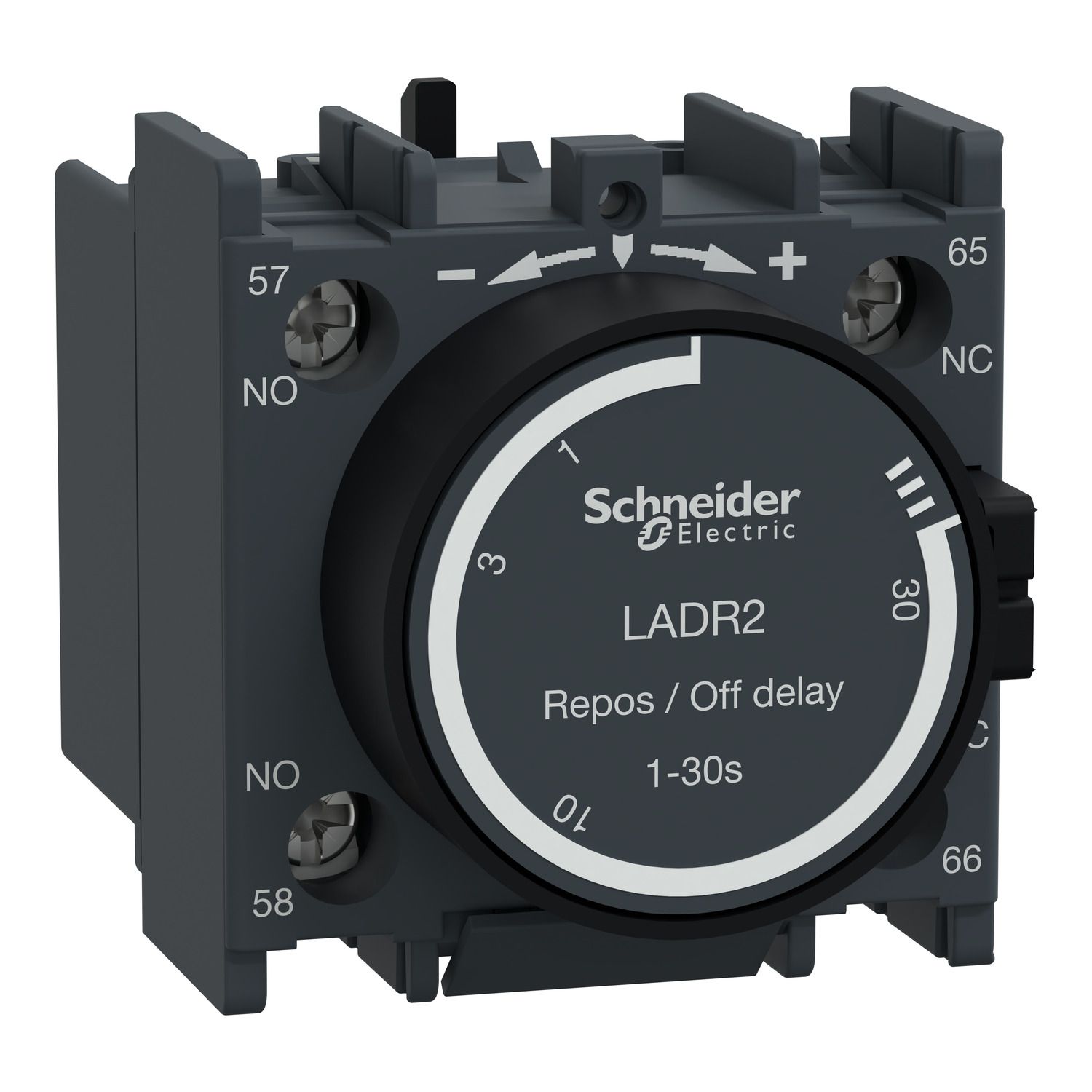

Time delay Auxiliary Contact Block, TeSys D, TeSys Deca, 1NO + 1NC, off delay 1-30s, front, screw clamp terminals

Manufacturer: Schneider Electric

SKU: LADR2

GTIN: 3389110386189

Catalog

Instruction sheet

CAD

Old price: $430.10 inc GST

Price: $170.71 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Deca time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Sustainability compliant.

Products specifications

Attribute name	Attribute value
Main
Auxiliary contacts operation	time delay
Time delay range	1...30 s
[Ie] rated operational current	0.1 A at 600 V DC-13, 0.55 A at 125 V DC-13, 1.04 A at 690 V AC-15, 6 A at 120 V AC-15
[Ui] rated insulation voltage	600 V conforming to CSA C22.2 No 60947-5-1, 600 V conforming to UL 60947-5-1, 690 V conforming to IEC 60947-5-1
Pole contact composition	1 NO + 1 NC
Mounting location	front
Range	TeSys Deca, TeSys
Product name	TeSys Deca
Product or component type	time delay auxiliary contact block
Range compatibility	TeSys F CR1F, TeSys F LC1F, TeSys Deca LC1D, TeSys Deca CAD
[Ue] rated operational voltage	690 V AC 25...400 Hz
Timer type	off delay
Standards	EN/IEC 60947-5-1, GB/T 14048.5, CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current	10 A (at 60 °C)
Range of product	TeSys Deca
Product certifications	UKCA, EAC, CCC, CSA, UL, IECEE CB Scheme
Complementary
Depth	61 mm
Width	44 mm
Colour	dark grey
Mechanical durability	5 Mcycles
Tightening torque	1.7 N.m - with screwdriver pozidriv No 2, 1.7 N.m - with screwdriver Philips No 2, 1.7 N.m - with screwdriver flat Ø 6 mm
Minimum switching voltage	17 V
Connections - terminals	screw clamp terminals, screw clamp terminals 2 cable(s) 1-2.5 mm²rigid, screw clamp terminals 1 cable(s) 1-2.5 mm²rigid, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible without cable end, screw clamp terminals 1 cable(s) 1-2.5 mm²flexible with cable end
Irms rated making capacity	250 A at <= 690 V DC conforming to IEC 60947-5-1, 140 A at <= 690 V AC conforming to IEC 60947-5-1
Insulation resistance	> 10 MOhm
Protection type	gG fuse 10 A
Height	48 mm
Minimum switching current	5 mA
Permissible short-time rating	140 A 60 °C 100 ms, 120 A 60 °C 500 ms, 100 A 60 °C 1 s
Non-overlap time	1.5 ms on energisation no overlap between NC and NO contact, 1.5 ms on de-energisation no overlap between NC and NO contact
Shielding continuity terminal	without
Environment
Operating altitude	3000 m
Protective treatment	TH conforming to IEC 60068
Environmental characteristic	normal environment
Ambient air temperature for storage	-60-80 °C
IP degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-40-70 °C
