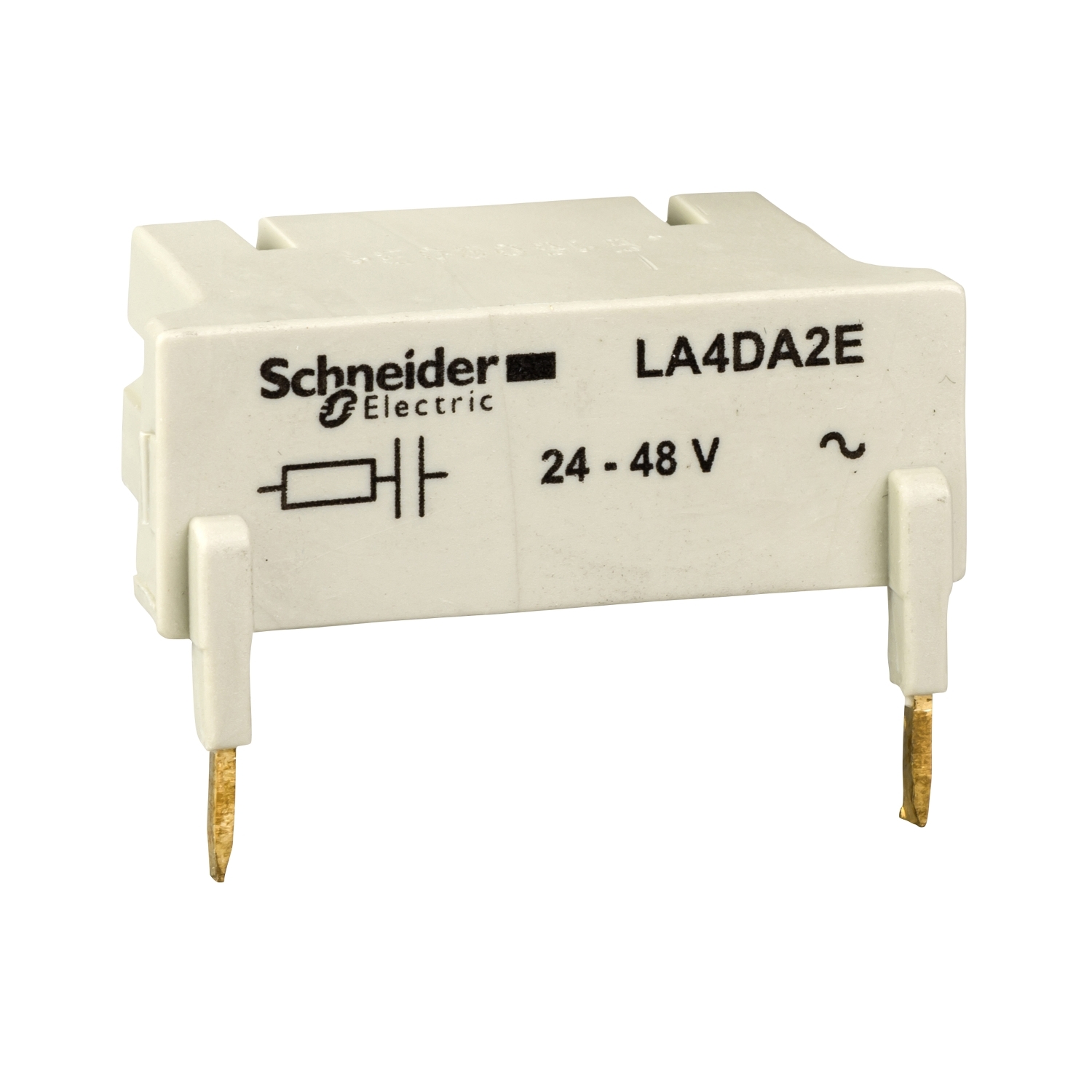

TeSys Deca suppressor module, for LC1D80-D150 (3P), LC1D40-D115 (4P) contactors. To be used with 24-48V AC control circuit voltage, it provides RC protection limiting the transient voltage to 3 Uc max. Mounting on top of contactor, screw fixing and connection on coil terminals. Sustainability compliant.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | LA4D |
| Product compatibility | 4P LC1D40008...D80008, 4P LC1D80004...D115004, 3P LC1D80...D150 |
| Range | TeSys |
| Product or component type | suppressor module |
| Range of product | TeSys Deca |
| Complementary | |
| Suppressor technology | RC circuit |
| Compatibility code | LA4D |
| Mounting mode | by screws |
| Maximum peak voltage | 3 Uc |
| Mounting location | top |
| Net weight | 0.018 kg |
| [Uc] control circuit voltage | 24...48 V AC 50/60 Hz |
| Environment | |
| Ambient air temperature for storage | -40-80 °C |
| IP degree of protection | IP2X conforming to IEC 60529 |
| Standards | GB/T 14048.5, CSA C22.2 No 60947-5-1, UL 60947-5-1, EN 60947-5-1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-55 °C |
| Product certifications | CSA, UL |
Only registered users can write reviews
Related products

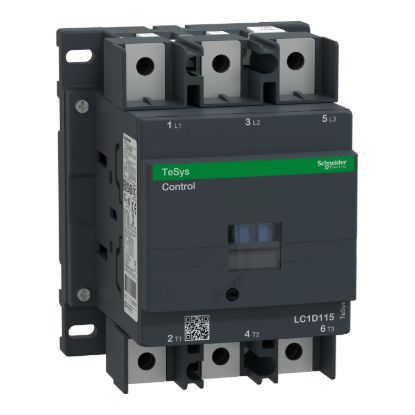

Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, lugs/bars terminals
LC1D1156B7
Contactor, TeSys D, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, lugs/bars terminals
$2,032.80 inc GST
$806.82 inc GST
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, screw clamp terminals
LC1D115B7
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 24V AC 50/60Hz coil, screw clamp terminals
$1,221.00 inc GST
$484.61 inc GST
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals
LC1D115E7
Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 48V AC 50/60Hz coil, screw clamp terminals
$1,293.60 inc GST
$513.43 inc GST
Contactor, TeSys Deca, 4P(4NO),AC-1 440V 80A,48V AC coil, screw clamp terminal
LC1D65004E7
Contactor, TeSys Deca, 4P(4NO),AC-1 440V 80A,48V AC coil, screw clamp terminal
$1,260.60 inc GST
$500.33 inc GST
Contactor, TeSys Deca, 4P(4NO),AC-1 440V 60A,48V AC coil, screw clamp terminal
LC1D40004E7
Contactor, TeSys Deca, 4P(4NO),AC-1 440V 60A,48V AC coil, screw clamp terminal
$1,278.20 inc GST
$507.32 inc GST

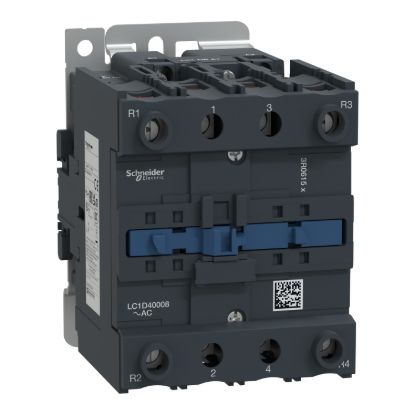

Contactor, TeSys D, 4P(2NO+2NC),AC-1 <=440V 60A,24V AC 50/60Hz coil
