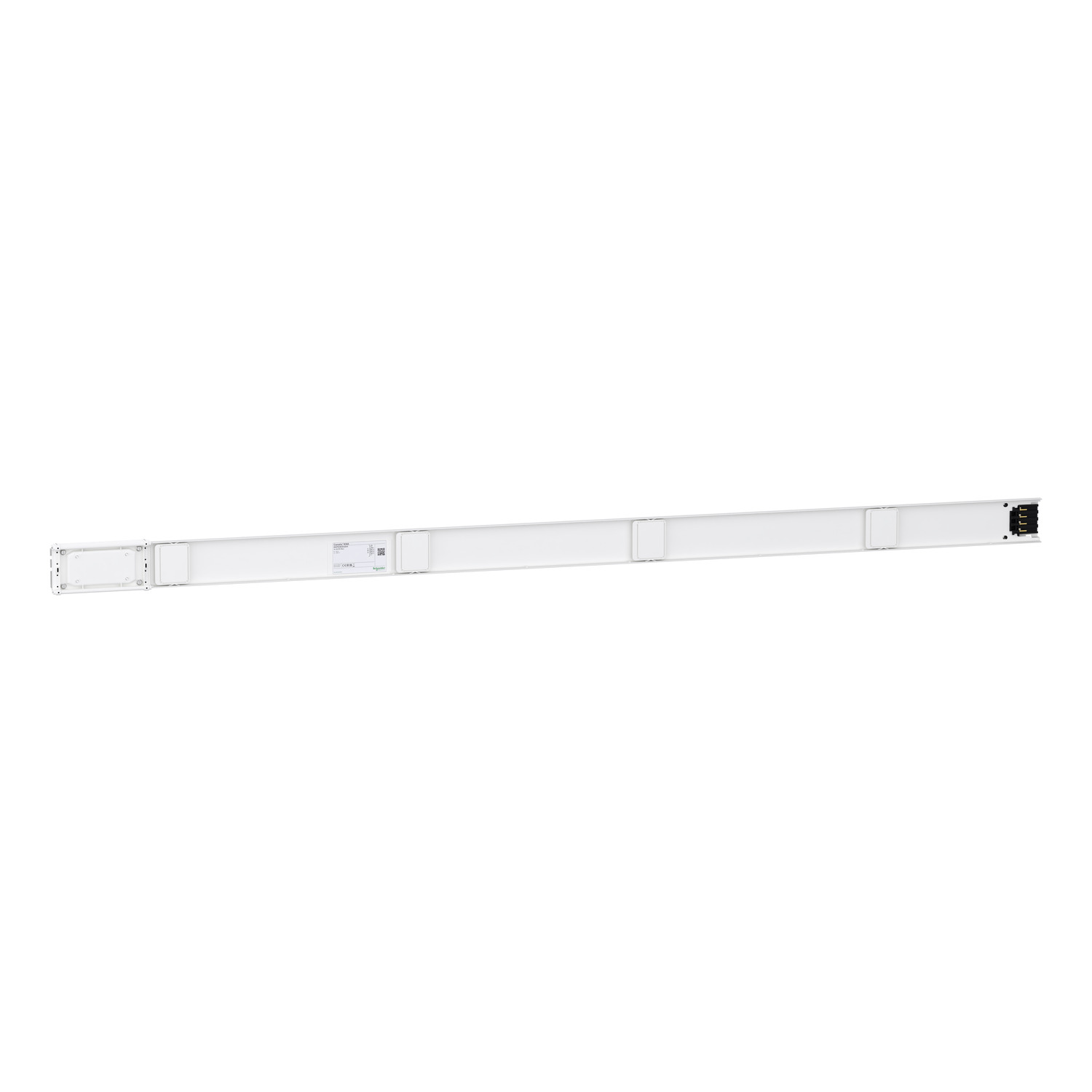

Straight distribution length, Canalis KN, transmission bus, aluminium, 40/63A, 3L+N+PE, length 2m, 4 outlets, RAL9001

Manufacturer: Schneider Electric

SKU: KNT63ED4204

GTIN: 3606480003431

Catalog

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $472.45 inc GST

Price: $680.33 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Part of the Canalis KNT system. It consists of a 2m 63A Distribution element equipped with 4 outlets. All run components are delivered with a jointing unit.

Products specifications

Attribute name	Attribute value
Main
Device short name	KNT
Device application	low power distribution
Number of tap-off outlets	4
[Ie] rated operational current	63 A at 35 °C
Busbar trunking polarity	3L + PEN, 3L + N + PE
Range	Canalis
Length	2 m
Product name	KN
Product or component type	straight length
Range of product	Canalis
Complementary
[Ipk] rated peak withstand current	11 kA
[Ue] rated operational voltage	230...500 V
Depth	27.5 mm
Width	92 mm
Colour	white (RAL 9001)
Neutral position	up
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Thermal stress limit	1980 kA².s
Control type	communicating
Maximum voltage drop	<0.140 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.155 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.169 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.178 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight	4.1 kg
Radiated magnetic field	0.063 µT
Number of circuits	1
[Ui] rated insulation voltage	500 V
Linear resistance	3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 5.42 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 0.96 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.78 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 3.89 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 2.85 mΩ/m Rb0 20 °C impedance method Ph/PE, 3.4 mΩ/m Rb0 20 °C impedance method Ph/N, 3.4 mΩ/m Rb0 20 °C impedance method Ph/Ph, 1.68 mΩ/m X0 20 °C symmetrical components method Ph/PE, 5.15 mΩ/m R0 20 °C symmetrical components method Ph/PE, 7.11 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.56 mΩ/m X0 20 °C symmetrical components method Ph/N, 6.93 mΩ/m R0 20 °C symmetrical components method Ph/N, 2.06 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 2.05 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 1.7 mΩ/m R20 20 °C phase conductor, 0.25 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 0.52 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 1.09 mΩ/m 20 °C protective conductor
THDI	33-100 % 40 A, 15-33 % 50 A, 0-15 % 63 A
[Uimp] rated impulse withstand voltage	6 kV
Standards	IEC 61439-6
Network frequency	50/60 Hz
[Icw] rated short-time withstand current	1.4 kA
Environment
IP degree of protection	IP55 conforming to IEC 60529
Ambient air temperature for operation	50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection	IK08 conforming to IEC 62262
