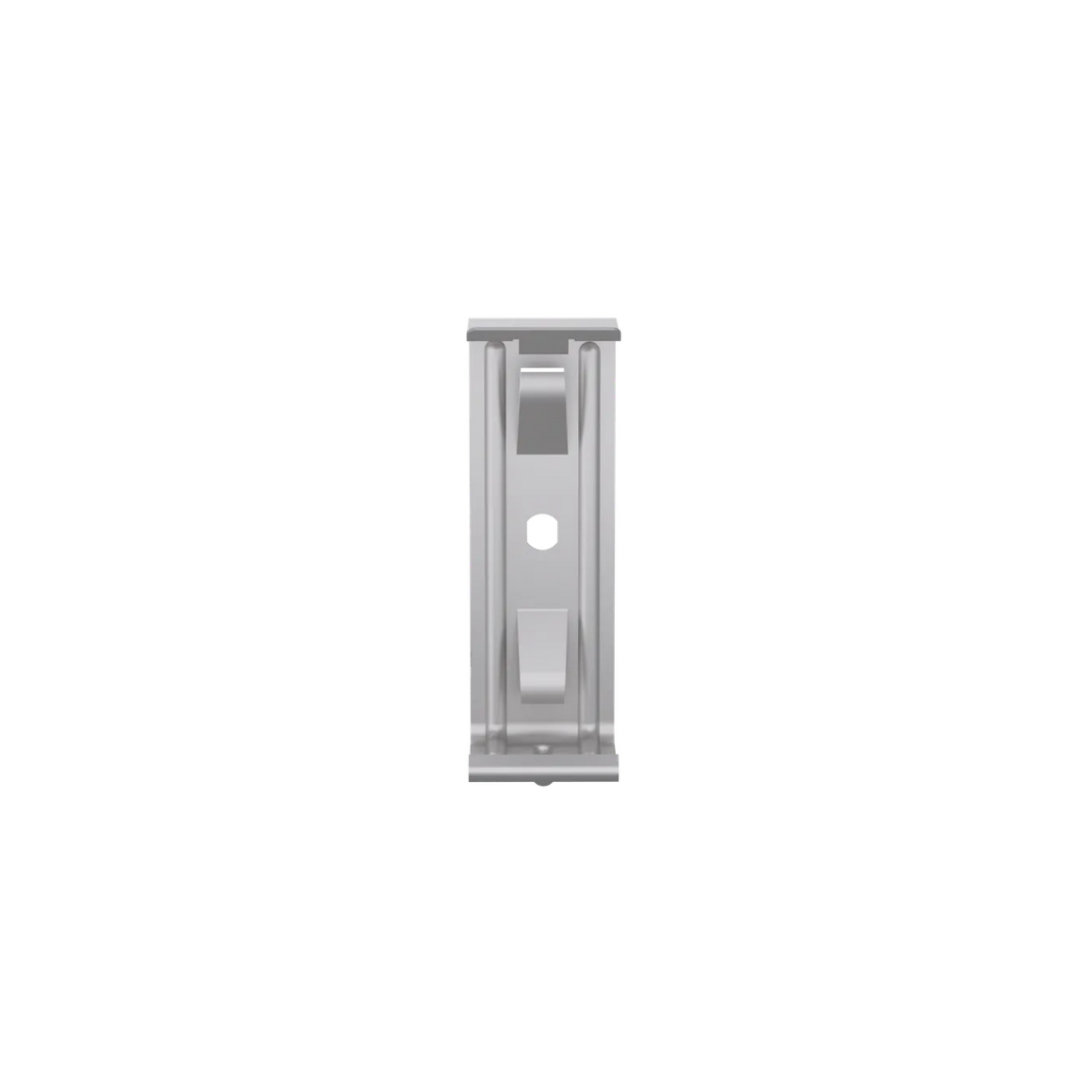

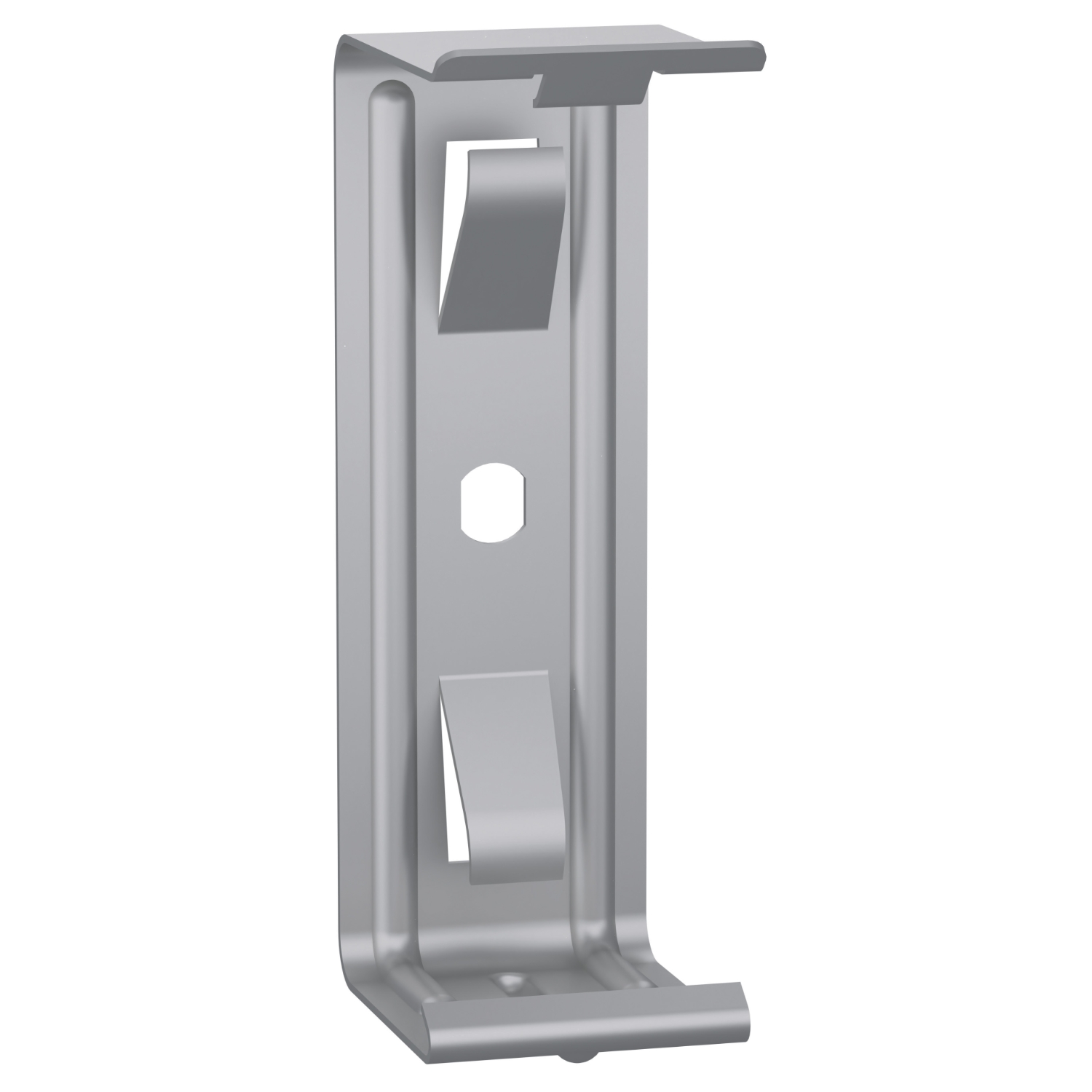

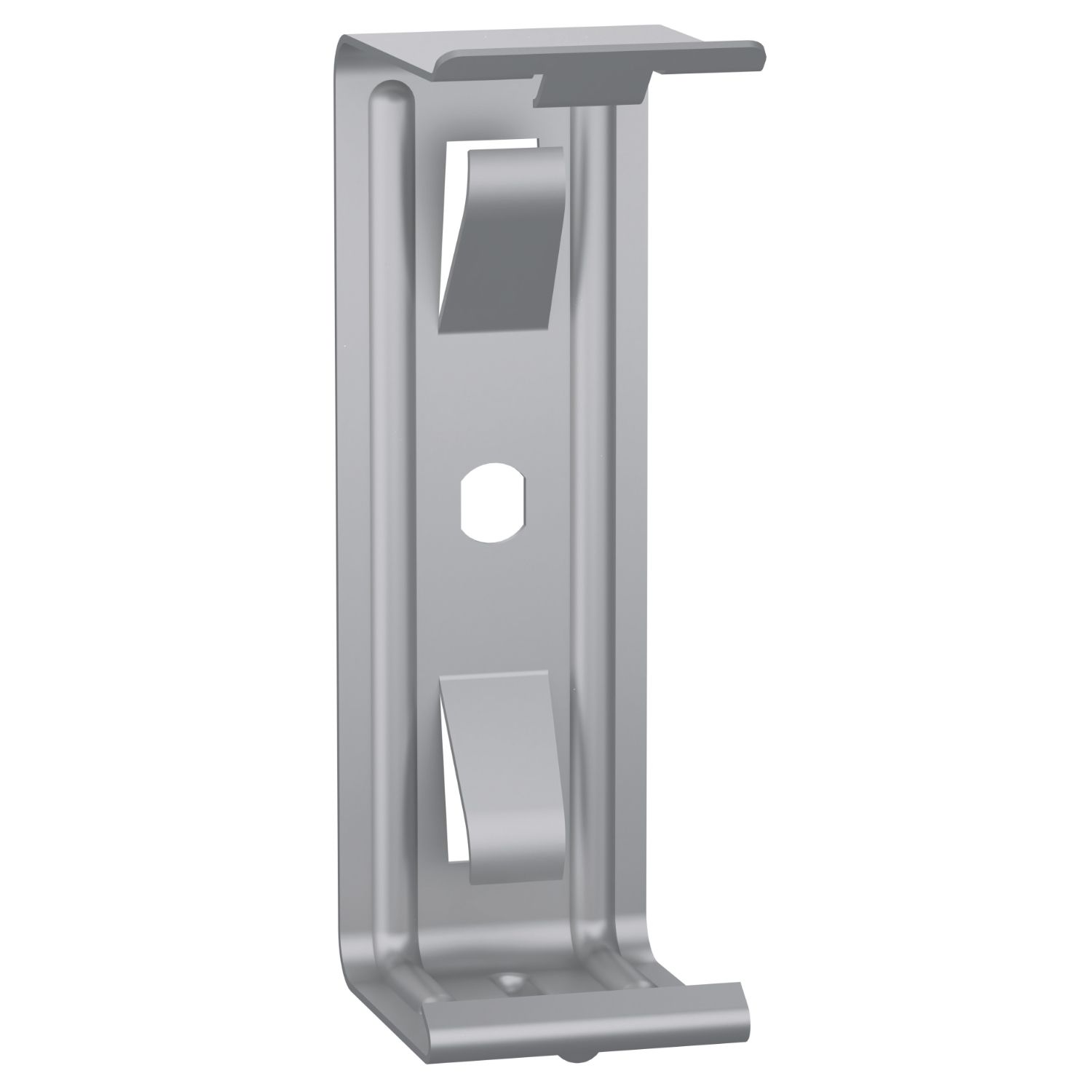

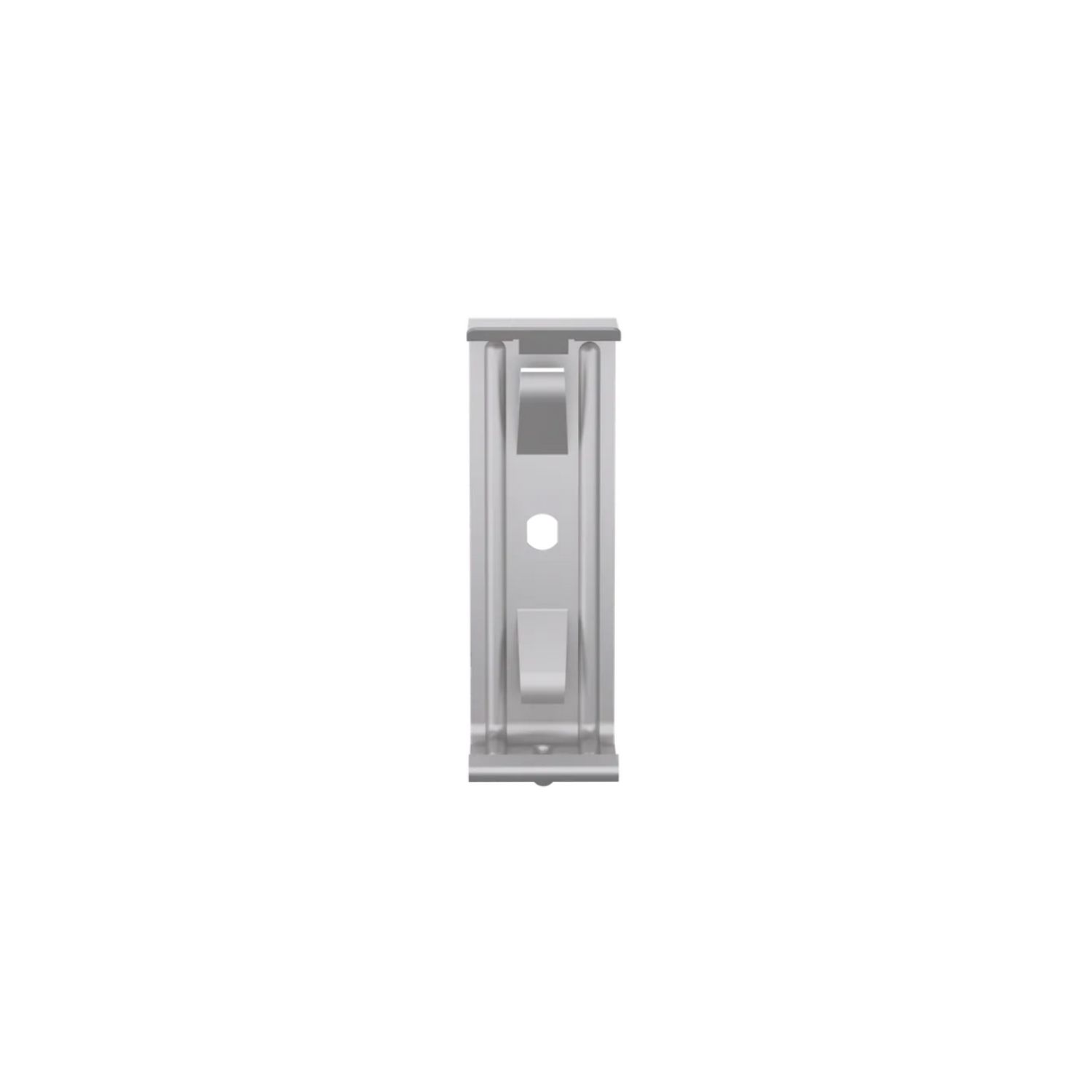

Fixing brackets, Canalis KN, 40A to 160A, wall mounting, maximum load 39kg
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Manufacturer: Schneider Electric
SKU: KNB160ZF2
GTIN: 3606485013183
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
This product is an universal fixing bracket system for Canalis KN offer. It is used for attachment of the busbar trunking and to the structure of the building. It is a wall mounting system. It can be used for edgewise trunking installation only. The recommended fixing distance is 2m for trunking installed edgewise. The maximum load is 39kg. Sold in lots of 10 parts. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Old price: $8.42 inc GST
$12.12 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product compatibility KN
Quantity per set set of 10
Maximum load 39 kg
Fixing device mounting wall mounting
Range Canalis
Product name KN
Product or component type fixing bracket
Range of product Canalis
Complementary
Depth 40 mm
Width 31 mm
Net weight 32 g
Accessory / separate part category fixing accessory
Height 97 mm
Environment
Standards IEC 60439-2, IEC 61439-6
