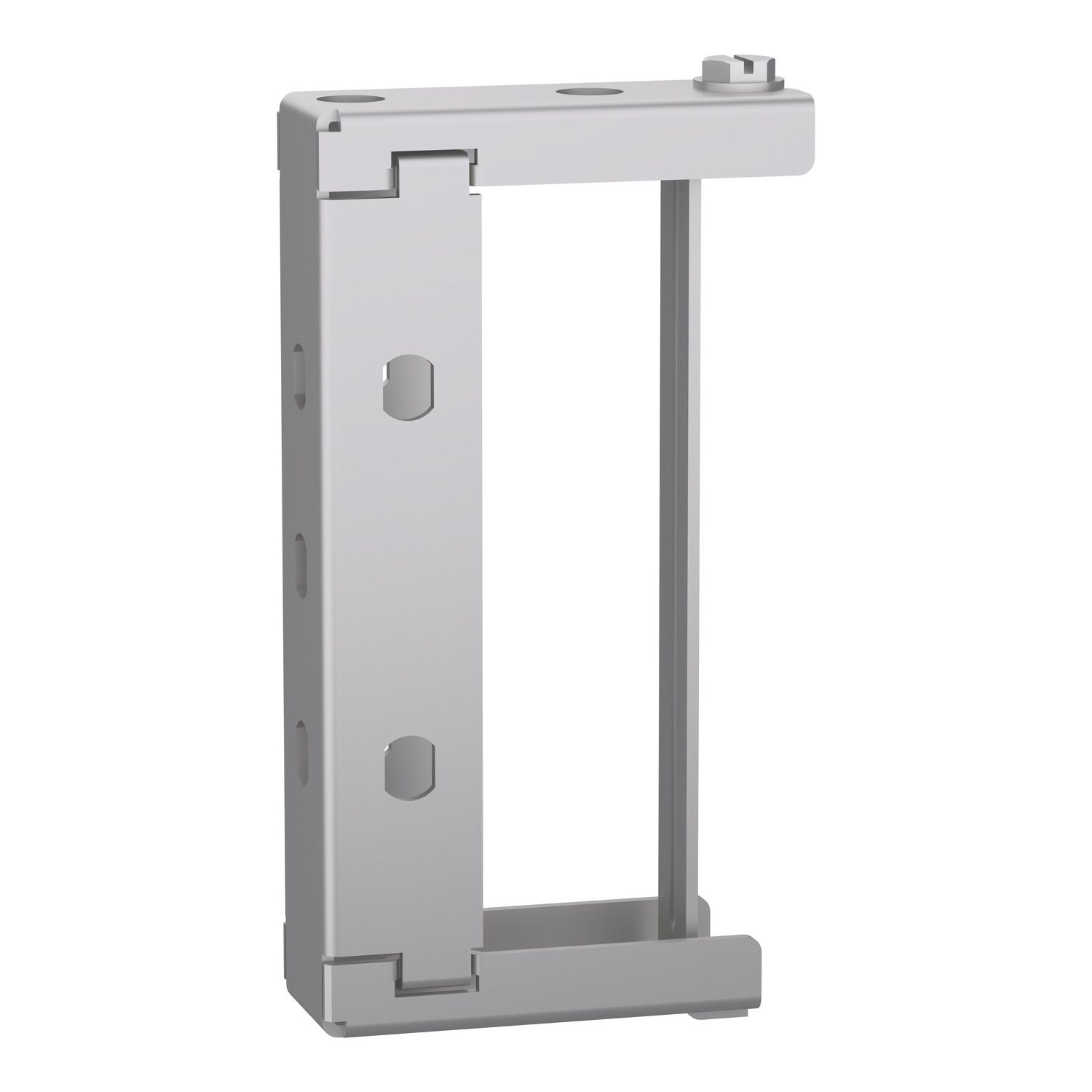

Picture of Fixing brackets, Canalis KN, 40A to 160A, suspended on M8 rod, maximum load 80kg
Fixing brackets, Canalis KN, 40A to 160A, suspended on M8 rod, maximum load 80kg
  • Busbar trunking system for power distribution from 40A up to 160A
  • Flexible, scalable, modular and upgradeable system
  • Easy selection process
  • Quick, light and easy mounting solution
  • High protection degree IP55 for all types of buildings
  • Fool proof system avoids unit being installed or removed under load
  • All components are halogen free, no toxic emission of any fumes in case of fire
  • Sustainable by being reusable, recyclable and reduces line losses by 20%
Manufacturer: Schneider Electric
SKU: KNB160ZF1
GTIN: 3606485013176
Catalog
Instruction sheet
Environmental Disclosure
Declaration of conformity
This product is an universal fixing bracket system for Canalis KN offer. It is used for attachment of the busbar trunking and to the structure of the building. It is a suspended mounting system on M8 threaded rods. It can be used for edgewise or flat trunking installation. The recommended fixing distance is 3m for trunking installed edgewise and 1.5m when installed flat. Fixing mounted by suspended on threaded rod. The maximum load is 80kg. Sold in lots of 10 parts. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
Old price: $10.07 inc GST
$14.50 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product compatibility KN
Quantity per set set of 10
Maximum load 80 kg
Fixing device mounting suspended on threaded rod
Range Canalis
Product name KN
Product or component type fixing bracket
Range of product Canalis
Complementary
Depth 23 mm
Width 61 mm
Net weight 126 g
Accessory / separate part category fixing accessory
Height 118 mm
Environment
Standards IEC 61439-6, IEC 60439-2
