Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 230...500 V |
| Device short name | KNT |
| Colour | white (RAL 9001) |
| Protection type | without protection |
| [Ie] rated operational current | 63 A |
| Control type | remote control |
| Range | Canalis |
| Material | aluminium |
| Number of circuits | 1 |
| Product name | KN |

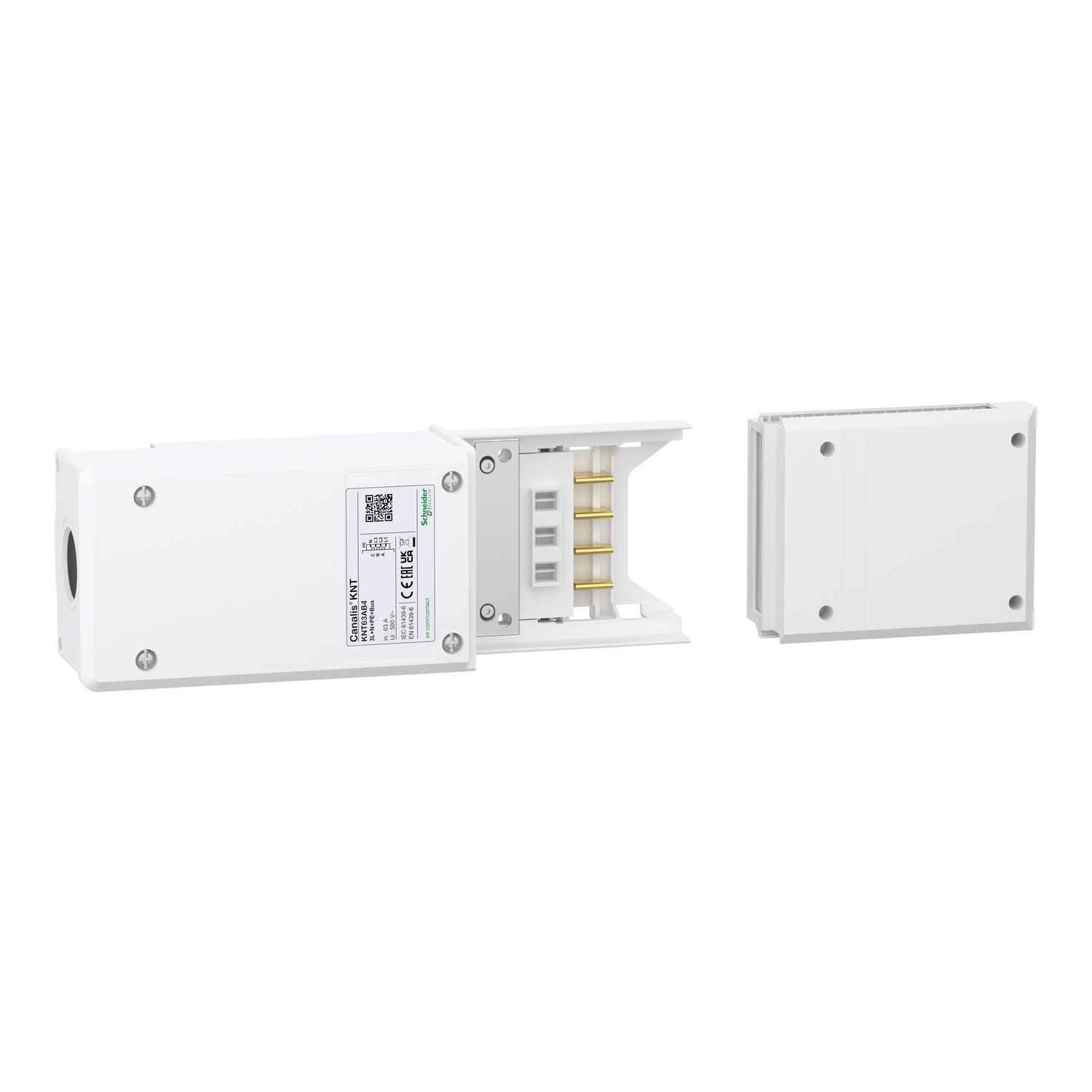

| Product or component type | feed unit |
| Product compatibility | Canalis KNT busbar trunking 40-63 A |
| Range of product | Canalis |
| Complementary | |
| Depth | 71 mm |
| Width | 265 mm |
| Provided equipment | end cover |
| Mounting mode | by clips |
| Mounting location | right, left |
| Net weight | 580 g |
| Mounting support | busbar |
| Connections - terminals | terminal block for 25-25 mm² rigid, terminal block for 16-16 mm² flexible |
| Standards | IEC 61439-6 |
| Height | 92 mm |
| Environment | |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
