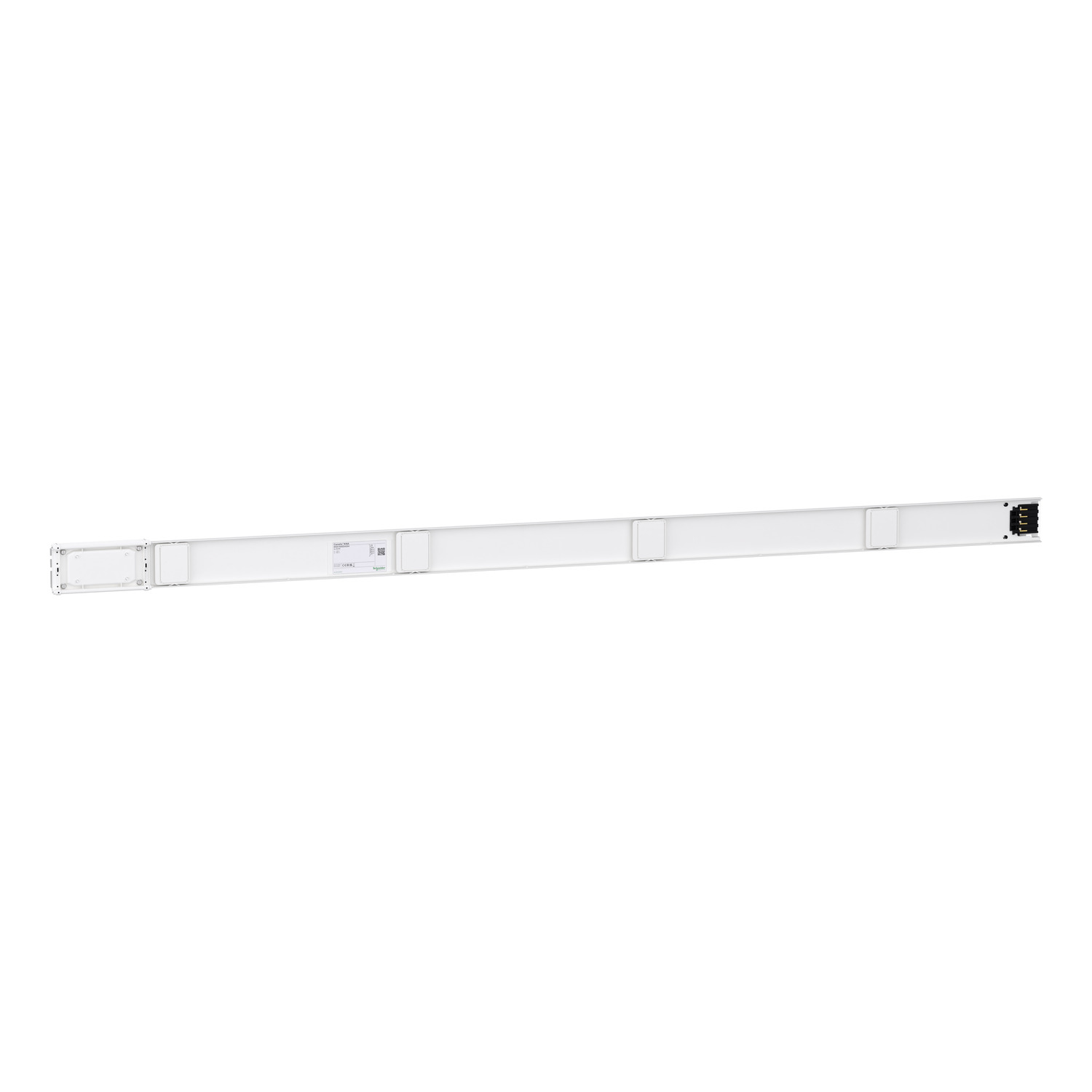

Straight distribution length, Canalis KN, additional, aluminium, 160A, 3L+N+PE, fixed length 2m, 4 outlets, RAL9001

Manufacturer: Schneider Electric

SKU: KNA160ED4204

GTIN: 3606480003110

Catalog

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $491.15 inc GST

Price: $707.26 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This product is an additional straight distribution length for Canalis KN offer. The rated operational current is 160A at 35 ℃. The operational voltage is from 230VAC to 500VAC 50/60Hz. The busbar trunking polarity is 3L+N+PE or 3L+PEN. The length is 2m. It is designed for receiving 4 outlets. The colour is white RAL 9001. All run components are delivered with a jointing unit. It provides IP55 protection degree conforming to EN/IEC 60529. It provides IK08 mechanical impact degree conforming to EN/IEC 62262. It is compliant with EN/IEC 61439-6 standard. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).

Products specifications

Attribute name	Attribute value
Main
Device short name	KNA
Device application	low power distribution
Number of tap-off outlets	4
[Ie] rated operational current	160 A at 35 °C
Busbar trunking polarity	3L + N + PE, 3L + PEN
Range	Canalis
Length	2 m
Product name	KN
Product or component type	straight length
Range of product	Canalis
Complementary
[Ipk] rated peak withstand current	20 kA
[Ue] rated operational voltage	230...500 V
Depth	27.5 mm
Width	92 mm
Colour	white (RAL 9001)
Neutral position	up
Electrical connection	lubricated sliding contact
Mounting mode	by screws
Thermal stress limit	8000 kA².s
Control type	without
Maximum voltage drop	<0.063 V with power factor = 0.7 at 50 Hz with 1A for 100 m long, <0.067 V with power factor = 0.8 at 50 Hz with 1A for 100 m long, <0.071 V with power factor = 0.9 at 50 Hz with 1A for 100 m long, <0.068 V with power factor = 1 at 50 Hz with 1A for 100 m long
Net weight	5.2 kg
Radiated magnetic field	0.186 µT
Number of circuits	1
[Ui] rated insulation voltage	500 V
Linear resistance	0.84 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/PE, 0.75 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/N, 0.79 mΩ/m Xb 35 °C at Inc and 50 Hz with impedance method Ph/Ph, 2.22 mΩ/m Rb1 35 °C at Inc with impedance method Ph/PE, 1.61 mΩ/m Rb1 35 °C at Inc with impedance method Ph/N, 1.58 mΩ/m Rb1 35 °C at Inc with impedance method Ph/Ph, 1.71 mΩ/m Rb0 20 °C impedance method Ph/PE, 1.24 mΩ/m Rb0 20 °C impedance method Ph/N, 1.21 mΩ/m Rb0 20 °C impedance method Ph/Ph, 3.58 mΩ/m Z0 20 °C symmetrical components method Ph/PE, 1.29 mΩ/m X0 20 °C symmetrical components method Ph/PE, 3.34 mΩ/m R0 20 °C symmetrical components method Ph/PE, 3.01 mΩ/m Z0 20 °C symmetrical components method Ph/N, 1.4 mΩ/m X0 20 °C symmetrical components method Ph/N, 2.67 mΩ/m R0 20 °C symmetrical components method Ph/N, 0.83 mΩ/m Z1 35 °C at Inc and 50 Hz phase conductor, 0.24 mΩ/m X1 35 °C at Inc and 50 Hz phase conductor, 0.79 mΩ/m R1 35 °C at Inc and 50 Hz phase conductor, 0.61 mΩ/m R20 20 °C phase conductor, 1.09 mΩ/m 20 °C protective conductor
THDI	33-100 % 100 A, 15-33 % 130 A, 0-15 % 160 A
[Uimp] rated impulse withstand voltage	6 kV
Standards	IEC 61439-6
Network frequency	50/60 Hz
[Icw] rated short-time withstand current	2.8 kA
Environment
IP degree of protection	IP55 conforming to IEC 60529
Ambient air temperature for operation	50-55 °C (87 % of In), 45-50 °C (91 % of In), 40-45 °C (94 % of In), 35-40 °C (97 % of In), 0-35 °C (100 % of In)
IK degree of protection	IK08 conforming to IEC 62262
