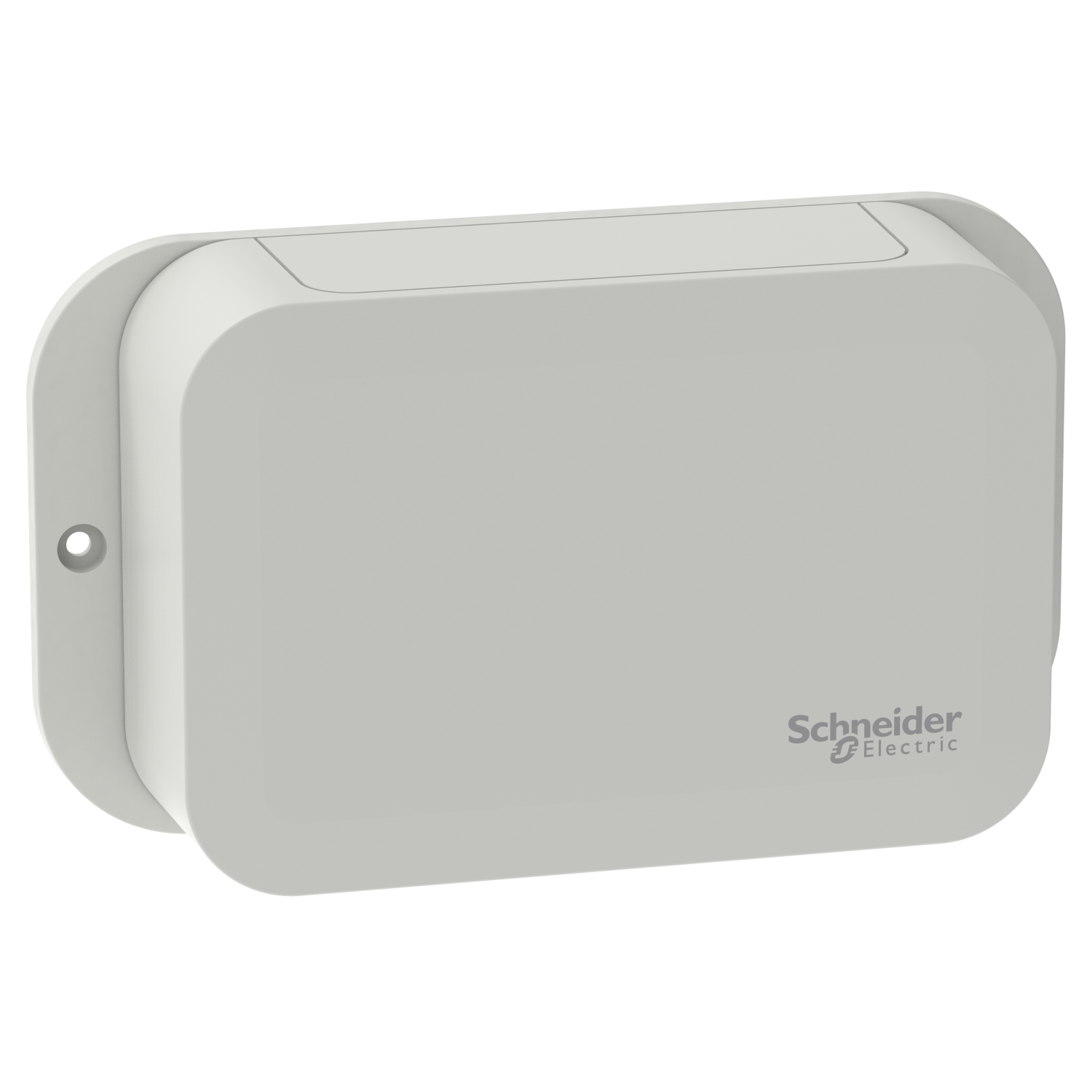

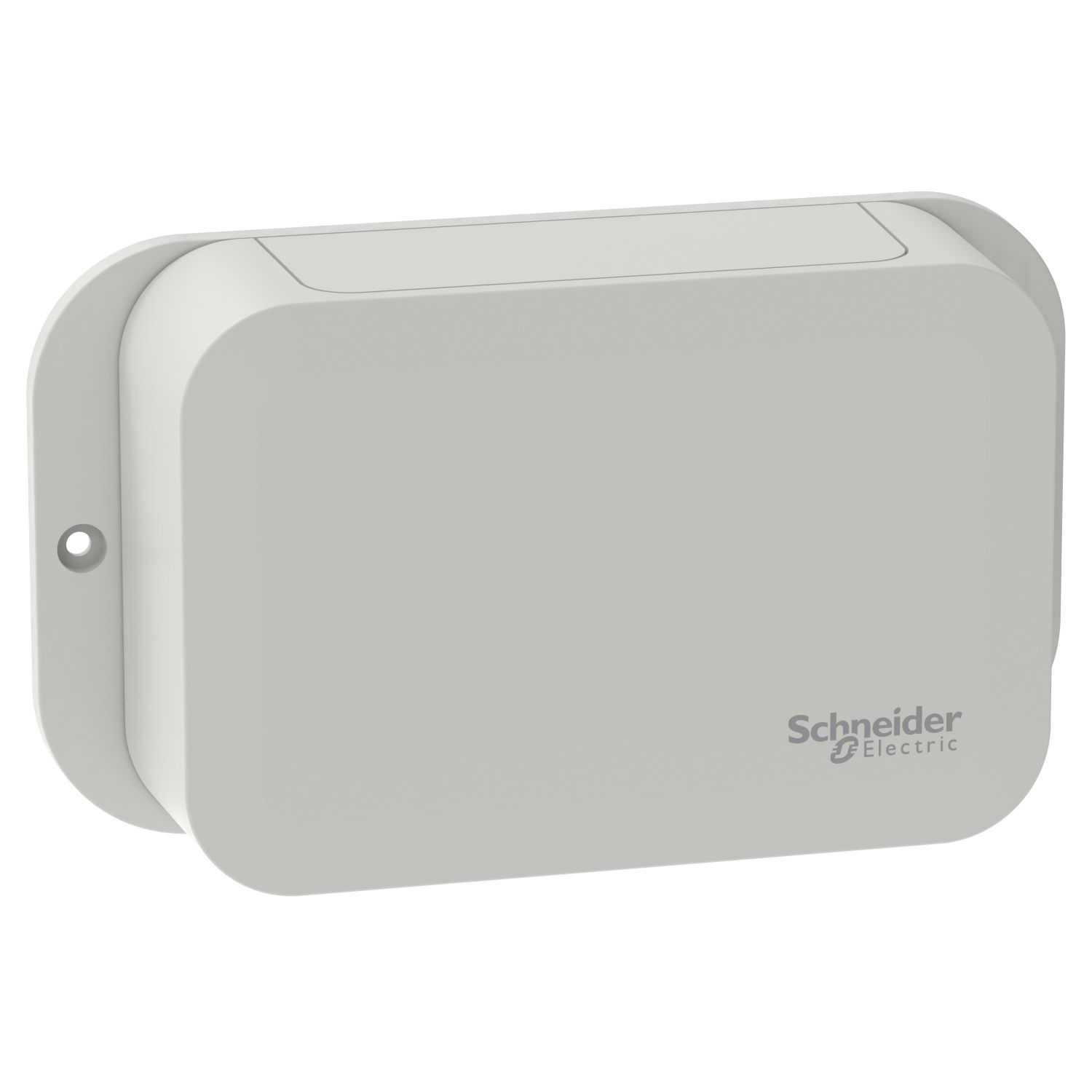

EcoStruxure BIoT Gateway is a multi-protocol gateway that can simultaneously receive data from multiple wireless protocols. It is designed for commercial facilities and building installations, supporting up to 200 sensors. BIoT Gateway has built-in radios to allow for direct communication with sensors in the BIoT product family. Multiple gateways can be installed to support thousands of sensors. This gateway is compatible with the mesh technnology, LTE Cat 4 Worldwide and GPS (3G/2G). The dimensions of the device are 150 mm in length, 85 mm in width and 40 mm in height.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Number of port | 1 , connector type: RS485, 1 , connector type: USB 2.0 type A |
| IP degree of protection | < IP20 |
| Device application | building, commercial |
| Depth | 150 mm |
| Width | 85 mm |
| Enclosure material | plastic |
| Communication network type | mesh, LTE |
| Relative humidity | 0-95 % RH, non-condensing |
| Ambient air temperature for storage | 0-50 °C |
| Colour | white |
| Memory type | 1 GB RAM |
| Range | EcoStruxure Building-IoT Sensor Solution |
| Antenna gain | 2.8 dBi |
| Supply | AC/DC adapter 9...36 V, Power over Ethernet (PoE) 9...36 V |
| Product or component type | gateway |
| Standards | EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B |
| Ambient air temperature for operation | 0-50 °C |
| Height | 40 mm |
| Communication port support | 1 port Ethernet 10/100BASE |
| Network frequency | 2.4 GHz |
| Product certifications | RoHS, EN, CE, FCC |
| Complementary | |
| Communication gateway | Wireless mesh to cloud server |
| Number of devices | 200 |
| Range compatibility | EcoStruxure Building-IoT Sensor Solution |
| Mounting support | surface mount, wall |
| Environment | |
| Electrical insulation class | class B |
Only registered users can write reviews
Related products

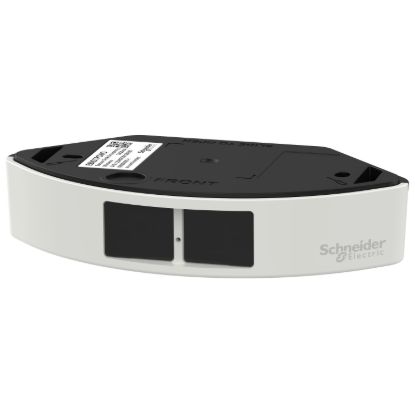

Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
EBIOTPCWD
Desk occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
$228.80 inc GST
$302.59 inc GST

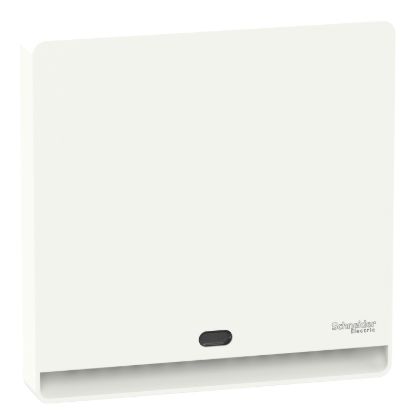

Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, light, noise, wireless
EBIOTPCWE1
Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, light, noise, wireless
$871.20 inc GST
$1,152.16 inc GST
Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless
EBIOTPCWE2
Indoor air quality sensor, EcoStruxure Building-IoT Sensor Solution, temperature, humidity, particulate matter, light, noise, wireless
$1,055.89 inc GST
$1,396.41 inc GST

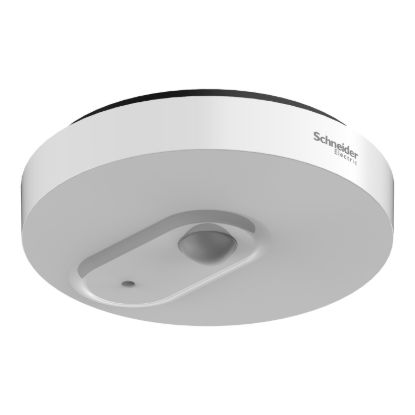

Room occupancy sensor, EcoStruxure Building-IoT Sensor Solution, wireless
