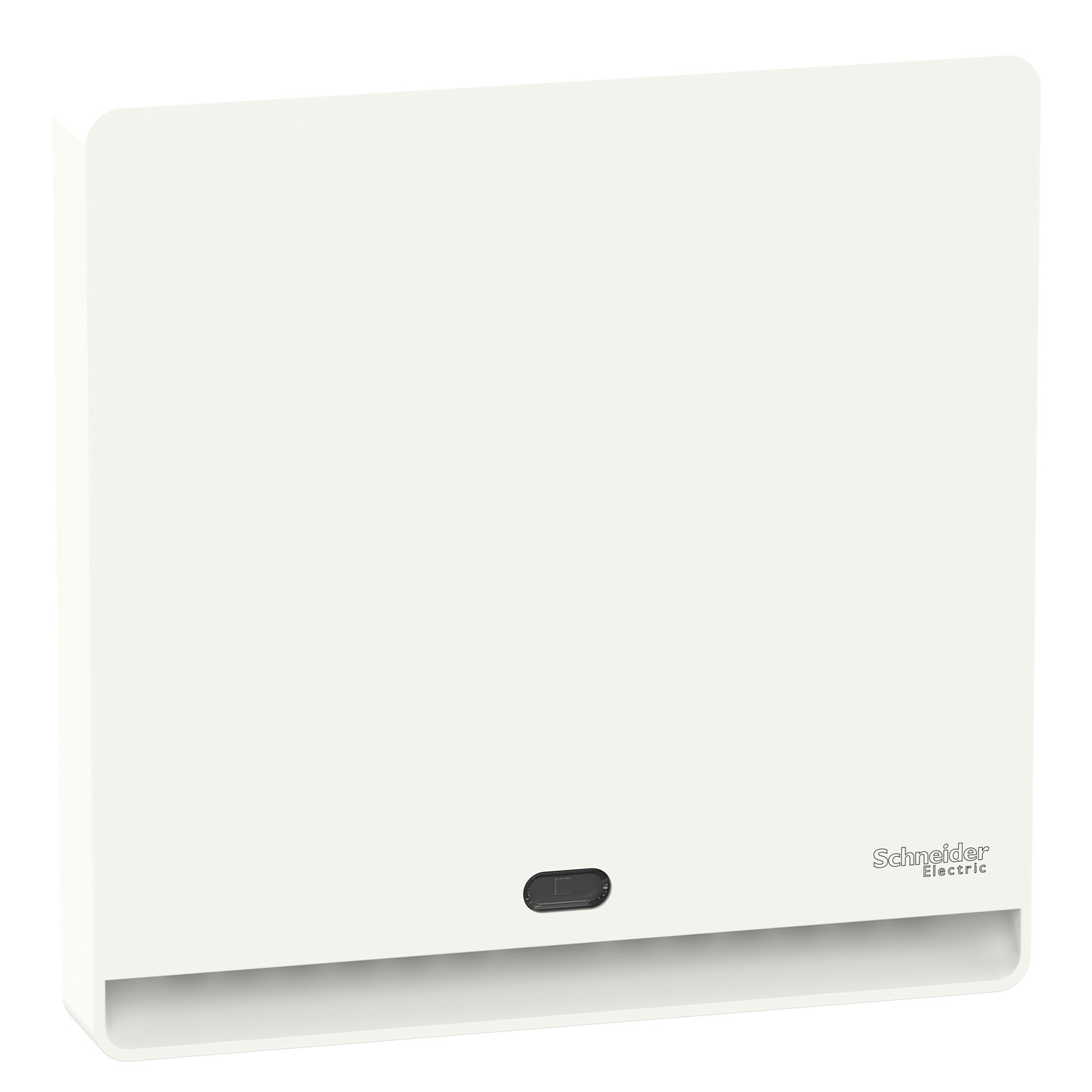

Ecostruxure IoT IAQ Sensor is a wireless, USB-C or battery-based, easy-to-install multisensor that is used in a variety of spaces inside buildings. Its flexible use and wide range of sensing capabilities allow it to be used in a variety of spaces inside buildings. This 8-in-1 air quality sensor include temperature, humidity, CO², VOC, light, noise, air pressure and particulate matter elements This sensor is equipped with tamper detection. The dimensions of the device are 121.48 mm in length, 121.48 mm in width and 22 mm in height.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Light intensity measurement range | 0...10000 lux |
| Depth | 121.48 mm |
| Temperature resolution | 0.01 °C |
| Colour | white |
| Width | 121.48 mm |
| CO2 measurement accuracy | +/- 30 ppm + 3 % of reading |
| Humidity measurement accuracy | +/- 3 % 20...80 % RH |
| VOC measurement accuracy | +/- 15 % |
| Local signalling | LED indicator |
| Measurement temperature | 0-50 °C |
| Relative humidity | 10-90 % RH, non-condensing |
| Sensor type | laser scattering particulate matter (PM), metal oxide volatile organic compounds (VOC), photoacoustic spectroscopy carbon dioxide (CO2), solid state pressure, solid state relative humidity, solid state temperature |
| Service life | 5 year(s) |
| Temperature measurement accuracy | +/- 0.5 °C at 25 °C |
| Ambient air temperature for storage | -20-60 °C |
| Battery life | 2 year(s) |
| VOC measurement range | 0...100 % AQI |
| Range | EcoStruxure Building-IoT Sensor Solution |
| CO2 measurement range | 0...2000 ppm |
| Location | indoor |
| Battery voltage | 1.5 V |
| Product or component type | sensor |
| Type of measurement | particulate matter (PM), volatile organic compounds (VOC), carbon dioxide (CO2), light, noise, pressure, relative humidity, temperature |
| Standards | EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B |
| Humidity measurement range | 10...90 % RH |
| Mounting support | wall |
| Range of product | EcoStruxure Building-IoT Sensor Solution |
| Ambient air temperature for operation | 0-50 °C |
| Height | 22 mm |
| Noise measurement accuracy | +/- 3 dB Spl |
| Product brand | Schneider Electric |
| Environment | |
| IP degree of protection | IP20 |
