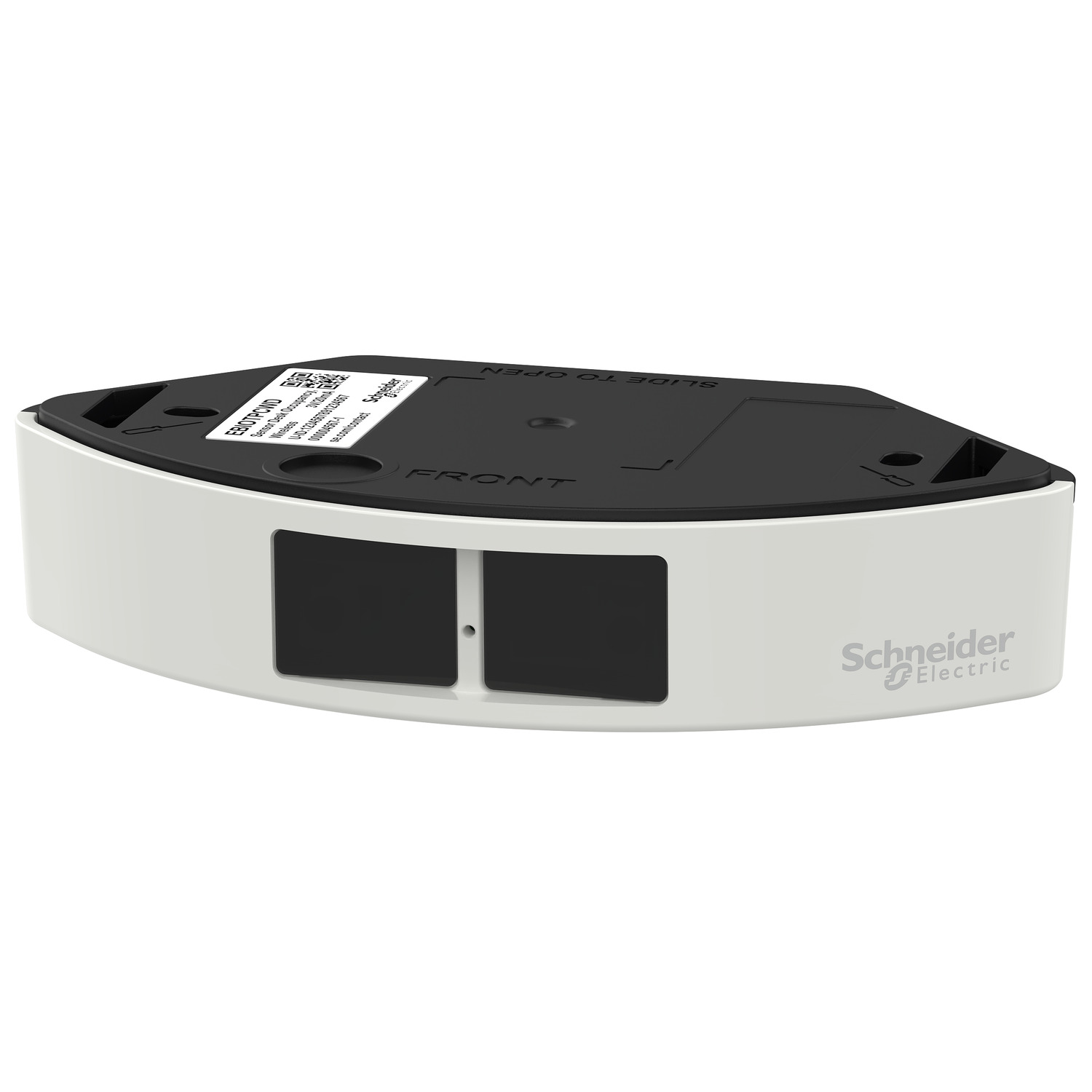

EcoStruxure IoT Desk Occupancy Sensor is a compact, battery-based, easy-to-install wireless sensor that can measure accurate desk presence. Its design makes it easy to deploy in a variety of furniture and spaces, such as workstations, office cubicles, touchdown desks, and phone booths. The sensor can also measure occupancy in collaboration spaces, such as lounges and meeting rooms. This sensor is equipped with tamper detection. The dimensions of the device are 92 mm in length, 51 mm in width and 19 mm in height.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Depth | 92 mm |
| Colour | white |
| Width | 51 mm |
| Local signalling | LED indicator |
| Relative humidity | 20-80 % RH, non-condensing |
| Sensor type | thermopile |
| Ambient air temperature for storage | -20-60 °C |
| Battery life | 5 year(s) |
| Communication port protocol | wireless |
| Range | EcoStruxure Building-IoT Sensor Solution |
| Location | office |
| Battery voltage | 1.5 V |
| Product or component type | sensor |
| Battery size | 2 AA |
| Type of measurement | motion |
| Standards | EN 62321 : 2008, EN 301-489-1, EN/IEC 62368-1, EN 300-328, REACH, RoHS, ICES-003 Issue 7, FCC part 15 class B |
| Detection angle | 90 ° (vertical), 120° (horizontal) |
| Range of product | EcoStruxure Building-IoT Sensor Solution |
| Ambient air temperature for operation | 0-50 °C |
| Height | 19 mm |
| Product brand | Schneider Electric |
| Storage Relative Humidity | 0-95 % RH, non-condensing |
| Complementary | |
| Mounting mode | surface mounting, desktop installation |
| Material | ABS (acrylonitrile butadiene-styrene) |
| Supply | Li battery |
