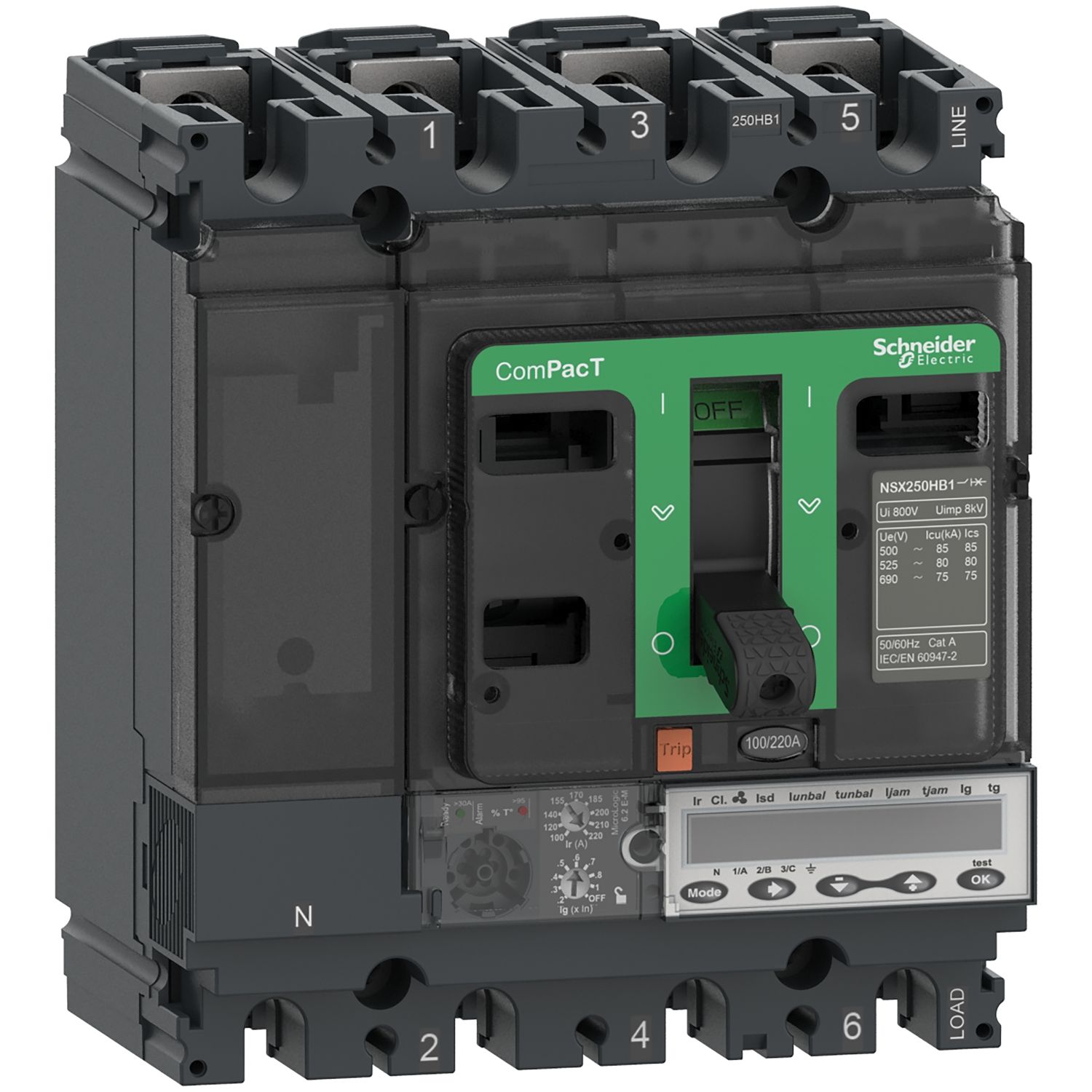

Circuit breaker, ComPacT NSX100HB2, 100kA/690VAC, 3 poles, MicroLogic 6.2E-M trip unit 25A

Manufacturer: Schneider Electric

SKU: C10W36M025

GTIN: 3606482013674

Catalog

User guide

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $4,435.20 inc GST

Price: $2,967.70 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This ComPacT NSX100HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for motor protection applications. The breaking capacity (Icu) is 100kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 25A rating electronic MicroLogic 6.2 E-M trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.2 E-M trip unit provides adjustable long time and short time protections, and fixed instantaneous protection. MicroLogic 6.2 E-M has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100HB2 is part of Schneider Electric EcoStruxure Power architecture.

Products specifications

Attribute name	Attribute value
Main
Device application	motor protection
Suitability for isolation	yes conforming to EN/IEC 60947-2
Trip unit technology	electronic
Utilisation category	category A
Network type	AC
Device short name	NSX100HB2
Breaking capacity code	HB2 100 kA 690 V AC
Breaking capacity	100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Mounting mode	fixed
Control type	toggle
Range	ComPacT new generation
Protected poles description	3D
Range of product	ComPacT NSX100...250 new generation
Trip unit name	MicroLogic 6.2 E-M
Poles description	3P
Product name	ComPacT NSX new generation
Product or component type	circuit breaker
Trip unit protection functions	LSIG
[Ue] rated operational voltage	690 V AC 50/60 Hz
[In] rated current	25 A at 65 °C
Network frequency	50/60 Hz
Complementary
Short-time pick-up adjustment type Isd	adjustable
Display type	LCD display
[Uimp] rated impulse withstand voltage	8 kV
Compatibility code	NSX100
Trip unit rating	25-25 A at 65 °C
Long time pick-up adjustment type Ir	adjustable 9 settings
Electrical durability	5000 cycles at 690 V In, 10000 cycles at 690 V In/2, 10000 cycles at 440 V In, 20000 cycles at 440 V In/2
Zone selective interlocking ZSI	with
Communication of data	maximeters/minimeters, time-stamped histories and event tables, thermal image function, demand current and power, protection and alarm settings, energy metering, maintenance indicators, power quality, phase sequence, instantaneous and demand values
Downside connection	front
Earth-leakage protection	without
Thermal memory	20 minutes before and after tripping
[Ig] ground-fault pick-up adjustment range	Ig enable on/off, 0.2...1 x In for In > 50 A, 0.3...1 x In for In = 50 A, 0.6...1 x In for In = 25 A
Height	161 mm
[Ics] rated service breaking capacity	100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2, 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Motor tripping class	5, 10, 20, 30
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[tr] long-time delay adjustment range	30-30 s at 7.2 x Ir for trip class 30, 38-38 s at 6 x Ir for trip class 30, 720-720 s at 1.5 x Ir for trip class 30, 20-20 s at 7.2 x Ir for trip class 20, 26-26 s at 6 x Ir for trip class 20, 480-480 s at 1.5 x Ir for trip class 20, 10-10 s at 7.2 x Ir for trip class 10, 13.5-13.5 s at 6 x Ir for trip class 10, 240-240 s at 1.5 x Ir for trip class 10, 5-5 s at 7.2 x Ir for trip class 5, 6.5-6.5 s at 6 x Ir for trip class 5, 120-120 s at 1.5 x Ir for trip class 5
Net weight	2.05 kg
Long time delay adjustment type	adjustable
Number of slots	5 slot(s)
Complementary motor protection	phase unbalance, stalled rotor, underload, protracted starting time
Ground-fault time delay adjustment type -tg	adjustable 5 settings
Power dissipation per pole	0.53 W
Connection pitch	35 mm
Mechanical durability	20000 cycles
Upside connection	front
Long time pick-up adjustment range	12...25 A
Short-time delay adjustment type	fixed
Protection type	G : for ground fault protection, I : for instantaneous short-circuit protection, So : for short time short-circuit protection, L : for overload protection (long time)
Depth	86 mm
Width	105 mm
Mounting position	flat on the back, horizontal and vertical
[Isd] short-time pick-up adjustment range	5...13 x Ir
Local signalling	LED 95 % Ith (red) for temperature over set point, flashing LED (green) for ready to operate
Instantaneous pick-up adjustment type Ii	fixed
Type of measurement	energy meter
Instantaneous pick-up adjustment range	425 A
Ground-fault pick-up adjustment type	adjustable 9 settings
Mounting support	backplate
[tg] Ground-fault time delay adjustment range	0-0.4 s
Environment
Relative humidity	0-95 %
Ambient air temperature for storage	-40-85 °C
Overvoltage category	class II
Operating altitude	2000 m...5000 m with derating, 0...2000 m without derating
Electrical shock protection class	class II
Product certifications	Marine, CCC, EAC
Pollution degree	3 conforming to IEC 60664-1
IP degree of protection	IP40 conforming to IEC 60529
Ambient air temperature for operation	-25-70 °C
IK degree of protection	IK07 conforming to IEC 62262
Standards	EN/IEC 60947
