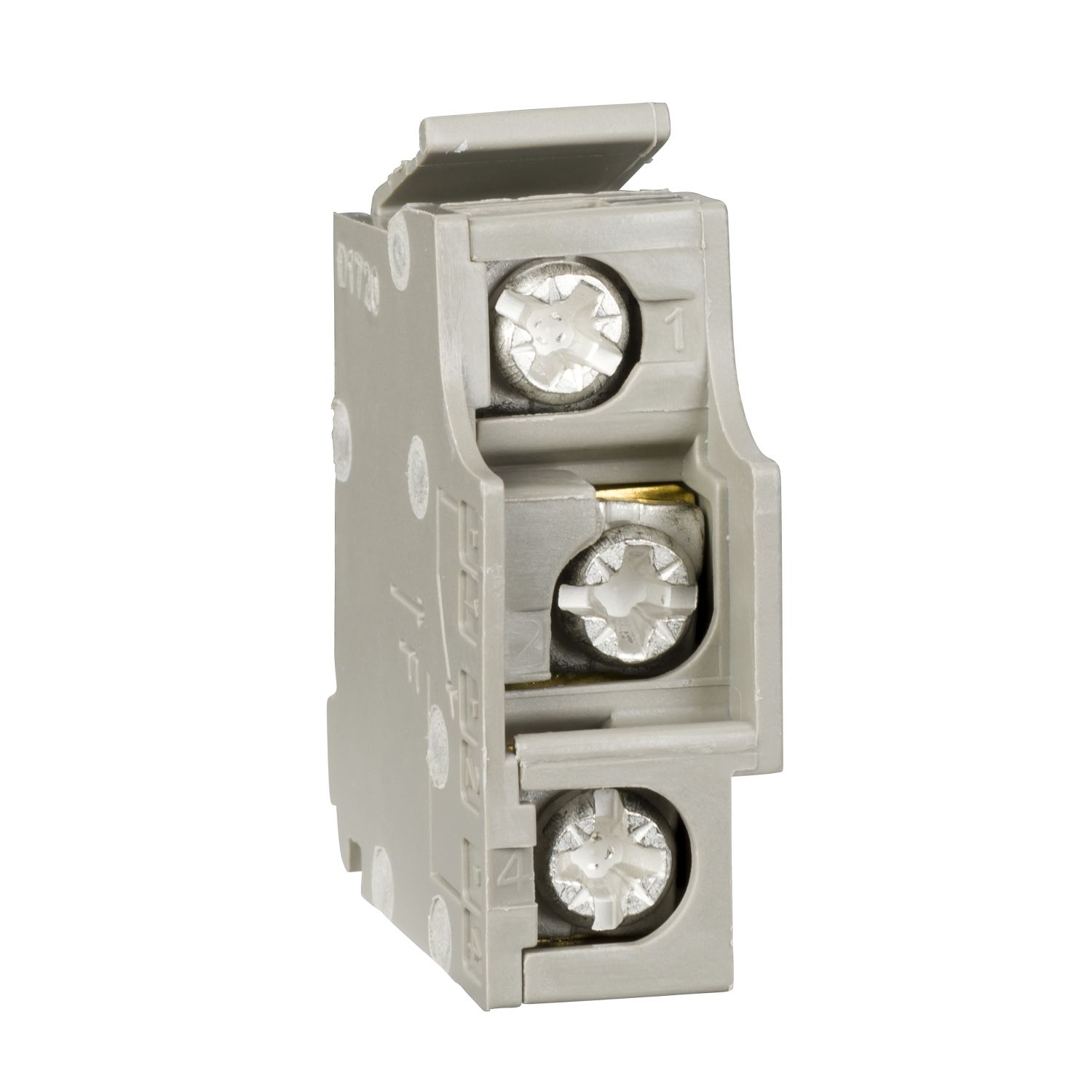

It is a single low-level auxiliary contact that provides all the different indications remotely for Compact NSX, Compact NS, PowerPact Multistandard and EasyPact CVS circuit breakers. Remote status information are ON/OFF (OF), trip indication (SD) and fault-trip indication (SDE) for all circuit breakers types. The remote status information for trip indication due to an earth fault (SDV) is used for Compact NSX and PowerPact Multistandard. The contacts are installed in the device in dedicated slots. This auxiliary contact is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5A and the minimum load is 1MA at 4 VDC for utilization categories AC12/AC15/DC12/DC14. One device embeds 5 auxiliaries contact type. It complies with IEC 60947-5-1 standard.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | SDE, OF, SDV, SD |
| Device application | breaker status monitoring |
| Range | ComPacT |
| Range of product | ComPact NS1600b...3200, ComPact NS630b...1600, ComPact NSX400...630 DC PV, ComPact NSX400...630 DC, ComPact NSX100...250 DC PV, ComPact NSX100...250 DC, ComPact NSX400...630, ComPact NSX100...250 |
| Signal contacts composition | 1 NO/NC |
| Product or component type | auxiliary contact |
| Range compatibility | ComPact ComPact NSX DC, PowerPact PowerPact Multistandard, EasyPact EasyPact CVS, ComPact ComPact NSX, ComPact Compact INV, ComPact ComPacT INS, ComPact ComPact NS1600b...3200, ComPact ComPact NS630b...1600 |
| Complementary | |
| Minimum load | 1 mA at 4 V DC |
| [Ie] rated operational current | DC-14: 0.03 A at 250 V DC, DC-14: 0.05 A at 110 V DC, DC-14: 0.2 A at 48 V DC, DC-14: 1 A at 24 V DC, DC-12: 0.3 A at 250 V DC, DC-12: 0.6 A at 110 V DC, DC-12: 2.5 A at 48 V DC, DC-12: 5 A at 24 V DC, AC-15: 1 A at 480 V AC 50/60 Hz, AC-15: 1.5 A at 380/440 V AC 50/60 Hz, AC-15: 2 A at 220/240 V AC 50/60 Hz, AC-15: 2.5 A at 110 V AC 50/60 Hz, AC-15: 3 A at 48 V AC 50/60 Hz, AC-15: 3 A at 24 V AC 50/60 Hz, AC-12: 5 A at 480 V AC 50/60 Hz, AC-12: 5 A at 380/440 V AC 50/60 Hz, AC-12: 5 A at 220/240 V AC 50/60 Hz, AC-12: 5 A at 110 V AC 50/60 Hz, AC-12: 5 A at 48 V AC 50/60 Hz, AC-12: 5 A at 24 V AC 50/60 Hz |
| Auxiliary contacts type | low level |
| Mounting mode | clip-on |
| Fault type | general electric fault |
| Local signalling | fault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close |
| Accessory / separate part category | spare part for Compact NS1600b...3200, spare part for Compact NS630b...1600 |
| [Ith] conventional free air thermal current | 5 A |
