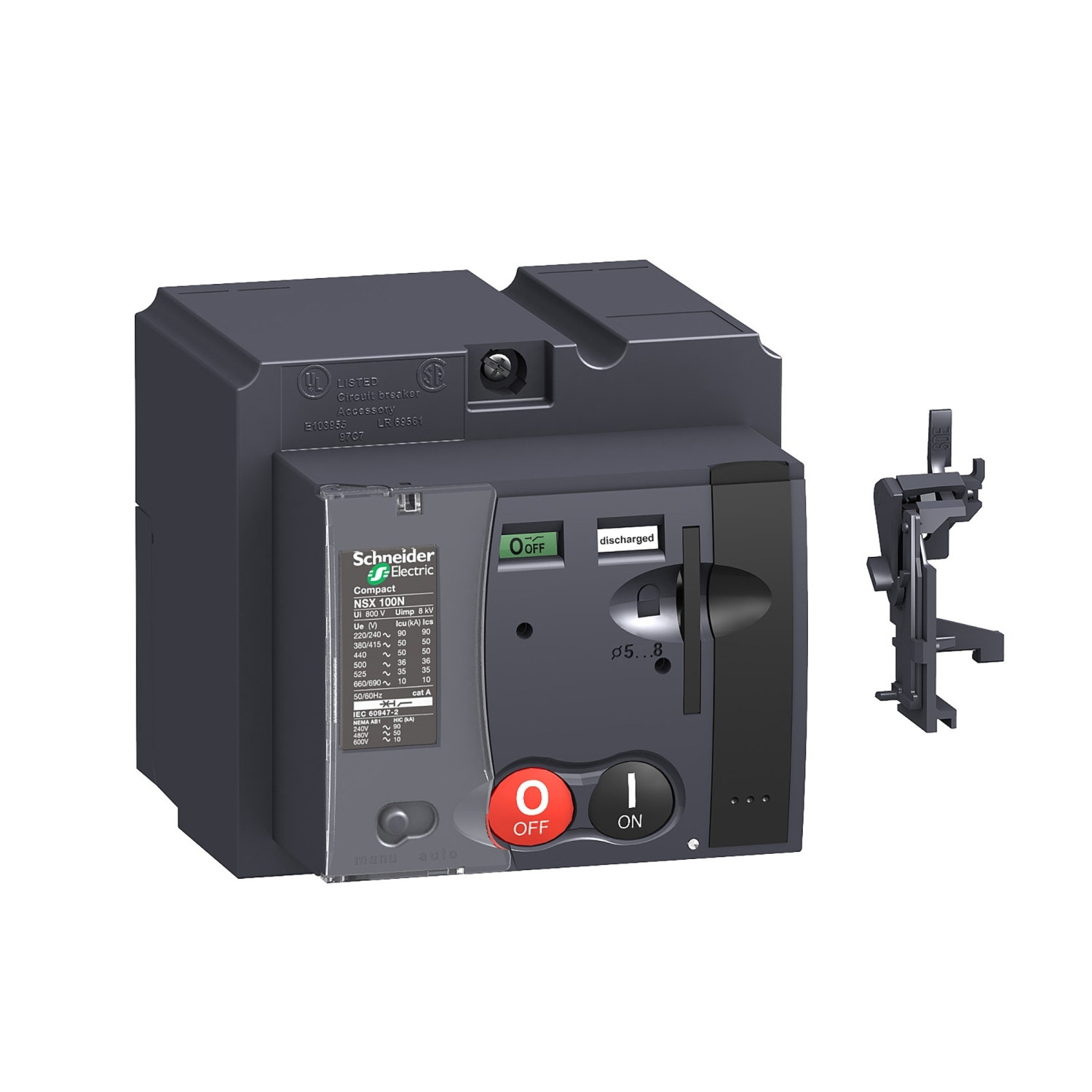

This is a standard motor mechanism for Compact NSX 100/160 and PowerPact Multistandard H frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 220VAC to 240VAC 50/60Hz or 208VAC to 277VAC 60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | MT250 |
| Device application | automatic spring charging |
| Mounting mode | fixed |
| Control type | standard |
| Range | ComPacT |
| Range of product | ComPact NSX100...250 DC, ComPact NSX100...250, ComPacT NSX100...250 DC new generation, ComPacT NSX100...250 new generation |
| [In] rated current | 100 A, 160 A |
| Product or component type | motor mechanism |
| Range compatibility | ComPact ComPacT NSX DC new generation NSX160 DC, ComPact ComPacT NSX DC new generation NSX100 DC, ComPacT new generation ComPacT NSX160 new generation, ComPacT new generation ComPacT NSX100 new generation |
| [Uc] control circuit voltage | 220...240 V AC 50/60 Hz, 208...277 V AC 60 Hz |
| Complementary | |
| Provided equipment | SDE adaptor |
| Control signal type | maintained, impulse |
| Locking options description | 1 to 3 padlocks Ø 5 to Ø 8, padlocking in OFF position |
| Maximum power consumption in VA | 500 VA opening, 500 VA closing |
| Maximum operating frequency | 4 per minute |
| Response time | < 80 ms closed, < 700 ms open |
