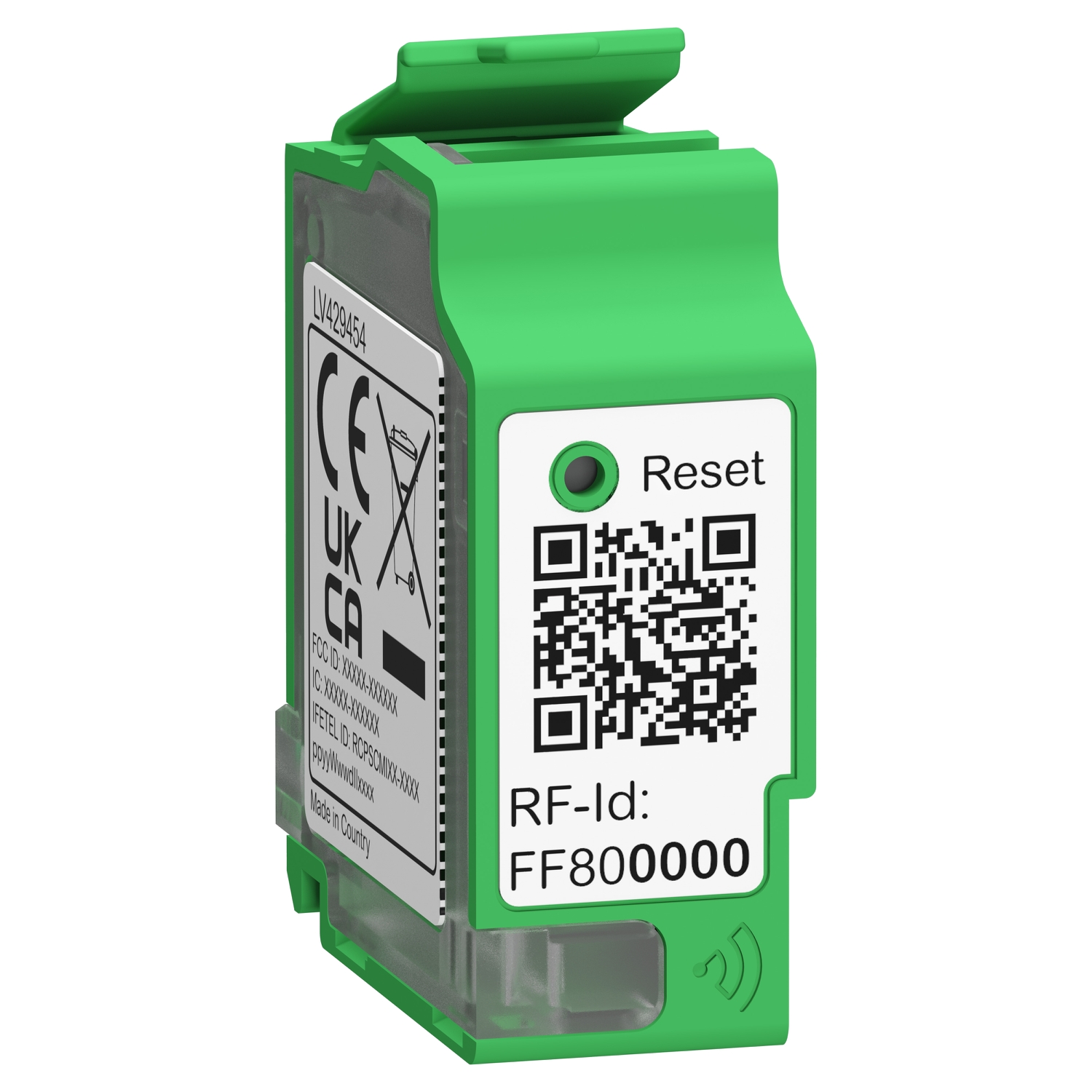

Wireless indication auxiliary contact, ComPacT NSX and ComPacT NS, circuit breaker status OF/SD/SDE
Manufacturer: Schneider Electric
SKU: LV429454
GTIN: 3606481053619
Old price: $186.12 inc GST
$124.54 inc GST
Supported cards
Supported cards
This is a wireless auxiliary contact that provides remote indications of the circuit breaker status. It is used on ComPacT NSX 100 to 630 and ComPacT NS 630 to 3200 new generations. This wireless auxiliary contact provides OF information (ON/OFF), that indicates the position of the circuit breaker power contacts. It provides SD information (trip indication), that indicates that the circuit breaker as tripped due to an electrical fault, operation of a voltage release or push to trip button. It provides SDE information (fault trip indication), that indicates that the circuit breaker as tripped due to an electrical fault (overload, short-circuit, ground fault, earth fault). This wireless auxiliary contact works with Zigbee wireless communication protocol (IEEE 802.15.4) within the frequency range 2405-2480MHz . It is a plug & play technology for clear connection status. This wireless auxiliary contact is placed in the same position as the wired version. A LED light is integrated and gives an indication in case of tripping. Communication architecture is fully EcoStruxure Power validated, with any application.

Products specifications

Attribute name Attribute value
Main
Device short name SDE, SD, OF
Device application breaker status monitoring
Connectivity to devices ZigBee device
Range ComPacT new generation
Fault type general electric fault
Range of product ComPacT NS1600b...3200 new generation, ComPacT NS630b...1600 new generation, ComPacT NSX400...630 DC PV new generation, ComPacT NSX100...250 DC PV new generation, ComPacT NSX400...630 DC new generation, ComPacT NSX100...250 DC new generation, ComPacT NSX400...630 new generation, ComPacT NSX100...250 new generation
Communication network type ZigBee IEEE 802.15.4 (2405-2480 MHz)
Local signalling fault trip for electrical fault, trip indicator for relay trip indicator, ON/OFF indication for open/close
Product or component type wireless indication auxiliary
Range compatibility ComPacT new generation ComPacT NS new generation, ComPacT new generation ComPacT NSX DC new generation, ComPacT new generation ComPacT NSX new generation
Complementary
[Uimp] rated impulse withstand voltage 8 kV
Body material plastic
Mechanical durability 50000 cycles
Mounting mode clip-on
Battery life 10-10 year(s)
Power supply type battery
Status LED with
Standards UL 489, EN/IEC 60947
Environment
Relative humidity 95-95 % at 55-55 °C
Ambient air temperature for storage -25-85 °C
IP degree of protection IP4X conforming to IEC 60529
Ambient air temperature for operation -25-70 °C
