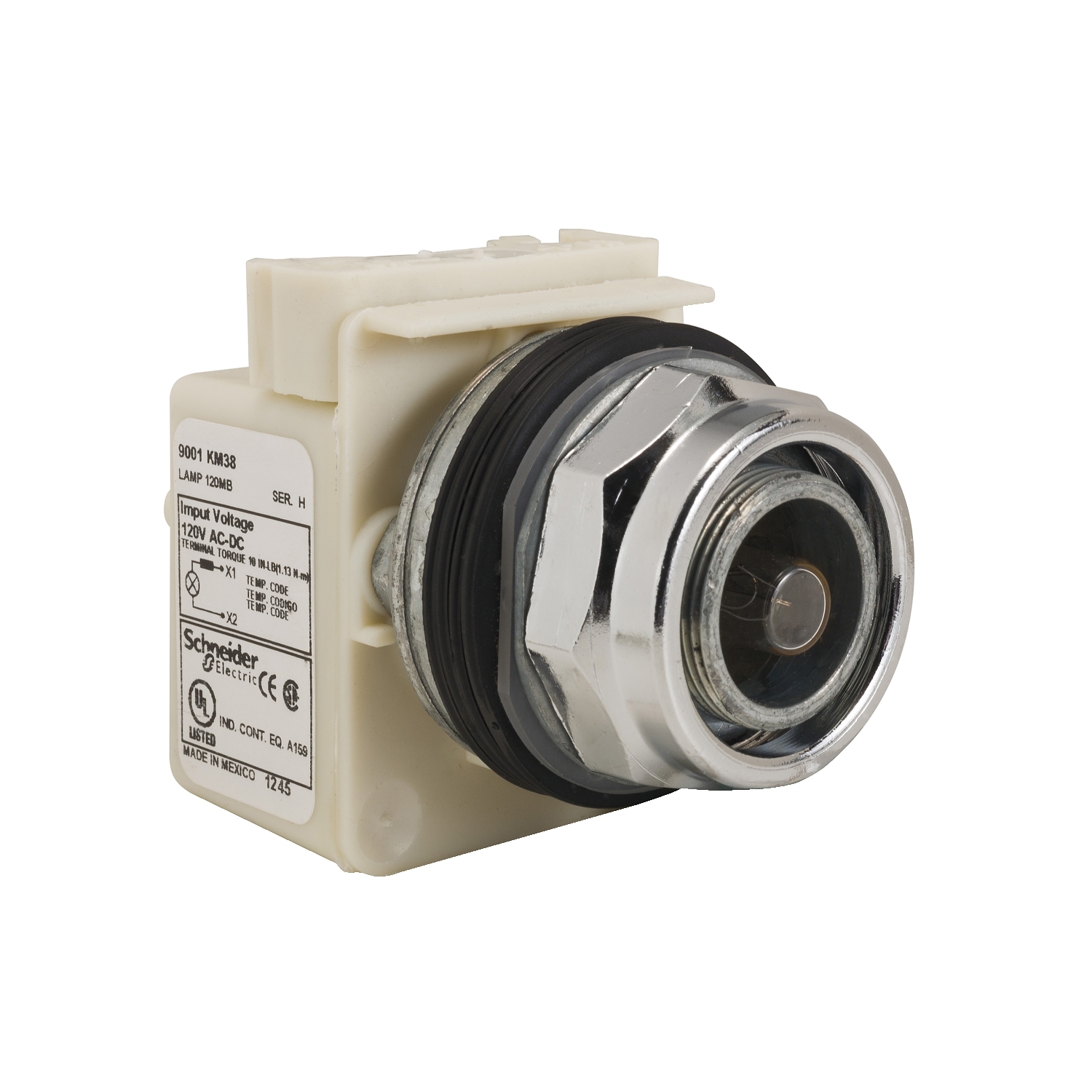

Head for pilot light, Harmony 9001K, metal, without cap, 30mm, 120V
Manufacturer: Schneider Electric
SKU: 9001KP38
GTIN: 785901008750
Old price: $275.55 inc GST
$167.64 inc GST
Supported cards
Supported cards
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance It works at a rated voltage of 120V. It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)

Products specifications

Attribute name Attribute value
Main
Device short name K
Product or component type head for pilot light
Range of product Harmony 9001K
Complementary
Bulb base BA 9s
Shape of screw head round
Bezel material metal
Size 30 mm
Cap/operator or lens colour without cap
Operating mode normal
Light block supply full voltage or resistor, full voltage 120 V
Mounting diameter 30 mm
Light source incandescent bulb
[Us] rated supply voltage 120 V
Environment
NEMA degree of protection NEMA 1/2/3/3R/4/6/12/13
Product certifications UL listed file E42259 CCN NKCR, CSA LR25490 class 3211 03, CE
