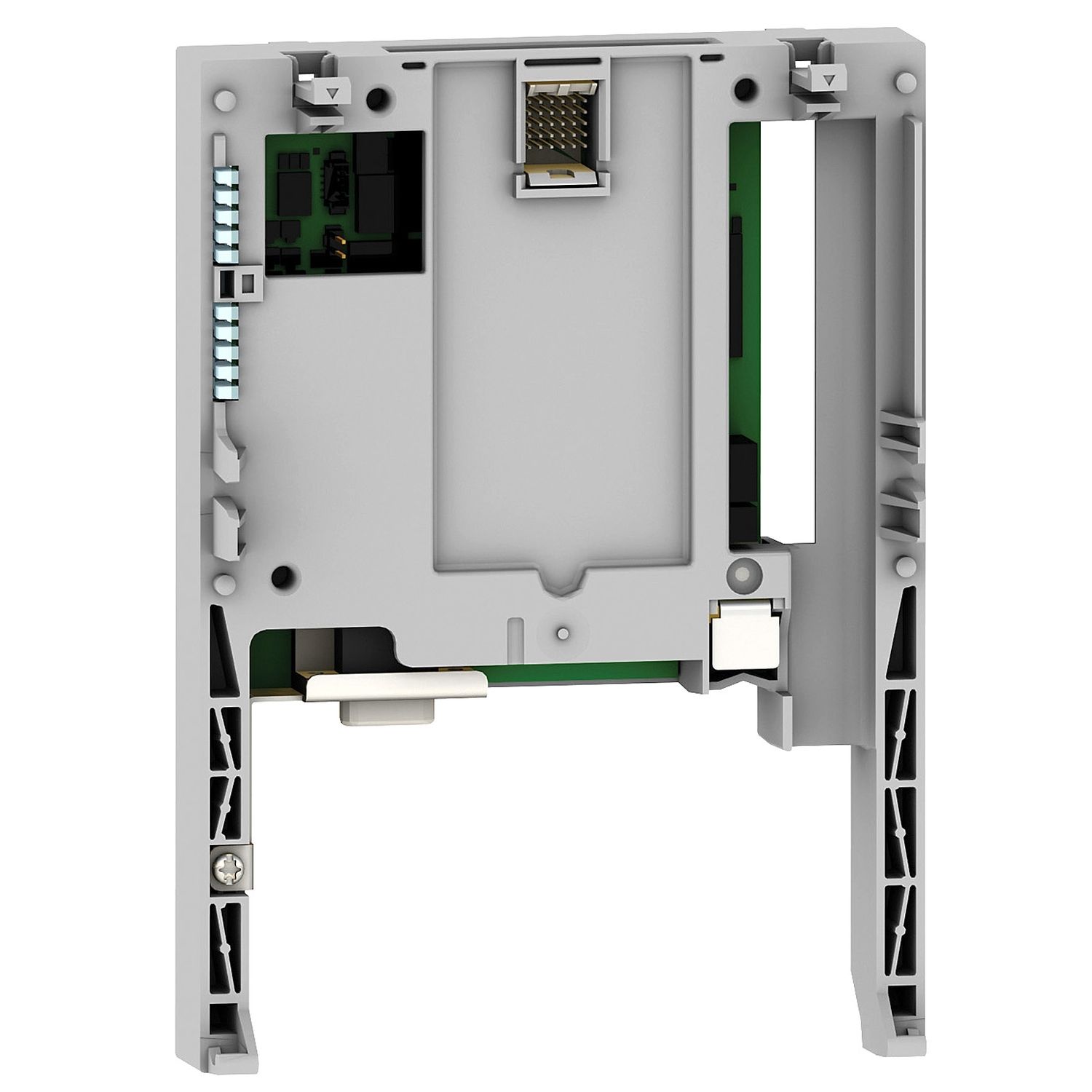

This communication card is an option for variable speed drives of Altivar 71 and Altivar 61 ranges. It is equipped with 2 RJ45 connectors. It enables integration of your variable speed drive in your process control network. It uses a modbus TCP communication class C20 protocol. It weighs 0.3kg. It is designed for daisy chain mounting. It conforms to IEEE 802.2, IEE 802.3, RFC791 and RFC793 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web services | security, e-mail, data editor, FDR Agent, IO Scanner, Altivar chart, Ethernet statistics, Altivar viewer |
| Connector type | 1 RJ45 |
| Transmission rate | 10 Mbps, 100 Mbps |
| Range compatibility | Altivar 61Q, Altivar 71Q, Altivar 71, Altivar 61 |
| Product specific application | for daisy chain mounting |
| Communication port protocol | Modbus TCP |
| Product or component type | communication card |
| Physical interface | Ethernet 2 |
| Complementary | |
| Web server | embedded |
| Concept | Transparent Ready class C20 |
| Display type | web server, graphic display terminal for reference received, graphic display terminal for control word received, 1 LED for TX (transmission), 1 LED for STS (IP address), 1 LED for RX (reception), 1 LED for FLT (Ethernet fault), 1 LED for 10/100 Mbps (speed) |
| Communication network type | IP conforming to RFC791 |
| Exchange mode | half duplex and full duplex |
| Communication transport type | TCP conforming to RFC793, 8 connections maximum, UDP |
| Communication data link | MAC : IEEE 802.3, LLC : IEEE 802.2 |
| Communication service | read input registers (04), read holding registers (03), read device identification (43), I/O scanning service can be inhibited, FTP, diagnostics (08), communication monitoring can be inhibited, adjustable, I/O profile, write single register (06), write multiple registers (16), TFTP, SNMP, read/write multiple registers (23), CiA 402 profile |
| Net weight | 0.3 kg |
