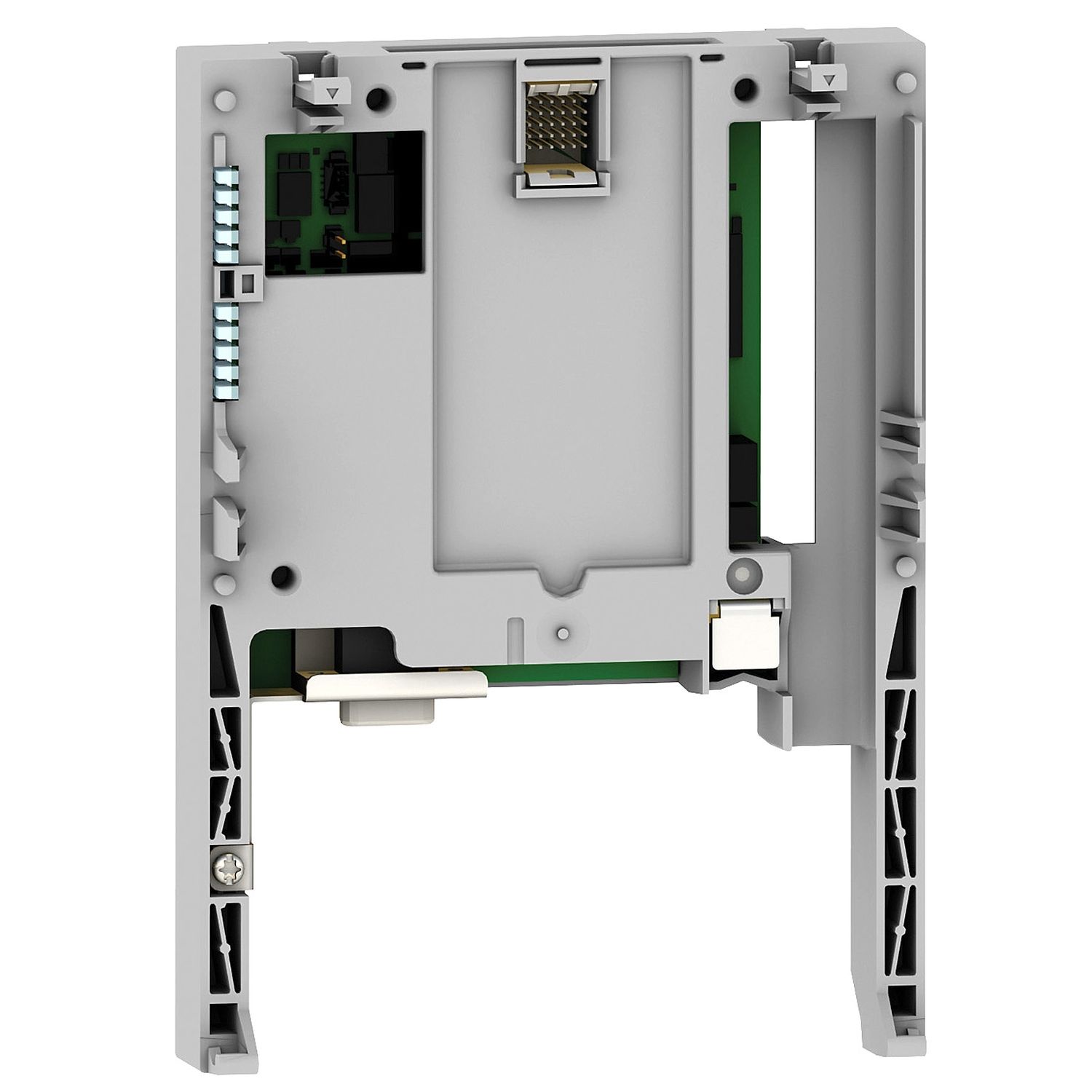

This Modbus/Uni-Telway communication card enables integration of variable speed drive in your process control network. It is equipped with a 9-way female SUB-D connector. It is compatible with Altivar 61 and Altivar 71.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission rate | 9600 bps, 4800 bps, 19200 bps |
| Range compatibility | Altivar 71, Altivar 61Q, Altivar 61, Altivar 71Q |
| Communication port protocol | Modbus RTU, Modbus ASCII, Uni-Telway |
| Connector type | 9-way female SUB-D connector |
| Type of polarization | no polarization impedances, two 4.7 kOhm polarization resistors |
| Product or component type | communication card |
| Physical interface | 2-wire RS 485 for Uni-Telway, 4-wire RS485 for Modbus, 2-wire RS 485 for Modbus |
| Complementary | |
| Display type | graphic display terminal for reference received, graphic display terminal for control word received, 1 LED for RUN (status), 1 LED for ERR (fault) |
| Number of addresses | 1-247 for Modbus, 1-147 for Uni-Telway |
| Communication service | read holding registers (03) for Modbus, read error counters (A2h) for Uni-Telway, read device identification (43) for Modbus, protocol version (30h) for Uni-Telway, mirror (FAh) for Uni-Telway, I/O profile for Modbus, diagnostics (08) for Modbus, communication monitoring can be inhibited, fixed, communication monitoring for Modbus, identification of the card for Uni-Telway, write word (14h) for Uni-Telway, write single register (06) for Modbus, write object (37h) for Uni-Telway, write multiple registers (16) for Modbus, reset counters (A4h) for Uni-Telway, read/write multiple registers (23) for Modbus, read word (04h) for Uni-Telway, read object (36h) for Uni-Telway, read input registers (04) for Modbus, CiA 402 profile for Modbus |
| Net weight | 0.3 kg |
| Data format | 8 bits, odd parity, 1 stop for Uni-Telway, 8 bits, odd, even or no parity, 1 stop for Modbus RTU, 8 bits, no parity, 2 stop for Modbus RTU, 7 bits, odd or even parity, 1 or 2 stop for Modbus RTU, 7 bits, odd or even parity, 1 or 2 stop for Modbus ASCII |
