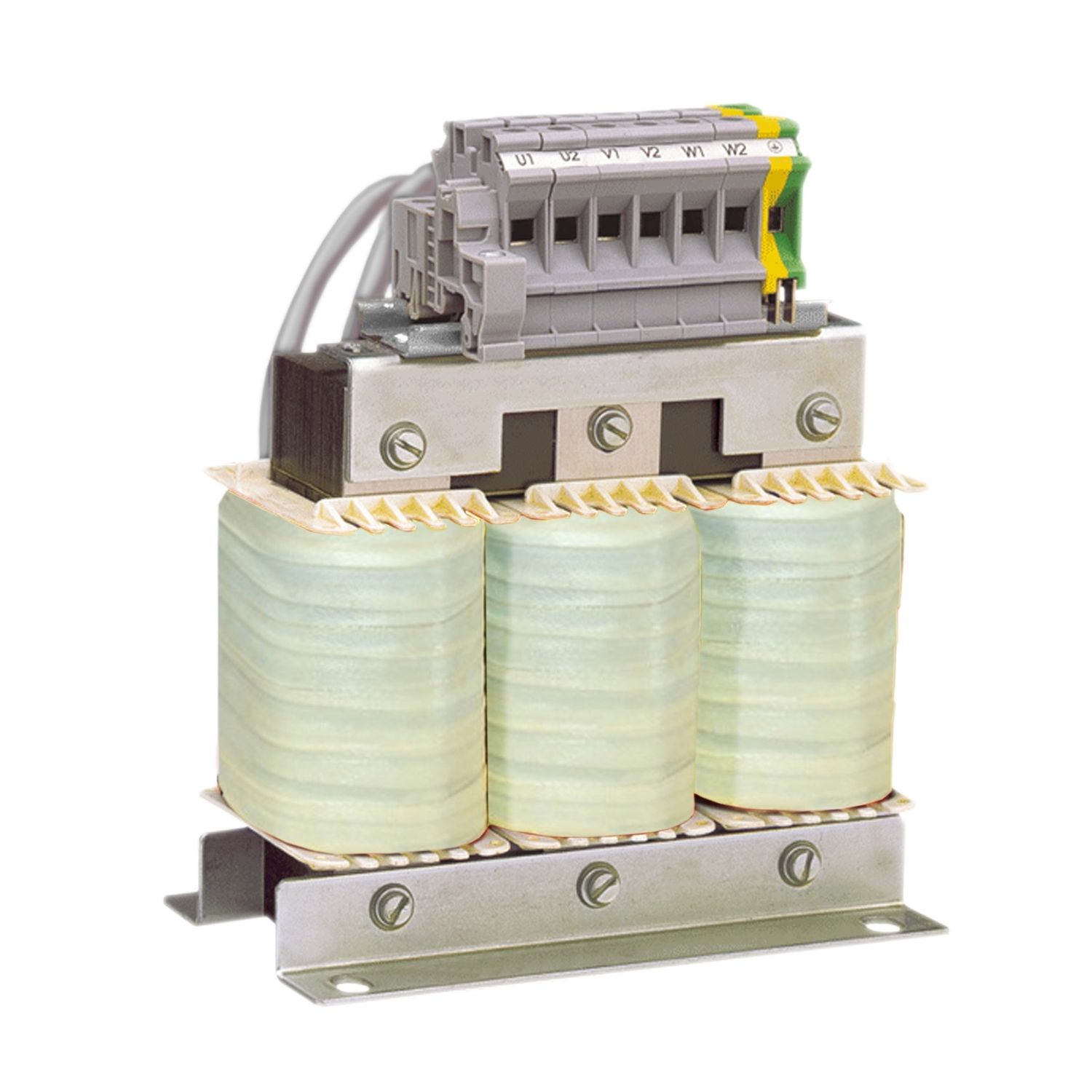

This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 1188A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 120 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar 71, Altivar 71Q, Altivar 61, Altivar 61Q |
| [In] rated current | 1188 A |
| Product specific application | output filter |
| Product compatibility | ATV71QC63Y, ATV71QC50Y, ATV71QC50N4, ATV71QC40N4, ATV71HC63Y, ATV71HC50N4, ATV61QC80Y, ATV61QC63Y, ATV61QC63N4, ATV61QC50N4, ATV61HC80Y, ATV61HC63N4, ATV61HC50N4, ATV71HC40N4, ATV61HC40N4 |
| Sale per indivisible quantity | 3 |
| Product or component type | motor choke |
| Electrical connection | tag connector 3 x M12 |
| Complementary | |
| Thermal losses | 682 W |
| DV/dt | 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V |
| Net weight | 120 kg |
| Ambient air temperature for operation | -10-50 °C |
| Maximum motor cable length | 400 m unshielded cable P motor 630-800 kW at 500...690 V 2, 250 m shielded cable P motor 630-800 kW at 500...690 V 2, 250 m unshielded cable P motor 630-800 kW at 500...690 V 1, 150 m shielded cable P motor 630-800 kW at 500...690 V 1, 300 m unshielded cable P motor 400-630 kW at 380...480 V 1, 250 m shielded cable P motor 400-630 kW at 380...480 V 1 |
| Maximum output frequency | 100 Hz |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| IP degree of protection | IP00, IP20 (with kits VW3A9612,613) |
