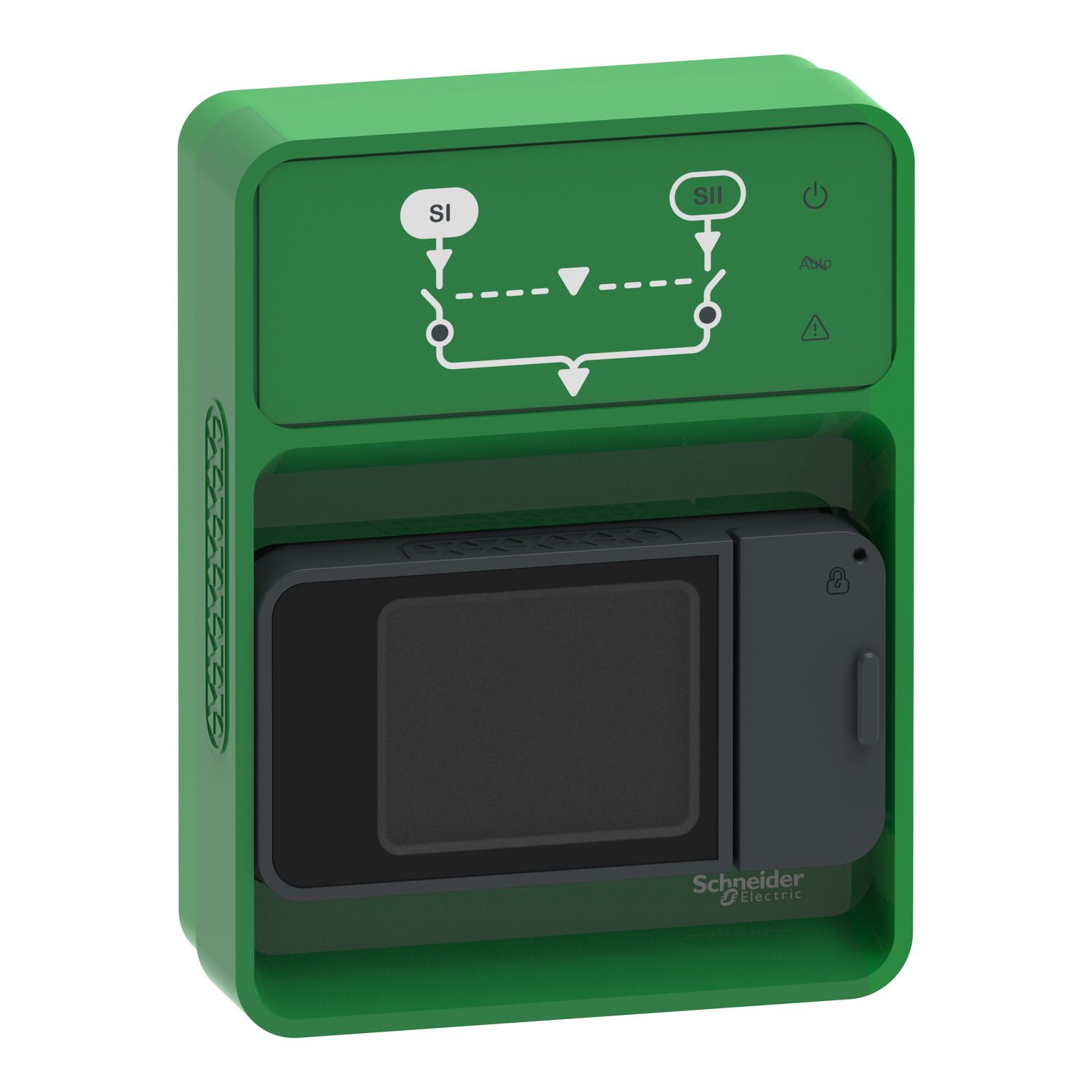

TPCCIF04 is external display module used for TransferPacT Acitve Automatic in industrial and commercial buildings, data centers,healthcare facilities and transportation industry. This external HMI module is used to remote display for setting status&alarm. It is offered a connection between transfer switch and external display unit through RJ45 cable. The operate mode is done by push button from the surface of display module. This module is positioned surface mount with external base to the cut-out of the door. Its appearance is 91.5mm(width)x120.5mm(height)x56mm(depth).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | display of operating modes and alarm |
| Product or component type | control block, display module |
| Accessory / separate part category | display and signalling accessory, control accessory |
| Range of product | TransferPacT |
| Complementary | |
| Depth | 56 mm |
| Display type | LCD display |
| Width | 90.5 mm |
| Mounting mode | surface mounting |
| Control type | push-button, remote control |
| Net weight | 200 g |
| Display resolution | 128 x 96 pixels |
| Mounting support | base, door cut-out |
| Height | 120.5 mm |
| Environment | |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | front cover: IP40 |
| Ambient air temperature for operation | -25-70 °C |
