Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

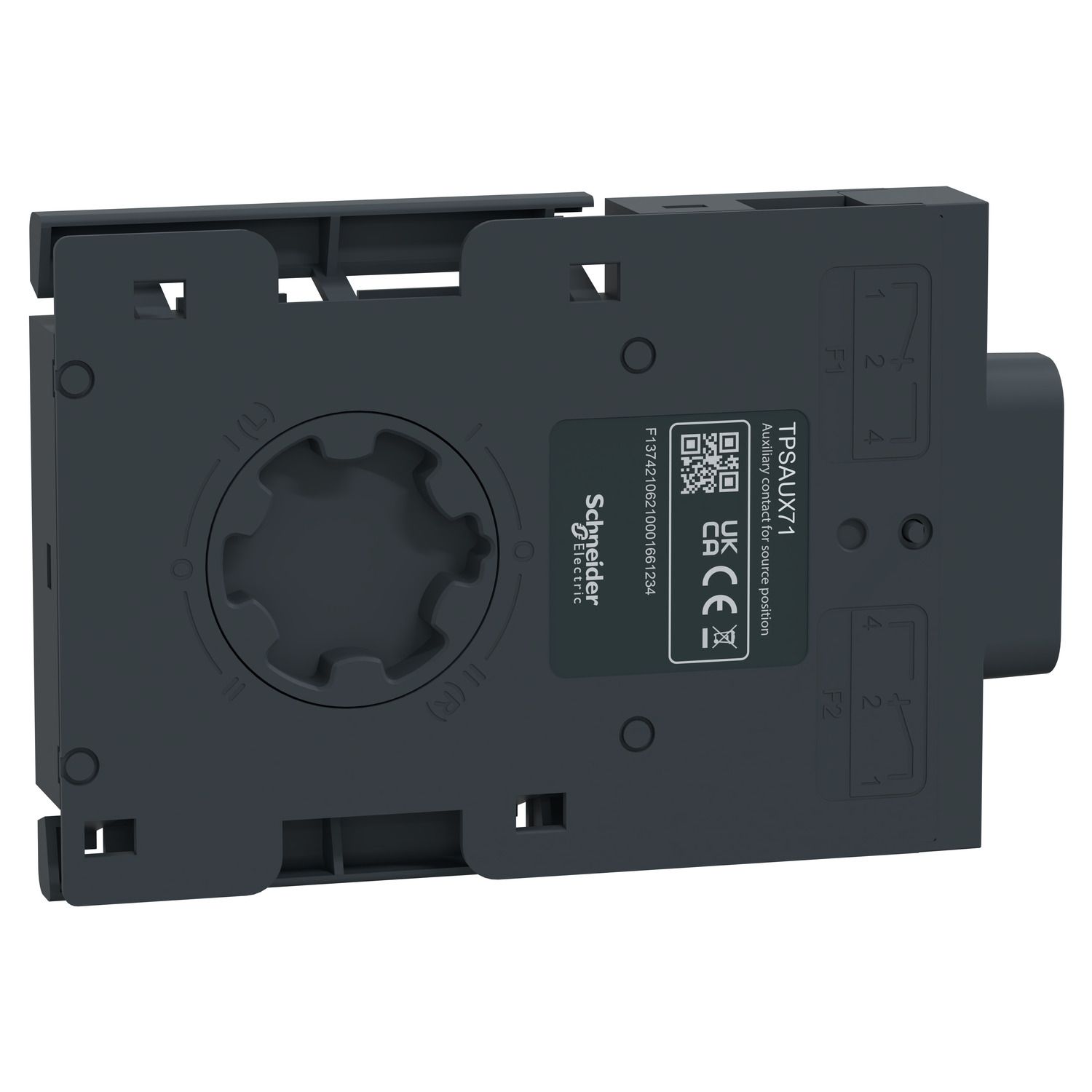

| Product or component type | Auxiliary Contact Module |
| Range of product | TransferPacT |
| Device application | signalling |
| Complementary | |
| [Ith] conventional free air thermal current | 5 A |
| Signalling function | switch position (SI and SII) |
| Auxiliary connection terminal | spring 0.5-1.5 mm² (AWG 20...AWG 16) |
| Mounting mode | clip-on |
| Product compatibility | TA1A |
| Auxiliary contact composition | 2 NO + 2 NC |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Accessory / separate part category | signalling accessory |
| [Ie] rated operational current | AC-12: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 0.1 A at 660/690 V AC 50/60 Hz, DC-12: 6 A at 24 V DC, DC-12: 2.5 A at 48 V DC |
| Minimum load | 100 mA at 24 V DC |
| Contractual warranty | |
| Warranty | 18 |
