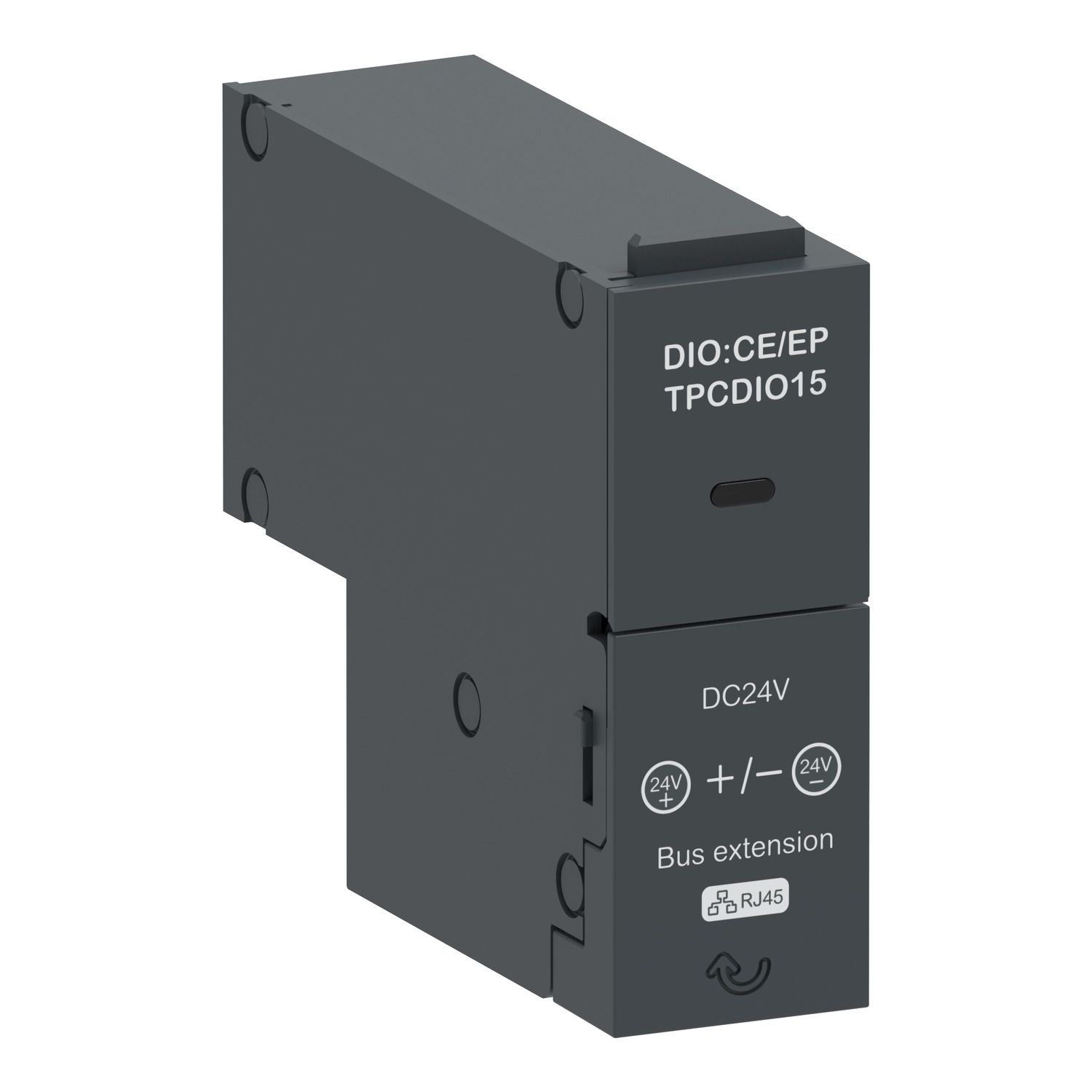

TPCDIO15 is a module as signalling accessory. The siginal function is for external power input and CAN extension. This CAN extension can provide a RJ45 port to connect external HMI. The external power(24VDC) is for controller when both source lost or Genset start delay or keep power for communication.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 30 V DC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Input current | 1 A 24 V DC +/- 20 % |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | without |
| Height | 56.5 mm |
| Signalling function | output voltage (24 V), CAN extension (connect to external HMI) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
