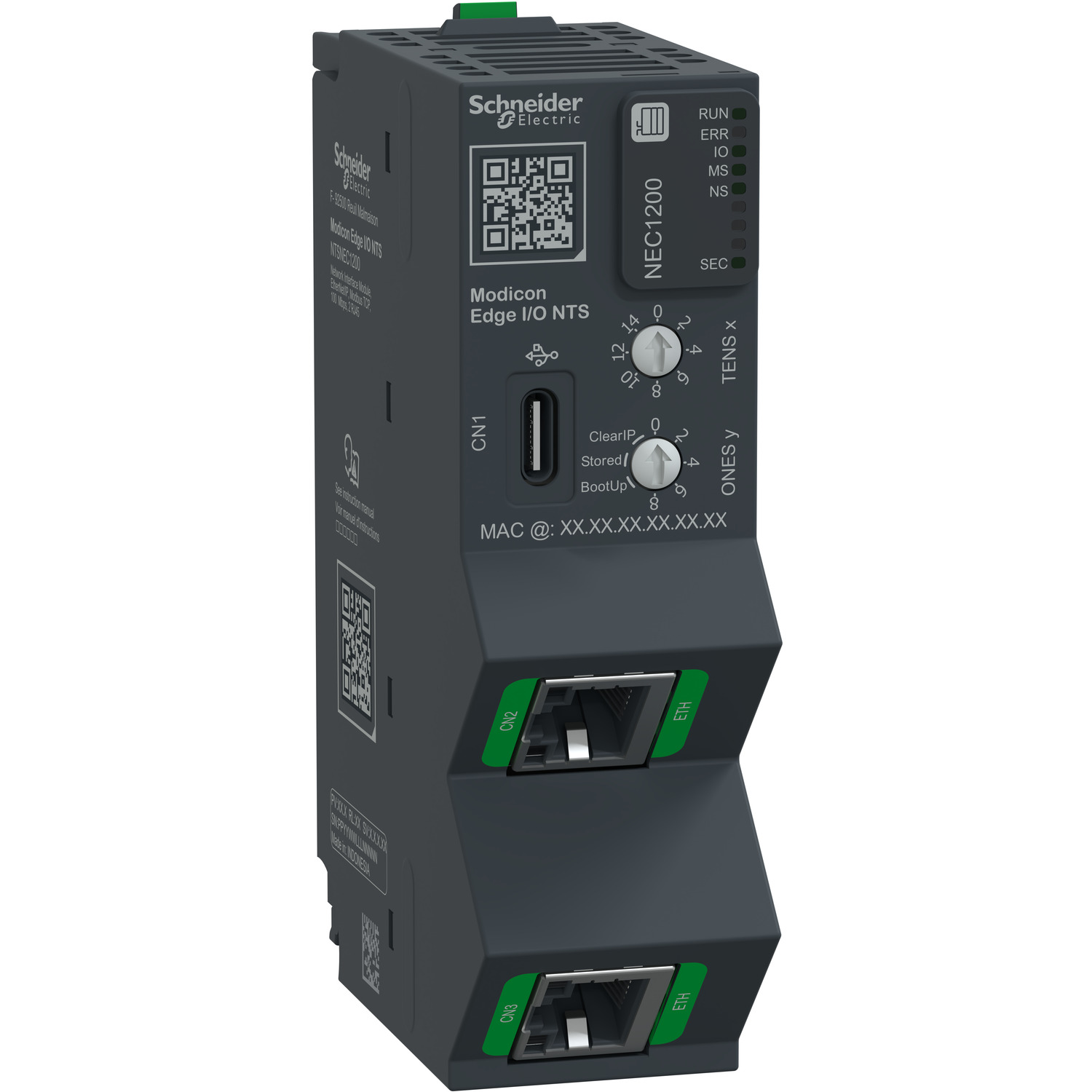

Network Interface Module, EtherNet/IP, Modbus TCP, 100Mbps, 2 RJ45, Modicon Edge I/O NTS

Manufacturer: Schneider Electric

SKU: NTSNEC1200

GTIN: 3606486876916

PDF

Image of product

User guide

Promotional video

Instruction sheet

Declaration of conformity

Catalog

Full Description

This network interface module is part of the Modicon Edge I/O NTS range. It functions as a Network Interface for a cluster utilizing EtherNet/IP and Modbus TCP protocols. It operates in full duplex exchange mode with auto-negotiation at a transmission rate of 10/100 Mbit/s and is equipped with 2 RJ45 connectors. It provides a means to connect devices to a network, allowing communication between different components. It functions within a temperature range of minus 20 to 60 degrees Celsius. Its IP degree of protection is IP20. It measures 108.6mm high, 30mm wide, 87.8mm deep, and weighs 0.275kg. It is compatible with I/O modules and mounting accessories. It is sold individually per pack. The module is installed on a base that mounts on a DIN rail. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Availability: Out of stock

Old price: $1,001.66 inc GST

Price: $904.00 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	network interface module
Range compatibility	Logic/motion controller - Modicon M262, Modicon M580, Modicon m241 & m251 (pending), Soft dPAC (pending), third party
Range of product	Modicon Edge I/O NTS
Product compatibility	NTSN.....
Complementary
Integrated connection type	Ethernet/IP, Modbus TCP, USB 2.0 port
Number of addressable I/O module	32-32 modules
Connector type	2 RJ45 switched ethernet isolated ports, USB type C 1
Local signalling	1 LED (green) for RUN, 1 LED (red) for ERR, 1 LED (green/red) for I/O, 1 LED (green/red) for MS, 1 LED (green/red) for NS, 1 LED (green/red) for cyber security (SEC)
Width	30 mm
Transmission rate	10/100 Mbit/s
Depth	69 mm
Exchange mode	full duplex, autonegotiation
Topology	daisy chain, star, ring (using rstp)
Net weight	0.262 kg
Height	100 mm
Communication service	secure boot, secure storage (via TPM), SCEP client (pending), CAE Support, secure syslog server (pending), TLS 1.2, Embedded TPM, DPWS (IPv6), configuration, web server, FDR client, BOOTP, DHCP client, IPV4, EtherNet/IP Server, Modbus TCP server, OPCUA server (explicit only), SNMP (pending), Crashlog, NTP v4, RSTP support, static VLAN configuration, Quality of Service (QoS), USB RNDIS
Web server	embedded
Environment
Pollution degree	2
Ambient air temperature for operation	-20-60 °C derating of channel numbers above 55 °C to 12 channels for 24 vdc at 60 °C
Marking	CE, UKCA, cULus, RCM
Directives	2014/35/EU - directive basse tension, 2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive
IP degree of protection	IP20
Operating altitude	0...2000 m without derating, 2000 m...5000 m with derating
Ambient air temperature for storage	-40-85 °C
Relative humidity	5-95 % without condensation
Contractual warranty
Warranty	18
