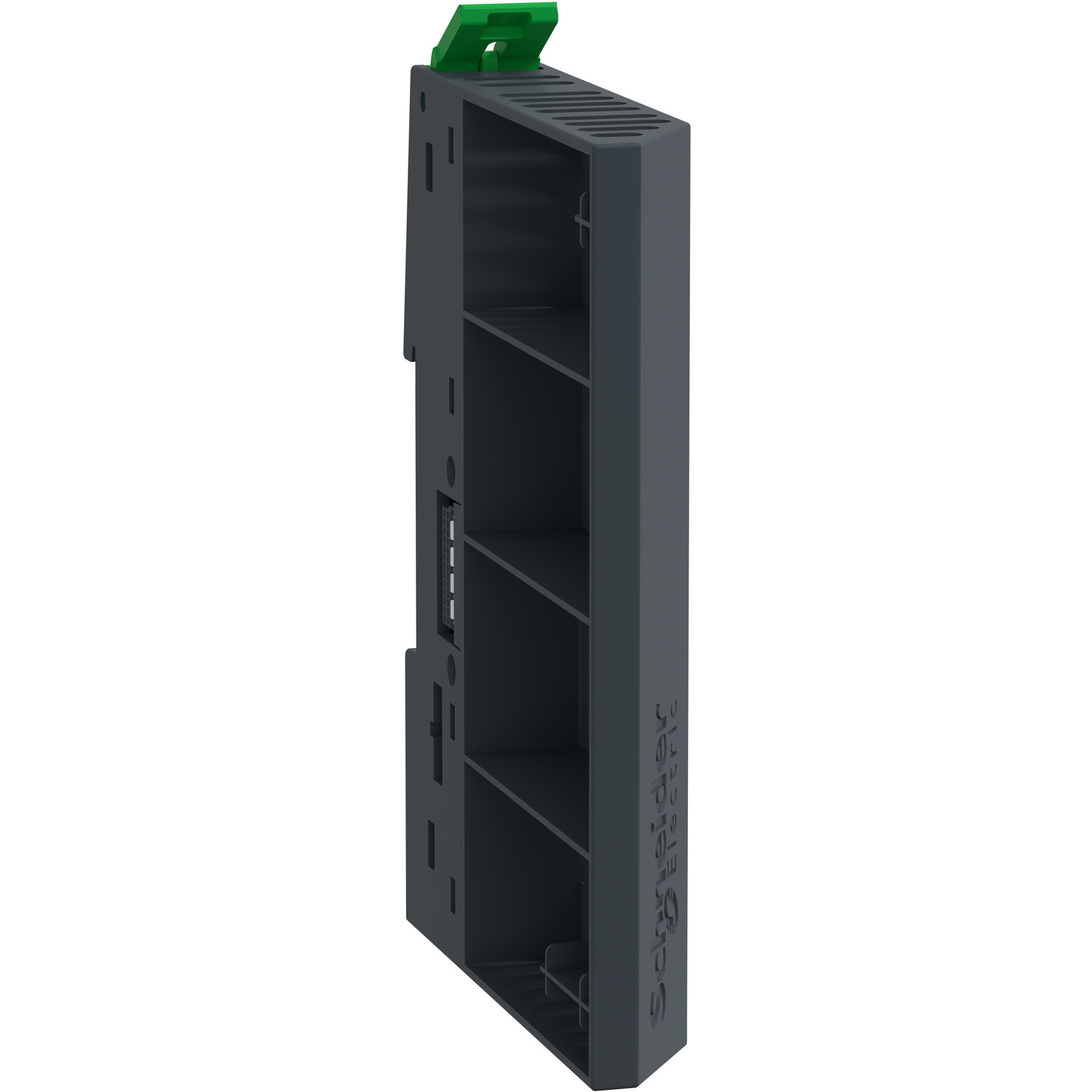

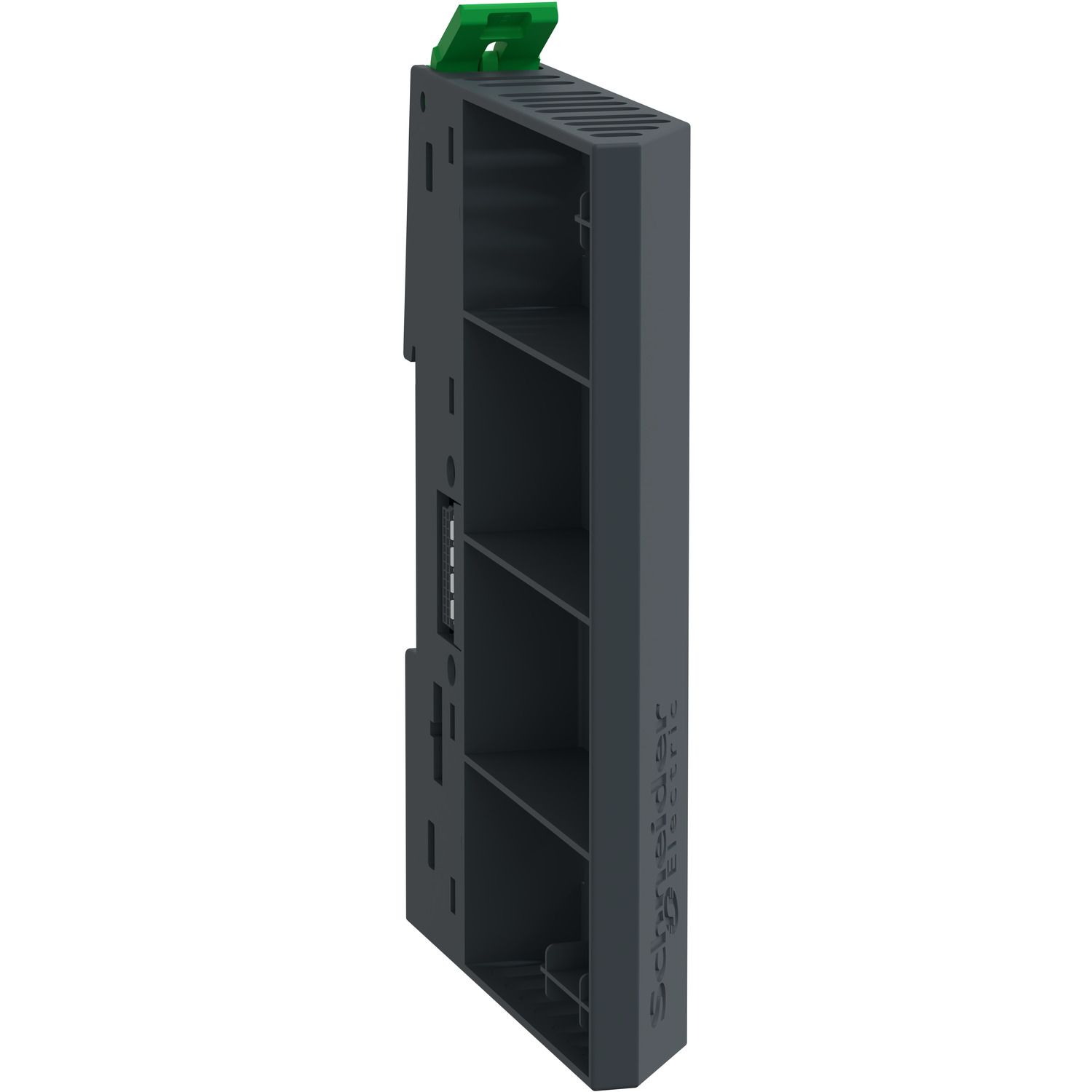

Spare Cluster Termination, Hardened, Modicon Edge I/O NTS

Manufacturer: Schneider Electric

SKU: NTSXMP0000H

GTIN: 3606486877289

PDF

Image of product

User guide

Promotional video

Declaration of conformity

Catalog

Full Description

This cluster termination is a spare part of the Modicon Edge I/O NTS range. The Cluster Termination must be used on the rightmost position of a Modicon Edge I/O NTS cluster. It functions within a temperature range of minus 40 to 70 degrees Celsius. It has an IP protection rating of IP20. It is compatible with discrete, analog input, Counting, Field device master, Passive, and Motion expert modules. It is sold individually per pack. It installs on the most right module of a cluster, on DIN Rail. Modicon Edge I/O NTS is a future-ready I/O system for data aggregation. Modicon Edge I/O NTS is a robust distributed IP20 I/O system with wide choice of modules.

Availability: Out of stock

Old price: $80.06 inc GST

Price: $72.25 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product or component type	cluster termination
Width	15 mm
Accessory / separate part type	cluster termination
Range of product	Modicon Edge I/O NTS
Accessory / separate part destination	cluster
Accessory / separate part designation	cluster termination
Net weight	0.039 kg
Height	100 mm
Accessory / separate part category	connection accessories
Quantity per set	set of 1
Complementary
Colour	grey
Product compatibility	NTSN.....
Environment
Vibration resistance	1 g without accessory, 2 g with accessory
Shock resistance	15 g for 11 ms (with and without accessory)
Pollution degree	2
Product certifications	CE, UKCA, cULus, RCM, Merchant Navy - EU RO MR (pending), EAC (pending), ATEX Zone 2 (pending), IECEx zone 2 (pending), CCC Ex zone 2 (pending)
Ambient air temperature for operation	-40-70 °C
Marking	CE, UKCA, cULus, RCM
Directives	2014/30/EU - electromagnetic compatibility, 2014/34/EU - ATEX directive, 2014/35/EU
Protective treatment	conformal coating
IP degree of protection	IP20
Operating altitude	0...2000 m without derating, 2000 m...5000 m with derating
Standards	EN/IEC 61131-2, EN 61010-2-201, UL 61010-2-201, IACS E10, EN/IEC 61000-6-5, interface type 1 & type 2, EN/IEC 61850-3, location G, EN/IEC 60079-0, EN 50155, EN 50121-4, EN 50121-5
Ambient air temperature for storage	-40-85 °C
Relative humidity	5-95 % without condensation
Contractual warranty
Warranty	18
