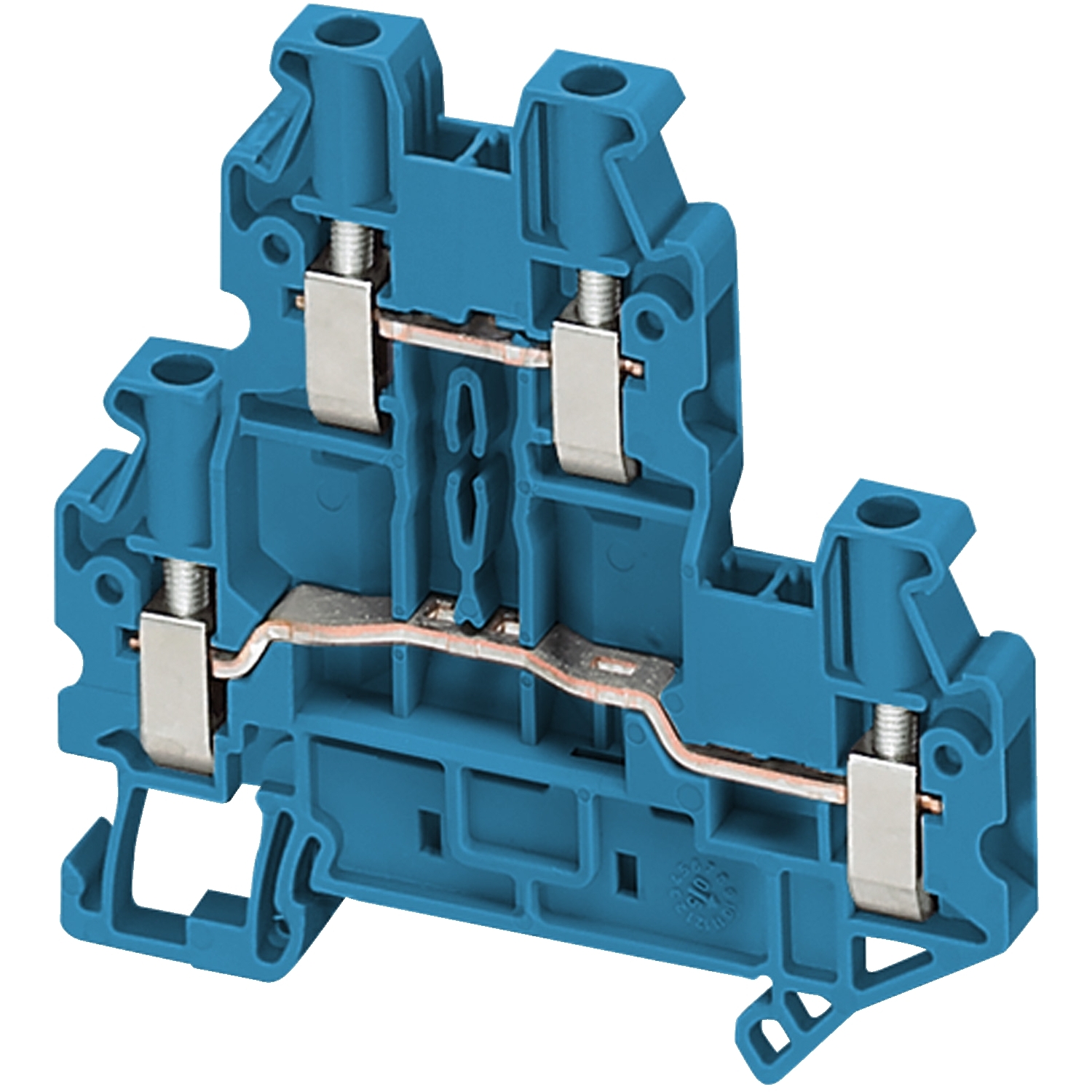

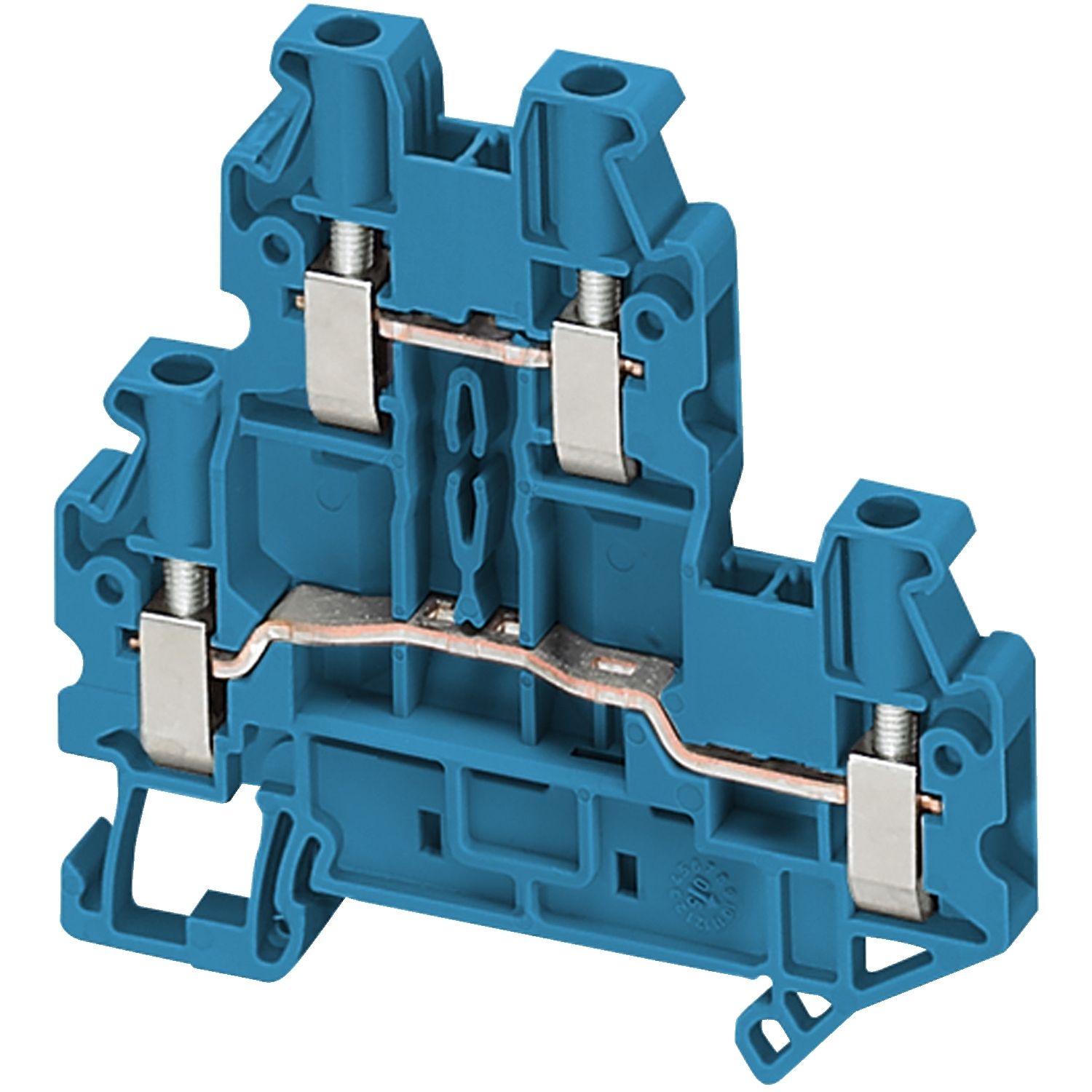

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 800V conforming to EN/IEC 60947-7-1. The rated current is 30A conforming to EN/IEC 60947-7-1, 26A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by double-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRV |
| Colour | blue |
| Quantity per set | set of 50 |
| Mounting mode | clip-on |
| Range | Linergy |
| Accessory / separate part category | connection accessory |
| Range of product | Linergy |
| Nominal cross section | 4 mm² |
| Terminal block level | 2 |
| Length | 69.9 mm |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | passthrough |
| Complementary | |
| Product compatibility | Spacial enclosures |
| Tightening torque | 0.6-0.8 N.m |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Compatibility code | terminal block |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Wire stripping length | 9 mm |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Tool type | disconnection: screwdriver, connection: screwdriver |
| Number of measurement input | 4 |
| Connection position | sideways |
| Height | 65 mm |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| [Ue] rated operational voltage | 440 V conforming to ATEX Exe II Ex II 2 GD, 800 V conforming to EN/IEC 60947-7-1, 600 V cURus, 600 V CSA |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| [In] rated current | 25.5-25.5 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A conforming to EN/IEC 60947-7-1, 30-30 A cURus, 30-30 A CSA |
| Width | 6.2 mm |
| Material | chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case |
| Cable cross section | 0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end |
| Dielectric constant | 3.7 at 1 MHz |
| Connections - terminals | 1 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3) |
| Net weight | 17 g |
| Number of terminals | 2 |
| Environment | |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Product certifications | EAC, ATEX, IEC-Ex, DNV, cURus, CSA, LR, GL |
