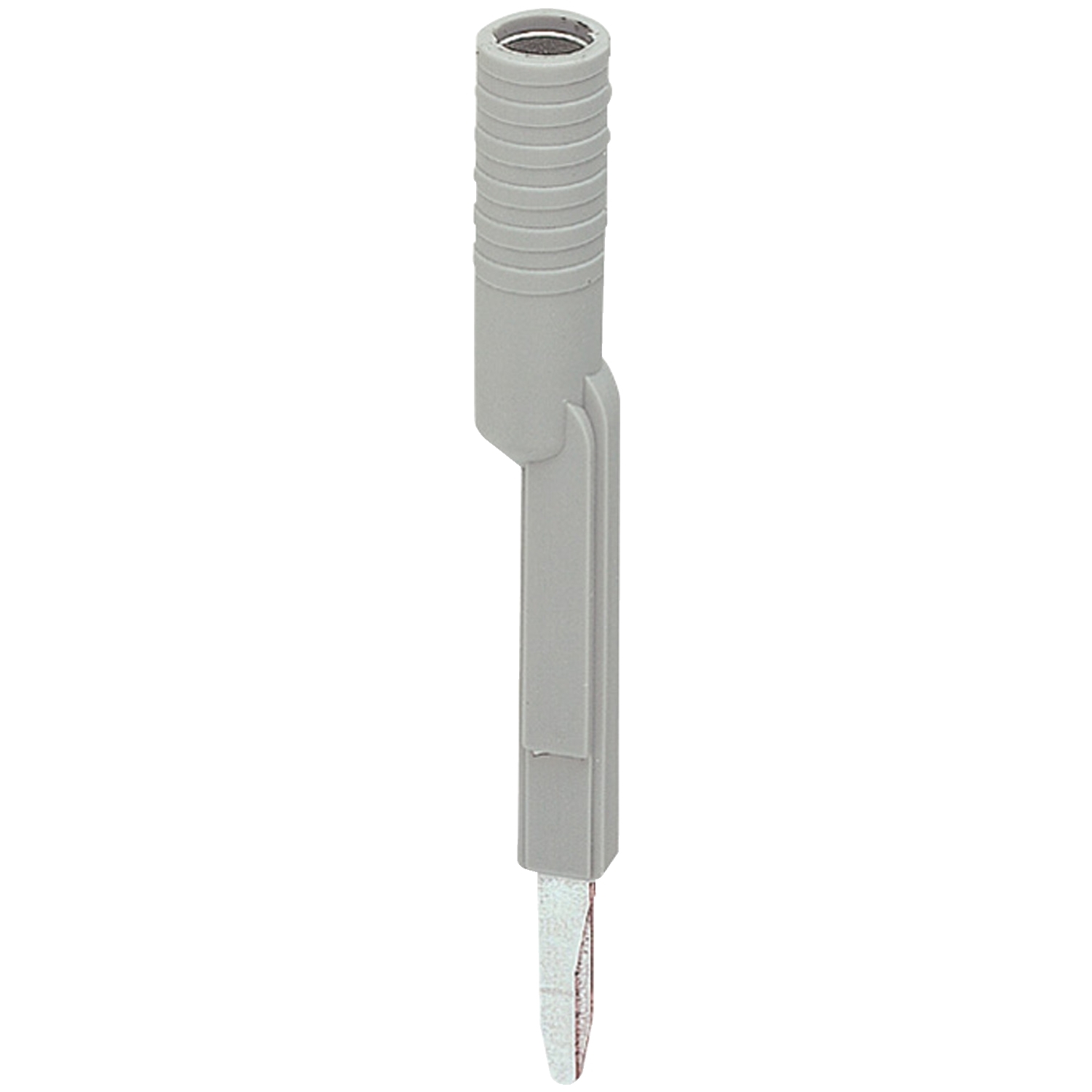

Linergy NSYTR Snap-on test adapter for Ø 4 mm test plugs It is compatible with For 2.5 to 4 mm² terminal blocks Sold in lots of 10 units. Mounting position is Plugs in bridge shafts Cannot be removed Warning label made with Polyamide (PA 6.6) and Orange / Yellow / Green colour Test adapter For terminal block width 8.2 mm It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRA |
| Range | Linergy |
| Product name | TR |
| Product or component type | adaptor |
| Accessory / separate part category | measurement accessory |
| Range of product | Linergy |
| Product compatibility | TRH IDC terminal block, TRR spring terminal terminal block, TRP push-in terminal block, TRV screw terminal - removable carrier disconnect terminal block, TRV screw terminal - blade disconnect terminal block, TRV screw terminal - protective earth terminal block, TRV screw terminal - passthrough terminal block |
| Complementary | |
| Colour | grey |
| Quantity per set | set of 10 |
| Cable cross section | 50-50 mm², 6-6 mm², 4-4 mm², 10-10 mm², 35-35 mm², 2.5-2.5 mm², 16-16 mm² |
| Terminal block level | 3, 2, 1 |
| Net weight | 2.36 g |
| Number of measurement input | 4, 3, 6, 2, 1 |
| Number of terminals | 3, 2, 4 |
