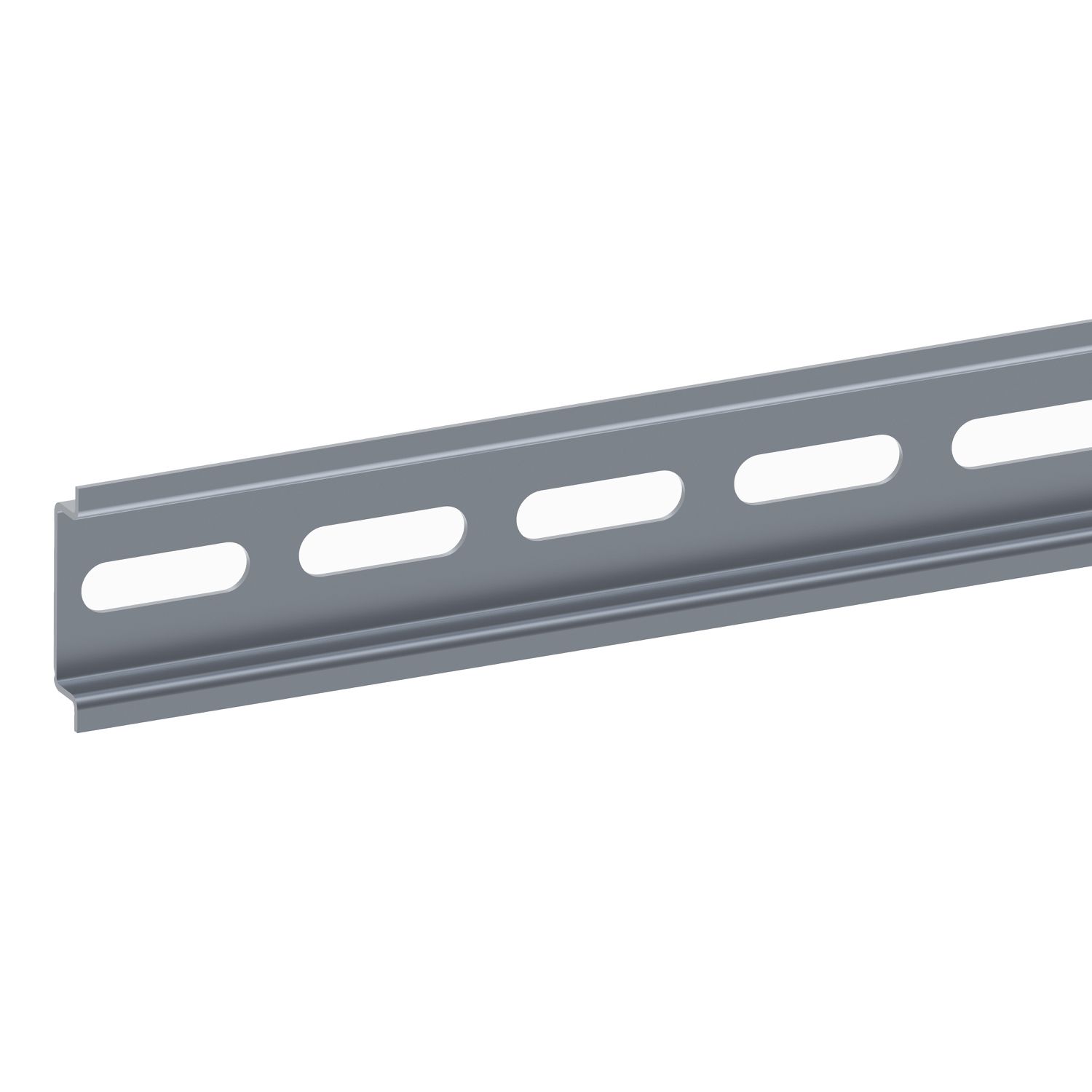

Set of 10 symmetrical DIN rails for equipment The rail is made from perforated 1mm galvanised steel The nominal width is 35mm The nominal height is 7,2mm The product length is 2000mm Fixed with a pitch of 25mm This product is qualified as a green premium, with minimal use of hazardous substances
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TR |
| Device application | multi-purpose |
| Quantity per set | set of 10 |
| Type of rail | symmetrical DIN |
| Range | Spacial |
| Device composition | 1 rail |
| Product or component type | rail |
| Accessory / separate part category | mounting accessory |
| Range compatibility | Thalassa, Spacial |
| Enclosure nominal dimensions | - |
| Complementary | |
| Material | galvanised steel |
| Height | 7.2 mm nominal: |
| Width | 35 mm nominal: |
| Length | 2000 mm |
| Fixing mode | by fixing element - structure of enclosure location |
| Thickness | 1 mm |
| Surface finish | perforated |
| Adjustment | continuous adjustment, pitch 25 mm |
