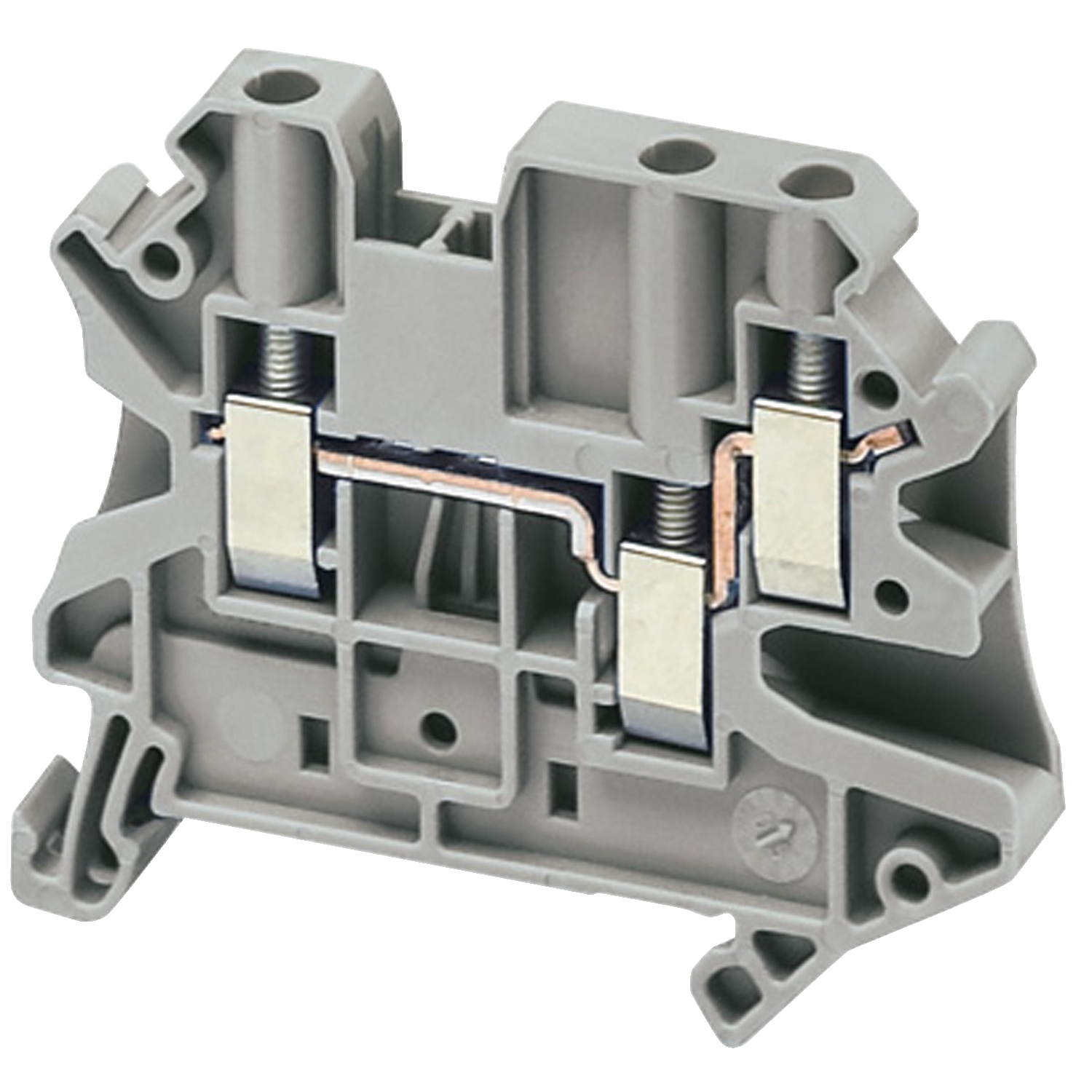

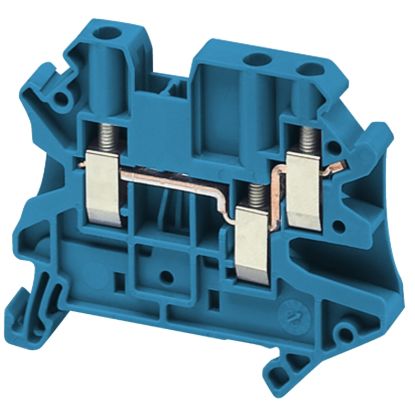

Screw Terminal, Linergy, Feed Through, 3 Points, 4mm² , Grey

Manufacturer: Schneider Electric

SKU: NSYTRV43

GTIN: 3606480531972

Catalog

Environmental Disclosure

Declaration of conformity

Old price: $2.41 inc GST

Price: $1.95 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 150V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1, 26A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x2 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV). It is compliant with Green Premium (RoHS/REACH).

Products specifications

Attribute name	Attribute value
Main
Quantity per set	set of 50
Accessory / separate part category	connection accessory
Terminal block level	1
Length	57.8 mm
Device short name	TRV
Colour	grey
Mounting mode	clip-on
Range	Linergy
Range of product	Linergy
Nominal cross section	4 mm²
Product name	Linergy TR
Product or component type	terminal block
Terminal block type	passthrough
Complementary
Range compatibility	TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G
Compatibility code	terminal block
Wire stripping length	9 mm
Tool type	disconnection: screwdriver, connection: screwdriver
Number of measurement input	2
Connection position	sideways
Height	47.5 mm
[In] rated current	29-29 A conforming to ATEX Exe II Ex II 2 GD, 30-30 A cURus, 32-32 A conforming to EN/IEC 60947-7-1
Material	chromium-nickel steel: spring, copper alloy: commoning link, copper alloy: connector and screw, polyamide 6/6: insulating case
Cable cross section	0.14-6 mm², solid cable without cable end, 0.14-6 mm², flexible cable without cable end, 0.2-4 mm², flexible cable with cable end, 0.14-6 mm², solid cable with cable end
Dielectric constant	3.7 at 1 MHz
Net weight	14 g
Number of terminals	3
Product compatibility	Spacial enclosures
Tightening torque	0.6-0.8 N.m
Surface resistance	1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093
Resistivity	10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093
Flame retardance	V0, thickness0.8 mm conforming to UL 94
Dielectric loss	0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250
[Ue] rated operational voltage	150 V cURus, 352 V conforming to ATEX Exe II Ex II 2 GD, 500 V conforming to EN/IEC 60947-7-1
Creep resistance	500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093
Width	6.2 mm
Connections - terminals	2 x screw terminal: downstream (M3), 1 x screw terminal: upstream (M3)
Environment
Product certifications	DNV, ATEX, GL, LR, IEC-Ex, cURus, CSA, EAC
Ambient air temperature for operation	-40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1
Dielectric strength	1000 V conforming to IEC 60243-1
