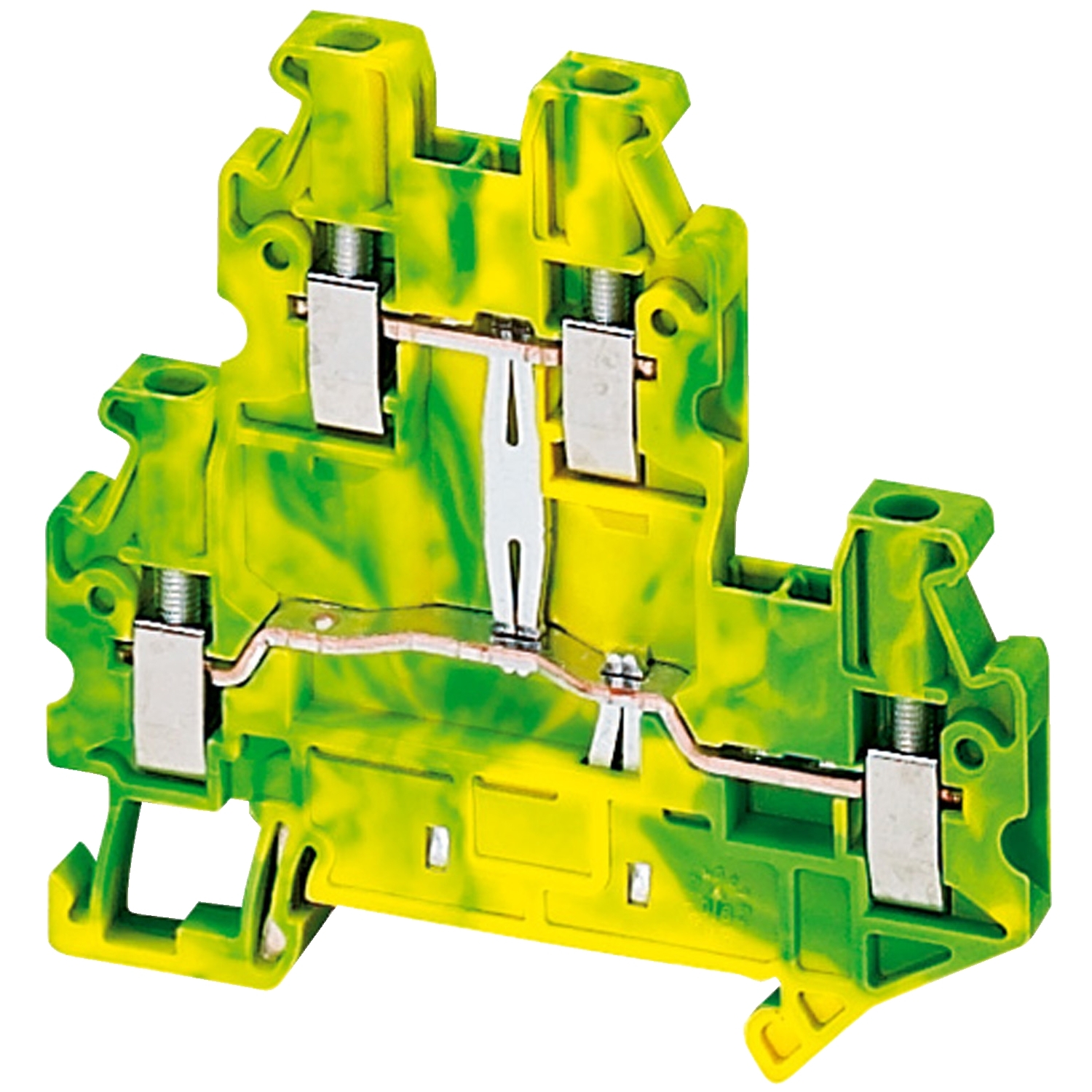

Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 2.5 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and top connection by Double-level 2x2 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL, DNV).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Quantity per set | set of 50 |
| Terminal block level | 2 |
| Length | 69.9 mm |
| Device short name | TRV |
| Colour | green-yellow |
| Mounting mode | clip-on |
| Range | Linergy |
| Range of product | Linergy |
| Nominal cross section | 2.5 mm² |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | protective earth |
| Complementary | |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Compatibility code | terminal block |
| Wire stripping length | 9 mm |
| Tool type | disconnection: screwdriver, connection: screwdriver |
| Number of measurement input | 4 |
| Connection position | sideways |
| Connections - terminals | 1 x screw terminal: downstream, 1 x screw terminal: upstream |
| Height | 65 mm |
| Material | polyamide 6/6: insulating case |
| Dielectric constant | 3.7 at 1 MHz |
| Net weight | 21 g |
| Number of terminals | 2 |
| Product compatibility | Spacial enclosures |
| Tightening torque | 0.5-0.6 N.m |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| Width | 5.2 mm |
| Cable cross section | 0.14-4 mm², flexible without cable end, 0.2-2.5 mm², flexible with cable end, 0.14-4 mm², solid |
| Environment | |
| Product certifications | GL, cURus, IEC-Ex, LR, EAC, DNV, CSA, ATEX |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
Only registered users can write reviews
Related products

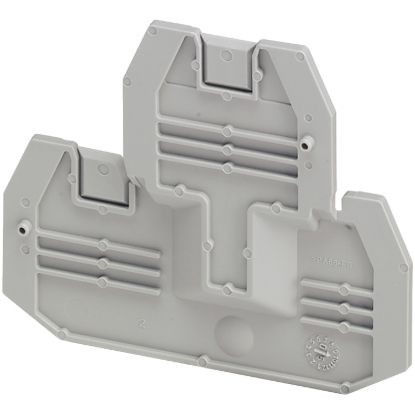

Cover plate, Linergy, Linergy TR, 2 level, 2.2mm width, 4 points, for screw terminals NSYTRV24D, grey, Set of 50
NSYTRACE24
Cover plate, Linergy, Linergy TR, 2 level, 2.2mm width, 4 points, for screw terminals NSYTRV24D, grey, Set of 50
$5.34 inc GST
$4.33 inc GST

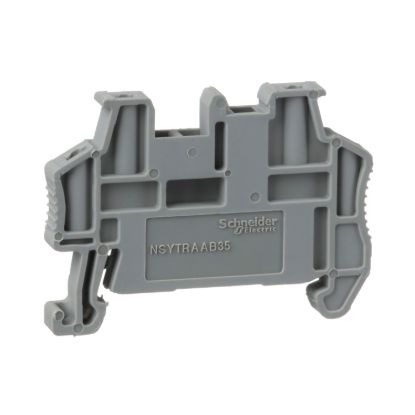

End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
NSYTRAAB35
End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
$1.78 inc GST
$1.44 inc GST
Marking card, Linergy, Linergy TR, with 6 strips, 5mm, unprinted, 72 characters, white, Set of 10
NSYTRABPV5
Marking card, Linergy, Linergy TR, with 6 strips, 5mm, unprinted, 72 characters, white, Set of 10
$13.53 inc GST
$10.96 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 21 to 30, printed horizontal, white, Set of 10
NSYTRAB530
Marking strip, Linergy TR, clip in type, 5mm, printed characters 21 to 30, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 31 to 40, printed horizontal, white, Set of 10
NSYTRAB540
Marking strip, Linergy TR, clip in type, 5mm, printed characters 31 to 40, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 41 to 50, printed horizontal, white, Set of 10
NSYTRAB550
Marking strip, Linergy TR, clip in type, 5mm, printed characters 41 to 50, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 51 to 60, printed horizontal, white, Set of 10
NSYTRAB560
Marking strip, Linergy TR, clip in type, 5mm, printed characters 51 to 60, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 61 to 70, printed horizontal, white, Set of 10
NSYTRAB570
Marking strip, Linergy TR, clip in type, 5mm, printed characters 61 to 70, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 71 to 80, printed horizontal, white, Set of 10
NSYTRAB580
Marking strip, Linergy TR, clip in type, 5mm, printed characters 71 to 80, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 81 to 90, printed horizontal, white, Set of 10
NSYTRAB590
Marking strip, Linergy TR, clip in type, 5mm, printed characters 81 to 90, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy TR, clip in type, 5mm, printed characters 91 to 100, printed horizontal, white, Set of 10
NSYTRAB5100
Marking strip, Linergy TR, clip in type, 5mm, printed characters 91 to 100, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy, Linergy TR, clip in type, 5mm, printed characters 1 to 10, printed horizontal, white, Set of 10
NSYTRAB510
Marking strip, Linergy, Linergy TR, clip in type, 5mm, printed characters 1 to 10, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST
Marking strip, Linergy, Linergy TR, clip in type, 5mm, printed characters 11 to 20, printed horizontal, white, Set of 10
NSYTRAB520
Marking strip, Linergy, Linergy TR, clip in type, 5mm, printed characters 11 to 20, printed horizontal, white, Set of 10
$1.67 inc GST
$1.35 inc GST

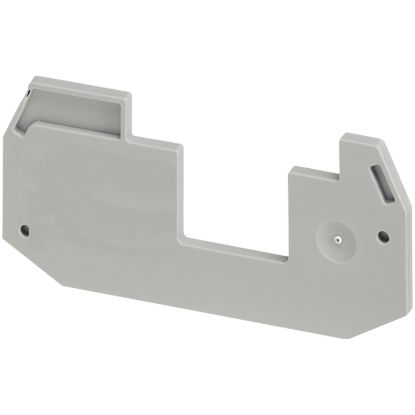

Partial Cover plate, Linergy TR, 2 level, 4 points, for screw terminals NSYTRV24D, NSYTR, grey, Set of 50
NSYTRACEP24
Partial Cover plate, Linergy TR, 2 level, 4 points, for screw terminals NSYTRV24D, NSYTR, grey, Set of 50
$4.13 inc GST
$3.35 inc GST
partition plate, Linergy TR terminals blocks, 4point, 2 level, 2mm width, for screw terminals, grey
NSYTRAPE24
partition plate, Linergy TR terminals blocks, 4point, 2 level, 2mm width, for screw terminals, grey
$2.19 inc GST
$1.77 inc GST
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
NSYTRAATP1
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
$11.99 inc GST
$9.71 inc GST
Plug-in bridge, Linergy TR, 3 points, for 2.5mm² terminal blocks, red, 3 way, set of 50
NSYTRAL23
Plug-in bridge, Linergy TR, 3 points, for 2.5mm² terminal blocks, red, 3 way, set of 50
$2.93 inc GST
$2.37 inc GST
Plug-in bridge, Linergy TR, 4 points, for 2.5mm² terminal blocks, red, 4 way, set of 50
NSYTRAL24
Plug-in bridge, Linergy TR, 4 points, for 2.5mm² terminal blocks, red, 4 way, set of 50
$3.16 inc GST
$2.56 inc GST
Plug-in bridge, Linergy, Linergy TR, 10 points, for 2.5mm² terminal blocks, red, 10 way, set of 10
NSYTRAL210
Plug-in bridge, Linergy, Linergy TR, 10 points, for 2.5mm² terminal blocks, red, 10 way, set of 10
$6.16 inc GST
$4.99 inc GST
Plug-in bridge, Linergy, Linergy TR, 2 points, for 2.5mm² terminal blocks, 2 way, red, set of 50
NSYTRAL22
Plug-in bridge, Linergy, Linergy TR, 2 points, for 2.5mm² terminal blocks, 2 way, red, set of 50
$1.38 inc GST
$1.12 inc GST
Plug-in bridge, Linergy, Linergy TR, 20 points, for 2.5mm² terminal blocks, red, 20 way, set of 10
NSYTRAL220
Plug-in bridge, Linergy, Linergy TR, 20 points, for 2.5mm² terminal blocks, red, 20 way, set of 10
$6.71 inc GST
$5.44 inc GST
Plug-in bridge, Linergy, Linergy TR, 5 points, for 2.5mm² terminal blocks, red, 5 ways, set of 50
NSYTRAL25
Plug-in bridge, Linergy, Linergy TR, 5 points, for 2.5mm² terminal blocks, red, 5 ways, set of 50
$3.69 inc GST
$2.99 inc GST

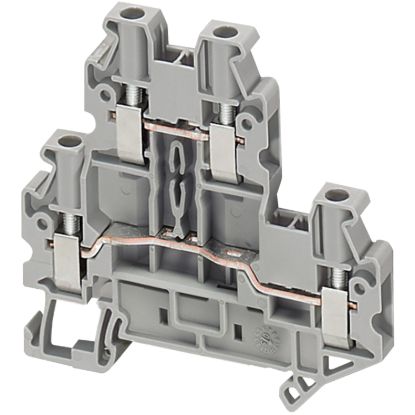

Screw Terminal, Linergy, Double Level, 4 Points, 2,5mm² , Grey
NSYTRV24D
Screw Terminal, Linergy, Double Level, 4 Points, 2,5mm² , Grey
$5.23 inc GST
$4.24 inc GST

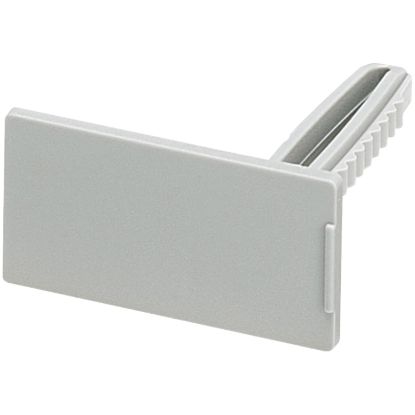

Terminal Marker Carrier for End Bracket NSYTRAAB35, Linergy, NSYTRAAB15
NSYTRASB4
Terminal Marker Carrier for End Bracket NSYTRAAB35, Linergy, NSYTRAAB15
$5.12 inc GST
$4.15 inc GST

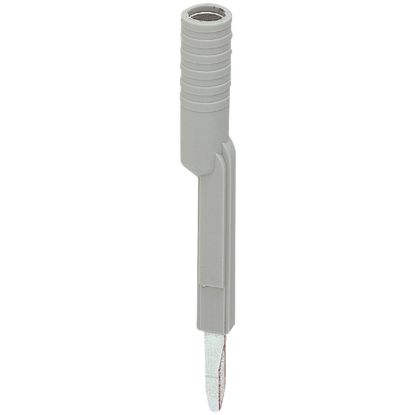

Test Adapter for 4mm Safety Test Plugs, Linergy, Plugs In The Bridge Shafts
NSYTRAFT
Test Adapter for 4mm Safety Test Plugs, Linergy, Plugs In The Bridge Shafts
$3.58 inc GST
$2.90 inc GST

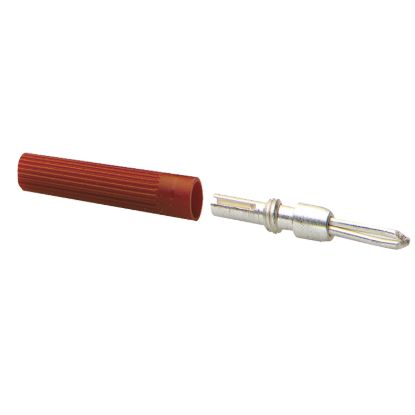

Test plug, Linergy TR, metallic part, for diameter 2.3mm socket hole
NSYTRAATM1
Test plug, Linergy TR, metallic part, for diameter 2.3mm socket hole
$11.99 inc GST
$9.71 inc GST

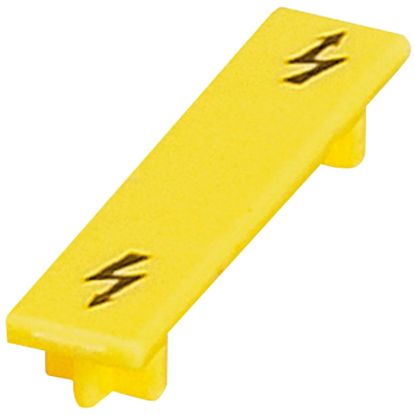

Warning label, Linergy TR terminals blocks, for 2.5mm² screw terminal blocks, yellow
