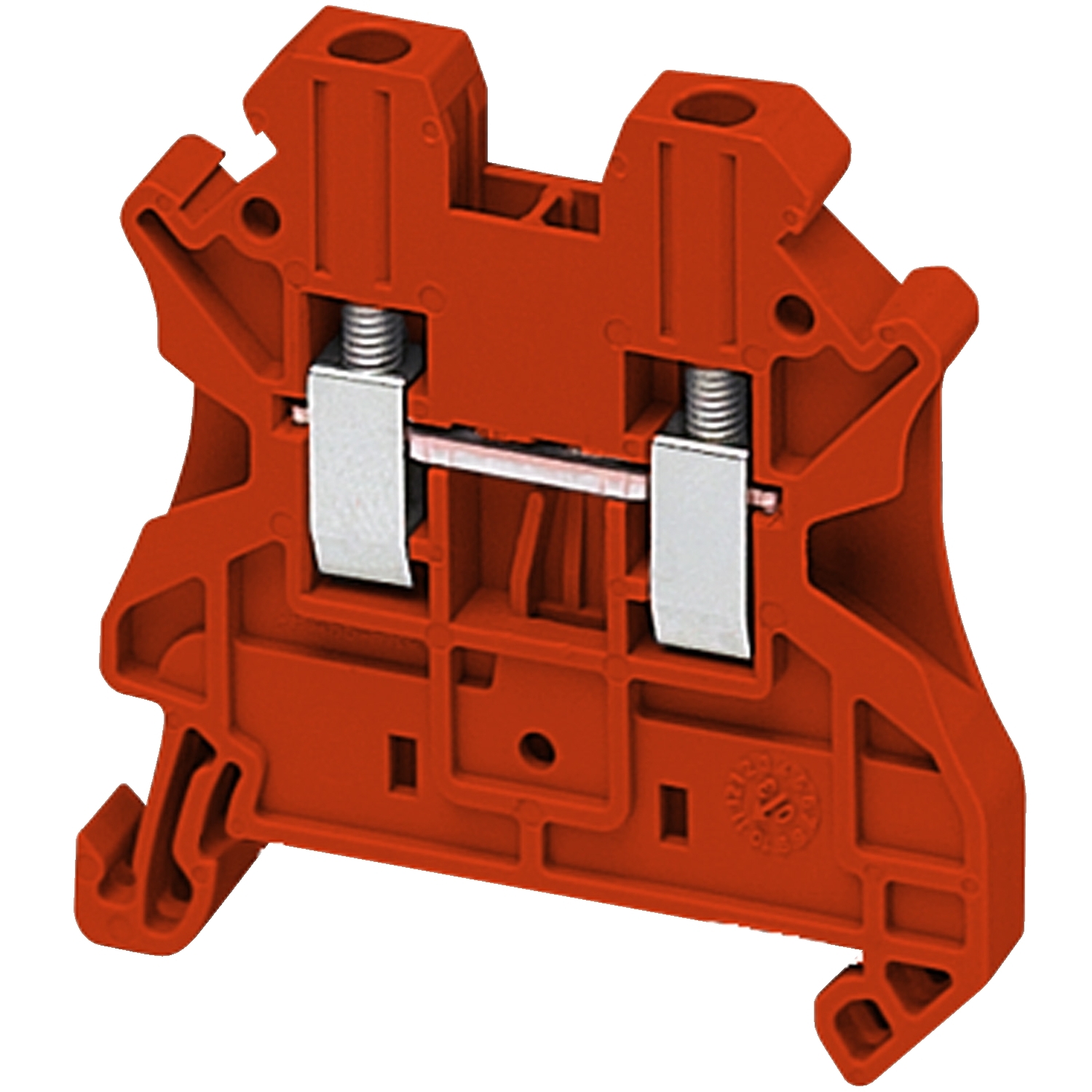

Screw Terminal, Linergy, Feed Through, 2 Points, 2,5mm² , Red

    Previous Product
Next Product
Picture of Screw Terminal, Linergy, Feed Through, 2 Points, 2,5mm² , Red
Screw Terminal, Linergy, Feed Through, 2 Points, 2,5mm² , Red
Manufacturer: Schneider Electric
SKU: NSYTRV22RD
GTIN: 3606480531828
Catalog
Environmental Disclosure
Declaration of conformity
Old price: $2.71 inc GST
$2.20 inc GST
Supported cards
Supported cards
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/UL. It has red surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, LR, DNV). It is compliant with Green Premium (RoHS/REACH).
Only registered users can write reviews
