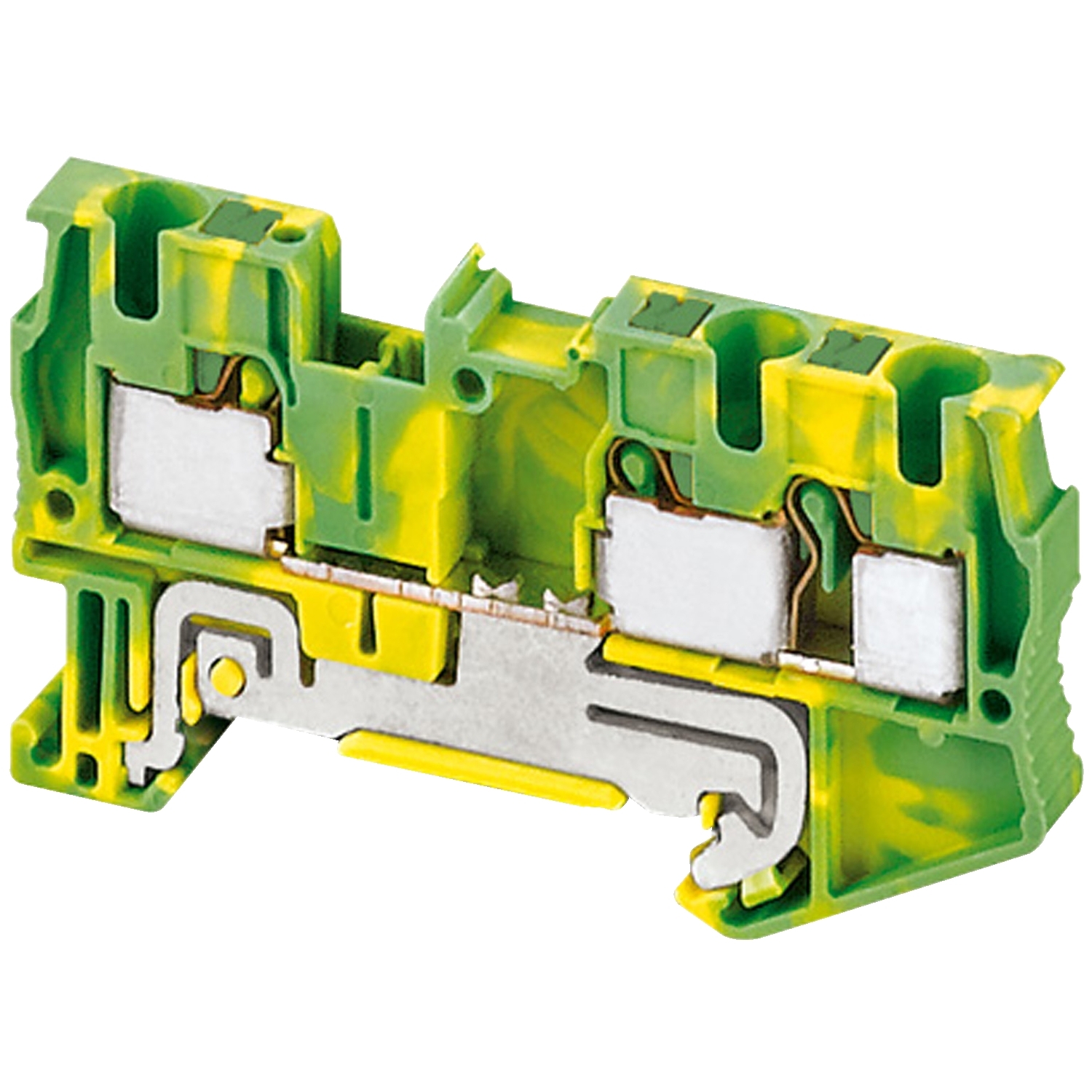

Linergy TR is terminal block for Linergy. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. It has Green Yellow surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRP |
| Colour | green-yellow |
| Quantity per set | set of 50 |
| Mounting mode | clip-on |
| Range | Linergy |
| Range of product | Linergy |
| Nominal cross section | 4 mm² |
| Terminal block level | 1 |
| Length | 66.5 mm |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | protective earth |
| Complementary | |
| Product compatibility | Spacial enclosures |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Compatibility code | terminal block |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Wire stripping length | 12 mm |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Tool type | connection: without tool, disconnection: flat screwdriver |
| Number of measurement input | 2 |
| Connection position | top |
| Connections - terminals | 2 x push-in: downstream, 1 x push-in: upstream |
| Height | 36.5 mm |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| Width | 6.2 mm |
| Material | polyamide 6/6: insulating case |
| Dielectric constant | 3.7 at 1 MHz |
| Net weight | 14.4 g |
| Cable cross section | 0.08-4 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.08-6 mm², solid |
| Number of terminals | 3 |
| Environment | |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Product certifications | EAC, LR, CSA, ATEX, GL, IEC-Ex, cURus |
