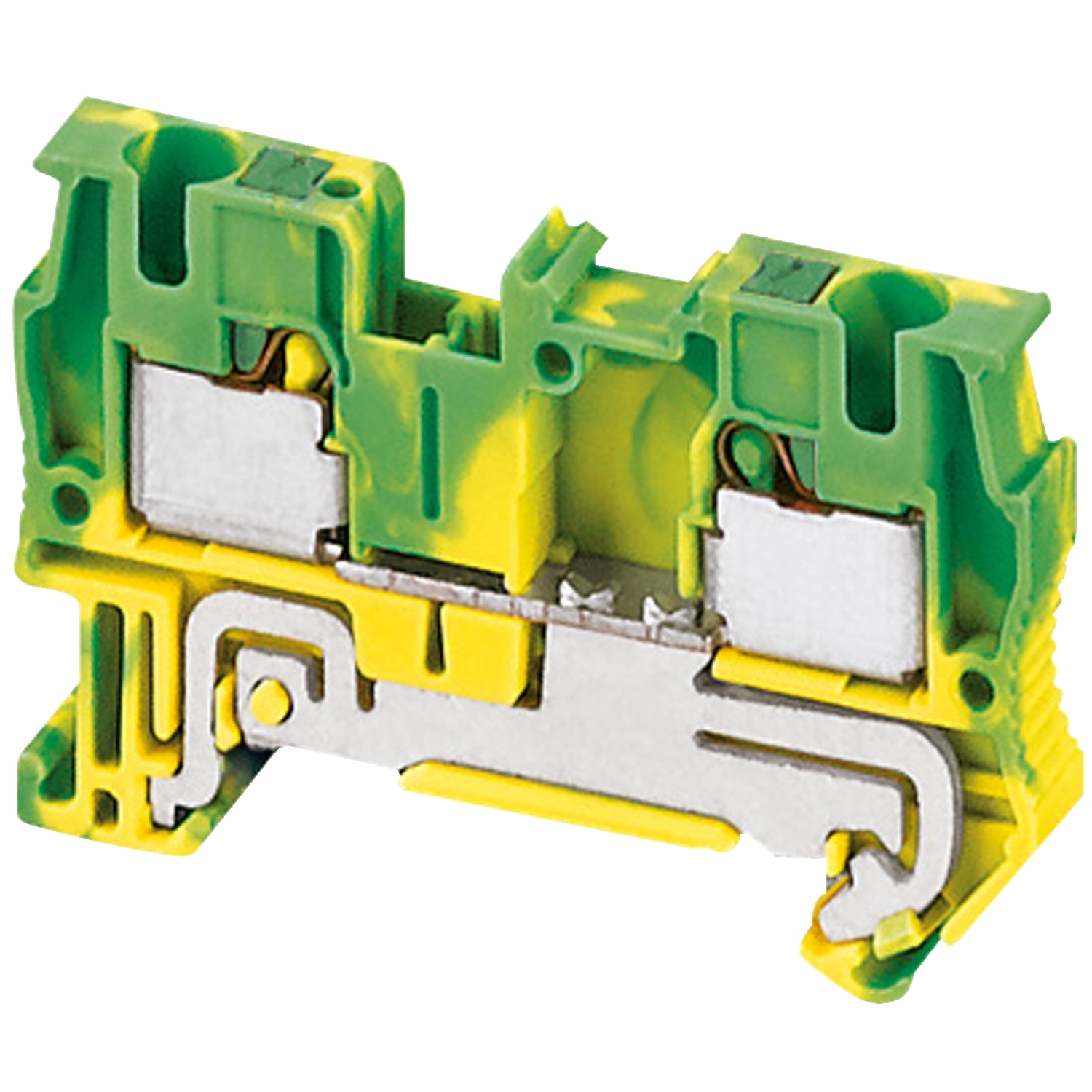

Linergy TR is terminal block for protective earth. It belongs to linergy protective earth terminal block with 4 mm² nominal cross section. It has Green Yellow surface treatment. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT ,Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL, LR). It is compliant with Green Premium (RoHS/REACH).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | TRP |
| Colour | green-yellow |
| Quantity per set | set of 50 |
| Mounting mode | clip-on |
| Range | Linergy |
| Range of product | Linergy |
| Nominal cross section | 4 mm² |
| Terminal block level | 1 |
| Length | 56 mm |
| Product name | Linergy TR |
| Product or component type | terminal block |
| Terminal block type | protective earth |
| Complementary | |
| Product compatibility | Spacial enclosures |
| Range compatibility | TeSys, Pragma, Kaedra, Spacial, Prisma Pack, Prisma PH, Prisma P, Prisma G |
| Surface resistance | 1000 GΩ conforming to VDE 0303-T30, 1000 GΩ conforming to IEC 60093 |
| Compatibility code | terminal block |
| Resistivity | 10000 MΩ.m conforming to VDE 0303-T30, 10000 MΩ.m conforming to IEC 60093 |
| Wire stripping length | 12 mm |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Tool type | connection: without tool, disconnection: flat screwdriver |
| Number of measurement input | 2 |
| Connection position | top |
| Connections - terminals | 1 x push-in: downstream, 1 x push-in: upstream |
| Height | 36.5 mm |
| Dielectric loss | 0.01 at 1 MHz conforming to VDE 0303-T4, 0.01 at 1 MHz conforming to IEC 60250 |
| Creep resistance | 500 CTI (> 400 kB) conforming to VDE 0303-T30, 500 CTI (> 400 kB) conforming to IEC 60093 |
| Width | 6.2 mm |
| Material | polyamide 6/6: insulating case |
| Dielectric constant | 3.7 at 1 MHz |
| Net weight | 12.5 g |
| Cable cross section | 0.08-4 mm², flexible without cable end, 0.2-4 mm², flexible with cable end, 0.08-6 mm², solid |
| Number of terminals | 2 |
| Environment | |
| Ambient air temperature for operation | -40-130 °C conforming to VDE 0304-T21, -40-130 °C conforming to IEC 60216-1 |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Product certifications | LR, GL, cURus, ATEX, EAC, CSA, IEC-Ex |
Only registered users can write reviews
Related products
Cover plate, Linergy TR, 2 points, 2.2mm width, for spring terminals NSYTRR42, 4mm², grey, Set of 50
NSYTRACR42
Cover plate, Linergy TR, 2 points, 2.2mm width, for spring terminals NSYTRR42, 4mm², grey, Set of 50
$1.09 inc GST
$0.88 inc GST
End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
NSYTRAAB35
End Bracket, Linergy, Snap-On For 35m DIN Rails, 5,2mm width, Markable
$1.78 inc GST
$1.44 inc GST
Marking card, Linergy TR, flat, 6mm, unprinted with 6 strips, 60 characters, White, set of 10
NSYTRABFPV6
Marking card, Linergy TR, flat, 6mm, unprinted with 6 strips, 60 characters, White, set of 10
$12.21 inc GST
$9.89 inc GST
Marking card, Linergy TR, with 6 strips, 6mm, unprinted, 60 characters, white, Set of 10
NSYTRABPV6
Marking card, Linergy TR, with 6 strips, 6mm, unprinted, 60 characters, white, Set of 10
$13.53 inc GST
$10.96 inc GST
Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10
NSYTRAB610
Marking strip, Linergy TR, clip in type, 6mm, characters 1 to 10, printed horizontal, numeric, set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10
NSYTRAB6100
Marking strip, Linergy TR, clip in type, 6mm, characters 91 to 100, printed horizontal, numeric, Set of 10
$1.73 inc GST
$1.40 inc GST

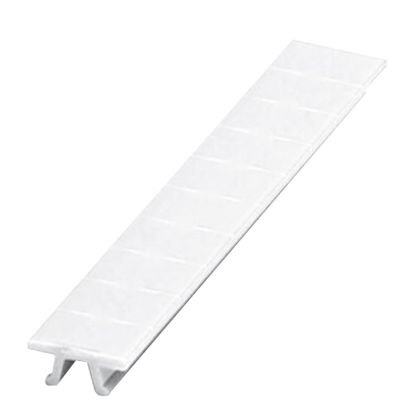

Marking strip, Linergy TR, clip in type, 6mm, characters N,L1,L2,L3,PE, printed horizontal, symbolic, Set of 10
NSYTRAB6L1N
Marking strip, Linergy TR, clip in type, 6mm, characters N,L1,L2,L3,PE, printed horizontal, symbolic, Set of 10
$2.59 inc GST
$2.10 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10
NSYTRAB620
Marking strip, Linergy TR, clip in type, 6mm, printed characters 11 to 20, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
NSYTRAB630
Marking strip, Linergy TR, clip in type, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
NSYTRAB640
Marking strip, Linergy TR, clip in type, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
NSYTRAB650
Marking strip, Linergy TR, clip in type, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10
NSYTRAB660
Marking strip, Linergy TR, clip in type, 6mm, printed characters 51 to 60, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 61 to 70, printed horizontal, white, Set of 10
NSYTRAB670
Marking strip, Linergy TR, clip in type, 6mm, printed characters 61 to 70, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 71 to 80, printed horizontal, white, Set of 10
NSYTRAB680
Marking strip, Linergy TR, clip in type, 6mm, printed characters 71 to 80, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, 6mm, printed characters 81 to 90, printed horizontal, white, Set of 10
NSYTRAB690
Marking strip, Linergy TR, clip in type, 6mm, printed characters 81 to 90, printed horizontal, white, Set of 10
$1.73 inc GST
$1.40 inc GST
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 1 to 10, printed horizontal, white, Set of 10
NSYTRABF610
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 1 to 10, printed horizontal, white, Set of 10
$1.55 inc GST
$1.26 inc GST

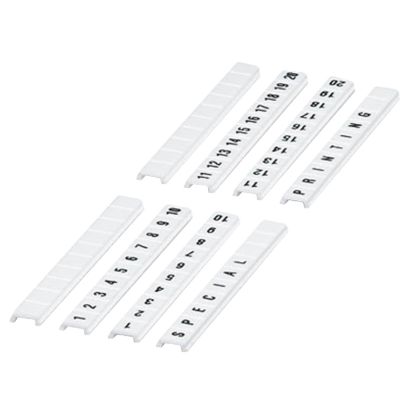

Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
NSYTRABF630
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 21 to 30, printed horizontal, white, Set of 10
$1.55 inc GST
$1.26 inc GST
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
NSYTRABF640
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 31 to 40, printed horizontal, white, Set of 10
$1.55 inc GST
$1.26 inc GST
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
NSYTRABF650
Marking strip, Linergy TR, clip in type, flat, 6mm, printed characters 41 to 50, printed horizontal, white, Set of 10
$1.55 inc GST
$1.26 inc GST
partition plate, Linergy TR terminals blocks, 2point, 2mm width, for spring/push-in terminals, grey
NSYTRAPR42
partition plate, Linergy TR terminals blocks, 2point, 2mm width, for spring/push-in terminals, grey
$1.03 inc GST
$0.83 inc GST
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
NSYTRAATP1
Plug, Linergy TR, insulating sleeve for test plug metalic part NSYTRAAM1, Red
$11.99 inc GST
$9.71 inc GST

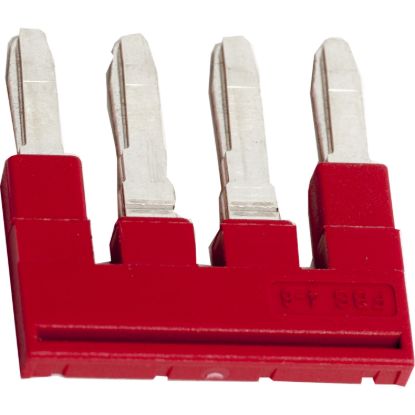

Plug-in bridge, Linergy TR, 4 pole, for 4mm² terminal blocks, red, 4 way, 6.2mm pitch, set of 50
NSYTRAL44
Plug-in bridge, Linergy TR, 4 pole, for 4mm² terminal blocks, red, 4 way, 6.2mm pitch, set of 50
$3.63 inc GST
$2.94 inc GST
Plug-in bridge, Linergy TR, 5 points, for 4mm² terminal blocks, red, 5 ways, set of 50
NSYTRAL45
Plug-in bridge, Linergy TR, 5 points, for 4mm² terminal blocks, red, 5 ways, set of 50
$3.80 inc GST
$3.08 inc GST

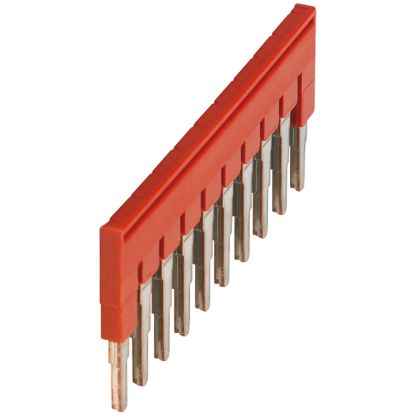

Plug-in bridge, Linergy, Linergy TR, 10 points, for 4mm² terminal blocks, red, 10 way, set of 10
NSYTRAL410
Plug-in bridge, Linergy, Linergy TR, 10 points, for 4mm² terminal blocks, red, 10 way, set of 10
$7.54 inc GST
$6.11 inc GST
Plug-in bridge, Linergy, Linergy TR, 2 points, for 4mm² terminal blocks, 2 way, red, set of 10
NSYTRAL42
Plug-in bridge, Linergy, Linergy TR, 2 points, for 4mm² terminal blocks, 2 way, red, set of 10
$2.12 inc GST
$1.72 inc GST

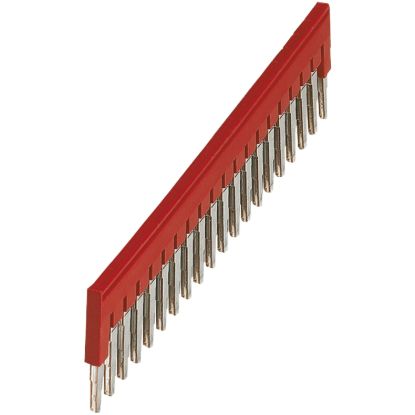

Plug-in bridge, Linergy, Linergy TR, 20 points, for 4mm² terminal blocks, red, 20 way, set of 10
NSYTRAL420
Plug-in bridge, Linergy, Linergy TR, 20 points, for 4mm² terminal blocks, red, 20 way, set of 10
$8.58 inc GST
$6.95 inc GST

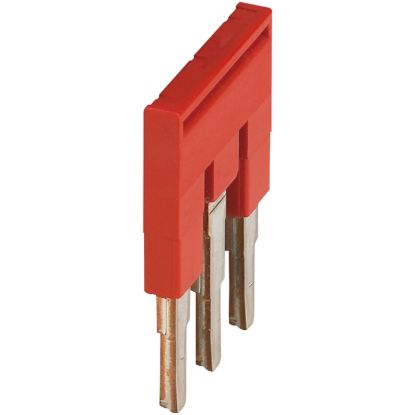

Plug-in bridge, Linergy, Linergy TR, 3 pole, for 4mm² terminal blocks, 6.2mm pitch, red, 3 way, set of 50
NSYTRAL43
Plug-in bridge, Linergy, Linergy TR, 3 pole, for 4mm² terminal blocks, 6.2mm pitch, red, 3 way, set of 50
$3.52 inc GST
$2.85 inc GST

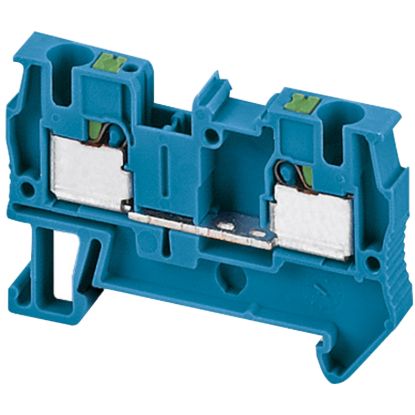

Terminal block, Linergy TR, push-in type, feed through, 2 points, 4mm², blue, set of 50
NSYTRP42BL
Terminal block, Linergy TR, push-in type, feed through, 2 points, 4mm², blue, set of 50
$2.64 inc GST
$2.14 inc GST

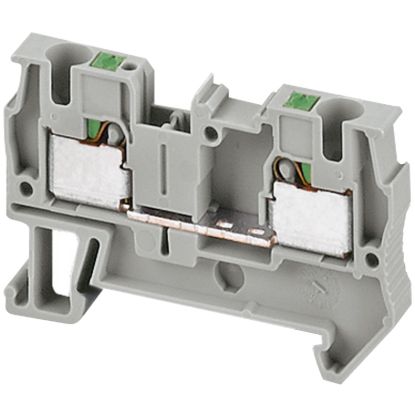

Terminal block, Linergy, Linergy TR, push-in type, feed through, 2 points, 4mm², grey, set of 50
