MAXBAR Top Feed, MAX9, 1P+N, 15 Modules, 100 A with N Block and Accessories

    Previous Product
Next Product

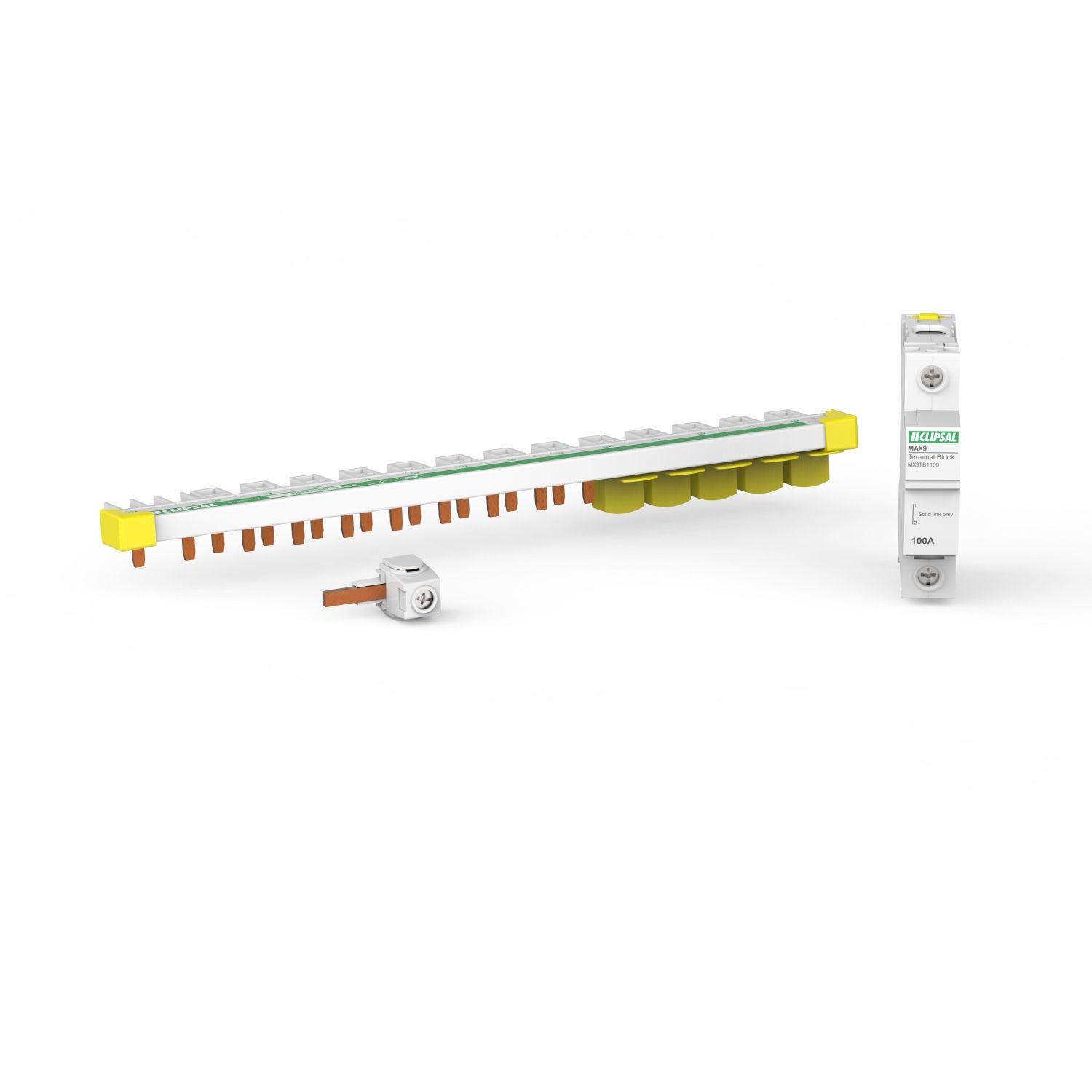

Picture of MAXBAR Top Feed, MAX9, 1P+N, 15 Modules, 100 A with N Block and Accessories
MAXBAR Top Feed, MAX9, 1P+N, 15 Modules, 100 A with N Block and Accessories
Manufacturer: Clipsal
SKU: MX9B115N
GTIN: 9311554814632
Environmental Disclosure
Instruction sheet
Old price: $78.87 inc GST
$113.57 inc GST
Supported cards
Supported cards
MAXBAR is slim type top feed comb busbar for row with incomer The rated current is 100A. It is 1P+N and 15 modules. Comb busbar mounting mode is horizontal and cuttable. The provided equipements are connector, neutral terminal block and tooth covers. It is dedicated to residential market. The Ue rated operational voltage is 230VAC or 415VAC. The Ui rated insulation voltage is 500V. The dimensions are (W) 324mm x (H) 50mm x (D) 45mm.colour is white electric (RAL9003). The comb busbar colour is white electric (RAL9003)

Products specifications

Attribute name Attribute value
Main
Range MAX9
Product or component type comb busbar
Total number of 18 mm modules 15
Product brand Clipsal
Complementary
Poles configuration for 1 way outgoer: 1P + N
Mounting location top
Market segment residential
Colour white (RAL 9003)
[Uimp] rated impulse withstand voltage 4 kV
Connection pitch outgoer: 9 mm, incomer: 18 mm
[Ue] rated operational voltage 230 V AC
Insulation insulated
Mounting mode horizontal
[Ie] rated operational current 100 A
[Ui] rated insulation voltage 500 V
Device presentation cuttable
Number of ways incomer: 2 ways N + L, outgoer: 13 ways N + L
Provided equipment 1 neutral terminal block, 5 tooth covers, 1 connector
Environment
Fire resistance 960 °C
Standards AS/NZS 3000, AS/NZS 61439-3
Only registered users can write reviews
Related products
Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 10A, 30mA, C Curve, 6000A, A Type, All-in-one Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 10A, 30mA, C Curve, 6000A, A Type, All-in-one

Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 10A, 30mA, C Curve, 6000A, A Type, All-in-one

MX9A3210
Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 10A, 30mA, C Curve, 6000A, A Type, All-in-one
$363.55 inc GST $523.51 inc GST
Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one

Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one

MX9A3216
Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one
$363.55 inc GST $523.51 inc GST
Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 20A, 30mA, C Curve, 6000A, A Type, All-in-one Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 20A, 30mA, C Curve, 6000A, A Type, All-in-one

Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 20A, 30mA, C Curve, 6000A, A Type, All-in-one

MX9A3220
Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 20A, 30mA, C Curve, 6000A, A Type, All-in-one
$363.55 inc GST $523.51 inc GST
Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 25A, 30mA, C Curve, 6000A, A Type, All-in-one Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 25A, 30mA, C Curve, 6000A, A Type, All-in-one

Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 25A, 30mA, C Curve, 6000A, A Type, All-in-one

MX9A3225
Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 25A, 30mA, C Curve, 6000A, A Type, All-in-one
$363.55 inc GST $523.51 inc GST
Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 6A, 30 mA, C Curve, 6000A, A Type, All-in-one Picture of Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 6A, 30 mA, C Curve, 6000A, A Type, All-in-one

Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 6A, 30 mA, C Curve, 6000A, A Type, All-in-one

MX9A3206
Arc Fault Detection (AFDD+RCBO), MAX9, 1P+N, 6A, 30 mA, C Curve, 6000A, A Type, All-in-one
$363.55 inc GST $523.51 inc GST
Picture of Cable Connector, Clipsal Resi MAX, 1P+N set of 4 Picture of Cable Connector, Clipsal Resi MAX, 1P+N set of 4

Cable Connector, Clipsal Resi MAX, 1P+N set of 4

RMXPC1
Cable Connector, Clipsal Resi MAX, 1P+N set of 4
$29.81 inc GST $42.93 inc GST

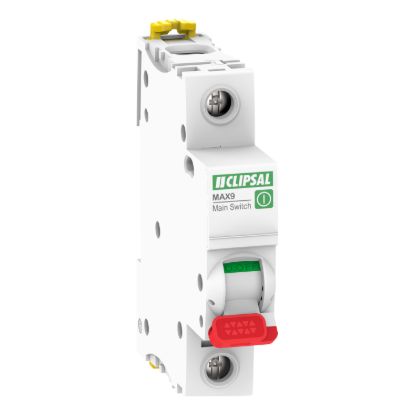

Picture of Isolator Switch, MAX9, 1P, 100A, 240V Picture of Isolator Switch, MAX9, 1P, 100A, 240V

Isolator Switch, MAX9, 1P, 100A, 240V

MX9MS1100
Isolator Switch, MAX9, 1P, 100A, 240V
$18.15 inc GST $26.14 inc GST

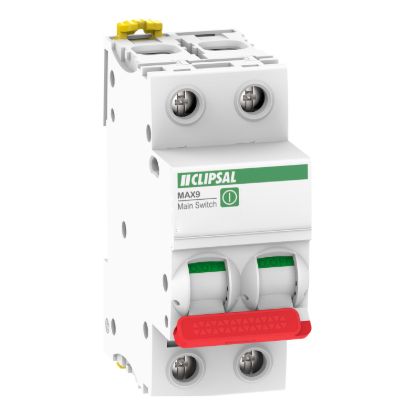

Picture of Isolator Switch, MAX9, 2P, 100A, 415V Picture of Isolator Switch, MAX9, 2P, 100A, 415V

Isolator Switch, MAX9, 2P, 100A, 415V

MX9MS2100
Isolator Switch, MAX9, 2P, 100A, 415V
$68.64 inc GST $98.84 inc GST

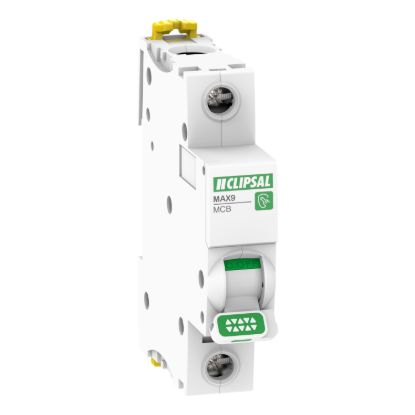

Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 32A, C Curve, 6000A, 240/415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 32A, C Curve, 6000A, 240/415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 1P, 32A, C Curve, 6000A, 240/415V, Distribution

MX9MC132
Miniature Circuit-Breaker (MCB), MAX9, 1P, 32A, C Curve, 6000A, 240/415V, Distribution
$8.36 inc GST $12.04 inc GST

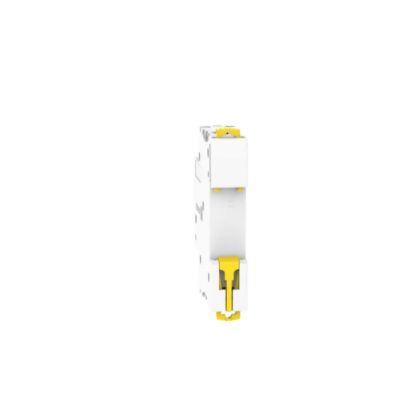

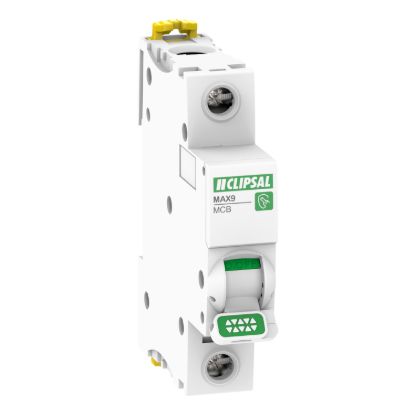

Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 40A, C Curve, 6000A, 240/415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 40A, C Curve, 6000A, 240/415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 1P, 40A, C Curve, 6000A, 240/415V, Distribution

MX9MC140
Miniature Circuit-Breaker (MCB), MAX9, 1P, 40A, C Curve, 6000A, 240/415V, Distribution
$10.29 inc GST $14.82 inc GST
Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 50A, C Curve, 6000A, 240/415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 50A, C Curve, 6000A, 240/415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 1P, 50A, C Curve, 6000A, 240/415V, Distribution

MX9MC150
Miniature Circuit-Breaker (MCB), MAX9, 1P, 50A, C Curve, 6000A, 240/415V, Distribution
$10.29 inc GST $14.82 inc GST
Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Distribution

MX9MC163
Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Distribution
$10.29 inc GST $14.82 inc GST

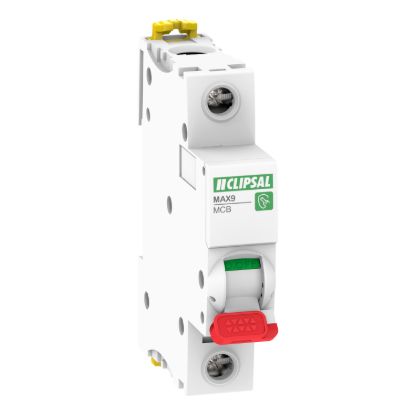

Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle Picture of Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle

Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle

MX9MC163R
Miniature Circuit-Breaker (MCB), MAX9, 1P, 63A, C Curve, 6000A, 240/415V, Incomer, RED Toggle
$10.29 inc GST $14.82 inc GST
Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 32A, C Curve, 6000A, 415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 32A, C Curve, 6000A, 415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 2P, 32A, C Curve, 6000A, 415V, Distribution

MX9MC232
Miniature Circuit-Breaker (MCB), MAX9, 2P, 32A, C Curve, 6000A, 415V, Distribution
$49.61 inc GST $71.44 inc GST
Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 40A, C Curve, 6000A, 415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 40A, C Curve, 6000A, 415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 2P, 40A, C Curve, 6000A, 415V, Distribution

MX9MC240
Miniature Circuit-Breaker (MCB), MAX9, 2P, 40A, C Curve, 6000A, 415V, Distribution
$53.35 inc GST $76.82 inc GST

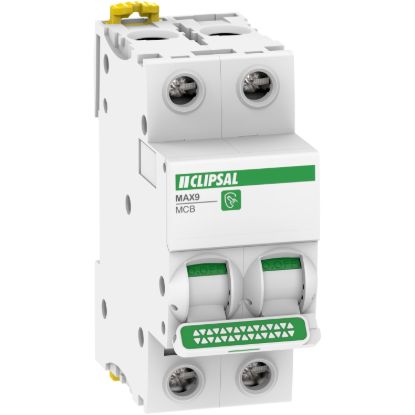

Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 50A, C Curve, 6000A, 415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 50A, C Curve, 6000A, 415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 2P, 50A, C Curve, 6000A, 415V, Distribution

MX9MC250
Miniature Circuit-Breaker (MCB), MAX9, 2P, 50A, C Curve, 6000A, 415V, Distribution
$53.35 inc GST $76.82 inc GST
Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Distribution Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Distribution

Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Distribution

MX9MC263
Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Distribution
$53.35 inc GST $76.82 inc GST

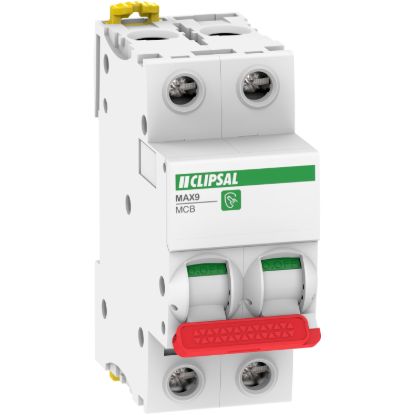

Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Incomer, RED Toggle Picture of Miniature Circuit-Breaker (MCB), MAX9, 2P, 63A, C Curve, 6000A, 415V, Incomer, RED Toggle
