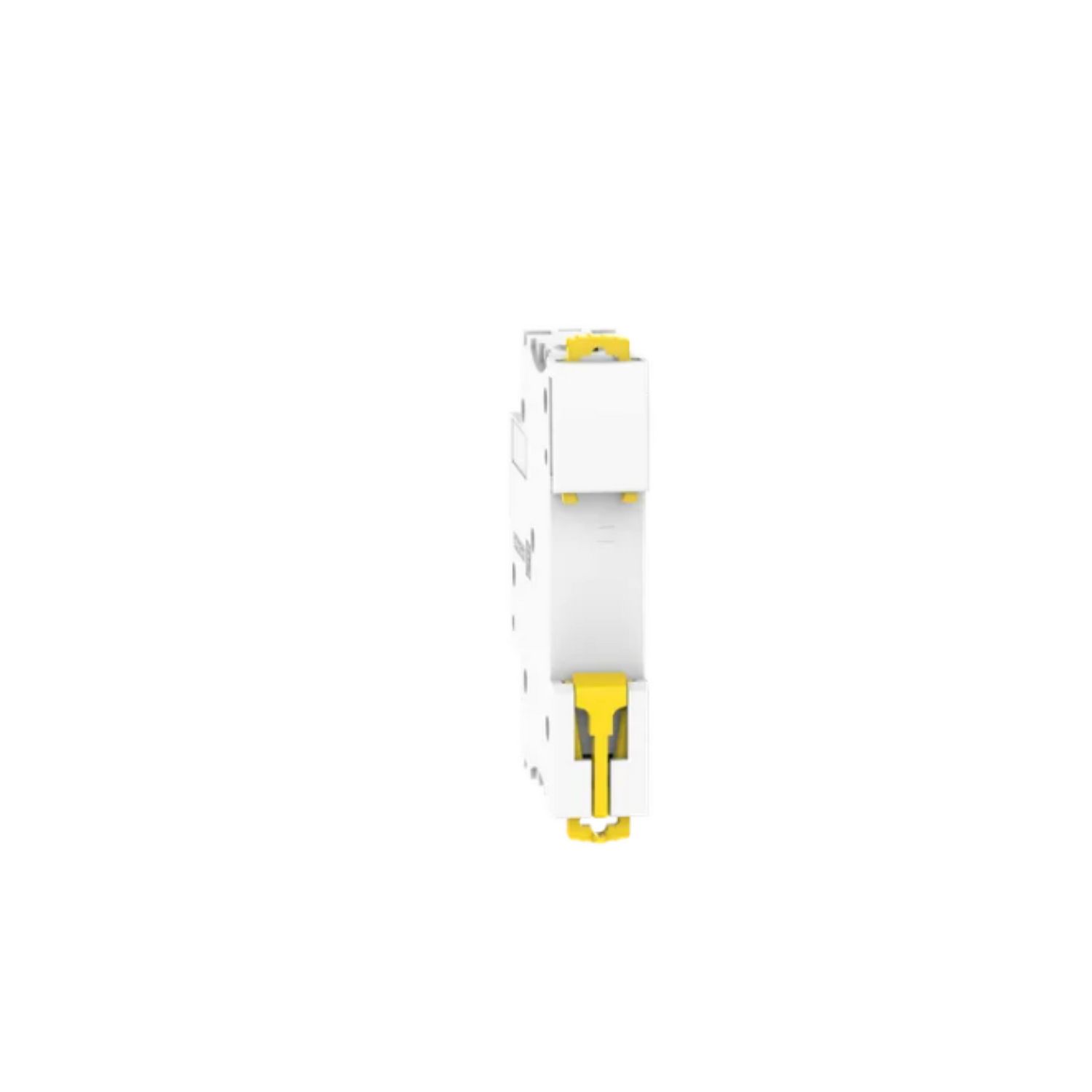

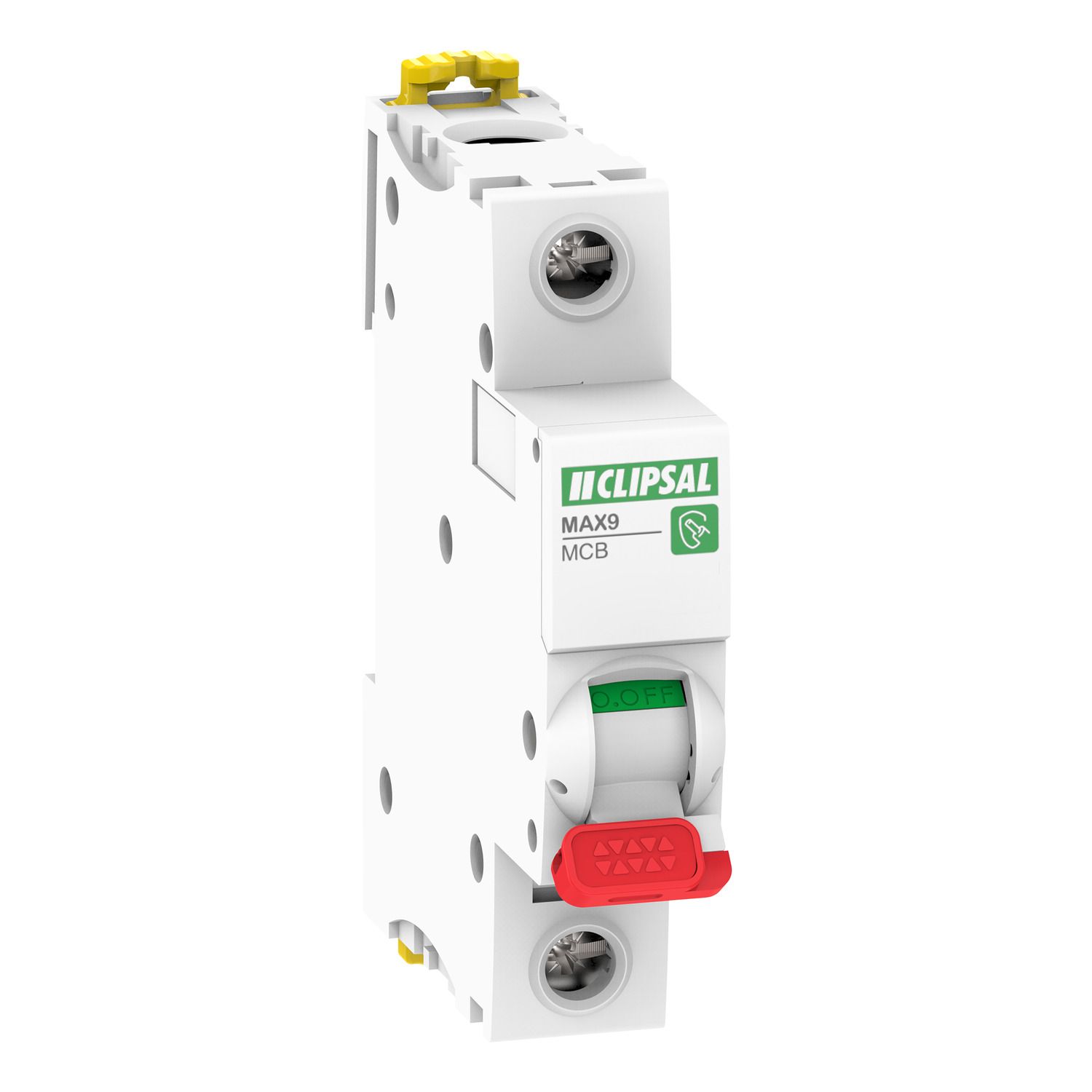

This MAX9 product is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole and 63A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 6000A at 240/415VAC conforming to AS/NZS 60898 standard. This product is compliant with AS/NZS 60898 standard. This miniature circuit breaker protects circuit against short circuit and overload current. The MAX9 is targeted to residential for individual and collective buildings. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240/415VAC. The Ui rated insulation voltage is 500VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 2 pitches of 9mm. The product colour is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 75mm. According to AS/NZS 60898 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25-70 °C. The storage temperature is -40-85 °C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Ue] rated operational voltage | 240/415 V AC 50/60 Hz |
| Device application | incomer |
| Colour | white (RAL 9003) |
| Poles description | 1P |
| Range | MAX9 |
| Product or component type | miniature circuit-breaker |
| Magnetic tripping limit | 5...10 x In |
| Network type | AC |
| Number of protected poles | 1 |
| Curve code | C |
| [In] rated current | 63 A at 30 °C |
| Network frequency | 50/60 Hz |
| Complementary | |
| Heat dissipation | 5.6-5.6 W |
| Tightening torque | 3.5-3.5 N.m |
| Depth | 75 mm |
| Provision for padlocking | padlockable |
| Width | 18 mm |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Local signalling | ON/OFF indication |
| Mechanical durability | 20000 cycles |
| Grid distance | 65 mm |
| Suitability for isolation | yes |
| Electrical durability | 10000 cycles 240 V |
| Breaking capacity | 6000 A Icn at 240 V AC 50/60 Hz conforming to AS/NZS 60898 |
| [Ui] rated insulation voltage | 500 V |
| Control type | toggle |
| Wire stripping length | 14 mm for top or bottom connection |
| Connections - terminals | tunnel type terminals (top or bottom) 1-35 mm² rigid, tunnel type terminals (top or bottom) 1-25 mm² flexible |
| Net weight | 125 g |
| Limitation class | 3 |
| 9 mm pitches | 2 |
| Embedding depth | 44 mm |
| Contact position indicator | yes |
| Height | 85 mm |
| [Ics] rated service breaking capacity | 6000 A 100 % - 240 V AC 50/60 Hz |
| Environment | |
| Operating altitude | 0...2000 m |
| Overvoltage category | III |
| Quality labels | RCM |
| Relative humidity | 95-95 % at 55-55 °C |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| IP degree of protection | IP20 |
| Temperature derating table | 70 °C ( 51.1 A ) , 65 °C ( 52.8 A ) , 60 °C ( 54.3 A ) , 55 °C ( 55.9 A ) , 50 °C ( 57.4 A ) , 45 °C ( 58.8 A ) , 40 °C ( 60.3 A ) , 35 °C ( 61.6 A ) , 30 °C ( 63 A ) , 25 °C ( 64.3 A ) , 20 °C ( 65.5 A ) , 15 °C ( 66.9 A ) , 10 °C ( 68.2 A ) , 5 °C ( 69.4 A ) , 0 °C ( 70.6 A ) , -5 °C ( 71.8 A ) , -10 °C ( 73 A ) , -15 °C ( 74.1 A ) , -20 °C ( 75.3 A ) , -25 °C ( 76.4 A ) |
| Tropicalisation | severity B conforming to IEC 60068-2-30 |
| Ambient air temperature for operation | -25-70 °C |
Only registered users can write reviews
Related products

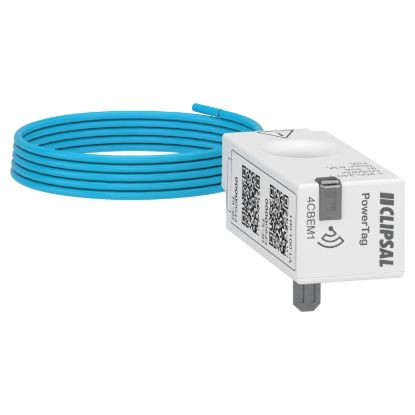

Energy sensor Wiser Energy Monoconnect 63A 1P+Wire top and bottom, PowerTag, 63A 1P+Wire top and bottom
