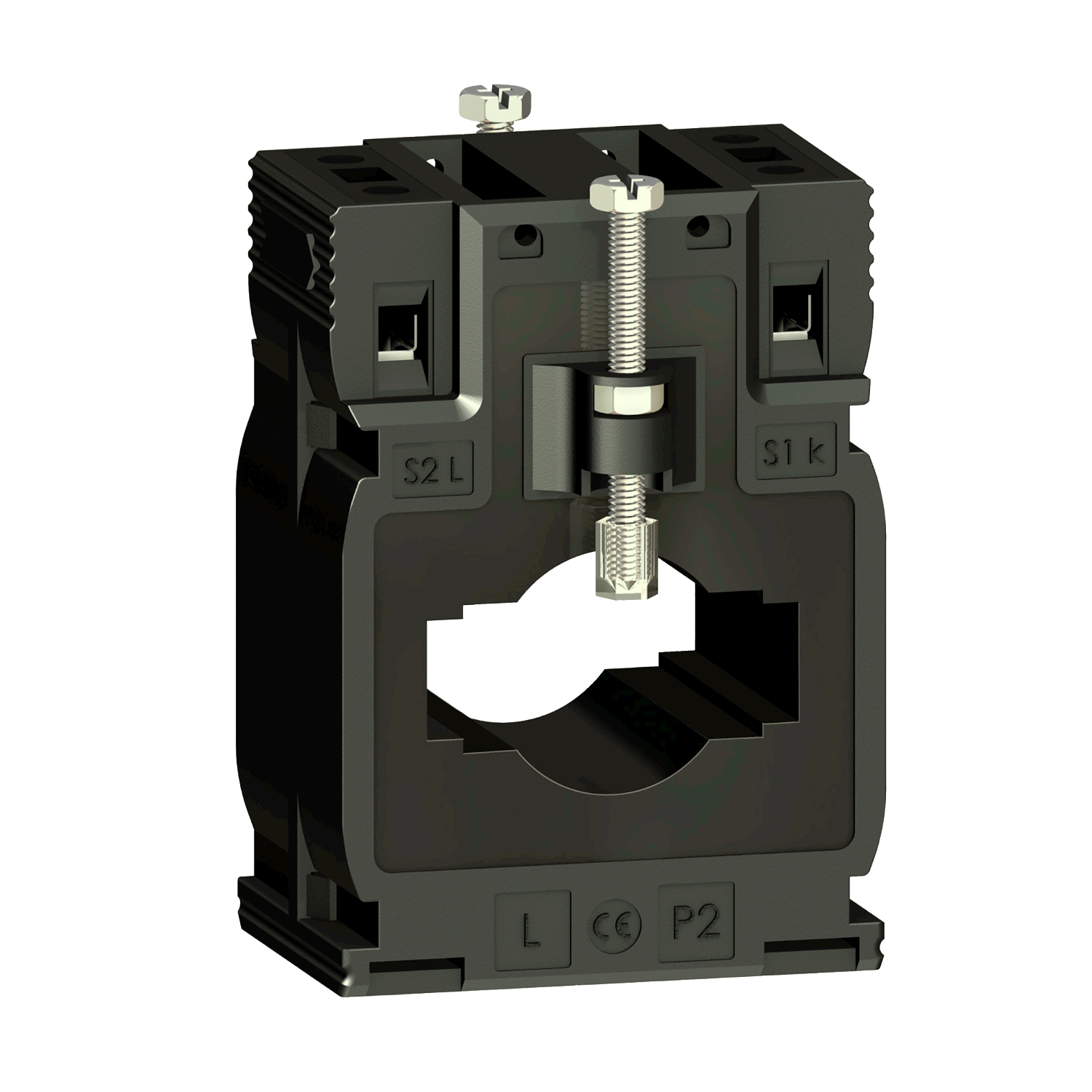

Current transformer tropicalised, PowerLogic, DIN mount 300 5 cables d. 26 - bars 12x40 15x32

Manufacturer: Schneider Electric

SKU: METSECT5MB030

GTIN: 3606480618796

Catalog

Instruction sheet

Environmental Disclosure

Circularity Profile

Declaration of conformity

Old price: $97.46 inc GST

Price: $70.41 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This current transformer, tropicalised for busbar and cable, has a line rated current of 300 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 26 mm. Compatible with a double output for bar: 40.5 mm x 12.5 mm or 32.5 mm x 15.5 mm. Burden and accuracy class as follows: class 0.5 maximum power: 4 VA, class 1 maximum power: 6 VA.

Products specifications

Attribute name	Attribute value
Main
Accuracy class	class 1 at 6 VA, class 0.5 at 4 VA
[In] rated current	300 A
Range	PowerLogic
Product name	CT
Product or component type	current transformer
Range of product	PowerLogic CT
Secondary current	5 A
Complementary
Diameter	26 mm
[Uimp] rated impulse withstand voltage	3 kV
Current transformer type	tropicalised for busbar and cable
Compatibility code	MB
Height	85 mm outside:
Width	60 mm outside:
Current transformer ratio	300/5
Mounting mode	insulated locking screw, by screws, clip-on
Dynamic withstand current	2.5 Ith
Electrical insulation class	class B
Opening of bars	40.5 x 12.5, 32.5 x 15.5
Sealing	without
Depth	63 mm total: , 43 mm frame:
Net weight	0.323 kg
[Ith] conventional free air thermal current	18 kA
Cable outer diameter	26 mm
[Ui] rated insulation voltage	3 kV
Mounting support	mounting plate, DIN rail, busbar
Maximum safety factor	5
[Ue] rated operational voltage	< 720 V AC 50/60 Hz
Environment
Relative humidity	0-95 %
IP degree of protection	IP20
Standards	VDE 0414, IEC 61869-2
Ambient air temperature for operation	-25-60 °C
Product certifications	CE
