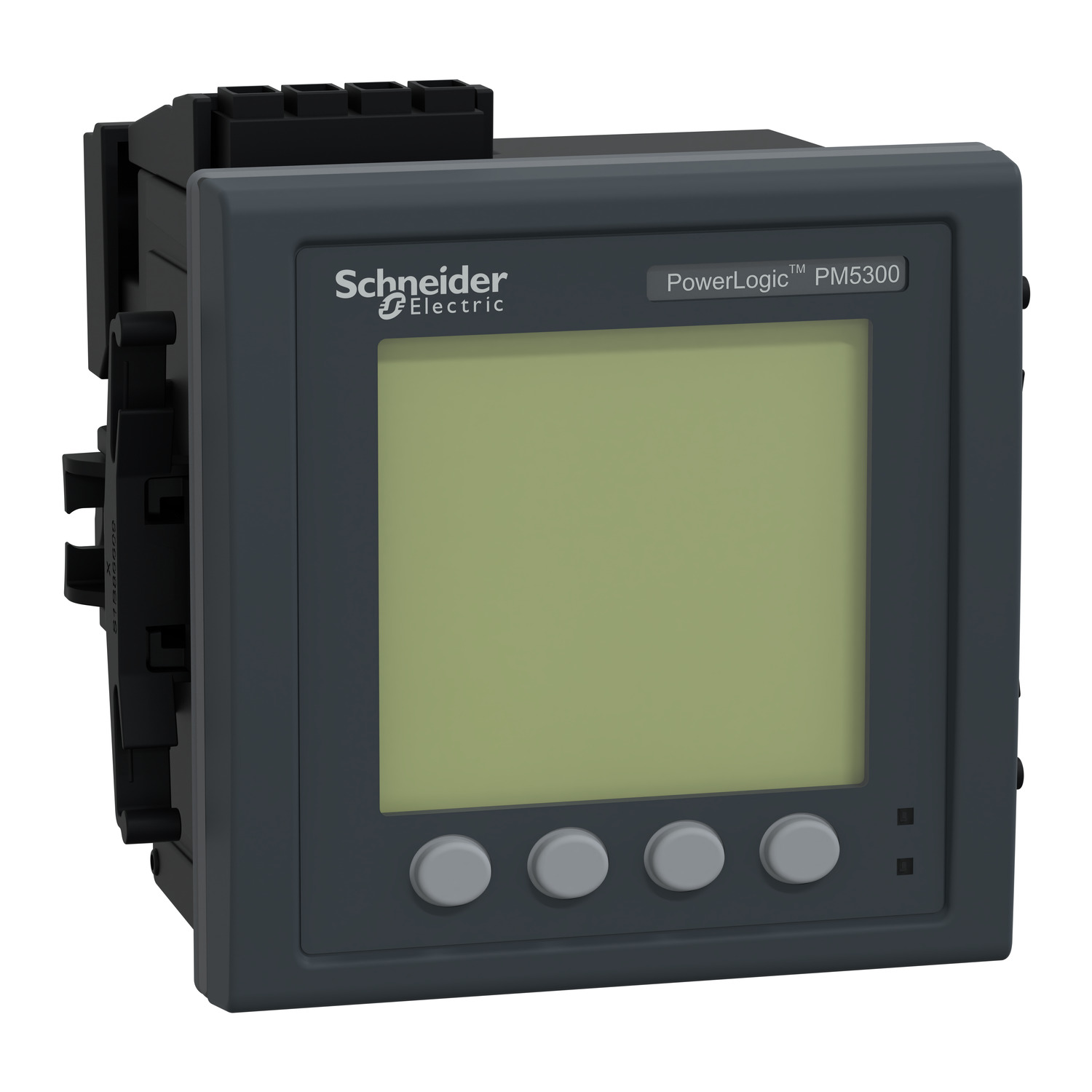

This device is a flush-mount energy meter with a 96mm by 96mm backlit LCD display. The meter provides Class 0.5S accuracy per IEC 62053-22 standard and 64 samples per cycle. The meter will measure Energy, Active and Reactive Power, Voltage, Current, Frequency, Power Factor and up to the 31st Harmonic. Include 256 kiloBytes of memory for two fixed parameters, active and reactive energy. The meter will function in a 50Hz or 60Hz network and accepts supply voltage ranging from 100 to 415 VAC and 125 to 250 VDC. Line rated current for this meter is 1A or 5A input and will support Single Phase and Neutral, Three Phase, or Three Phase and Neutral configurations. The range of measurement voltage between Phases is 35 to 690 VAC at 47 to 63 Hz. Measurement range between Phase and Neutral is 20 to 400VAC at 47 to 63 Hz. Communication protocol are Modbus TCP/IP and BACnet/IP based on 10/100 Mbit/s, Ethernet with RJ45 port support. The meter also has two digital inputs or digital outputs, configurable. There are 35 configurable alarms and it supports four tariff schedules. Product dimensions are as follows: width 3.78 inches (96 millimetres), depth 2.83 inches (72 millimetres), height 3.78 inches (96 millimetres) and product weight 15.2 onces (430 g).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | PM5320 |
| Range | PowerLogic |
| Market segment | industry network management: sub feeder, healthcare network management: sub feeder, data center network management: sub feeder, buildings multi-site network management: sub feeder, buildings large building network management: sub feeder, buildings medium building network management: sub feeder, buildings medium building network management: main incomer, buildings small building network management: sub feeder, buildings small building network management: main incomer, industry cost management: cost allocation: sub feeder, industry cost management: cost allocation: main incomer, healthcare cost management: cost allocation: sub feeder, healthcare cost management: cost allocation: main incomer, data center cost management: cost allocation: sub feeder, data center cost management: cost allocation: main incomer, buildings multi-site cost management: cost allocation: sub feeder, buildings multi-site cost management: cost allocation: main incomer, buildings large building cost management: cost allocation: sub feeder, buildings large building cost management: cost allocation: main incomer, buildings medium building cost management: cost allocation: sub feeder, buildings medium building cost management: cost allocation: main incomer, buildings small building cost management: cost allocation: sub feeder, buildings small building cost management: cost allocation: main incomer, industry cost management: billing: sub feeder, industry cost management: billing: main incomer, healthcare cost management: billing: sub feeder, healthcare cost management: billing: main incomer, data center cost management: billing: sub feeder, data center cost management: billing: main incomer, buildings multi-site cost management: billing: sub feeder, buildings multi-site cost management: billing: main incomer, buildings large building cost management: billing: sub feeder, buildings large building cost management: billing: main incomer, buildings medium building cost management: billing: sub feeder, buildings medium building cost management: billing: main incomer, buildings small building cost management: billing: sub feeder, buildings small building cost management: billing: main incomer |
| Product name | PowerLogic PM5000 |
| Product or component type | power meter |
| Complementary | |
| Device application | power monitoring, multi-tariff |
| Display type | monochrome graphic LCD |
| Measurement accuracy | reactive power +/- 2 %, apparent energy +/- 0.5 %, voltage +/- 0.5 %, current +/- 0.5 %, power factor +/- 0.5, frequency +/- 0.05 %, apparent power +/- 0.5 %, active power +/- 0.5 %, reactive energy +/- 2 %, active energy +/- 0.5 % |
| Mounting mode | flush-mounted |
| [Us] rated supply voltage | 100...300 V DC, 90...450 V AC 45...65 Hz |
| Information displayed | tariff (4) |
| Depth | 72 mm |
| Frequency measurement range | 45-65 Hz |
| Communication port protocol | BACnet IP, Modbus TCP/IP at 10/100 Mbit/s, insulation 2500 V |
| Type of measurement | active and reactive power, energy, power factor, frequency, voltage, current |
| Product certifications | cULus conforming to UL 61010-1, CE conforming to IEC 61010-1 |
| Standards | IEC 62052-31:2015, IEC 62052-11:2020, IEC 62053-23:2020, IEC 62053-24, EN 50470-3, UL 61010-1, IEC 61557-12:2015, IEC 60529, EN 50470-1, IEC 62053-22:2020 |
| Memory capacity | 256 kB |
| Height | 96 mm |
| Power quality analysis | up to the 31st harmonic |
| Communication port support | ETHERNET |
| Maximum power consumption in VA | 11 VA at 415 V |
| Accuracy class | class 0.5S active energy conforming to IEC 62053-22 |
| Width | 96 mm |
| Analogue input type | current (impedance <= 0.3 mOhm), voltage (impedance 5 MOhm) |
| [In] rated current | 5 A, 1 A |
| Data recording | data logs, time stamping, event logs, min/max of instantaneous values, alarm logs, maintenance logs |
| Poles description | 3P, 3P + N, 1P + N |
| Mounting support | framework |
| Connections - terminals | Ethernet network: RJ45 connector, relay output: screw terminal block4 , input/output circuit: screw terminal block6 , current transformer: screw terminal block6 , control circuit: screw terminal block2 , voltage circuit: screw terminal block4 |
| Measurement current | 5-8500 mA |
| Net weight | 430 g |
| Number of inputs | 2 digital |
| Display resolution | 128 x 128 pixels |
| Ride-through time | 50 ms 125 V DC typical, 100 ms 415 V AC typical, 100 ms 230 V AC typical, 80 ms 120 V AC typical |
| Number of outputs | 2 digital |
| Sampling rate | 64 samples/cycle |
| Measurement voltage | 20-440 V AC 45...65 Hz between phase and neutral, 35-760 V AC 45...65 Hz between phases |
| Network frequency | 60 Hz, 50 Hz |
| Environment | |
| Compatibility code | PM5320 |
| IP degree of protection | IP30 rear: conforming to IEC 60529, IP54 display: conforming to IEC 60529 |
| Relative humidity | 5-95 % at 50-50 °C non-condensing |
| Ambient air temperature for storage | -40-85 °C |
| Pollution degree | 2 |
| Electromagnetic compatibility | radiated radio-frequency electromagnetic field immunity test class B conforming to IEC 61000-4-3, limitation of voltage changes, voltage fluctuations and flicker in low-voltage level 4 conforming to IEC 61000-3-3, conducted and radiated emissions class B conforming to EN 55022, magnetic field at power frequency level 4 conforming to IEC 61000-4-8, conducted RF disturbances level 3 conforming to IEC 61000-4-6, limits for harmonic current emissions class A conforming to IEC 61000-3-2, voltage dips and interruptions immunity test class A conforming to IEC 61000-4-11, surge immunity test level 4 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrostatic discharge - test level: 8 kV level 4 conforming to IEC 61000-4-2, limitation of voltage changes, voltage fluctuations and flicker in low-voltage class A conforming to IEC 61000-3-3 |
| Ambient air temperature for operation | -25--20 °C (with reduced performance) display, -20-70 °C display, -25-70 °C meter |
| Operating altitude | 3000 m CAT II, 2000 m CAT III |
